Hammond 1590WAF 93x39x31 mm IP65 Watertight Flanged Box, Natural
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Water-tight, designed to meet IP65; silicone gasket included
- Welded flanged bottom plate for surface mounting
- Compact 93 x 39 x 31 mm; 121.16 mm overall across the flange
- PC boards up to 86.8 x 32.7 mm; inside 87.80 x 33.70 x 27.40 mm
- Natural aluminum, vibra finished with no sharp edges
- Gasket supplied loose, rated -40°C to 150°C
- Includes lid and 4 cover screws (6-32 UNC)

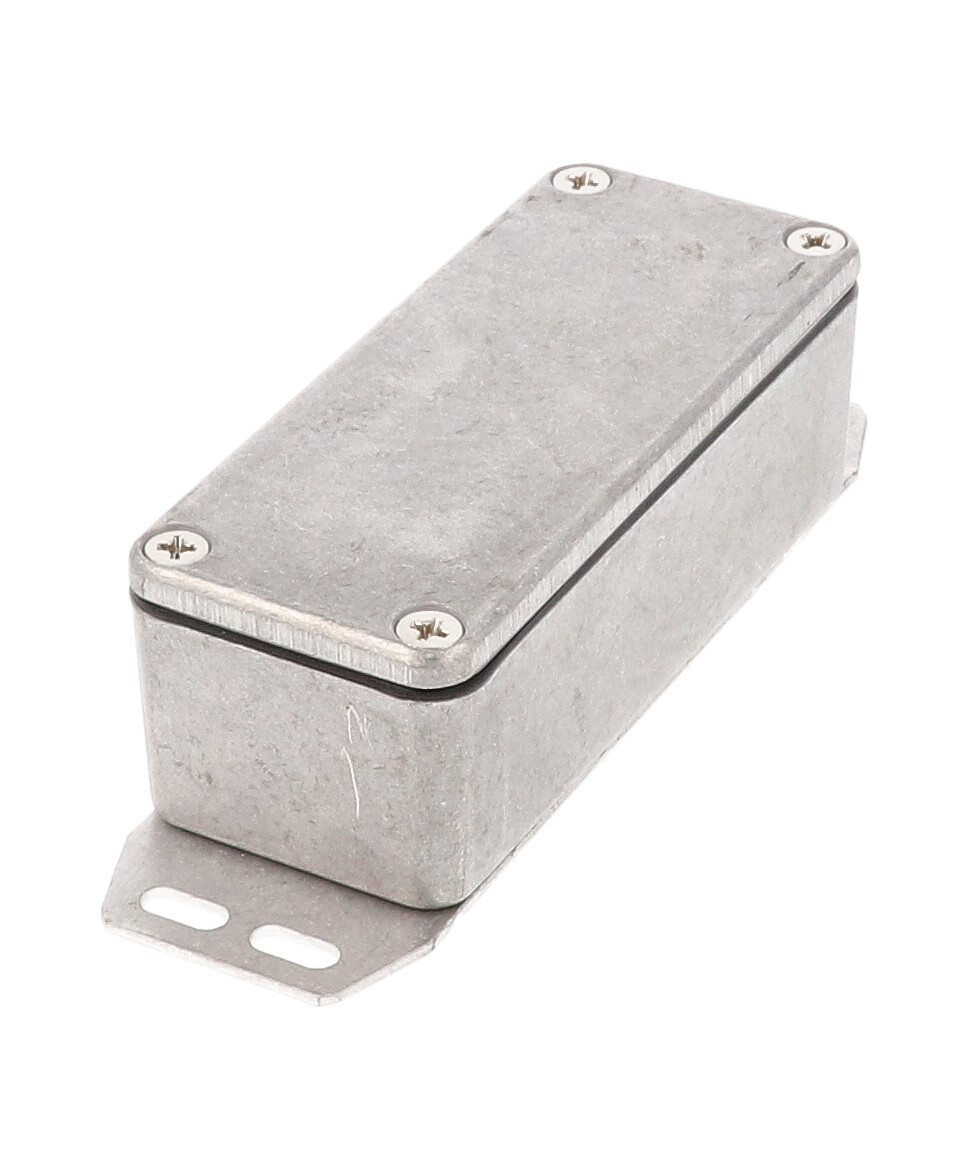

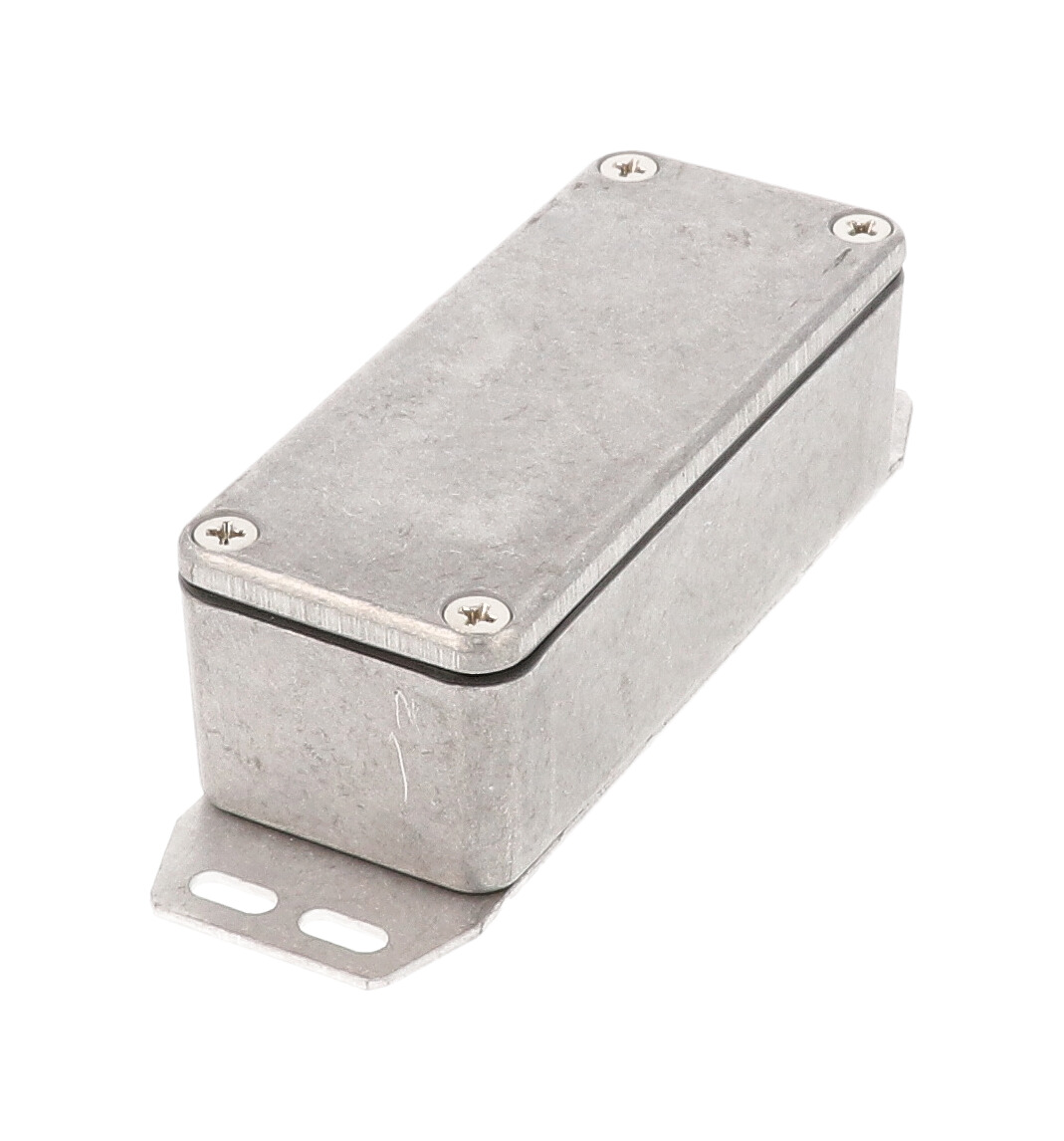

The 1590WAF combines the water-tight 1590A diecast aluminum enclosure with a flanged bottom plate, finished in natural aluminum. Designed to meet IP65, it gives integrators and OEM engineers a compact, sealed metal box that screws directly to a wall, panel or machine frame.
Box and lid are diecast aluminum alloy and the bottom flange is welded to the box. The unpainted natural aluminum version is vibra finished for a smooth surface with no sharp edges. A silicone gasket is included, supplied loose inside the enclosure rather than pre-installed, and is rated for -40°C to 150°C (-40°F to 302°F).

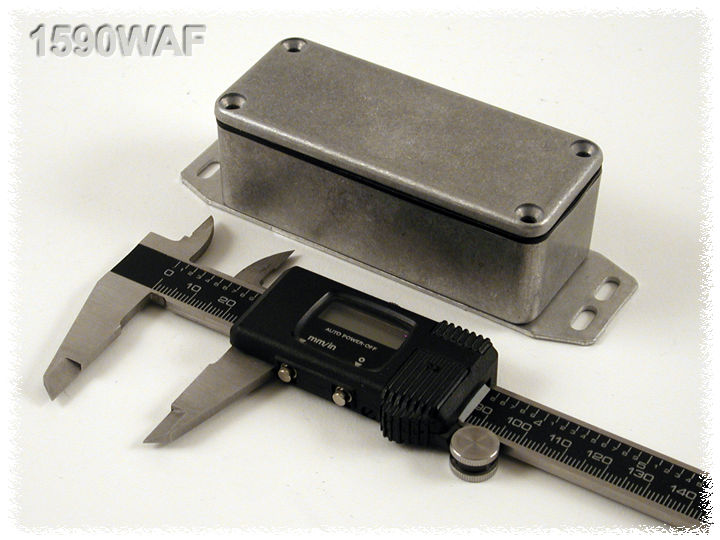

The listed size is 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm), with a nominal 3.66 in x 1.54 in x 1.22 in in the ordering table. The drawing gives an overall length of 121.16 mm [4.770 in] across the flange and an overall height of 32.50 mm [1.280 in]. Inside, the box is 87.80 mm x 33.70 mm x 27.40 mm, taking PC boards up to 86.8 mm x 32.7 mm.

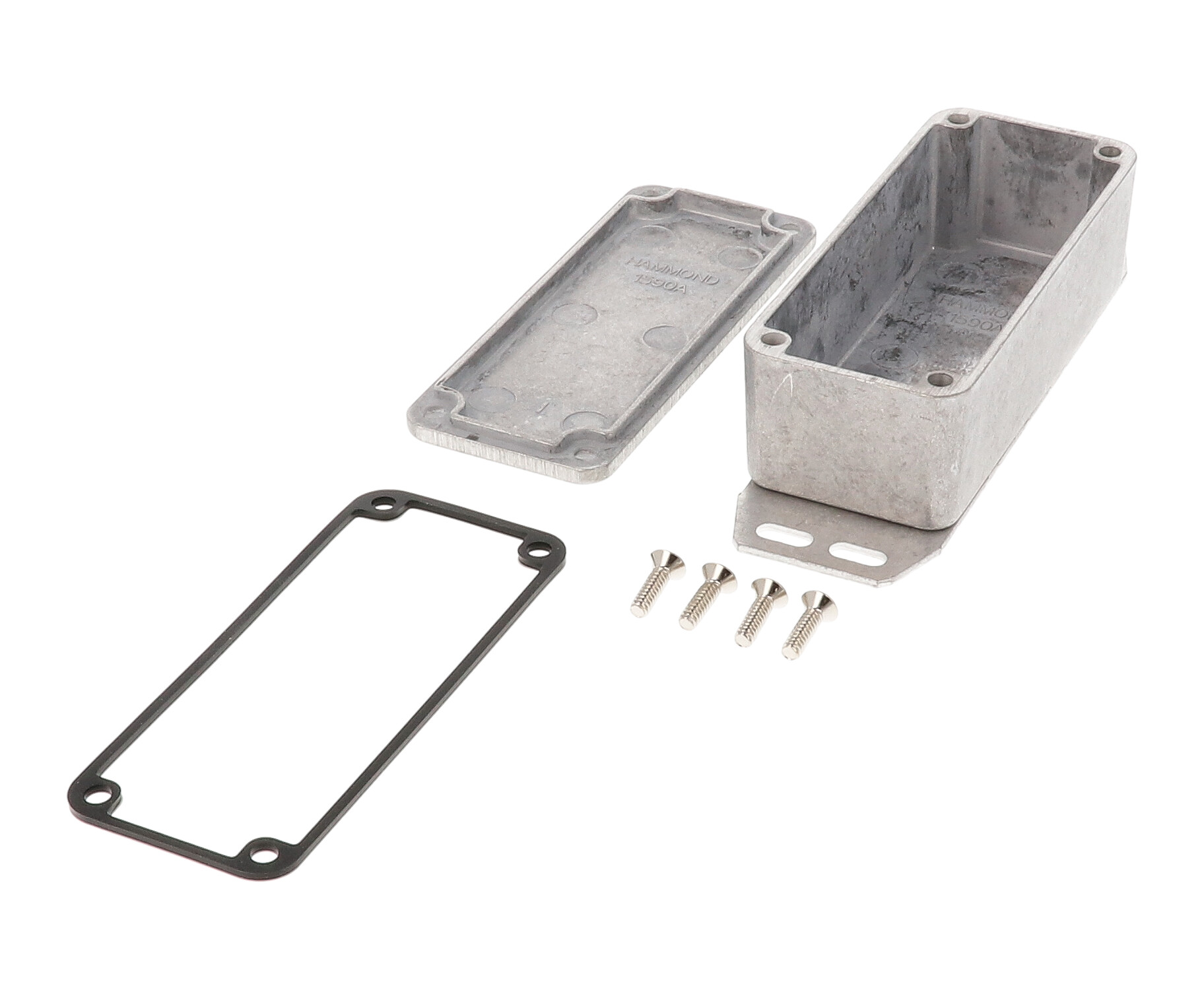

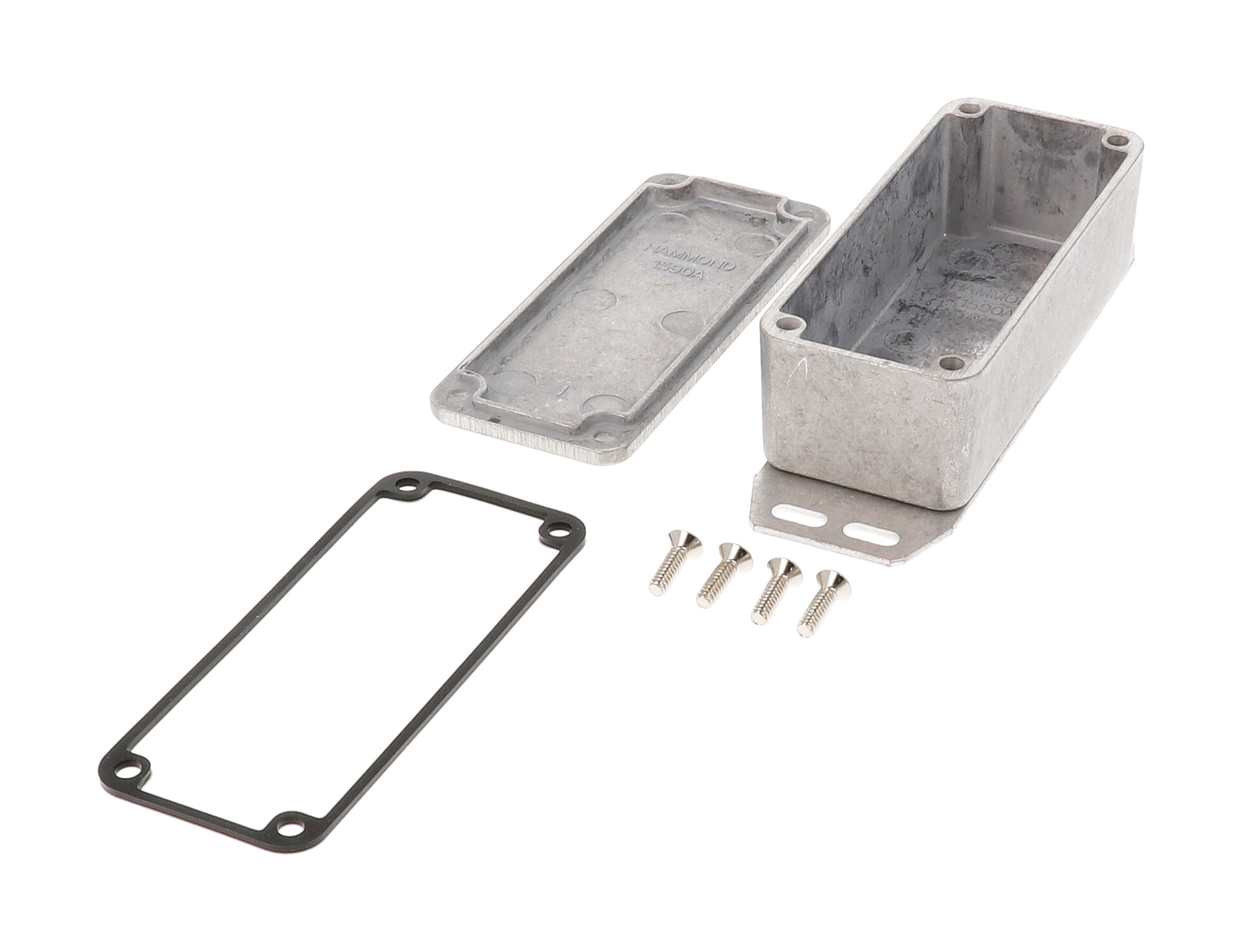

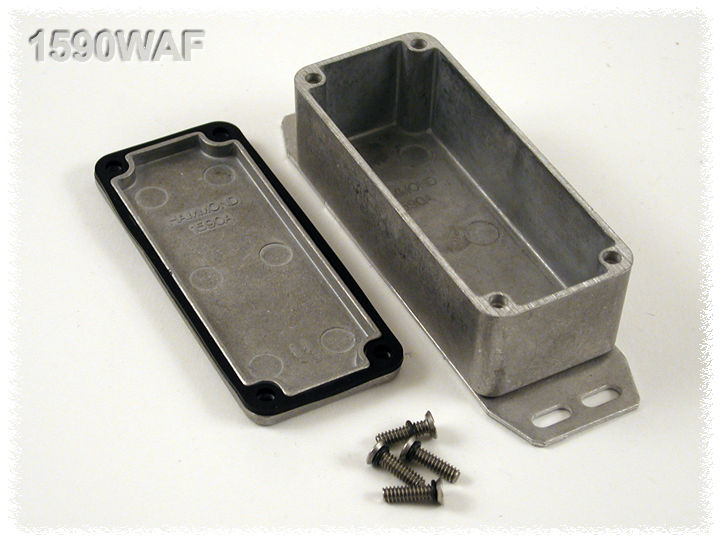

Included are the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes; the recommended torque with gasket is 25-30 cN.m [36-43 ozf.in]. The 1590AGASKET kit supplies replacement gaskets, and watertight stainless steel screws with O-ring come as 1590WMS100 and 1590WMS100BK. The 1590WAF is RoHS and REACH compliant, ships in shrink wrap and weighs 0.21 lbs (0.10 kg).
Ideal For
- Surface-mounted sealed electronics enclosures
- Compact sensor housings exposed to dust or water
- Machine or panel mounted interface boards
- Small waterproof control boxes
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Product Description | enclosure - watertight diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590A WATERPROOF FLANGED BOX |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 33.70 mm [1.327 in] |
| Inside Height | 27.40 mm [1.079 in] |
| Inside Length | 87.80 mm [3.457 in] |
| Size L X W X H | 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 32.50 mm [1.280 in] |
| Max. P.C. Board Width (Mm) | 86.8 |
| Max. P.C. Board Length (Mm) | 32.7 |
| Nominal Size (Series Ordering Table) | 3.66 in (93 mm) x 1.54 in (39 mm) x 1.22 in (31 mm) |
| Overall Length Including Flange (Drawing) | 121.16 mm [4.770 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980677088 |
| UNSPSC | 39121301 |
| Part Number | 1590WAF |
Related Parts
| Standard Version, No Flanges | 1590A |
| Standard Version, Flanged Lid | 1590AFL |
| Optional Replacement Gasket Kit | 1590AGASKET |
| Water-Tight Version, No Flanges | 1590WA |
| Water-Tight Version, Flanged Lid | 1590WAFL |
| Standard Version, Flanged Bottom Plate | 1590AF |
| Water-Tight Version, Flanged Bottom Plate | 1590WAF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid and 4 cover screws plus silicone gasket (supplied loose, not pre-installed) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| Gasket | Silicone gasket supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590WAF waterproof?▾
It is the water-tight version, designed to meet IP65, and a silicone gasket is included (supplied loose, not pre-installed).
How is the 1590WAF mounted?▾
Through its flanged bottom plate, which is welded to the box. Overall length across the flange is 121.16 mm [4.770 in].
What are the inside dimensions?▾
The inside box measures 87.80 mm x 33.70 mm x 27.40 mm [3.457 x 1.327 x 1.079 in]. Maximum PC board size is 86.8 mm x 32.7 mm.
What screw torque is recommended?▾
25-30 cN.m [36-43 ozf.in] with the gasket installed.
Which replacement gasket fits?▾
The listed optional replacement gasket kit is 1590AGASKET.
