Hammond 1590VFLBK 119x120x94 mm Black Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Deep box: 88.70 mm inside height, 93.80 mm overall height
- Size 119 x 120 x 94 mm; 150.00 mm across the flanged lid
- PC boards up to 110.21 x 110.21 mm; inside 110.56 mm square
- Designed to meet IP54 with lap joint lid construction
- Textured black powder-paint finish with black screws
- 4 cover screws included for 6-32 UNC tapped holes

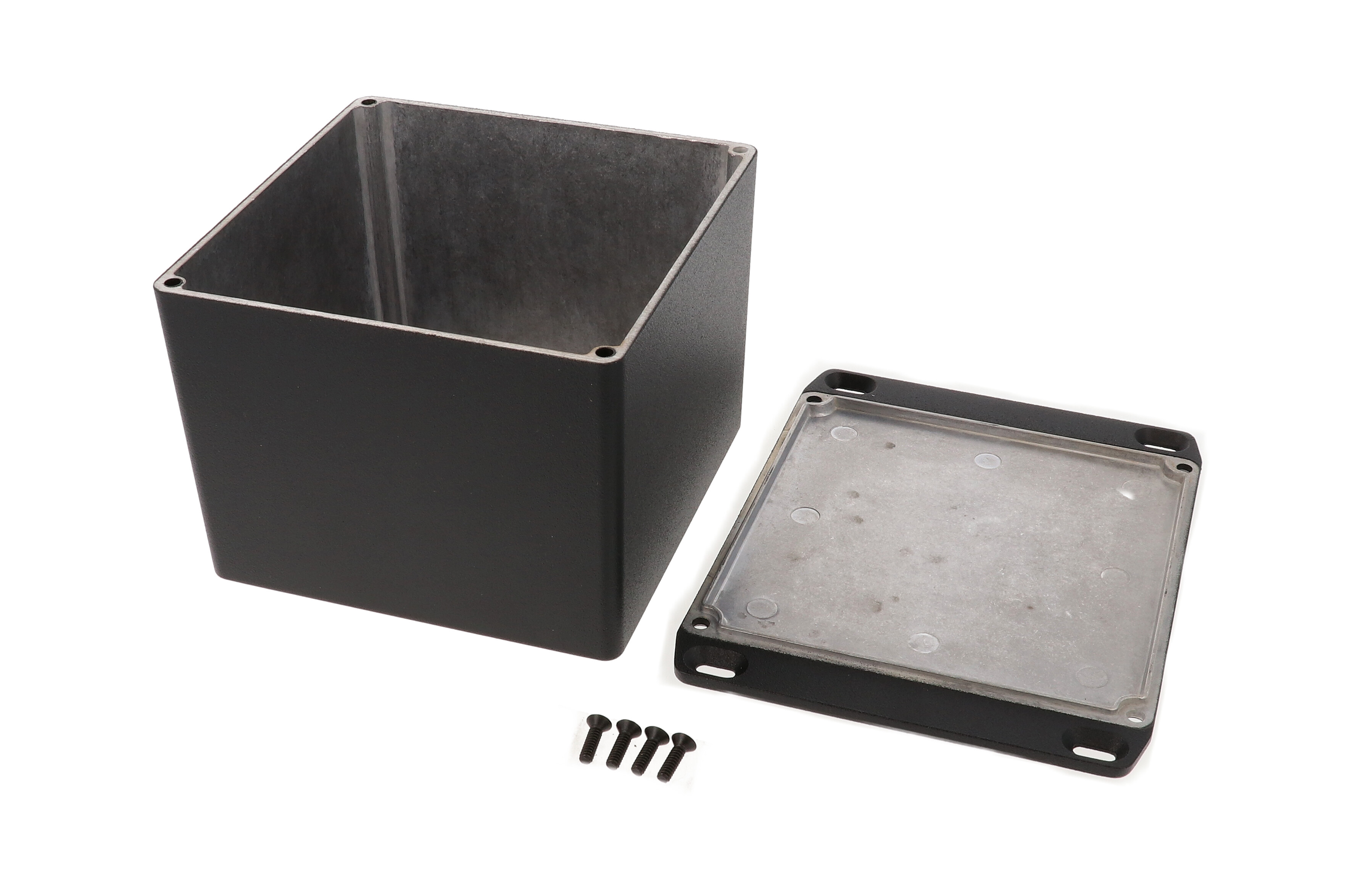

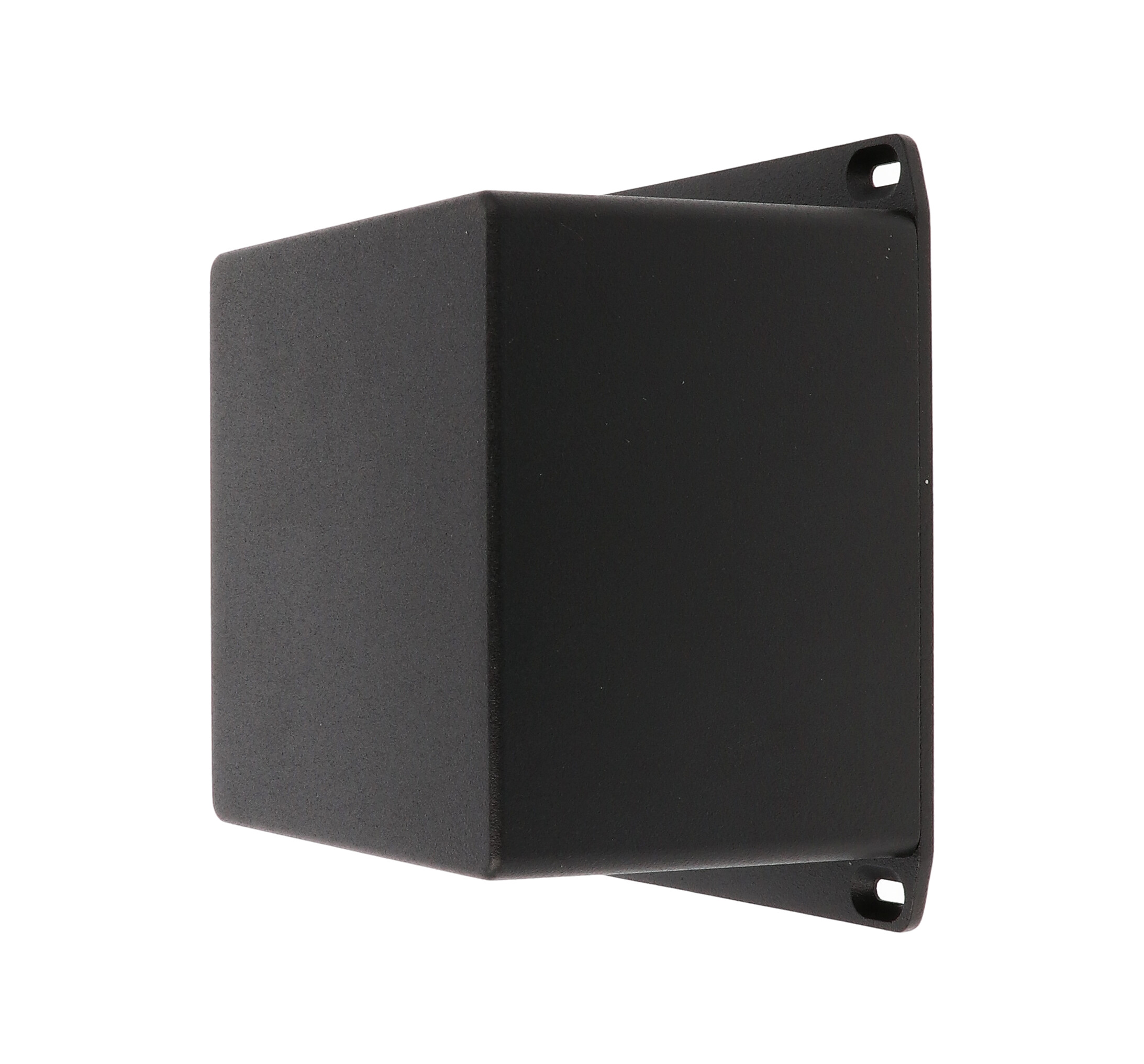

The 1590VFLBK is the deep 1590V diecast aluminum enclosure in textured black with the wall-mounting flange integrated into the lid. Mount the lid flat to a wall or panel and close the box onto it, a layout that suits installers and OEM engineers housing taller electronics on a vertical surface.
The box and lid are diecast aluminum alloy, tough yet easy to machine. The textured black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.
- Listed size: 4.7 in x 4.72 in x 3.69 in (119 mm x 120 mm x 94 mm); nominal 4.72 in x 4.72 in x 3.70 in (120 x 120 x 94 mm)
- Overall length across the flanged lid: 150.00 mm [5.906 in]; overall height 93.80 mm [3.693 in]
- Inside box: 110.56 mm x 110.56 mm x 88.70 mm
- Maximum PC board: 110.21 mm x 110.21 mm
Four cover screws thread into factory-tapped 6-32 UNC holes, torqued to 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket fitted. The water-tight 1590WVFLBK and the 1590QGASKET kit are listed for IP65 builds. The 1590VFLBK is RoHS and REACH compliant; shipping weight 1.1 lbs (0.50 kg).
Ideal For
- Wall-mounted deep electronics enclosures
- Panel-mounted housings for tall components
- Control and interface boxes on vertical surfaces
- Custom machined instrument cases
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590V FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 110.56 mm [4.353 in] |
| Inside Height | 88.70 mm [3.492 in] |
| Inside Length | 110.56 mm [4.353 in] |
| Size L X W X H | 4.7 in x 4.72 in x 3.69 in (119 mm x 120 mm x 94 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 93.80 mm [3.693 in] |
| Max. P.C. Board Width (Mm) | 110.21 |
| Max. P.C. Board Length (Mm) | 110.21 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 3.70 in (94 mm) |
| Overall Length Including Flange (Drawing) | 150.00 mm [5.906 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980676449 |
| UNSPSC | 39121301 |
| Part Number | 1590VFLBK |
Related Parts
| Standard Version, No Flanges | 1590VBK |
| Standard Version, Flanged Lid | 1590VFLBK |
| Optional Replacement Gasket Kit | 1590QGASKET |
| Water-Tight Version, No Flanges | 1590WVBK |
| Water-Tight Version, Flanged Lid | 1590WVFLBK |
| Standard Version, Flanged Bottom Plate | 1590VFBK |
| Water-Tight Version, Flanged Bottom Plate | 1590WVFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590VFLBK?▾
The flange is integrated into the lid, giving 150.00 mm [5.906 in] overall length across the lid.
What are the inside dimensions of the 1590VFLBK?▾
Inside it measures 110.56 mm x 110.56 mm x 88.70 mm [4.353 x 4.353 x 3.492 in]. Maximum PC board size is 110.21 mm x 110.21 mm.
How well is it protected against dust and water?▾
The standard 1590VFLBK is designed to meet IP54 (dust and splashing water). The water-tight 1590WVFLBK is designed to meet IP65.
What is included?▾
The box, lid and 4 cover screws. Recommended torque is 50-55 cN.m [71-78 ozf.in].
Can I get CAD models?▾
Yes, the drawing notes solid models of this enclosure are available in STEP or IGES.
