Hammond 1590UFLBK 120x120x59 mm Black Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Nominal 120 x 120 x 59 mm; 150.00 mm overall across the lid flange
- PC boards up to 111.74 x 111.74 mm; inside 112.65 x 112.65 x 53.60 mm
- Designed to meet IP54; lap joint construction
- Textured black polyester powder paint, black screws
- Low side wall draft angle (2° or less) for PC board mounting
- Includes 4 cover screws for factory-tapped 6-32 UNC holes

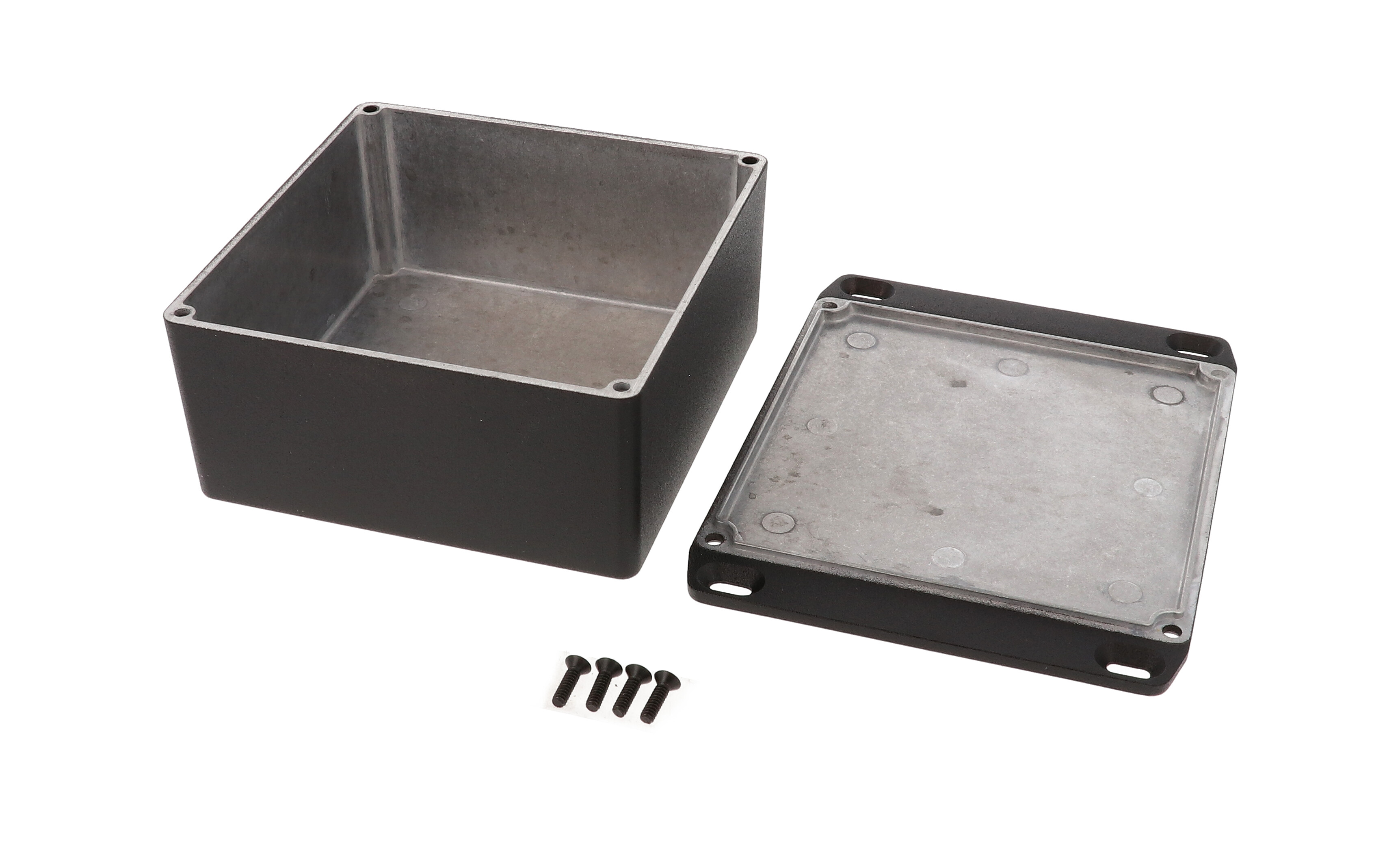

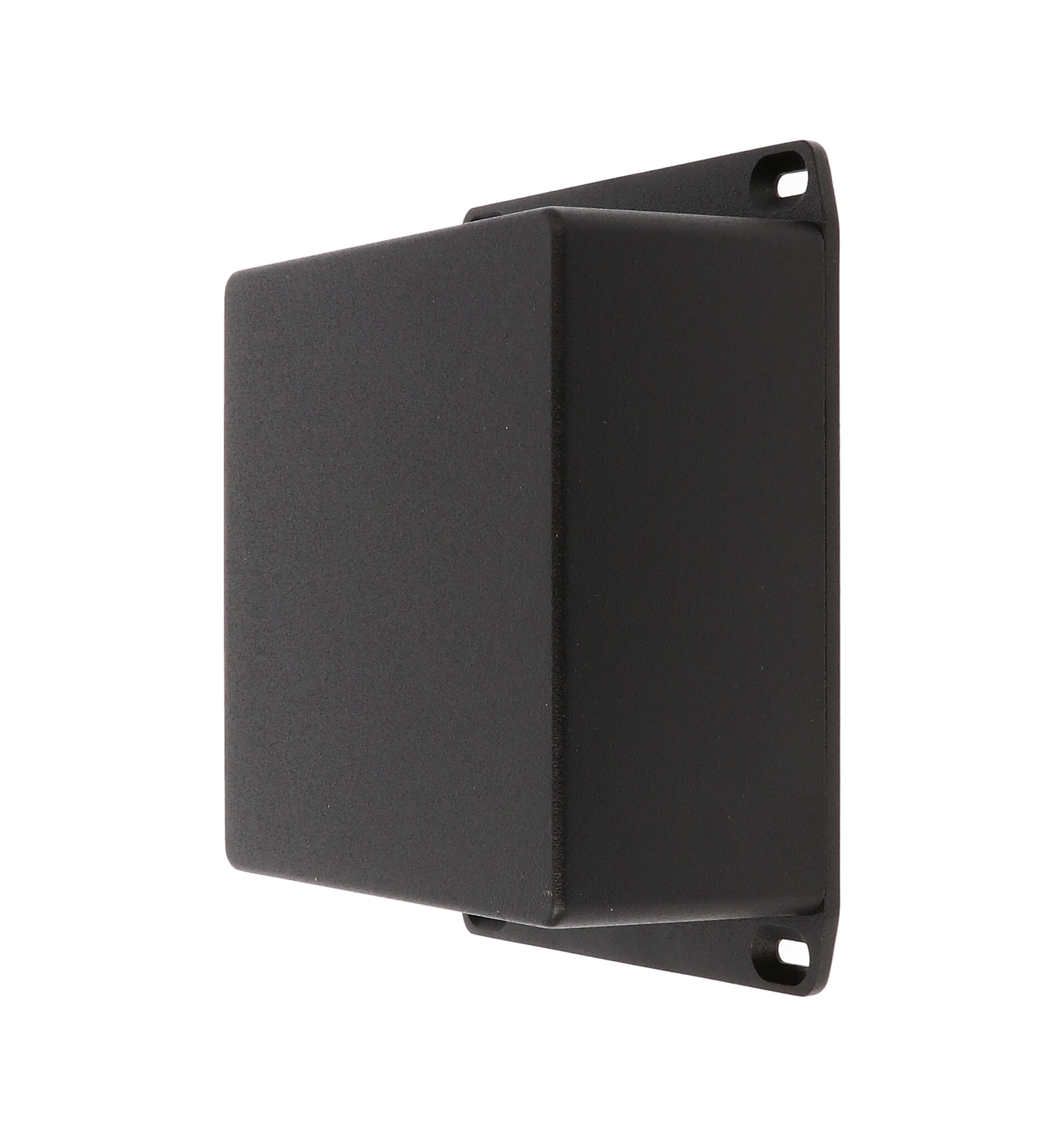

The 1590UFLBK is the 1590U square diecast aluminum enclosure with a wall-mounting flange integrated into the lid, finished in textured black. The lid mounts to the wall or panel and the box closes onto it, which suits installers and OEM engineers fitting electronics to a flat surface.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The textured black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet provides protection against dust and splashing water, and the standard version is designed to meet IP54.
- Nominal size: 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm)
- Overall length across the flanged lid: 150.00 mm [5.906 in]; overall height 58.60 mm [2.307 in]
- Inside box: 112.65 mm x 112.65 mm x 53.60 mm
- Maximum PC board: 111.74 mm x 111.74 mm
Four cover screws are included and thread into factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. For IP65, the water-tight 1590WUFLBK is listed, along with the 1590QGASKET replacement kit. The 1590UFLBK is RoHS and REACH compliant, packed in shrink wrap, shipping weight 0.91 lbs (0.41 kg).
Ideal For
- Wall-mounted electronics and control enclosures
- Panel-mounted sensor and interface boards
- Installations needing dust and splash protection
- Custom machined instrument housings
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590U FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 112.65 mm [4.435 in] |
| Inside Height | 53.60 mm [2.110 in] |
| Inside Length | 112.65 mm [4.435 in] |
| Size L X W X H | 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 58.60 mm [2.307 in] |
| Max. P.C. Board Width (Mm) | 111.74 |
| Max. P.C. Board Length (Mm) | 111.74 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 2.32 in (59 mm) |
| Overall Length Including Flange (Drawing) | 150.00 mm [5.906 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980676296 |
| UNSPSC | 39121301 |
| Part Number | 1590UFLBK |
Related Parts
| Standard Version, No Flanges | 1590UBK |
| Standard Version, Flanged Lid | 1590UFLBK |
| Optional Replacement Gasket Kit | 1590QGASKET |
| Water-Tight Version, No Flanges | 1590WUBK |
| Water-Tight Version, Flanged Lid | 1590WUFLBK |
| Standard Version, Flanged Bottom Plate | 1590UFBK |
| Water-Tight Version, Flanged Bottom Plate | 1590WUFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.91 lbs (0.41 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590UFLBK mounted?▾
The wall-mounting flange is integrated into the lid. Overall length across the flanged lid is 150.00 mm [5.906 in].
What board size fits the 1590UFLBK?▾
Maximum PC board size is 111.74 mm x 111.74 mm; the inside box is 112.65 mm square and 53.60 mm high.
What is the IP rating?▾
The standard 1590UFLBK is designed to meet IP54. The water-tight 1590WUFLBK is designed to meet IP65.
What screws does it use?▾
It includes 4 cover screws in 6-32 UNC tapped holes. Replacement packs of 100 are 1590MS100 (plated) and 1590MS100BK (black); watertight stainless screws with O-ring are 1590WMS100 and 1590WMS100BK.
What is the finish?▾
The textured black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance.
