Hammond 1590S 110x82x44mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 110 x 82 x 44 mm (4.35 x 3.24 x 1.73 in) diecast aluminum box
- Inside 103.65 x 75.55 x 39.25 mm
- PC boards up to 74.68 x 102.78 mm (per manufacturer listing)
- Designed to meet IP54; IP65 upgrade with the 1590SGASKET kit
- Unpainted natural aluminum, vibra finished with no sharp edges
- Four 6-32 UNC cover screws included in factory-tapped holes
- RoHS and REACH compliant

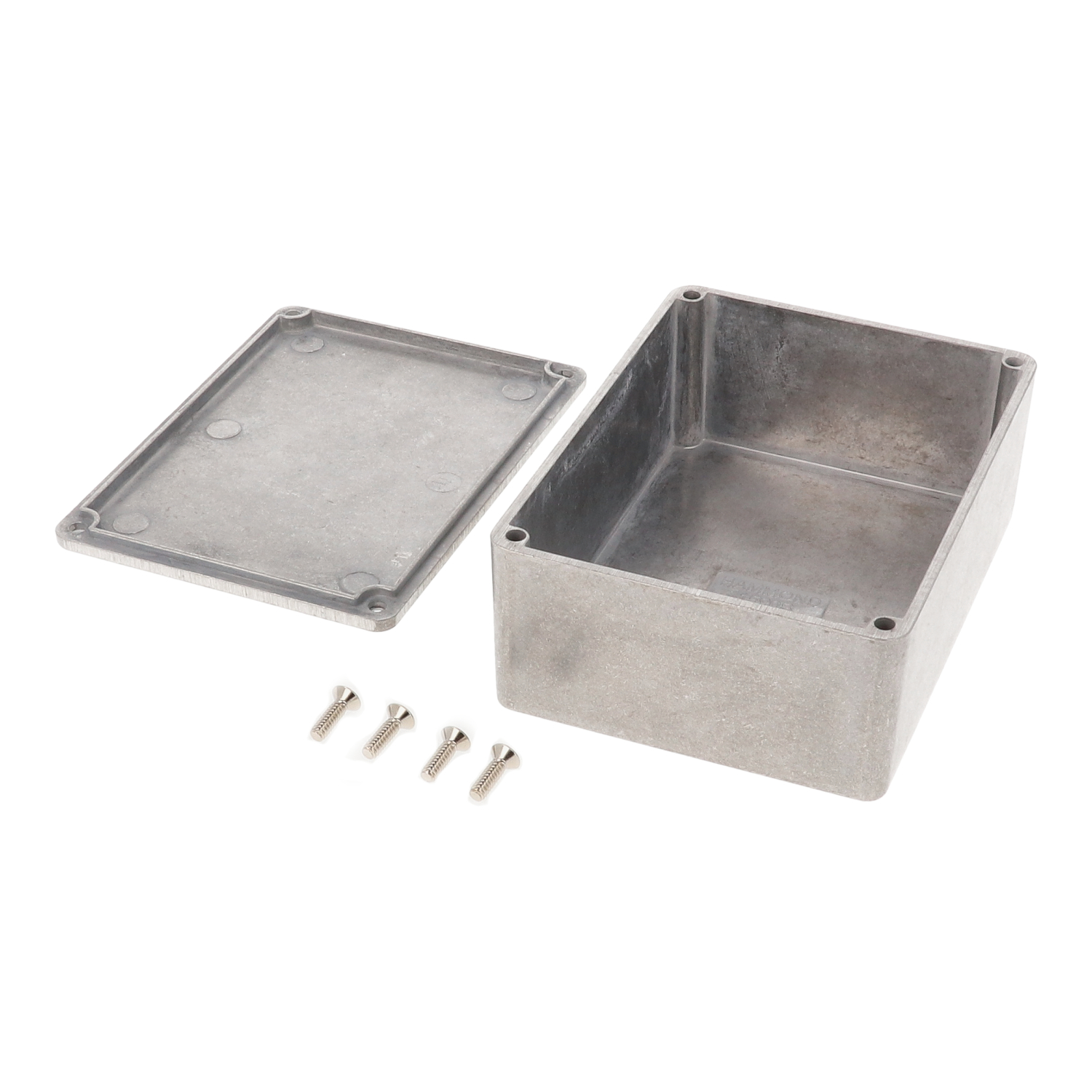

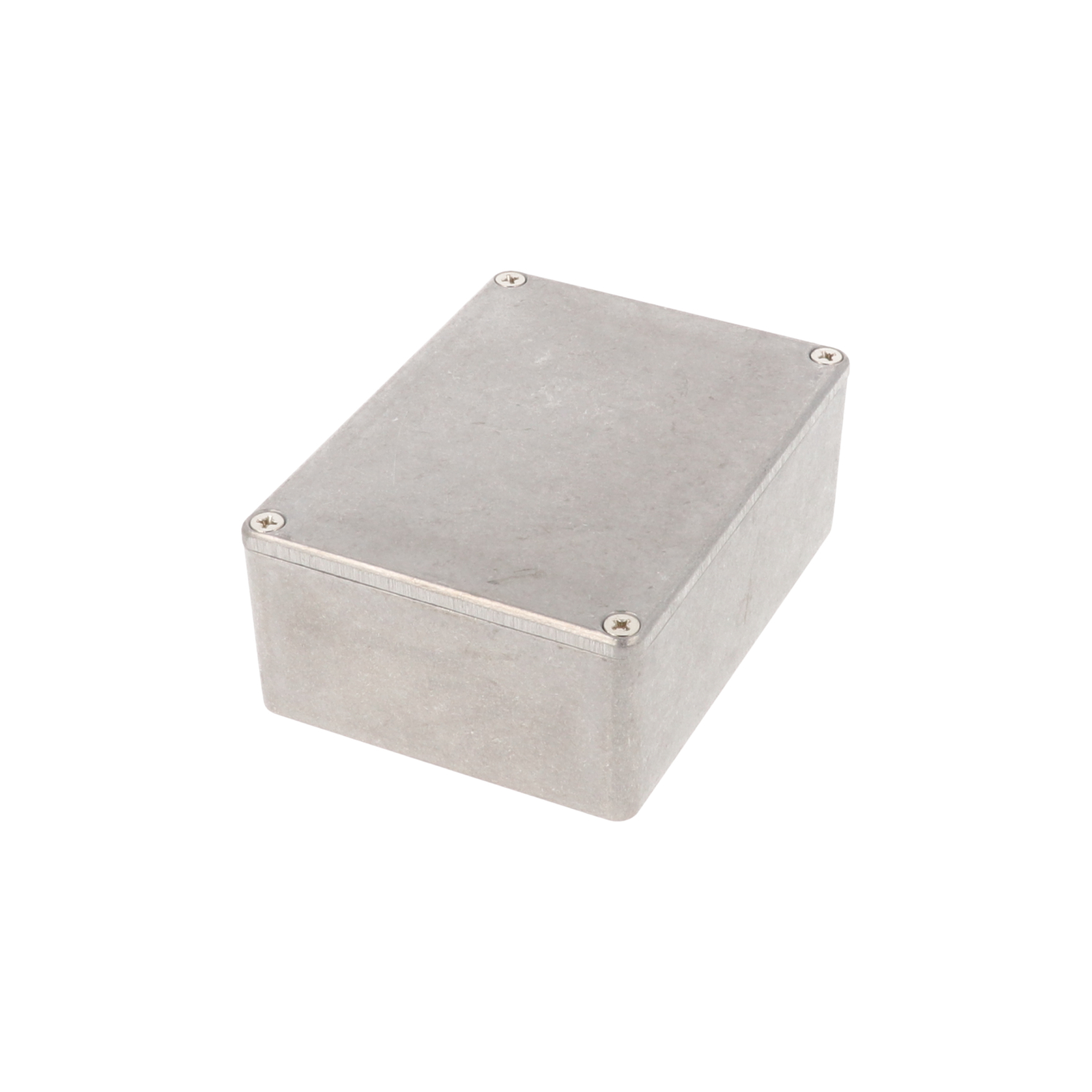

The 1590S is a compact natural aluminum diecast aluminum box and lid from the 1590 Series, measuring 4.35 x 3.24 x 1.73 in (110 x 82 x 44 mm). It is a practical housing for small circuit boards, sensors and interface electronics, aimed at hobbyist builders, OEM engineers and integrators alike.
Diecast aluminum alloy is tough yet easy to machine. The lid and box meet at a lap joint that protects against dust and splashing water, and this standard version is designed to meet IP54. The natural finish is unpainted and vibra finished for a smooth surface with no sharp edges, ready for drilling or painting.
The drawing gives overall dimensions of 110.50 x 82.40 x 44.00 mm (4.350 x 3.244 x 1.732 in) and inside dimensions of 103.65 mm (4.081 in) long, 75.55 mm (2.974 in) wide and 39.25 mm (1.545 in) high. Maximum P.C. board values are 74.68 mm (length) and 102.78 mm (width). Side walls have a draft angle of 2° or less, and the lid height is 0.16 in (4 mm).
Four 6-32 UNC cover screws are included and thread into factory-tapped holes; recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. There are no mounting flanges. For IP65 choose the water-tight 1590WS or add the 1590SGASKET kit. The 1590S is RoHS and REACH compliant and ships shrink wrapped at 0.5 lbs (0.23 kg).
Ideal For
- Small PC board and sensor housings
- Compact instrument and interface boxes
- DIY and OEM electronics projects
- Dust- and splash-protected electronics (IP54)
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws | 1590MS100BK (Pkg 100, 6-32 x 1/2") |
| Replacement Plated Cover Screws | 1590MS100 (Pkg 100, 6-32 x 1/2") |
| Liquid Resistant Stainless Steel Cover Screws | 1590WMS100 (Pkg 100, 6-32 x 1/2" with O-ring) |
| Liquid Resistant Black Stainless Steel Cover Screws | 1590WMS100BK (Pkg 100, 6-32 x 1/2" with O-ring) |
Overview
| Type | Die-cast box |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590S |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Manufacturer Description | DIECAST BOX AND LID |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.55 mm [2.974 in] |
| Inside Height | 39.25 mm [1.545 in] |
| Inside Length | 103.65 mm [4.081 in] |
| Ordering Table Width | 3.23 in (82 mm) |
| Max. P.C. Board Width | 102.78 mm |
| Ordering Table Height | 1.73 in (44 mm) |
| Ordering Table Length | 4.37 in (111 mm) |
| Max. P.C. Board Length | 74.68 mm |
| Overall Width (Drawing) | 82.40 mm [3.244 in] |
| Nominal Size (L X W X H) | 4.35 in x 3.24 in x 1.73 in (110 mm x 82 mm x 44 mm) |
| Overall Height (Drawing) | 44.00 mm [1.732 in] |
| Overall Length (Drawing) | 110.50 mm [4.350 in] |
Identifiers
| UPC | 623980544014 |
| UNSPSC | 39121301 |
Related Versions
| W/ Flanged Lid, Standard | 1590SFL |
| W/ Flanged Lid, Water-Tight | 1590WSFL |
| No Mounting Flanges, Water-Tight | 1590WS |
| W/ Flanged Bottom Plate, Standard | 1590SF |
| W/ Flanged Bottom Plate, Water-Tight | 1590WSF |
Engineering Support
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WS (includes silicone gasket, supplied loose) |
| Replacement / Upgrade Gasket Kit | 1590SGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590S?▾
Nominal size is 4.35 x 3.24 x 1.73 in (110 x 82 x 44 mm). The drawing shows 110.50 x 82.40 x 44.00 mm overall.
What are the inside dimensions?▾
Inside length is 103.65 mm, inside width is 75.55 mm and inside height is 39.25 mm.
Which gasket kit fits?▾
The 1590SGASKET silicone gasket kit. The water-tight 1590WS is designed to meet IP65 and already includes a gasket.
Does it come with screws?▾
Yes, four 6-32 UNC cover screws are included. Replacement packs of 100 are 1590MS100 (plated) and 1590MS100BK (black).
Are flanged versions available?▾
Yes: 1590SF has a flanged bottom plate and 1590SFL has a flanged lid.
Related Products
Save 52%1590RGASKET — silicone gasket for 1590R enclosures, 2-pack
Hammond Manufacturing · 1590RGASKET

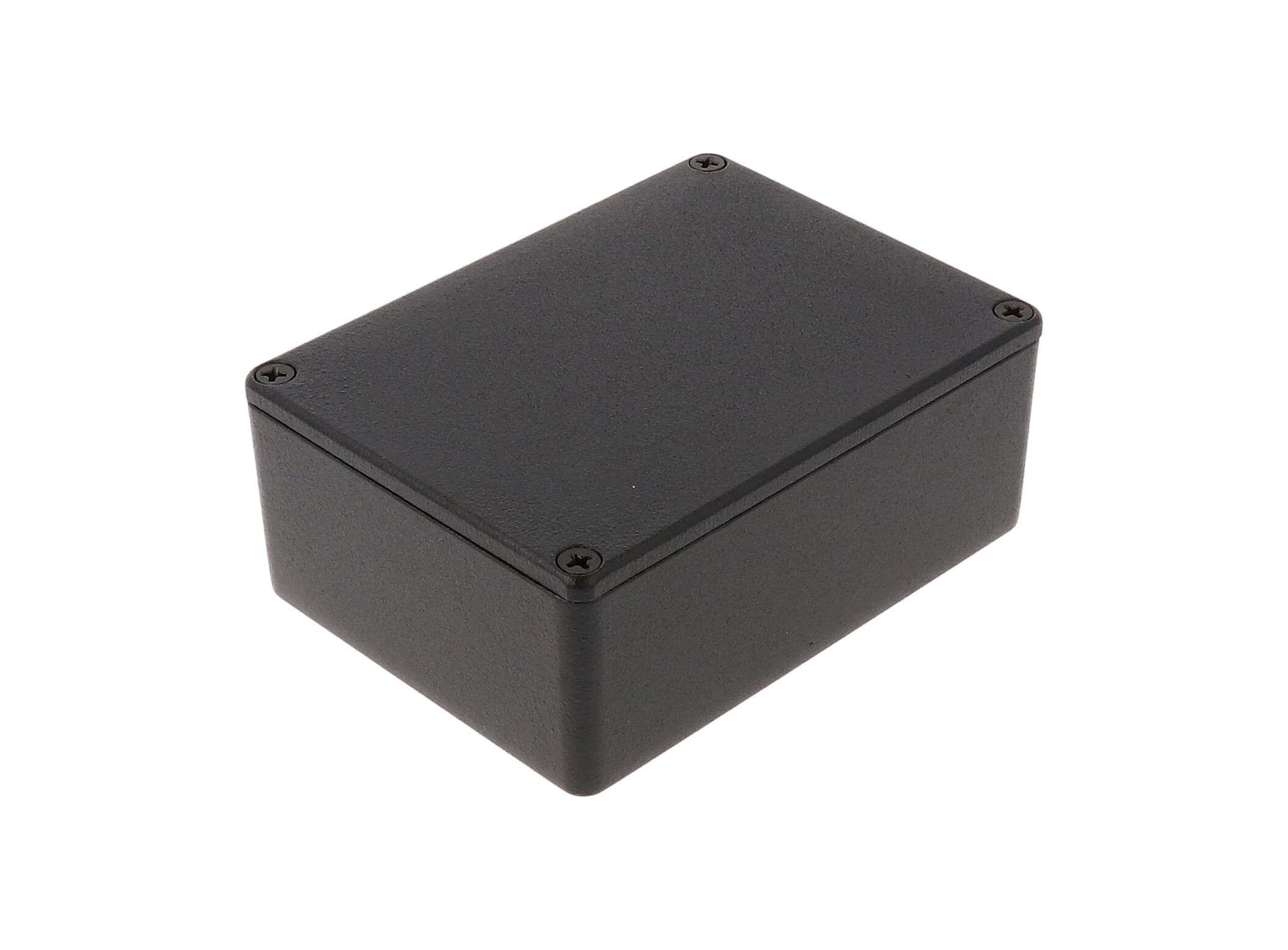

Save 52%1590SBK — enclosure - diecast
Hammond Manufacturing · 1590SBK

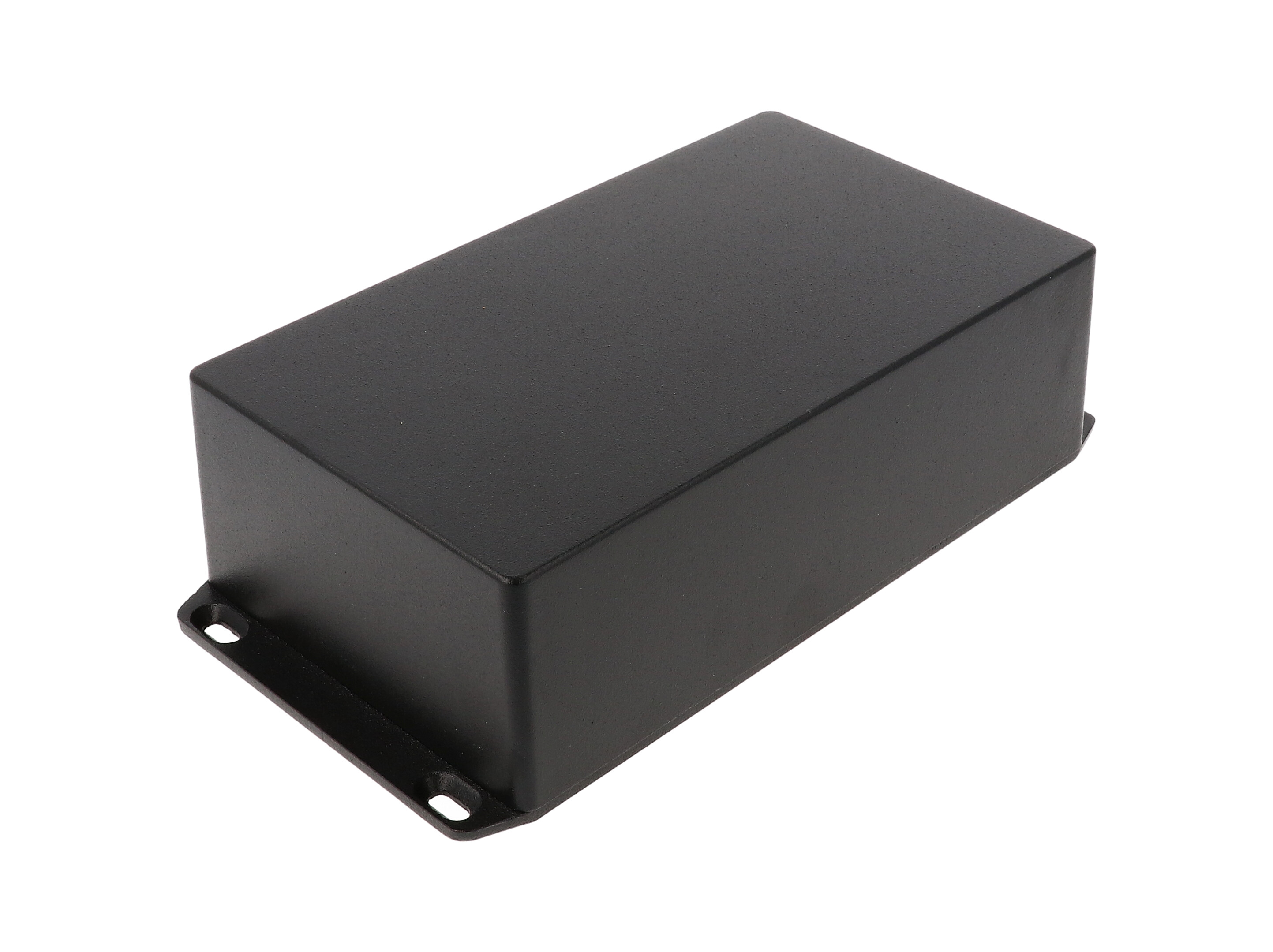

Save 52%1590R1FLBK — enclosure - diecast
Hammond Manufacturing · 1590R1FLBK

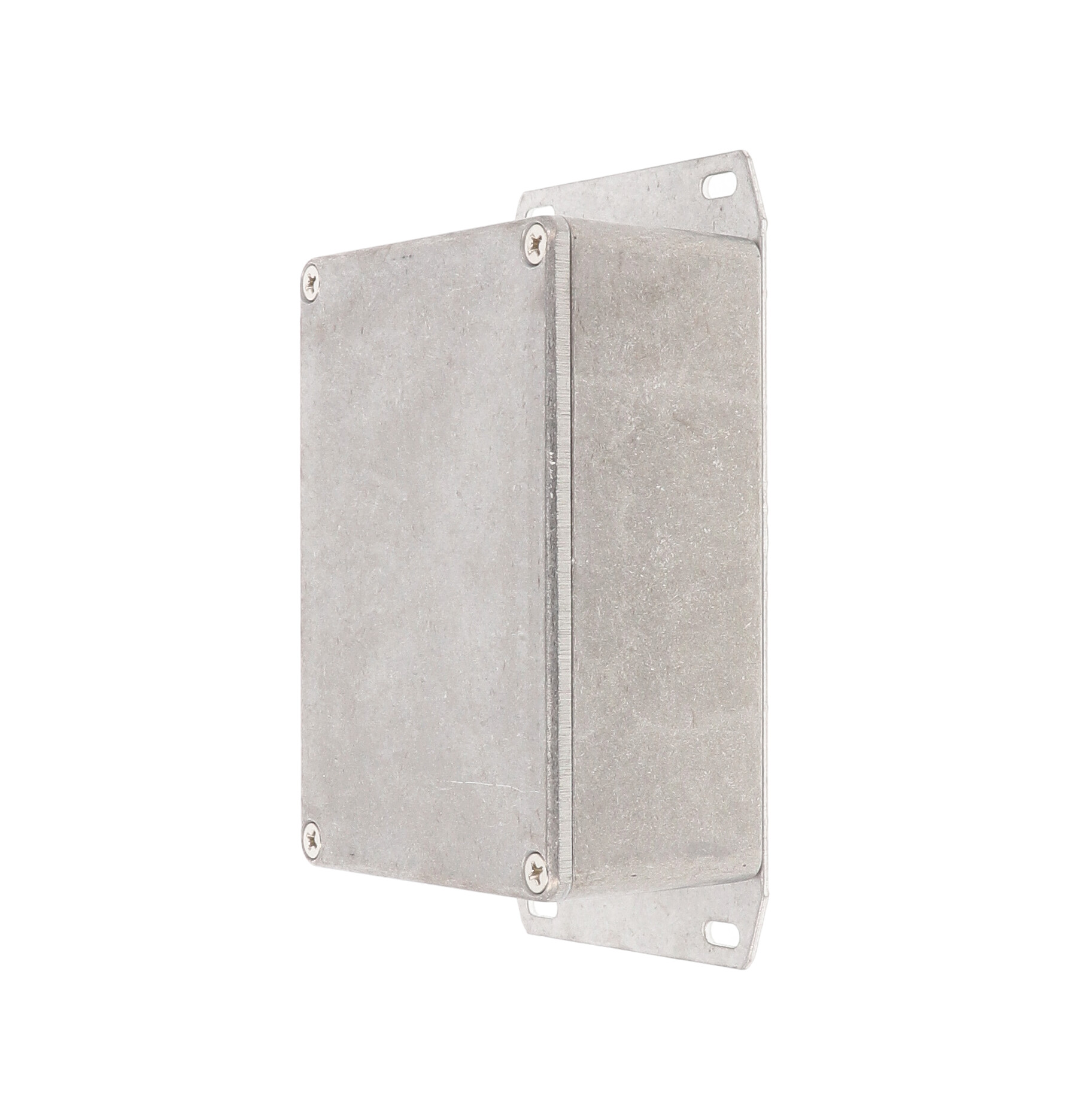

Save 52%1590SF — enclosure - diecast
Hammond Manufacturing · 1590SF

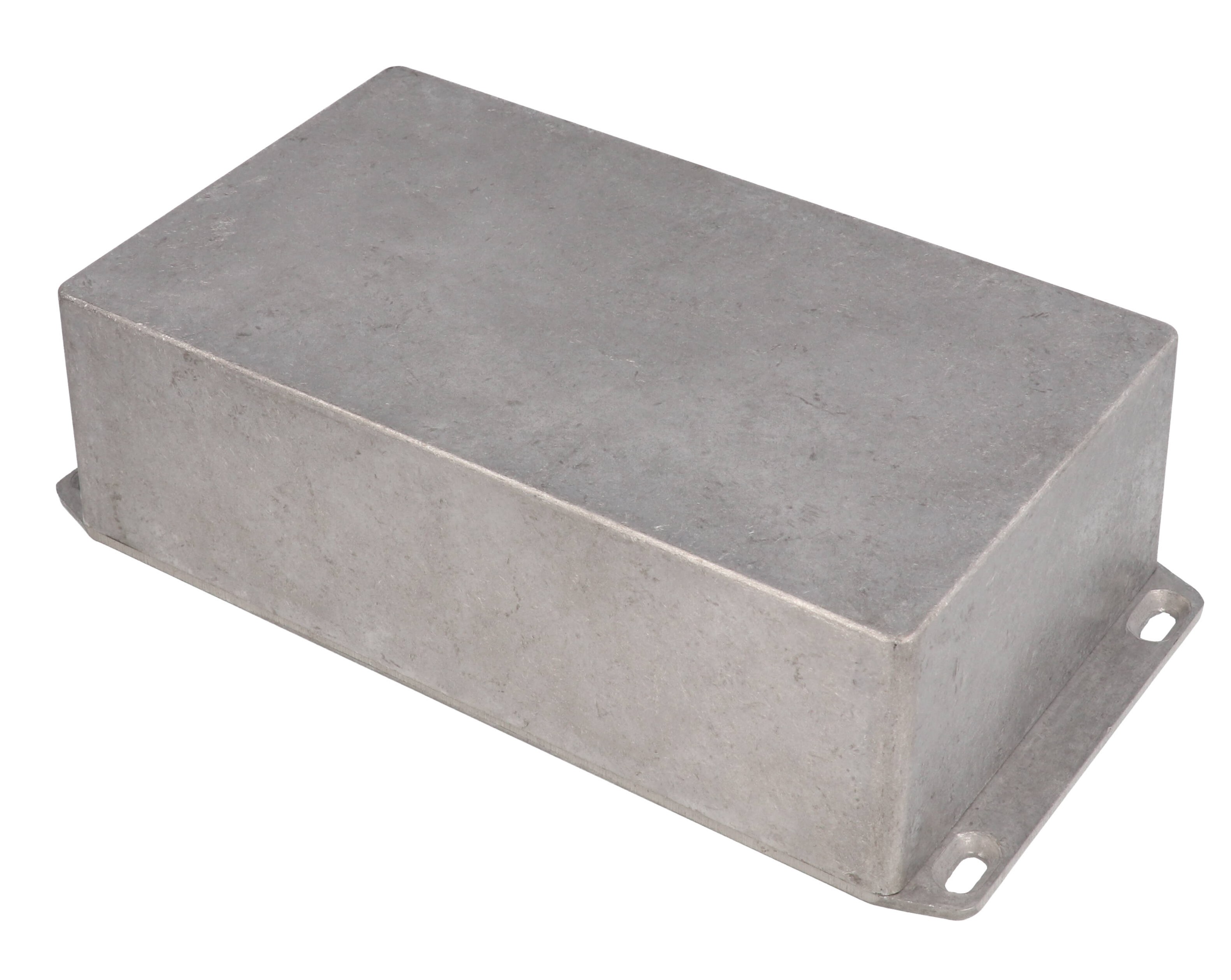

Save 52%1590R1FL — enclosure - diecast
