Hammond 1590QGASKET 120mm Square Enclosure IP65 Silicone Gasket, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Upgrades IP54 1590Q, 1590U and 1590V enclosures to IP65
- Adhesive backing; gasket is applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Machine or paint the enclosure first, gasket it later
- IP65 with lid screws torqued to 25-30 cN.m (36-43 ozf.in)
- RoHS and REACH compliant

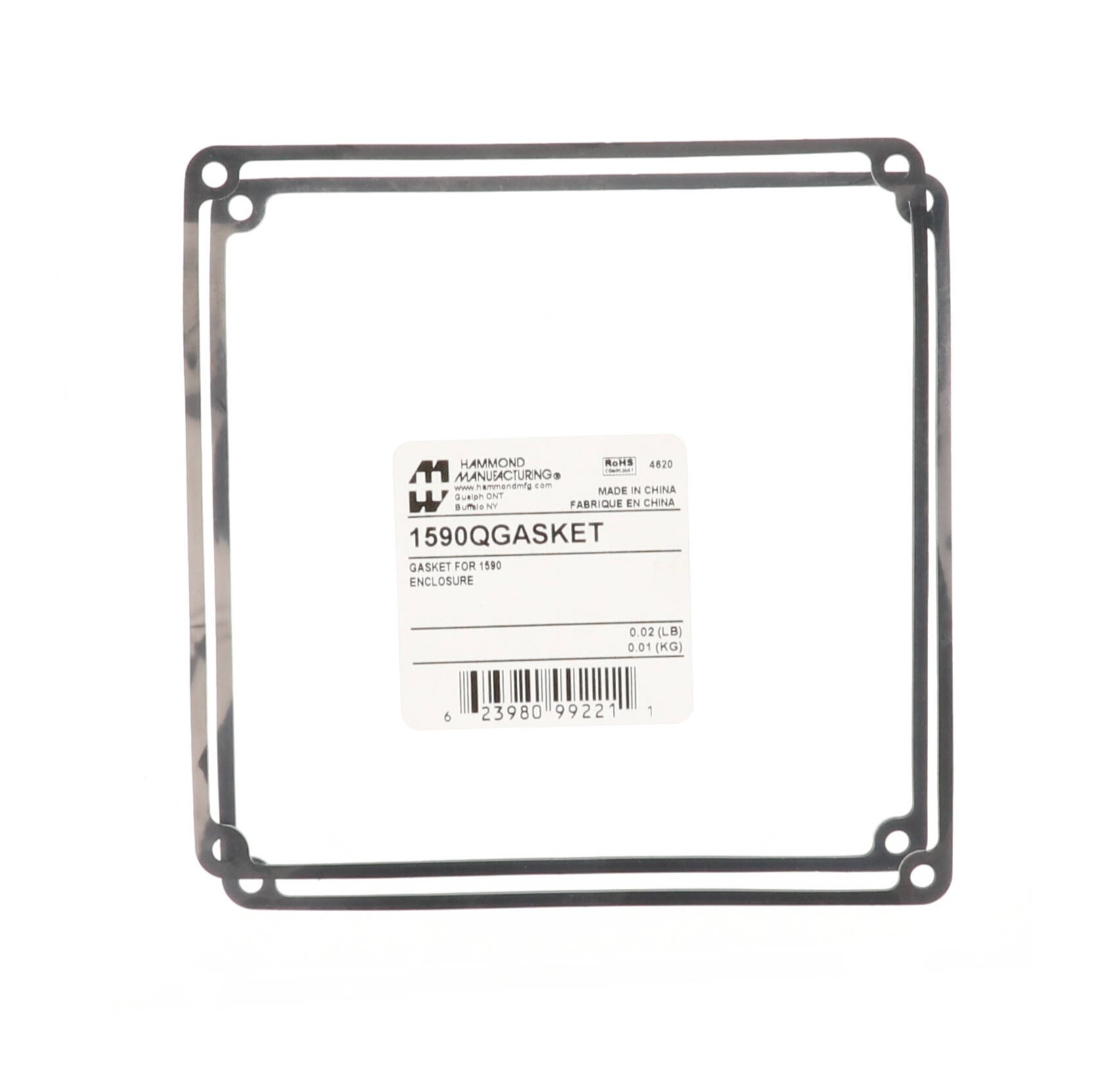

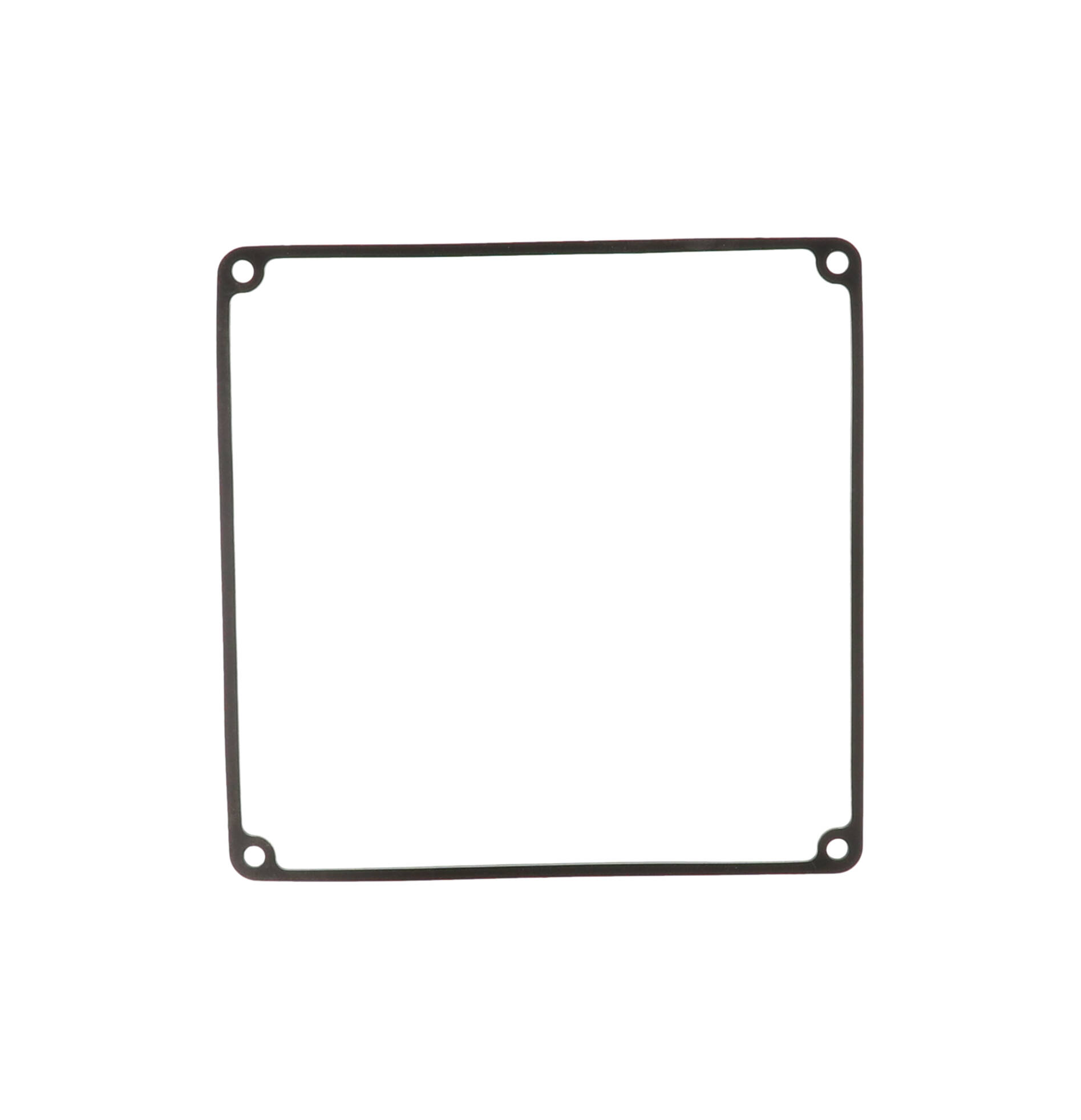

The 1590QGASKET is a two-pack of pre-formed silicone gaskets for the 120 x 120 mm footprint of the 1590 Series diecast aluminum enclosures. The ordering table lists it as the replacement gasket kit for the 1590Q (34 mm high), 1590U (59 mm high) and 1590V (94 mm high) families, in natural and black, with no flanges, a flanged lid or a flanged bottom plate.
Standard 1590 enclosures are designed to meet IP54. Fitting this kit lets you upgrade them to IP65, provided the gasket is properly installed and the lid screws are torqued to 25-30 cN.m (36-43 ozf.in). It also serves as a replacement for the gasket supplied with the water-tight 1590W versions.
Each gasket has an adhesive backing and is applied to the lid. Because the gasket goes on separately, the enclosure can be machined and/or painted first and gasketed afterwards, which is useful for OEM builders and integrators who drill connector holes or finish the box before assembly. The silicone is rated for -40°C to 150°C (-40°F to 302°F).
When converting a standard enclosure to a water-tight box, the manufacturer also recommends ordering its watertight screws (stainless steel with O-ring). The 1590QGASKET is RoHS and REACH compliant, packed in a bag, with a shipping weight of 0.02 lbs (0.01 kg).
Ideal For
- Upgrading IP54 1590 enclosures to IP65
- Replacing gaskets on water-tight 1590 enclosures
- Sealing enclosures after machining or painting
- Outdoor or wash-down electronics housings needing IP65
Overview
| Type | Gasket |
| Part Number | 1590QGASKET |
| Pack Contents | Two pre-formed silicone gaskets |
| Long Description | silicone gasket for 1590Q enclosures, 2-pack |
| Manufacturer Description | SILICONE GASKET- 2 PACK |
Identifiers
| UPC | 623980992211 |
| UNSPSC | 39121301 |
Compatibility
| Fits Enclosures | 1590Q, 1590QBK, 1590QF, 1590QFBK, 1590QFL, 1590QFLBK, 1590U, 1590UBK, 1590UF, 1590UFBK, 1590UFL, 1590UFLBK, 1590V, 1590VBK, 1590VF, 1590VFBK, 1590VFL, 1590VFLBK and their water-tight 1590W versions |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Application Location | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | With properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590QGASKET fit?▾
The series ordering table lists it for the 1590Q, 1590U and 1590V families (120 x 120 mm footprint) in natural and black, including flanged-lid and flanged-bottom versions and their water-tight 1590W equivalents.
How many gaskets are in the pack?▾
Two pre-formed silicone gaskets.
Will it make my enclosure IP65?▾
It is designed to meet IP65 when properly installed and with the lid screws torqued to 25-30 cN.m (36-43 ozf.in).
How is it installed?▾
The gasket has an adhesive backing and is applied to the lid.
What temperatures can the gasket handle?▾
It is rated for -40°C to 150°C (-40°F to 302°F).
Do I need different screws?▾
When converting a standard enclosure to a water-tight box, the manufacturer recommends its watertight screws, which are stainless steel with an O-ring.
