Hammond 1590P1F 153x83x50mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom mounting flange; 179.53 mm overall length
- 153 x 83 x 50 mm nominal box (6.02 x 3.27 x 1.98 in)
- Inside 145.69 x 75.79 x 45.50 mm
- Natural vibra-finished diecast aluminum
- IP54 lap joint lid construction

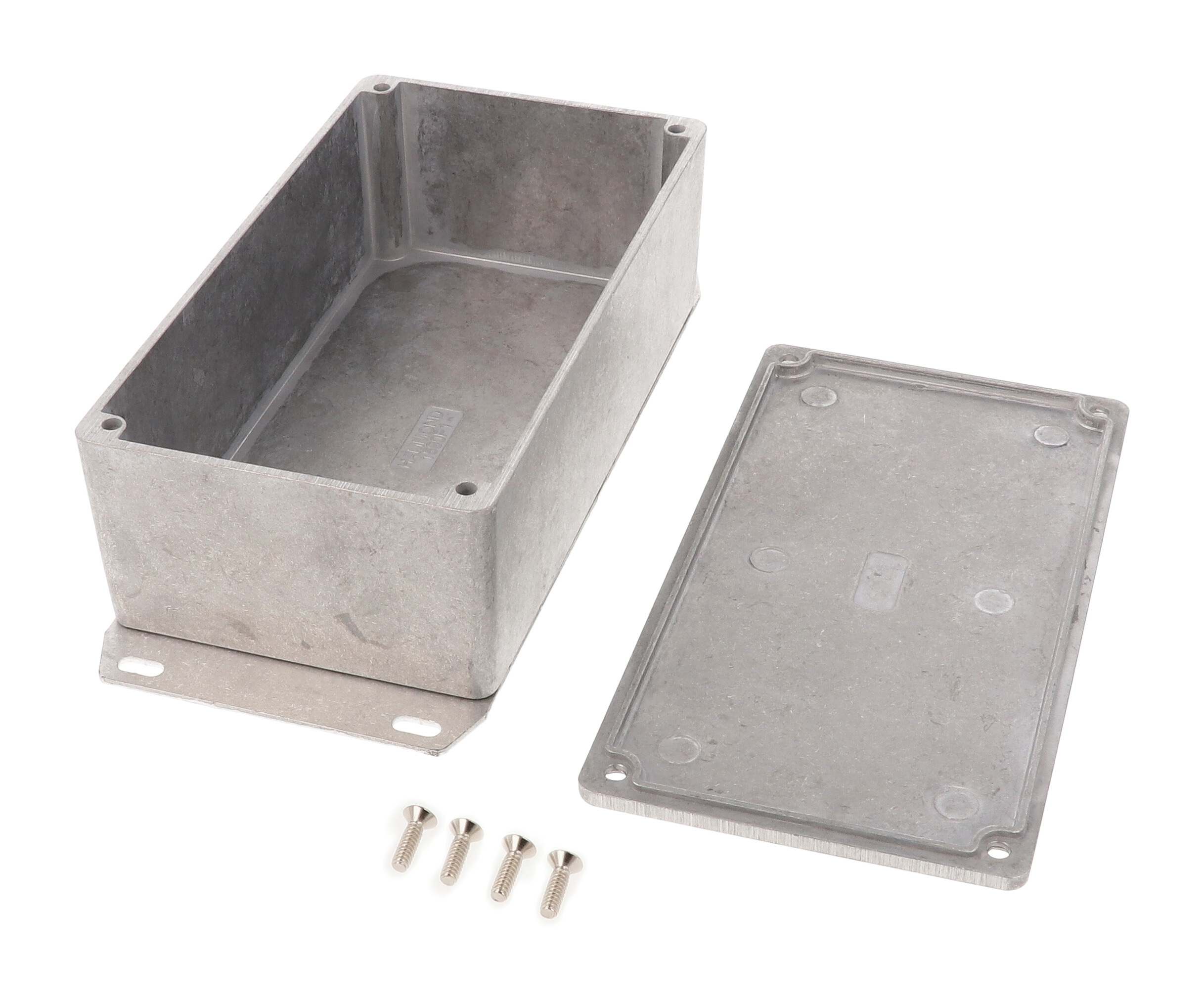

- Box, lid and 4 cover screws included
- Water-tight version 1590WP1F; gasket kit 1590PGASKET

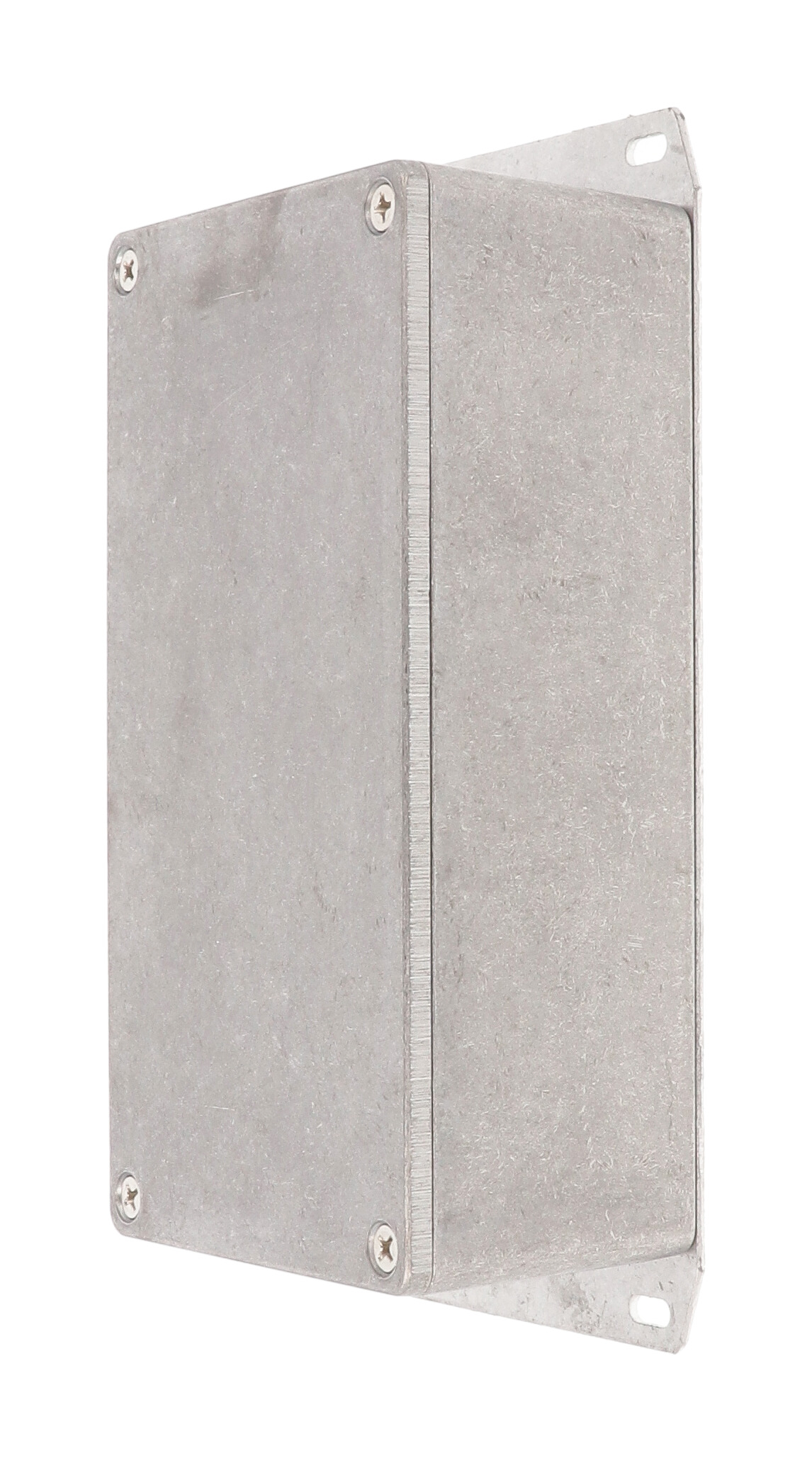

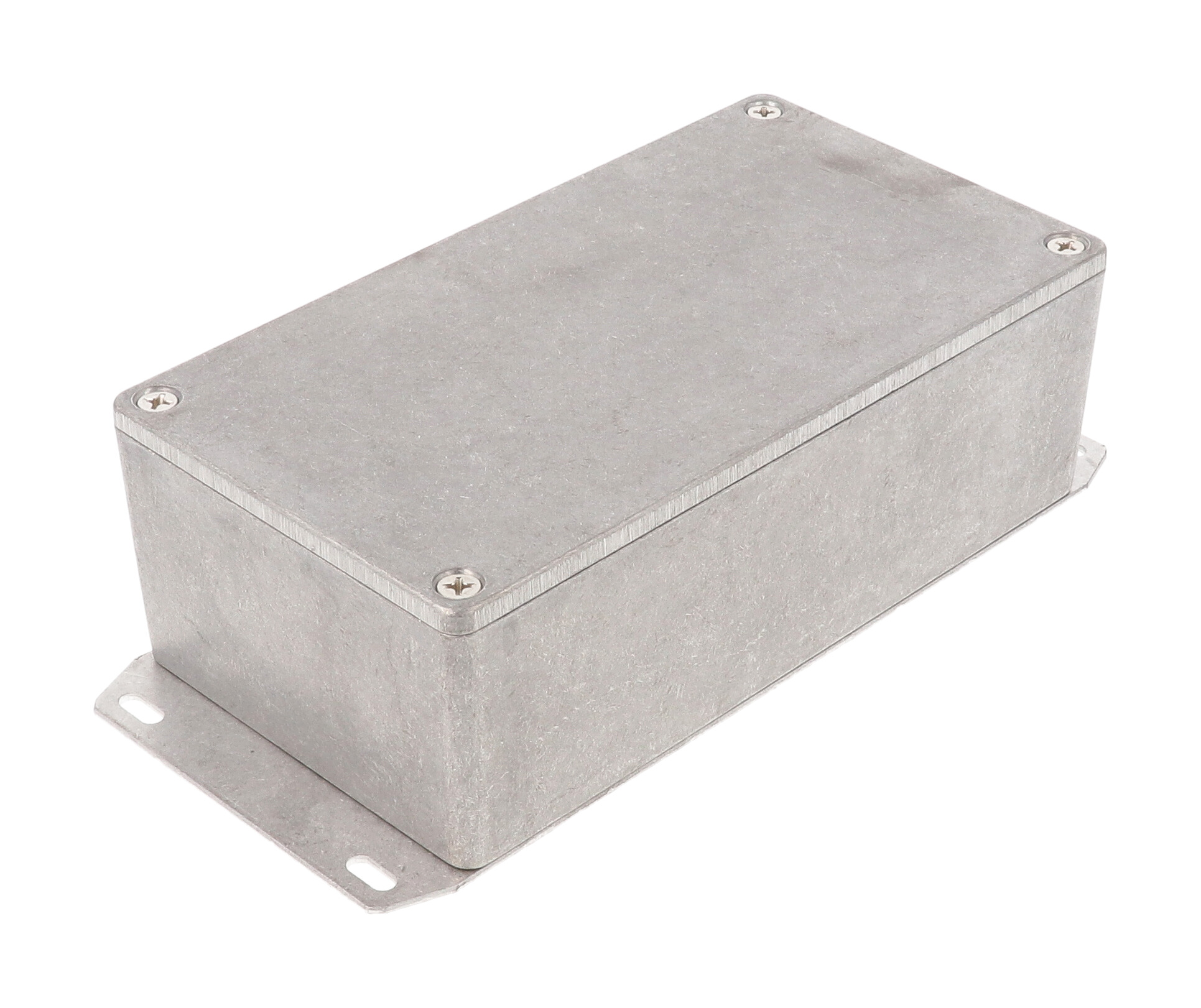

The 1590P1F is the 153 x 83 x 50 mm 1590P1 diecast aluminum enclosure fitted with a flanged bottom plate, in natural aluminum. The flange makes it easy to secure the box to a wall, panel or equipment frame, which suits facilities and OEM applications where the enclosure is bolted in place.
Box and lid are diecast aluminum alloy, and the bottom flange is welded to the box. The unpainted finish is vibra finished for a smooth surface with no sharp edges. A lap joint between lid and box protects against dust and splashing water, and the standard version is designed to meet IP54.
Per the drawing, overall length including the flange is 179.53 mm [7.068 in]; the box is 153.00 x 83.10 mm with an overall height of 51.90 mm [2.043 in]. Inside dimensions are 145.69 x 75.79 x 45.50 mm, and maximum PC board dimensions are listed as 145.35 and 75.45 mm.
Box, lid and 4 cover screws are included; the screws thread into factory-tapped 6-32 UNC holes, torqued to 50-55 cN.m. For a sealed version choose 1590WP1F, or add the 1590PGASKET kit. Shipping weight is 0.86 lbs (0.39 kg), and the part is RoHS and REACH compliant.
Ideal For
- Wall- or panel-mounted control enclosure
- Equipment-frame mounted electronics housing
- Instrument enclosure for boards up to 145.35 x 75.45 mm
- Machined OEM box
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590P1F |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
| Short Description | 1590P1 WITH FLANGE |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.79 mm [2.984 in] |
| Inside Height | 45.50 mm [1.791 in] |
| Inside Length | 145.69 mm [5.736 in] |
| Size (L X W X H) | 6.02 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Box Width (Drawing) | 83.10 mm [3.272 in] |
| Box Length (Drawing) | 153.00 mm [6.024 in] |
| Nominal Size (Width) | 3.27 in (83 mm) |
| Nominal Size (Height) | 1.97 in (50 mm) |
| Nominal Size (Length) | 6.02 in (153 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 51.90 mm [2.043 in] |
| Max. P.C. Board Width (Mm) | 145.35 |
| Max. P.C. Board Length (Mm) | 75.45 |
| Overall Length Incl. Flange (Drawing) | 179.53 mm [7.068 in] |
Identifiers
| UPC | 623980543130 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.86 lbs (0.39 kg) |
Construction & Finish
| Finish | Natural, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Bottom Flange | Welded |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WP1F (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590P1F mounted?▾
Through its flanged bottom plate; the bottom flange is welded to the box.
What is the length including the flange?▾
179.53 mm [7.068 in] per the drawing; the box body is 153.00 mm long.
How tall is it?▾
Overall height on the drawing is 51.90 mm [2.043 in]; nominal height is 50 mm (1.97 in).
What board size fits inside?▾
Maximum PC board dimensions are listed as 145.35 mm and 75.45 mm.
Is a water-tight version available?▾
Yes, 1590WP1F, designed to meet IP65 with a silicone gasket supplied loose.
Related Products

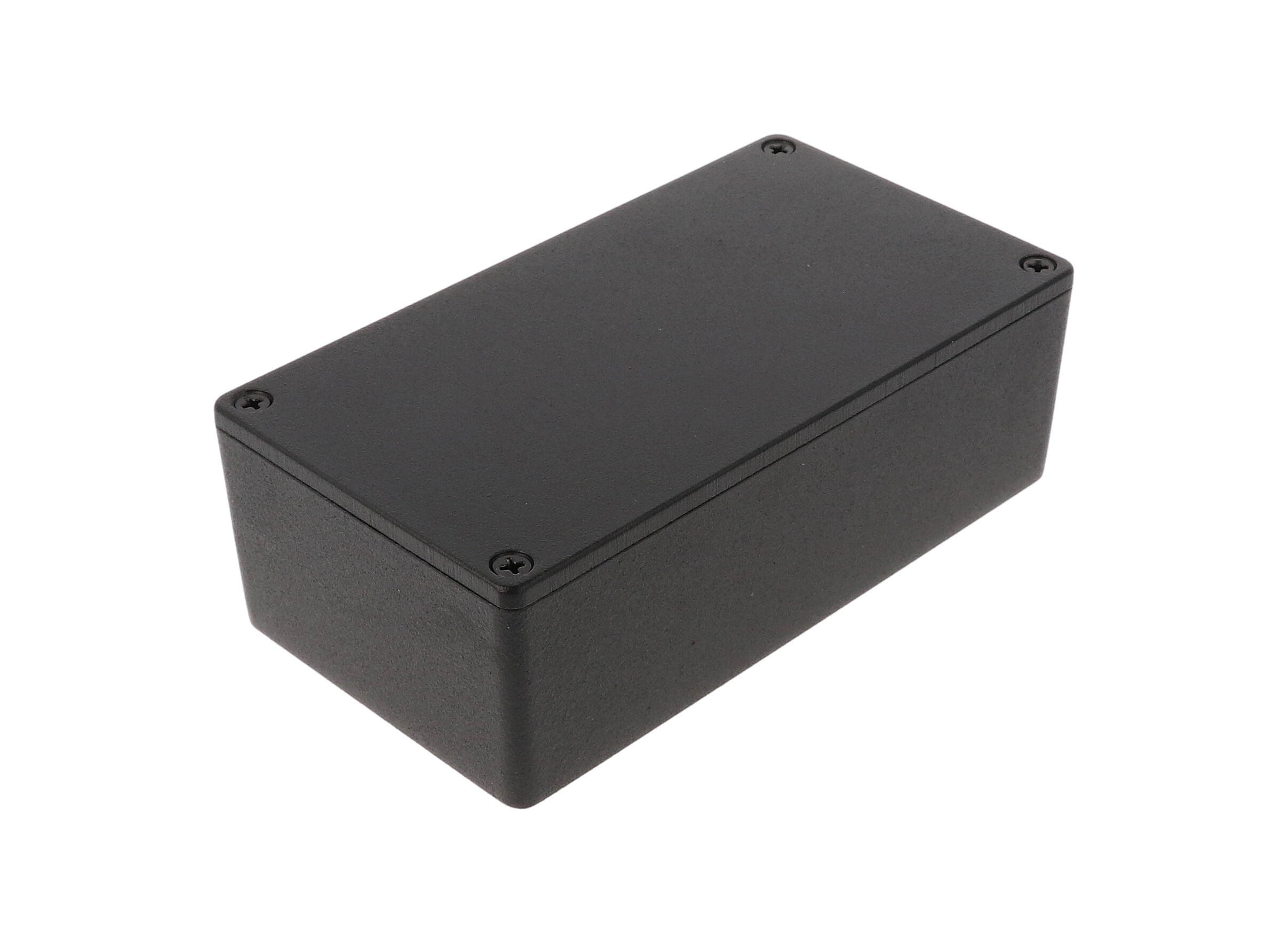

Save 52%1590P1BK — enclosure - diecast
Hammond Manufacturing · 1590P1BK

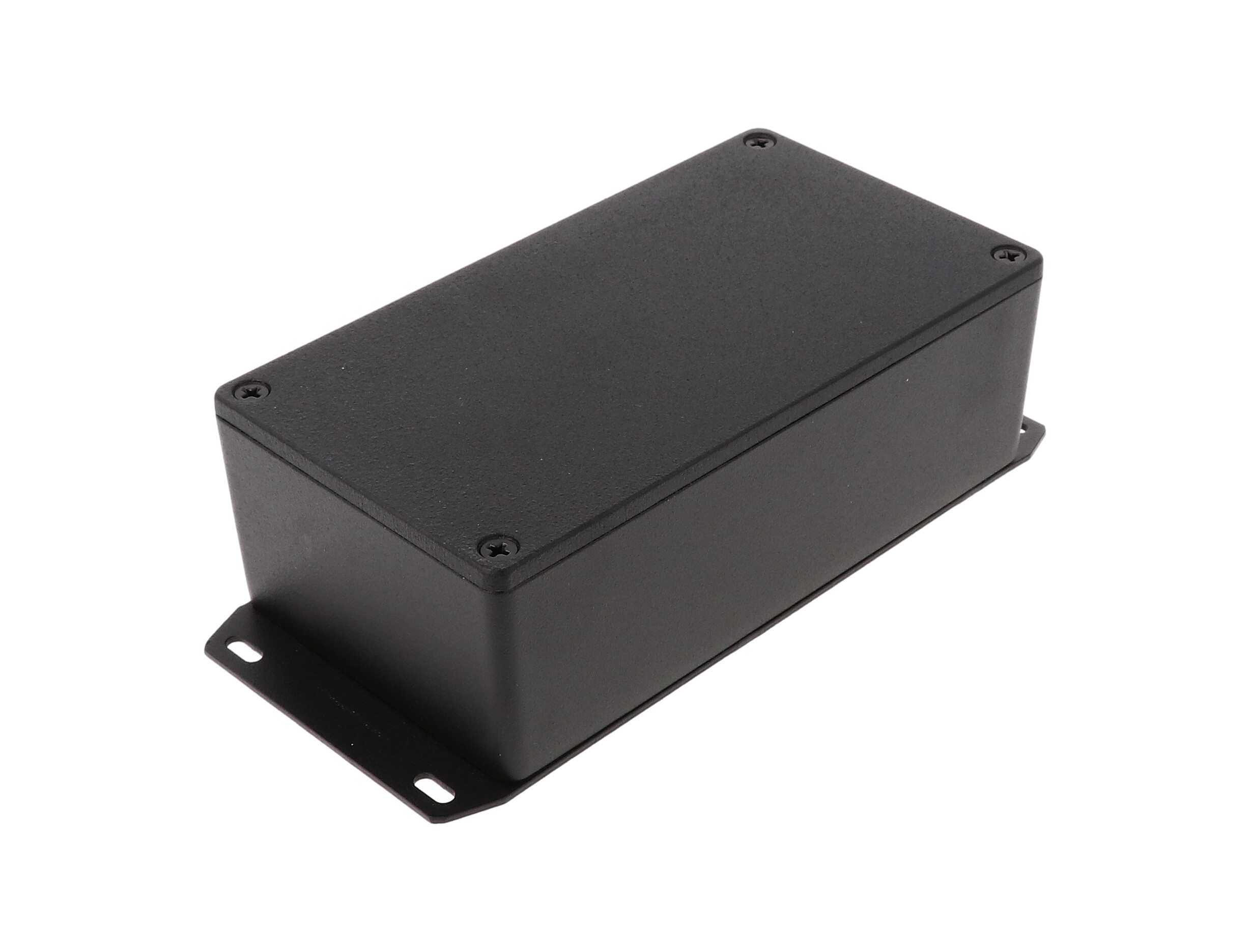

Save 52%1590P1FBK — enclosure - diecast
Hammond Manufacturing · 1590P1FBK

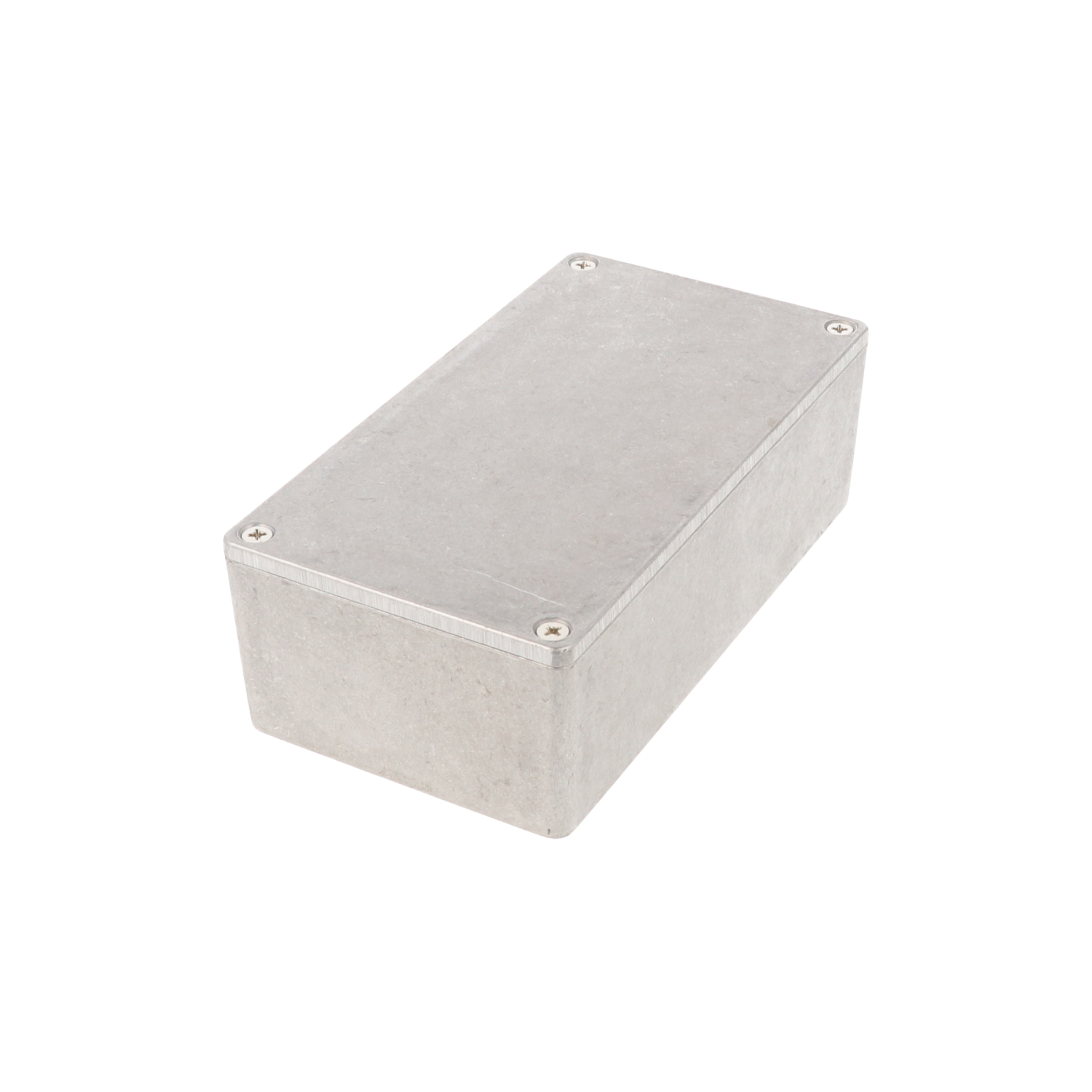

Save 52%1590P1 — enclosure - diecast
Hammond Manufacturing · 1590P1

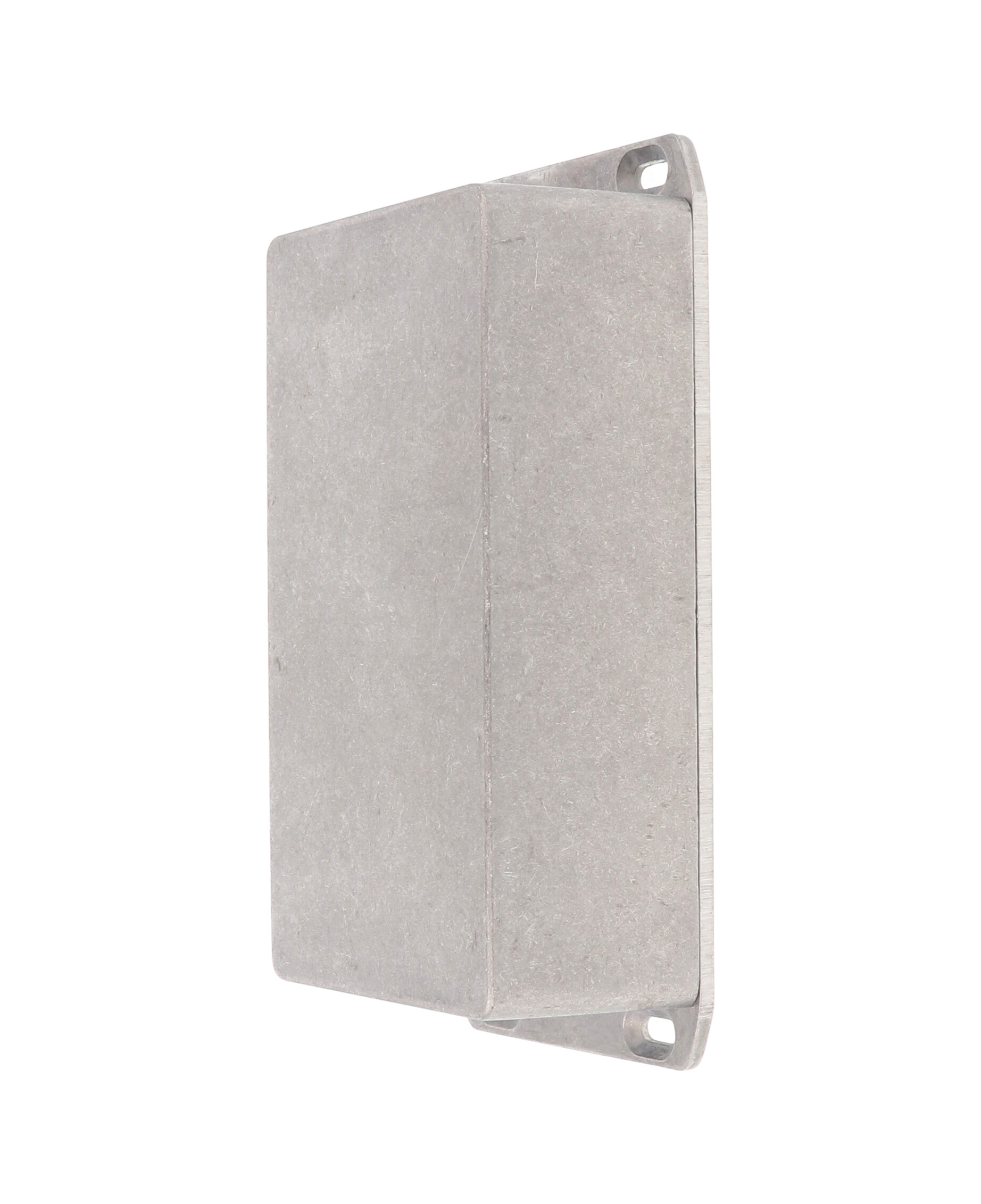

Save 52%1590P1FL — enclosure - diecast
