Hammond 1590LBFBK 51x51x31mm Black Diecast Box With Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black cover screws
- Welded bottom flange 78.99 mm long, 3.96 mm holes
- Flange hole centres 67.72 x 25.40 mm [2.666 x 1.000 in]
- Compact 51 x 51 x 31 mm body; 32.50 mm high with flange
- P.C. boards up to 44.7 mm square
- IP54 lap joint; IP65 with the 1590LBGASKET kit

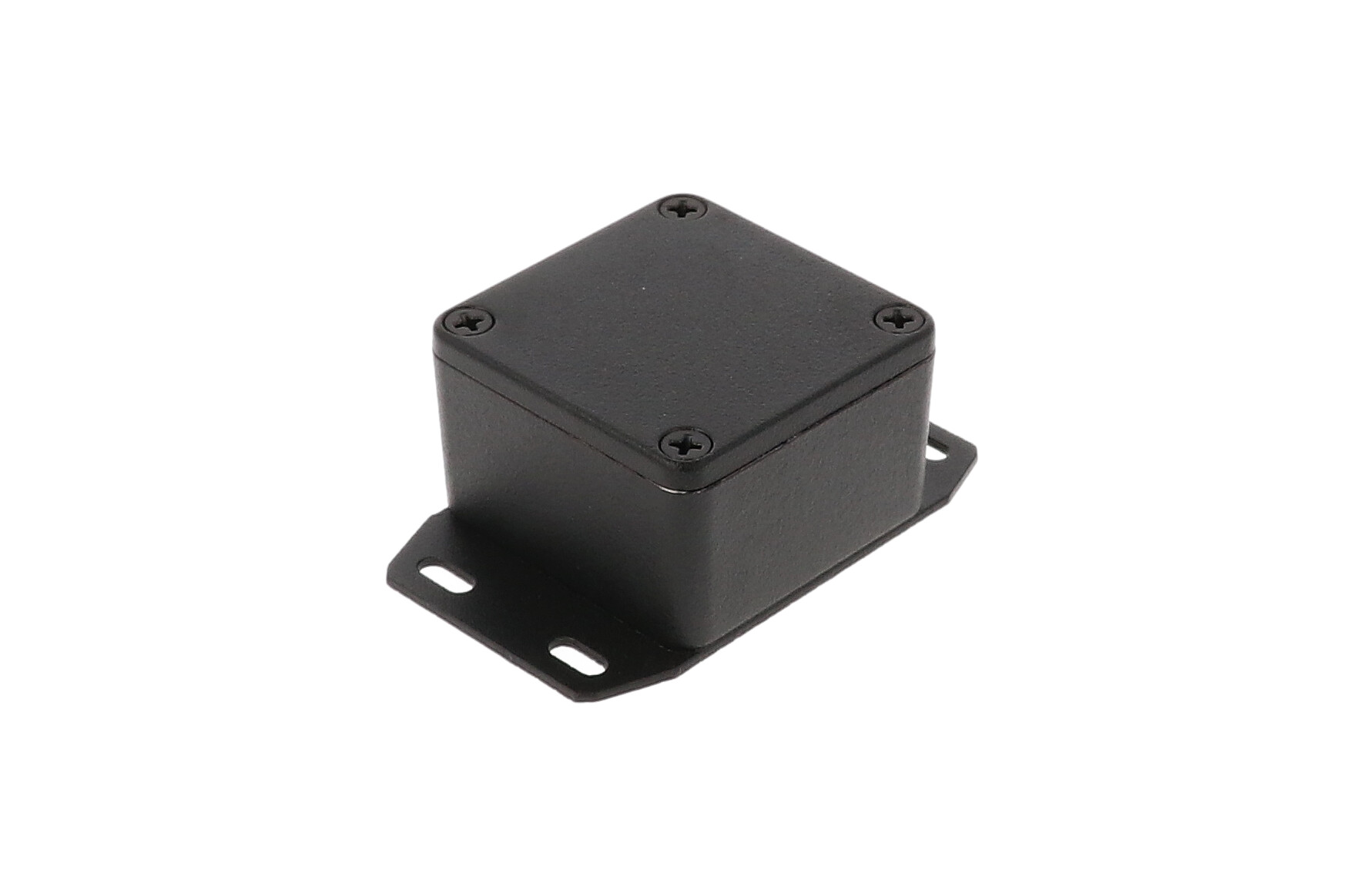

The 1590LBFBK is the black textured, flanged-base version of the compact 1590LB enclosure. At 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm), it is a small, finished metal housing that can be screwed onto walls, panels or equipment by integrators and OEM builders.
Its diecast aluminum alloy box and lid are coated with a tough polyester powder paint that keeps a lasting finish even after machining, and black screws are supplied. The lap joint where lid and box meet provides protection against dust and splashing water, and the enclosure is designed to meet IP54.

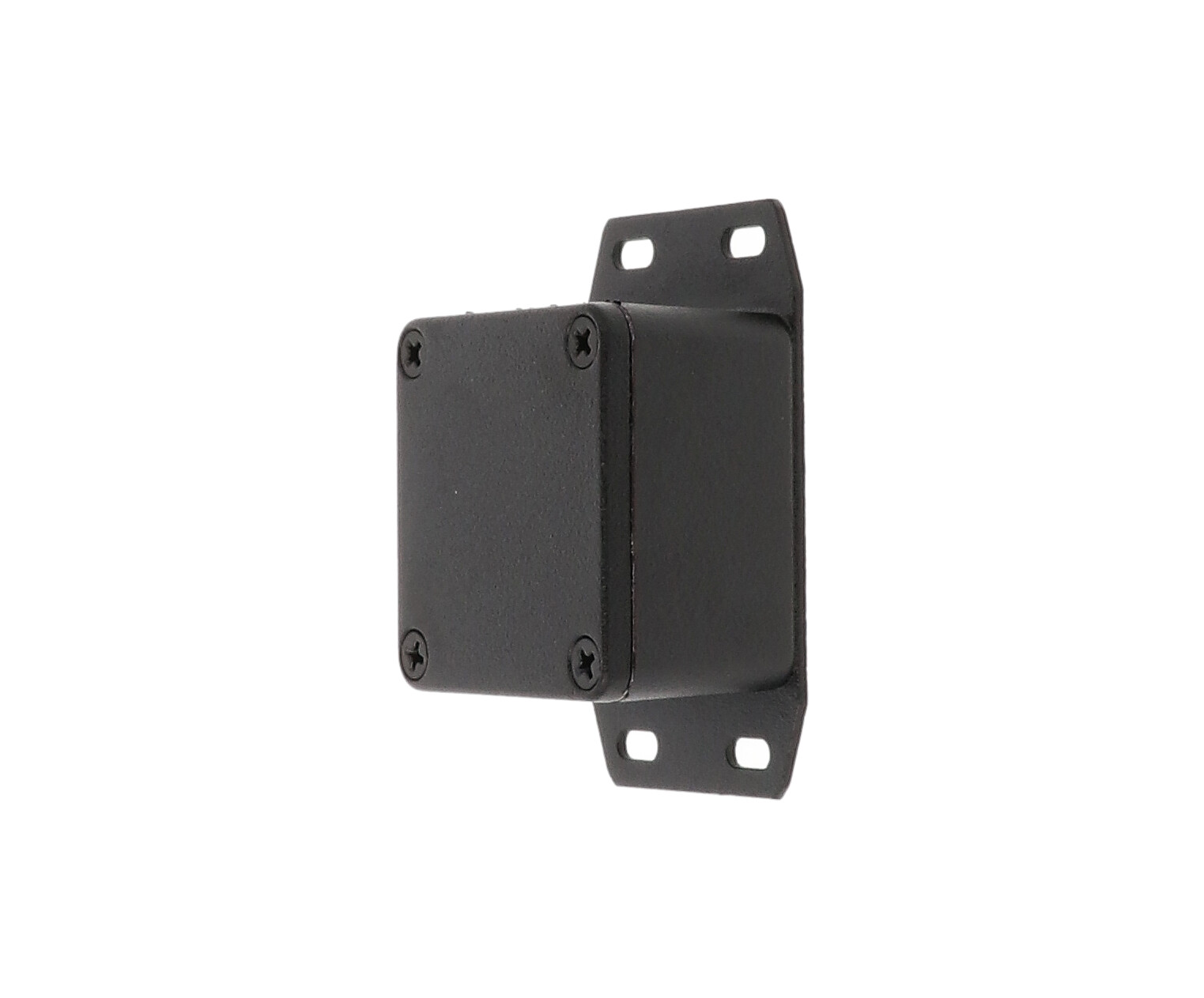

Per the drawing, the welded flange is 78.99 mm [3.110 in] long with 3.96 mm [0.156 in] holes on 67.72 mm x 25.40 mm [2.666 in x 1.000 in] centres, and height including the flange is 32.50 mm [1.280 in]. Inside, the box offers 45.50 mm [1.791 in] of length and width and 27.05 mm [1.065 in] of height; P.C. boards up to 44.7 mm square fit, helped by a side wall draft of 2° or less.

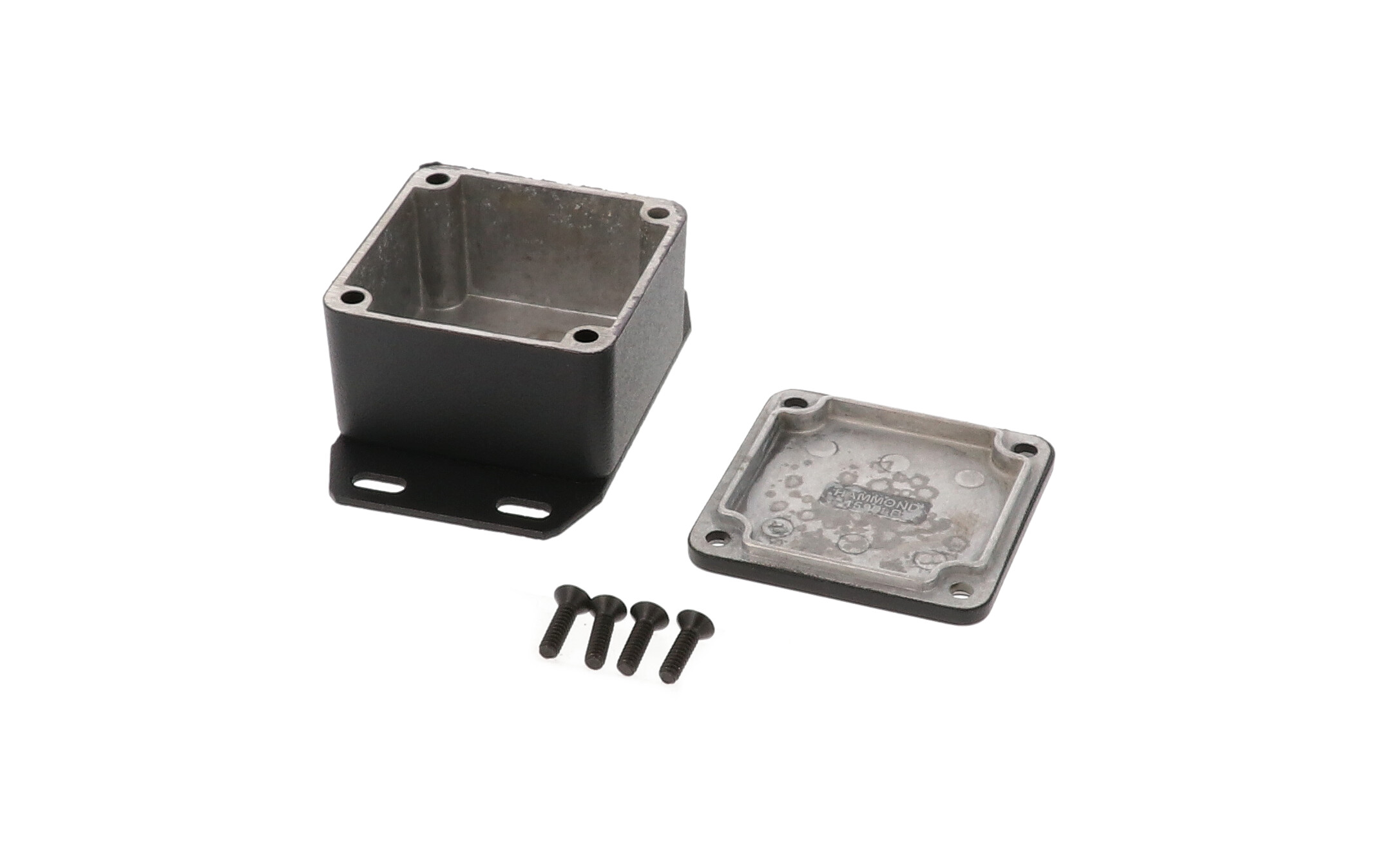

Included are the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. The 1590LBGASKET kit upgrades it to IP65 (25-30 cN.m [36-43 ozf.in] with gasket); the water-tight equivalent is 1590WLBFBK. RoHS and REACH compliant; 0.19 lbs (0.09 kg), shrink wrapped.
Ideal For
- Black surface-mounted sensor housings
- Small equipment-mounted electronics
- Compact wall-mounted modules
- Dust and splash protected installations
Mounting
| Flange Type | Welded bottom flange plate |
| Flange Hole Spacing (Width) | 25.40 mm [1.000 in] |
| Flange Hole Spacing (Length) | 67.72 mm [2.666 in] |
| Flange Mounting Hole Diameter | 3.96 mm [0.156 in] |
| Overall Height Including Flange | 32.50 mm [1.280 in] |
| Overall Length Including Flange | 78.99 mm [3.110 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590LBFBK |
| Mounting Style | Flanged bottom plate |
| Short Description | 1590LBBK WITH FLANGE |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Ordering Table Width | 2.01 in (51 mm) |
| Max. P.C. Board Width | 44.7 mm |
| Ordering Table Height | 1.22 in (31 mm) |
| Ordering Table Length | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 44.7 mm |
| Nominal Size (L X W X H) | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Overall Box Width (Drawing) | 50.60 mm [1.992 in] |
| Overall Box Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Box Length (Drawing) | 50.55 mm [1.990 in] |
Accessories
| Related Versions | Natural 1590LBF; no-flange 1590LBBK; flanged lid 1590LBFLBK; water-tight 1590WLBFBK |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980536989 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint |
| Included | Box, lid and 4 cover screws (black screws) |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WLBFBK (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590LBFBK mounted?▾
Using its welded flanged bottom plate, with 3.96 mm holes on 67.72 mm x 25.40 mm centres per the drawing.
What colour is it?▾
Black, with a textured polyester powder paint finish. Black screws are included.
What are the inside dimensions?▾
45.50 mm x 45.50 mm inside, with 27.05 mm of inside height.
What IP rating does it have?▾
Designed to meet IP54; IP65 with the 1590LBGASKET kit or in the water-tight 1590WLBFBK version.
How much does it weigh?▾
0.19 lbs (0.09 kg) shipping weight.
