Hammond 1590KKFBK 125x125x57mm Black Diecast Box With Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black cover screws
- Welded bottom flange: 154.18 x 112.06 mm plate, 3.96 mm holes
- Flange hole centres 142.90 x 100.58 mm [5.626 x 3.960 in]
- Slim 125 x 125 x 57 mm body, 58.50 mm tall with flange
- Inside 116.94 x 116.44 x 51.30 mm; P.C. boards to 116.38 mm square
- IP54 lap joint lid; IP65 upgrade via 1590KGASKET

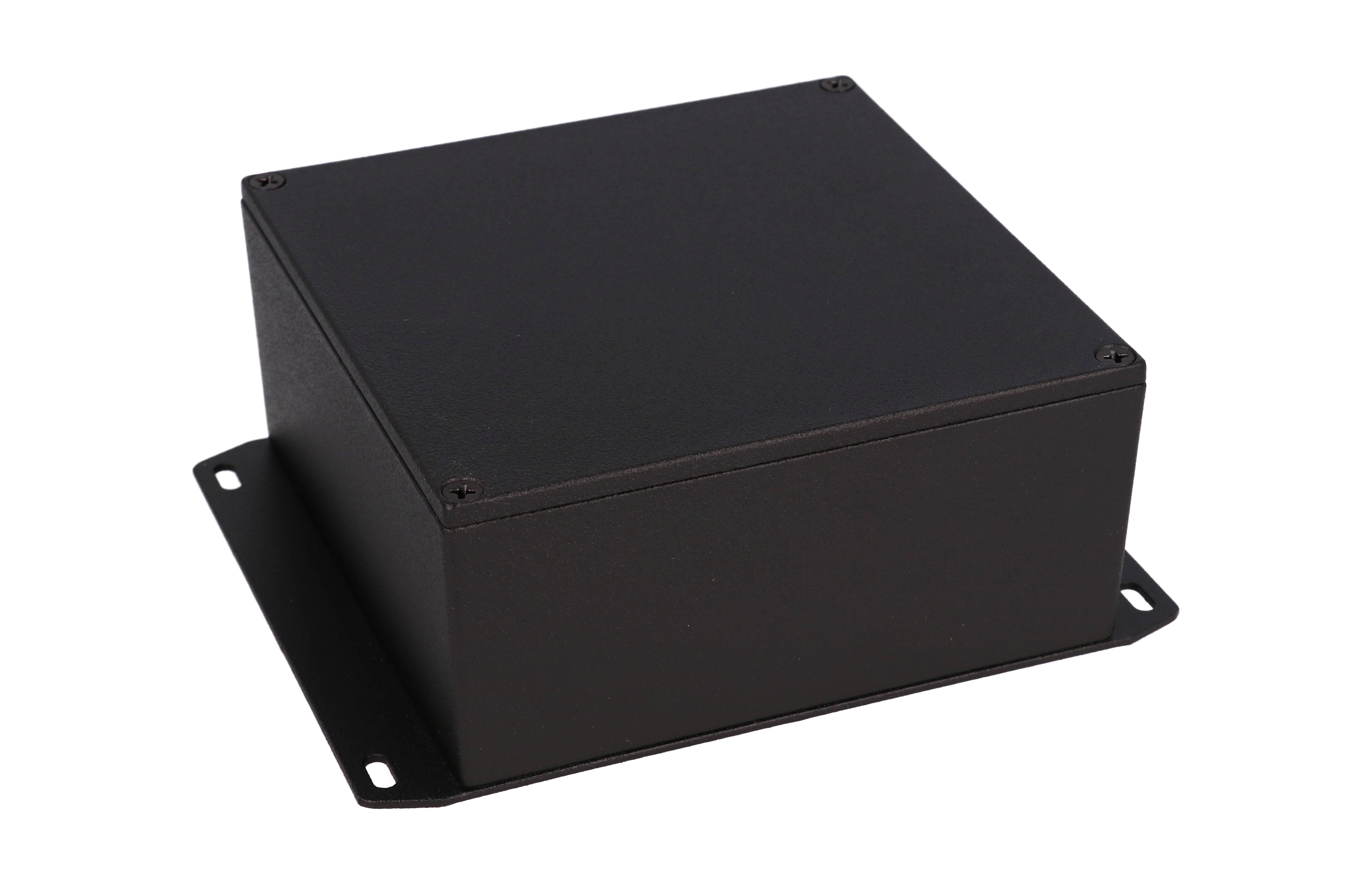

The 1590KKFBK is a black, low-profile diecast aluminum enclosure with a welded flanged bottom plate. At 4.91 in x 4.91 in x 2.24 in (125 mm x 125 mm x 57 mm) it gives integrators a slim, finished housing that mounts straight onto walls, panels or equipment.
Its textured black polyester powder paint provides a lasting finish even after machining, and the included cover screws are black to match. The diecast aluminum alloy box and lid meet at a lap joint that protects against dust and splashing water, and the enclosure is designed to meet IP54.
From the drawing: the flange plate is 154.18 mm [6.070 in] x 112.06 mm [4.412 in], with 3.96 mm [0.156 in] holes on 142.90 mm x 100.58 mm centres, and overall height including the flange is 58.50 mm [2.303 in]. The box is 124.80 mm [4.913 in] square outside and offers 116.94 mm [4.604 in] of inside length, 116.44 mm [4.584 in] of inside width and 51.30 mm [2.020 in] of inside height. P.C. boards up to 116.38 mm square fit, helped by a side wall draft of 2° or less.

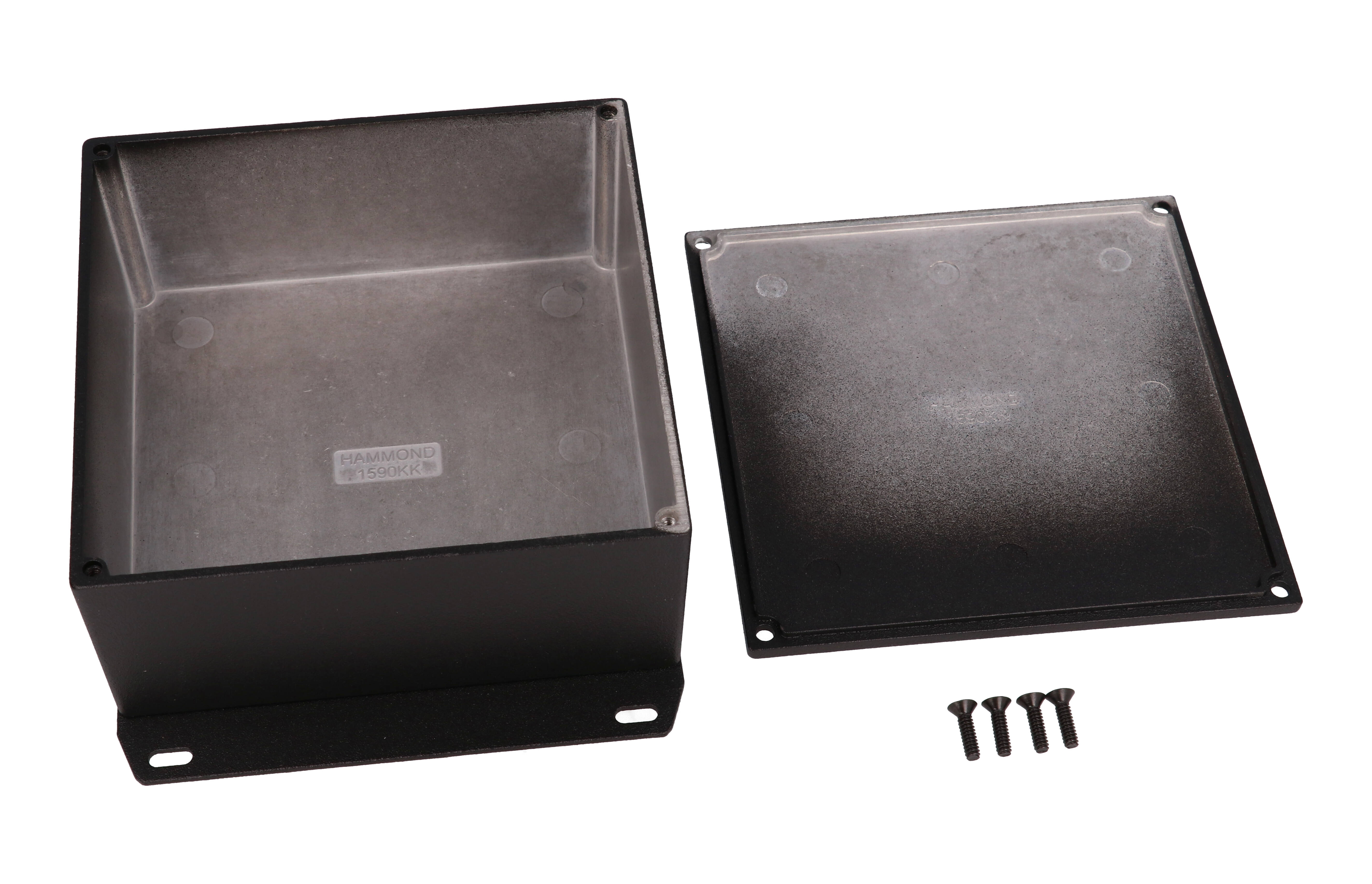

The 1590KKFBK includes the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, torqued to 50-55 cN.m [71-78 ozf.in]. Upgrade to IP65 with the 1590KGASKET kit (lid screws at 25-30 cN.m [36-43 ozf.in]) or order the water-tight 1590WKKFBK. RoHS and REACH compliant; 1.1 lbs (0.50 kg), shrink wrapped.
Ideal For
- Black surface-mounted control electronics
- Equipment-mounted interface boxes
- Low-profile wall-mounted instruments
- Dust and splash protected installations
Mounting
| Flange Type | Welded bottom flange plate |
| Flange Plate Width | 112.06 mm [4.412 in] |
| Flange Hole Spacing (Width) | 100.58 mm [3.960 in] |
| Flange Hole Spacing (Length) | 142.90 mm [5.626 in] |
| Flange Mounting Hole Diameter | 3.96 mm [0.156 in] |
| Overall Height Including Flange | 58.50 mm [2.303 in] |
| Overall Length Including Flange | 154.18 mm [6.070 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | 125 X 125 X 57MM FLANGED ALM BOX BLACK |
| Part Number | 1590KKFBK |
| Mounting Style | Flanged bottom plate |
| Short Description | 125 X 125 X 57MM FLANGED ALM |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 116.44 mm [4.584 in] |
| Inside Height | 51.30 mm [2.020 in] |
| Inside Length | 116.94 mm [4.604 in] |
| Ordering Table Width | 4.92 in (125 mm) |
| Max. P.C. Board Width | 116.38 mm |
| Ordering Table Height | 2.24 in (57 mm) |
| Ordering Table Length | 4.92 in (125 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 116.38 mm |
| Nominal Size (L X W X H) | 4.91 in x 4.91 in x 2.24 in (125 mm x 125 mm x 57 mm) |
| Overall Box Width (Drawing) | 124.80 mm [4.913 in] |
| Overall Box Length (Drawing) | 124.80 mm [4.913 in] |
Accessories
| Related Versions | Natural 1590KKF; no-flange 1590KKBK; flanged lid 1590KKFLBK; water-tight 1590WKKFBK |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980809038 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint |
| Included | Box, lid and 4 cover screws (black screws) |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in .stp or .x_t |
| Drawing Revision | 25.05.2020 |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WKKFBK (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590KGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How do I mount the 1590KKFBK?▾
Through the welded flanged bottom plate, which has 3.96 mm [0.156 in] holes on 142.90 mm x 100.58 mm centres per the drawing.
What is the finish?▾
Textured black polyester powder paint, described as lasting even after machining. Black screws are included.
What are the outside dimensions?▾
Nominal size is 125 mm x 125 mm x 57 mm (4.91 in x 4.91 in x 2.24 in); the flange plate extends to 154.18 mm long and height with flange is 58.50 mm.
Is there a water-tight version?▾
Yes, the 1590WKKFBK. The 1590KGASKET kit can also upgrade this enclosure to IP65.
What board size fits?▾
Maximum P.C. board size is 116.38 mm x 116.38 mm.
