Hammond 1590KF 125x125x79mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for direct surface mounting
- Flange 154.18 x 112.06 mm with 3.96 mm holes on 142.90 x 100.58 mm centres
- 125 x 125 x 79 mm box; 80.50 mm tall including flange
- Inside 118.10 x 118.10 x 73.50 mm; P.C. boards up to 116.1 mm square
- IP54 lap joint lid; IP65 with the 1590KGASKET kit
- Natural vibra finish diecast aluminum, easy to machine
- Includes 4 cover screws in 6-32 UNC tapped holes

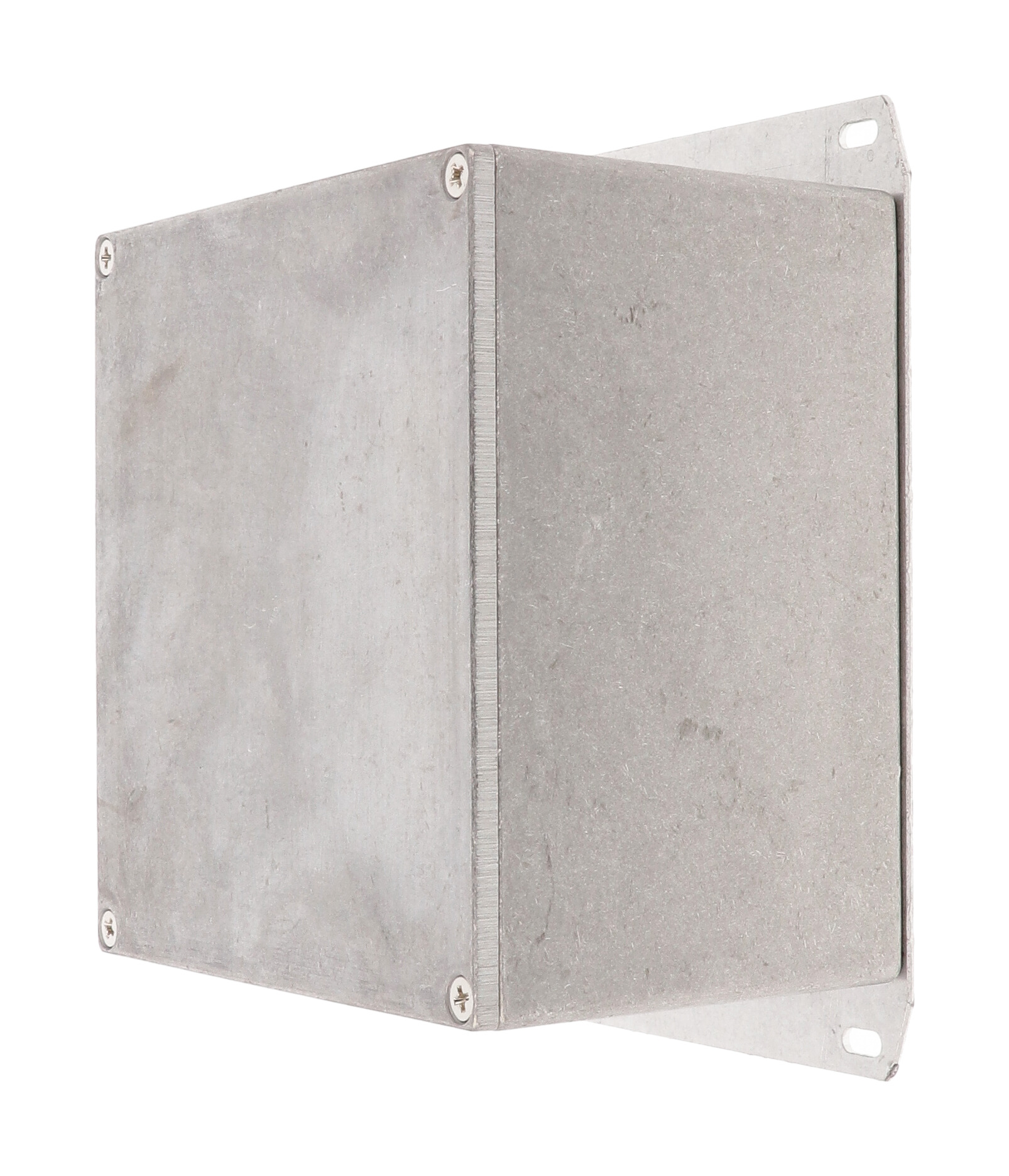

The 1590KF is the 125 mm x 125 mm x 79 mm (4.92 in x 4.92 in x 3.11 in) 1590 Series diecast aluminum box fitted with a welded flanged bottom plate, so it can be screwed directly to a panel, wall or machine frame. It is aimed at electricians, OEM engineers and integrators who want a deep metal enclosure with surface mounting built in.
The flange plate measures 154.18 mm [6.070 in] overall by 112.06 mm [4.412 in] on the drawing, with mounting holes of 3.96 mm [0.156 in] on 142.90 mm x 100.58 mm [5.626 in x 3.960 in] centres. Height including the flange is 80.50 mm [3.169 in]. Inside the box there is 118.10 mm [4.650 in] of length and width and 73.50 mm [2.894 in] of height, and boards up to 116.1 mm square fit.
Box and lid are diecast aluminum alloy, easy to machine, and this natural version is vibra finished for a smooth surface without sharp edges. A lap joint lid gives protection against dust and splashing water, and the standard version is designed to meet IP54. Side walls have a draft angle of 2° or less for straightforward PC board mounting.

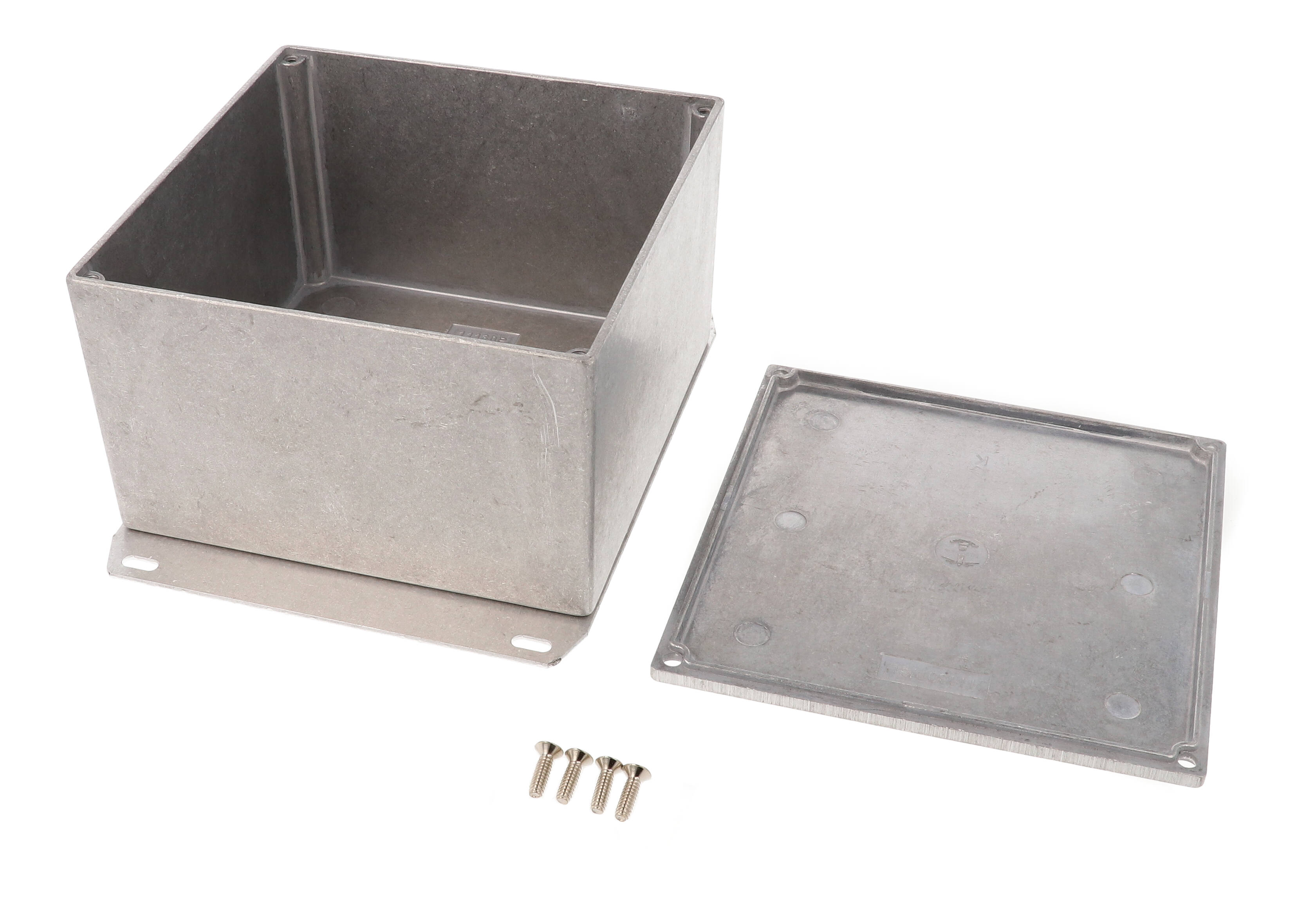

The 1590KF comes with the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m [71-78 ozf.in]. The 1590KGASKET kit upgrades it to IP65 (torque 25-30 cN.m with gasket), and a water-tight 1590WKF is offered. RoHS and REACH compliant; shipping weight 1.14 lbs (0.52 kg), shrink wrapped.
Ideal For
- Wall or panel mounted electronics housings
- Machine-mounted sensor and control electronics
- Junction and interface boxes needing a mounting flange
- Dust and splash protected instrument enclosures
Mounting
| Flange Type | Welded bottom flange plate |
| Flange Plate Width | 112.06 mm [4.412 in] |
| Flange Hole Spacing (Width) | 100.58 mm [3.960 in] |
| Flange Hole Spacing (Length) | 142.90 mm [5.626 in] |
| Flange Mounting Hole Diameter | 3.96 mm [0.156 in] |
| Overall Height Including Flange | 80.50 mm [3.169 in] |
| Overall Length Including Flange | 154.18 mm [6.070 in] |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Description | enclosure - diecast |
| Part Number | 1590KF |
| Mounting Style | Flanged bottom plate |
| Short Description | 1590K WITH FLANGES |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 118.10 mm [4.650 in] |
| Inside Height | 73.50 mm [2.894 in] |
| Inside Length | 118.10 mm [4.650 in] |
| Ordering Table Width | 4.92 in (125 mm) |
| Max. P.C. Board Width | 116.1 mm |
| Ordering Table Height | 3.11 in (79 mm) |
| Ordering Table Length | 4.92 in (125 mm) |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 116.1 mm |
| Nominal Size (L X W X H) | 4.92 in x 4.92 in x 3.11 in (125 mm x 125 mm x 79 mm) |
| Overall Box Width (Drawing) | 125.00 mm [4.921 in] |
| Overall Box Height (Drawing) | 79.00 mm [3.110 in] |
| Overall Box Length (Drawing) | 125.00 mm [4.921 in] |
Accessories
| Related Versions | Black 1590KFBK; no-flange 1590K; water-tight 1590WKF / 1590WKFBK |
| Standard Cover Screws | 1590MS100 plated, 1590MS100BK black (6-32 x 1/2", Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless, 1590WMS100BK black stainless (6-32 x 1/2" with O-ring, Pkg 100) |
Identifiers
| UPC | 623980282831 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.14 lbs (0.52 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| CAD Models | Solid models available in STEP or IGES |
| Cover Screw Thread | 4X 6-32 UNC, factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Version | 1590WKF (designed to meet IP65, gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590KGASKET (upgrades IP54 to IP65) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590KF mounted?▾
It has a welded flanged bottom plate with four 3.96 mm [0.156 in] holes on 142.90 mm x 100.58 mm centres, per the drawing.
How tall is the 1590KF with the flange?▾
The drawing gives an overall height of 80.50 mm [3.169 in] including the flange; the box itself is nominally 79 mm (3.11 in).
What is the difference between 1590K and 1590KF?▾
They share the same 125 x 125 x 79 mm body. The 1590KF adds a welded flanged bottom plate for mounting; the 1590K has no mounting flanges.
Can it be made watertight?▾
Yes. The 1590KGASKET kit upgrades it to IP65 when installed with lid screws torqued to 25-30 cN.m, or order the water-tight 1590WKF.
What board size fits inside?▾
Maximum P.C. board length and width are listed as 116.1 mm.
