Hammond 1590JGASKET IP65 Silicone Gasket Kit for 1590J Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Fits 1590J-size enclosures: 145 x 95 x 49 mm (5.71 x 3.74 x 1.93 in)
- Upgrades IP54 enclosures to IP65 when properly installed
- Adhesive backing; gasket is applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Machine or paint the enclosure first, gasket later
- RoHS and REACH compliant

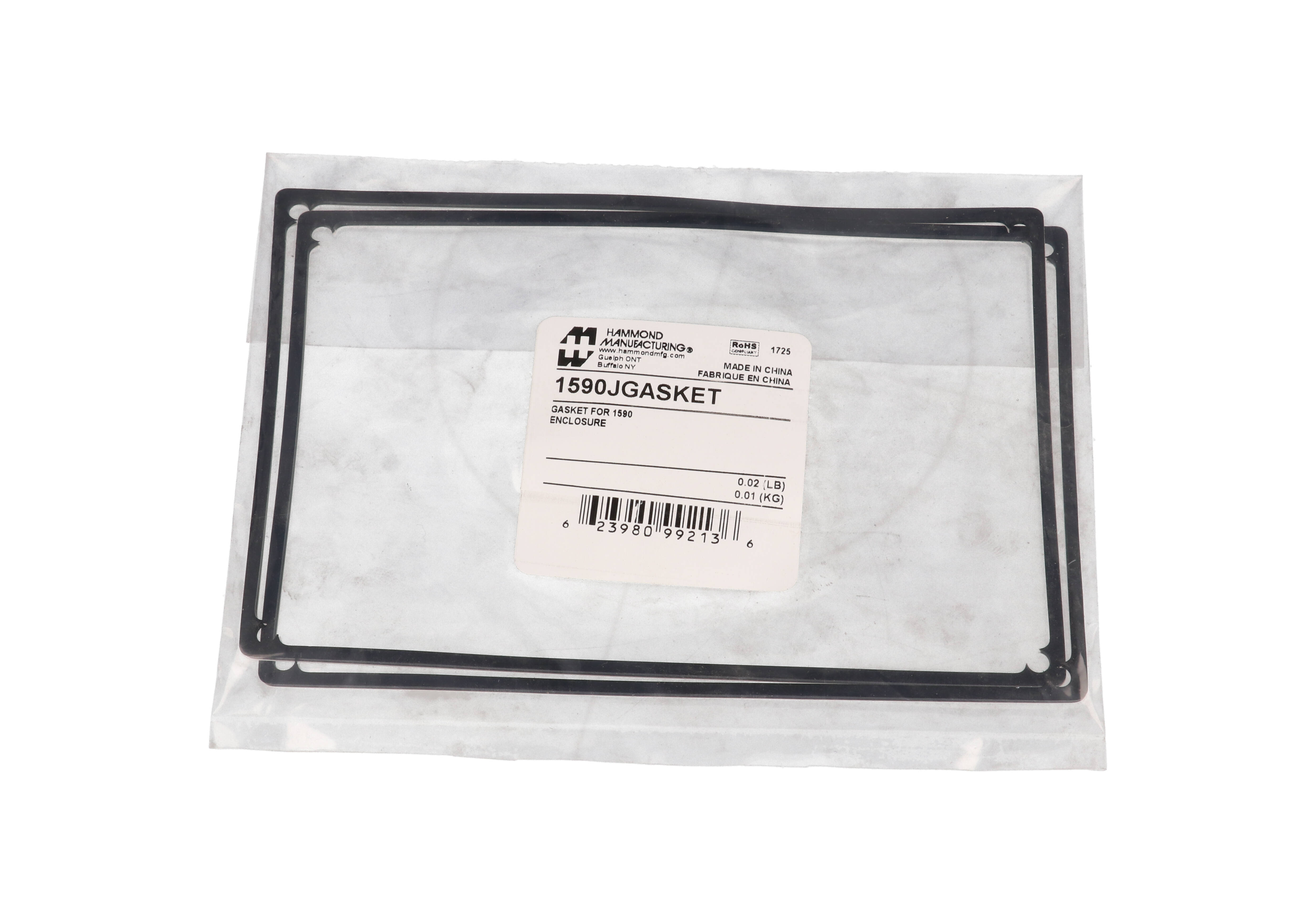

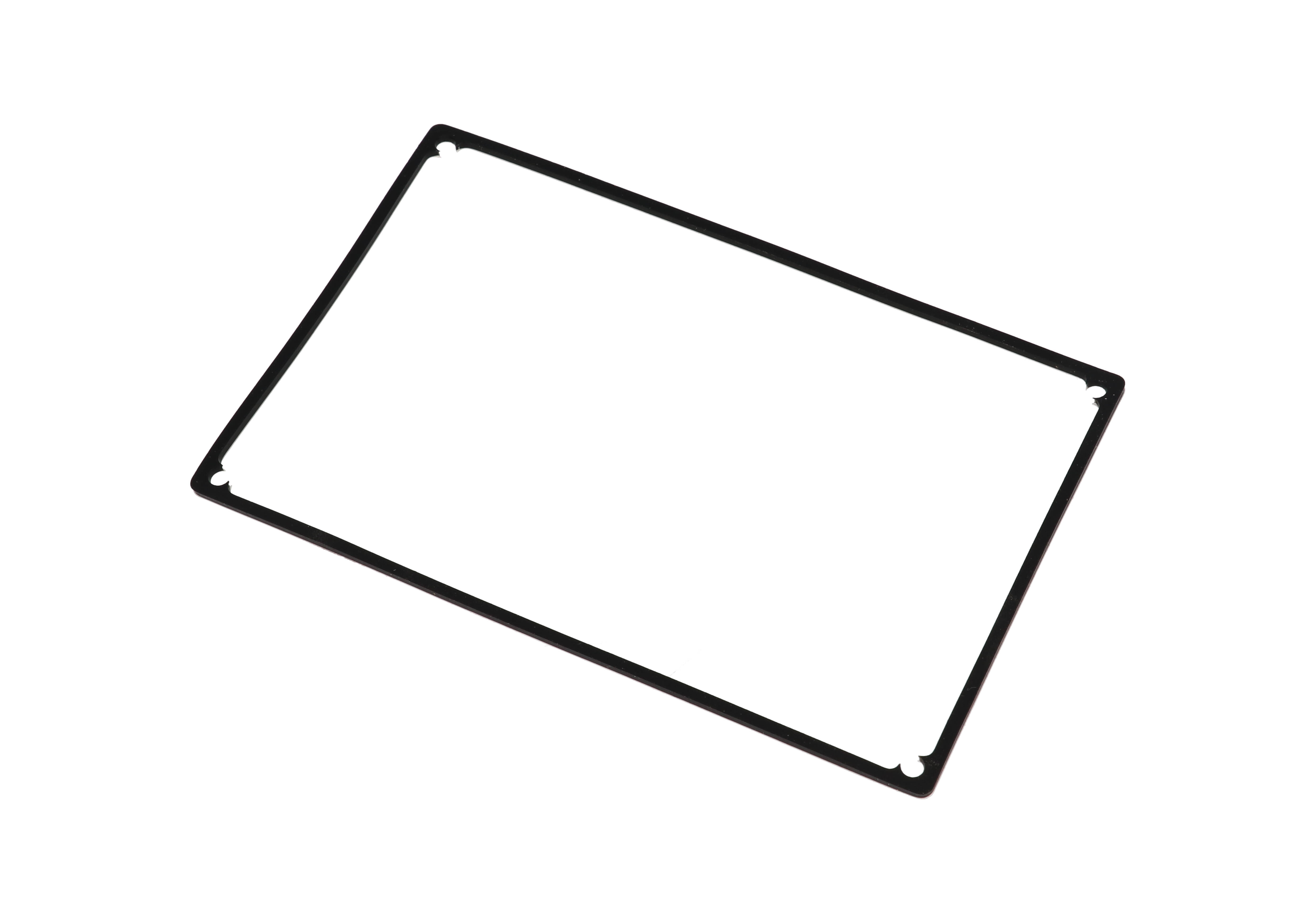

The 1590JGASKET is a two-pack of pre-formed silicone gaskets for 1590J diecast aluminum enclosures, the 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) size. It gives integrators, OEM engineers and facilities teams an upgrade path from IP54 to IP65 for standard enclosures, and serves as a replacement gasket for the water-tight 1590WJ versions, where the gasket is supplied loose inside the enclosure rather than pre-installed.
The ordering table lists it for 1590J and 1590JF, the water-tight 1590WJ and 1590WJF, and the black versions 1590JBK, 1590JFBK, 1590WJBK and 1590WJFBK.
Each gasket includes adhesive backing for easy installation and is applied to the lid, which allows the enclosure to be machined and/or painted first and gasketed later. The silicone has a temperature rating of -40°C to 150°C (-40°F to 302°F).
The enclosure is designed to meet IP65 with the gasket properly installed and lid screws torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard enclosure, the series notes advise ordering the watertight stainless steel screws with O-ring as well. RoHS and REACH compliant; bagged, 0.02 lbs (0.01 kg).
Ideal For
- Upgrading 1590J enclosures from IP54 to IP65
- Replacing gaskets in water-tight 1590WJ enclosures
- Gasketing after machining or painting
Overview
| Description | SILICONE GASKET- 2 PACK |
| Product Type | Gasket |
| Pack Quantity | 2 pre-formed silicone gaskets per kit |
| Long Description | silicone gasket for 1590J enclosures, 2-pack |
Identifiers
| UPC | 623980992136 |
| UNSPSC | 39121301 |
| Part Number | 1590JGASKET |
Compatibility
| 1590J Enclosures (Black) | 1590JBK, 1590WJBK, 1590JFBK, 1590WJFBK |
| 1590J Enclosures (Natural) | 1590J, 1590WJ, 1590JF, 1590WJF |
| Enclosure Size 1590J (L X W X H) | 5.71 in (145 mm) x 3.74 in (95 mm) x 1.93 in (49 mm) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone |
| Applied To | Enclosure lid |
| Adhesive Backing | Yes |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1590JGASKET fit?▾
1590J, 1590JF, 1590WJ and 1590WJF, plus their black (BK) versions.
How many gaskets are in the pack?▾
Two pre-formed silicone gaskets.
What torque should the lid screws have?▾
25-30 cN.m (36-43 ozf.in) for IP65 with the gasket properly installed.
What is the gasket's temperature rating?▾
-40°C to 150°C (-40°F to 302°F).
