Hammond 1590JBK 145x95x49mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 145 x 95 x 49 mm (5.71 x 3.74 x 1.93 in) black diecast aluminum
- Textured polyester powder paint; black screws included
- Inside 139.14 x 89.04 x 44.50 mm; max. P.C. board 138.14 x 88.04 mm
- IP54 lap joint construction
- IP65 via 1590WJBK or 1590JGASKET kit
- Four 6-32 UNC screws into factory-tapped holes
- RoHS and REACH compliant

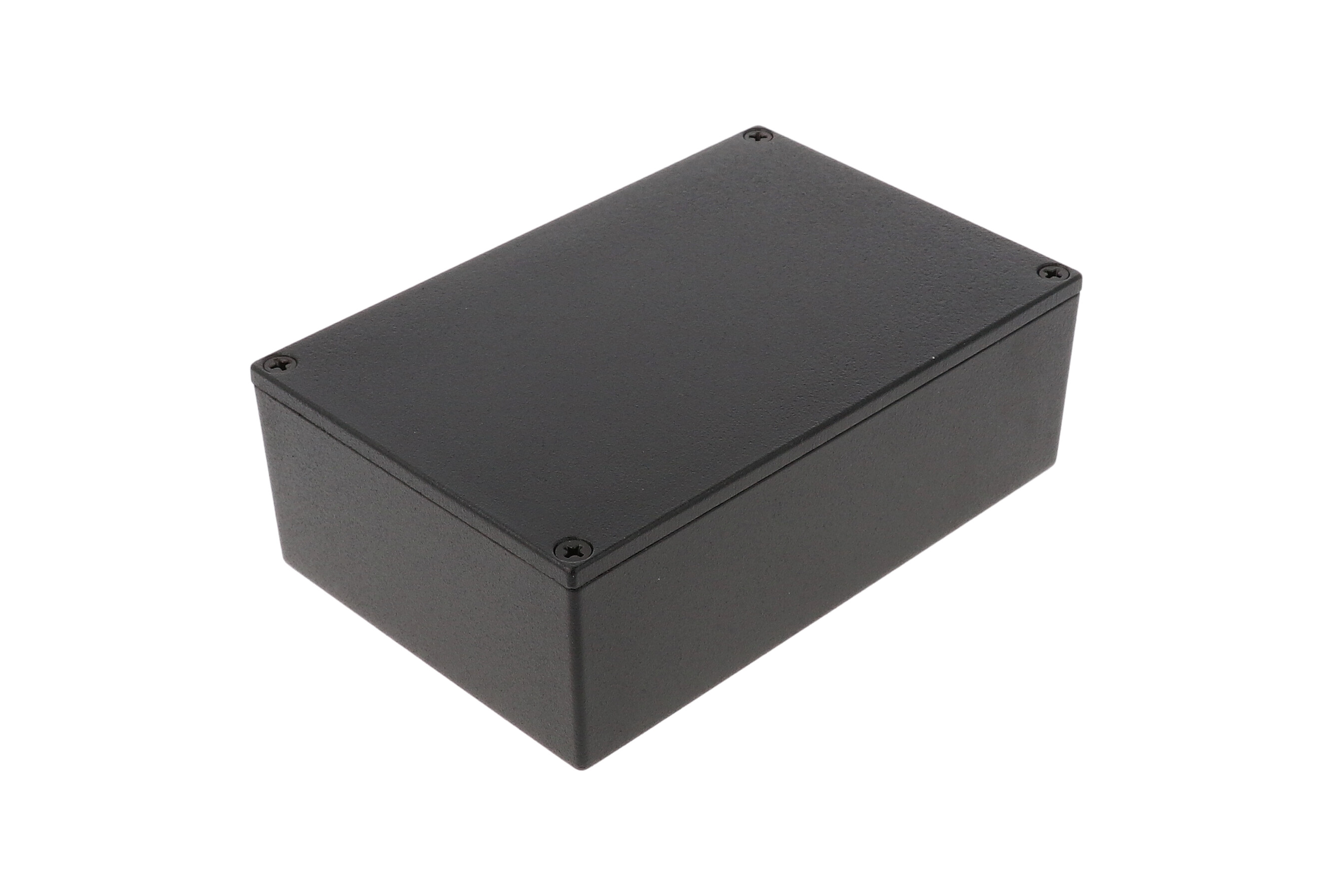

The 1590JBK is the 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) 1590J diecast aluminum enclosure in a textured black finish. It suits OEM engineers, AV and IT integrators and product designers who need a roomy metal housing for a larger board with a finished dark appearance.
Cast in aluminum alloy, the box and lid are coated with a tough textured polyester powder paint that holds a lasting finish even after machining, so cut-outs for connectors and controls stay clean. Black screws are included. The lap joint where lid and box meet protects against dust and splashing water, and the enclosure is designed to meet IP54.
The drawing shows 145.00 x 95.00 x 49.10 mm [5.709 x 3.740 x 1.933 in] outside, with 139.14 mm [5.478 in] x 89.04 mm [3.505 in] inside and 44.50 mm [1.752 in] of inside height. P.C. boards up to 138.14 x 88.04 mm fit, and side walls are drafted at 2° or less for easy mounting.

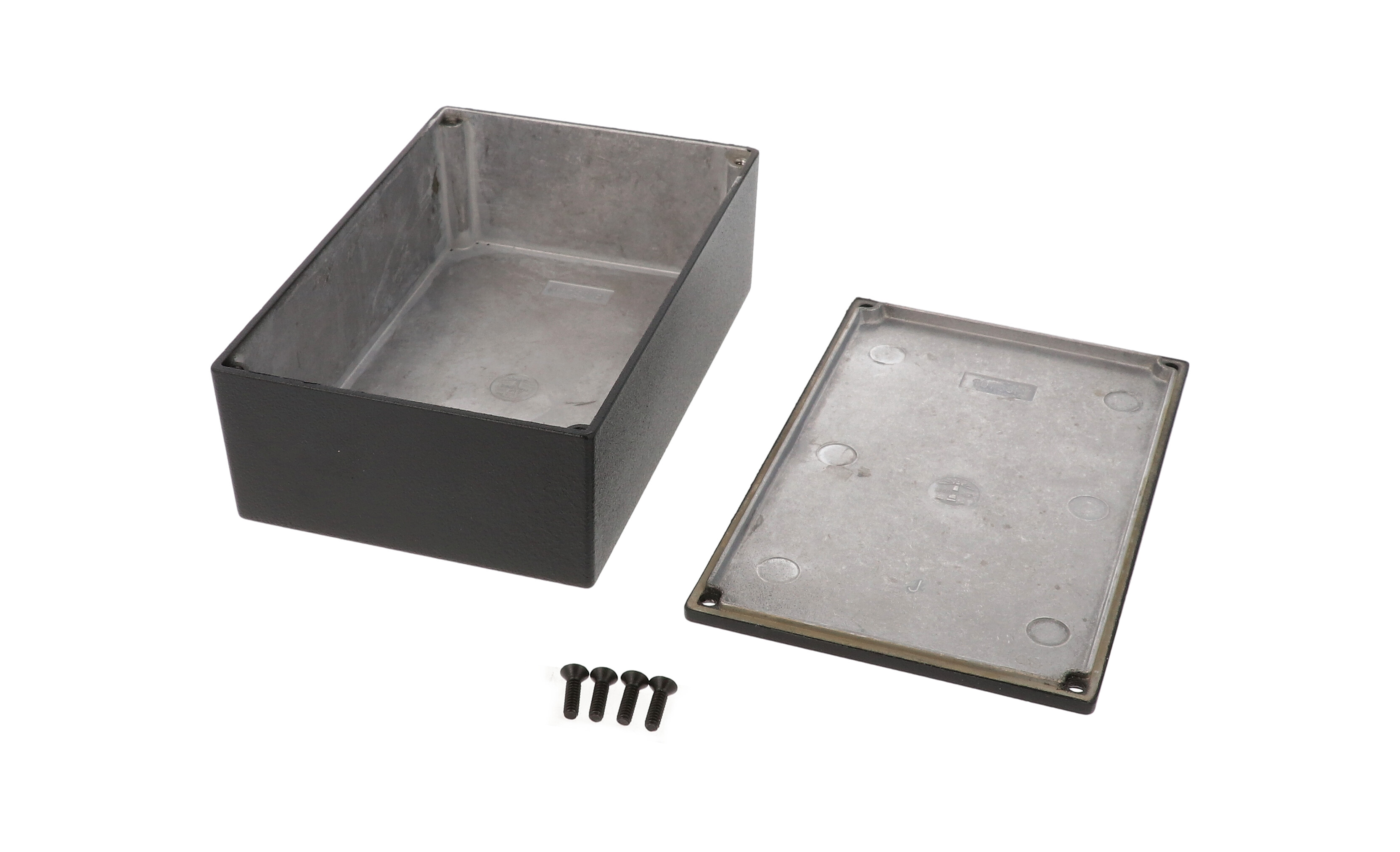

The 1590JBK is shrink wrapped with box, lid and four 6-32 UNC cover screws (recommended torque 50-55 cN.m [71-78 ozf.in]). The water-tight black version is 1590WJBK; the 1590JGASKET kit is the IP65 upgrade. RoHS and REACH compliant, 0.71 lbs (0.32 kg).
Ideal For
- Black-finish instrument housings
- Larger P.C. board enclosures
- Machined control and interface boxes
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | ALUMINUM ENCLOSURE |
| Product Type | Die-cast box |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 138.14 mm |
| Inside Width (Drawing) | 89.04 mm [3.505 in] |
| Max. P.C. Board Length | 88.04 mm |
| Width (Ordering Table) | 3.74 in (95 mm) |
| Height (Ordering Table) | 1.93 in (49 mm) |
| Inside Height (Drawing) | 44.50 mm [1.752 in] |
| Inside Length (Drawing) | 139.14 mm [5.478 in] |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Nominal Size (L X W X H) | 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) |
| Overall Dimensions (Drawing, L X W X H) | 145.00 mm x 95.00 mm x 49.10 mm [5.709 in x 3.740 in x 1.933 in] |
Identifiers
| UPC | 623980542454 |
| UNSPSC | 39121301 |
| Part Number | 1590JBK |
Related Versions
| Flanged Bottom Plate (Black) | 1590JFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.71 lbs (0.32 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WJBK |
| Optional Replacement Gasket Kit | 1590JGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590JBK have?▾
A tough textured black polyester powder paint, with black screws included.
How much inside height is there?▾
44.50 mm [1.752 in], per the manufacturer drawing.
Is a flanged black version available?▾
Yes, the 1590JFBK has a flanged bottom plate.
What is the cover screw torque?▾
50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
Related Products

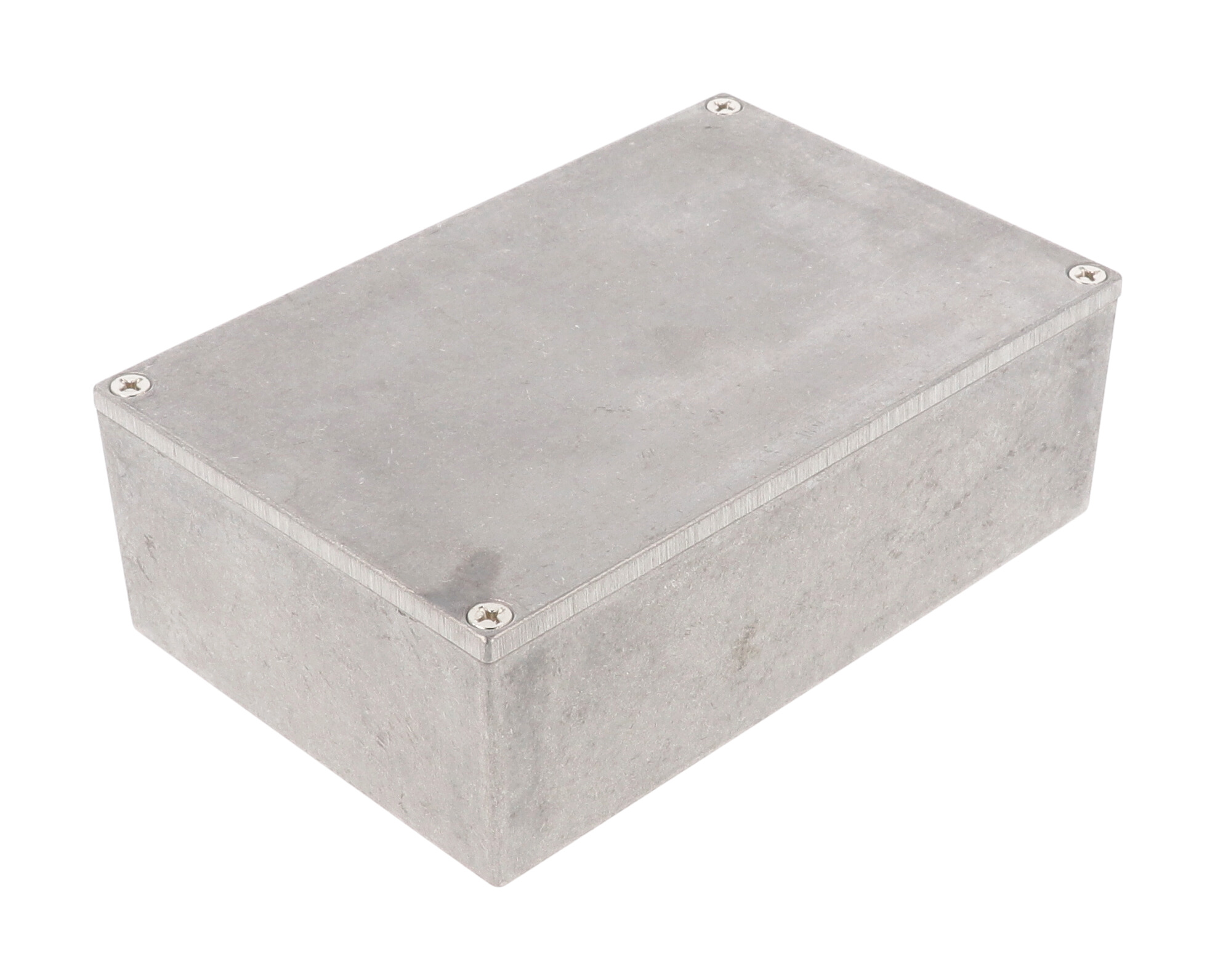

Save 52%1590J — enclosure - diecast
Hammond Manufacturing · 1590J

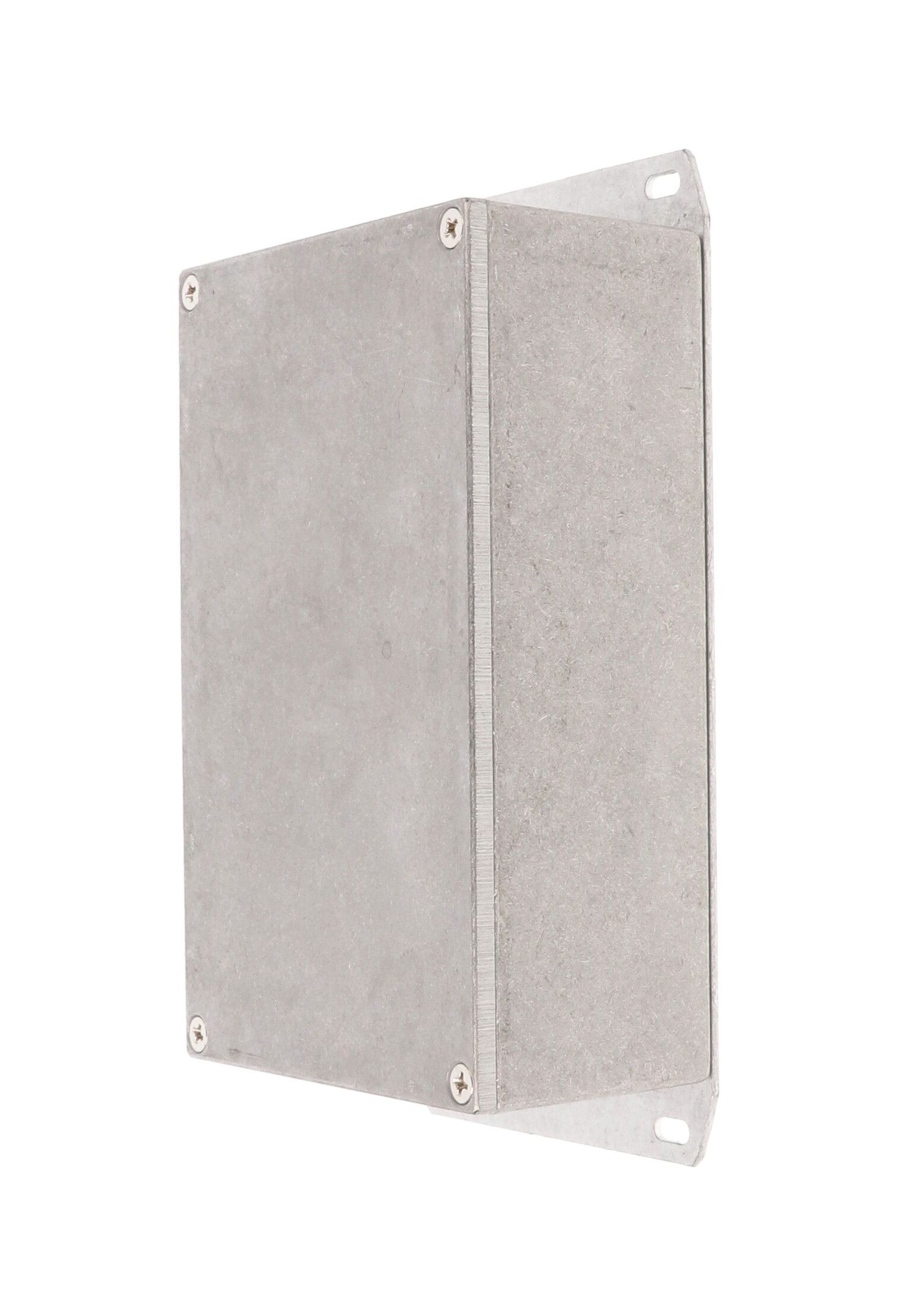

Save 52%1590JF — enclosure - diecast
Hammond Manufacturing · 1590JF
Save 52%1590HGASKET — silicone gasket for 1590H enclosures, 2-pack
Hammond Manufacturing · 1590HGASKET

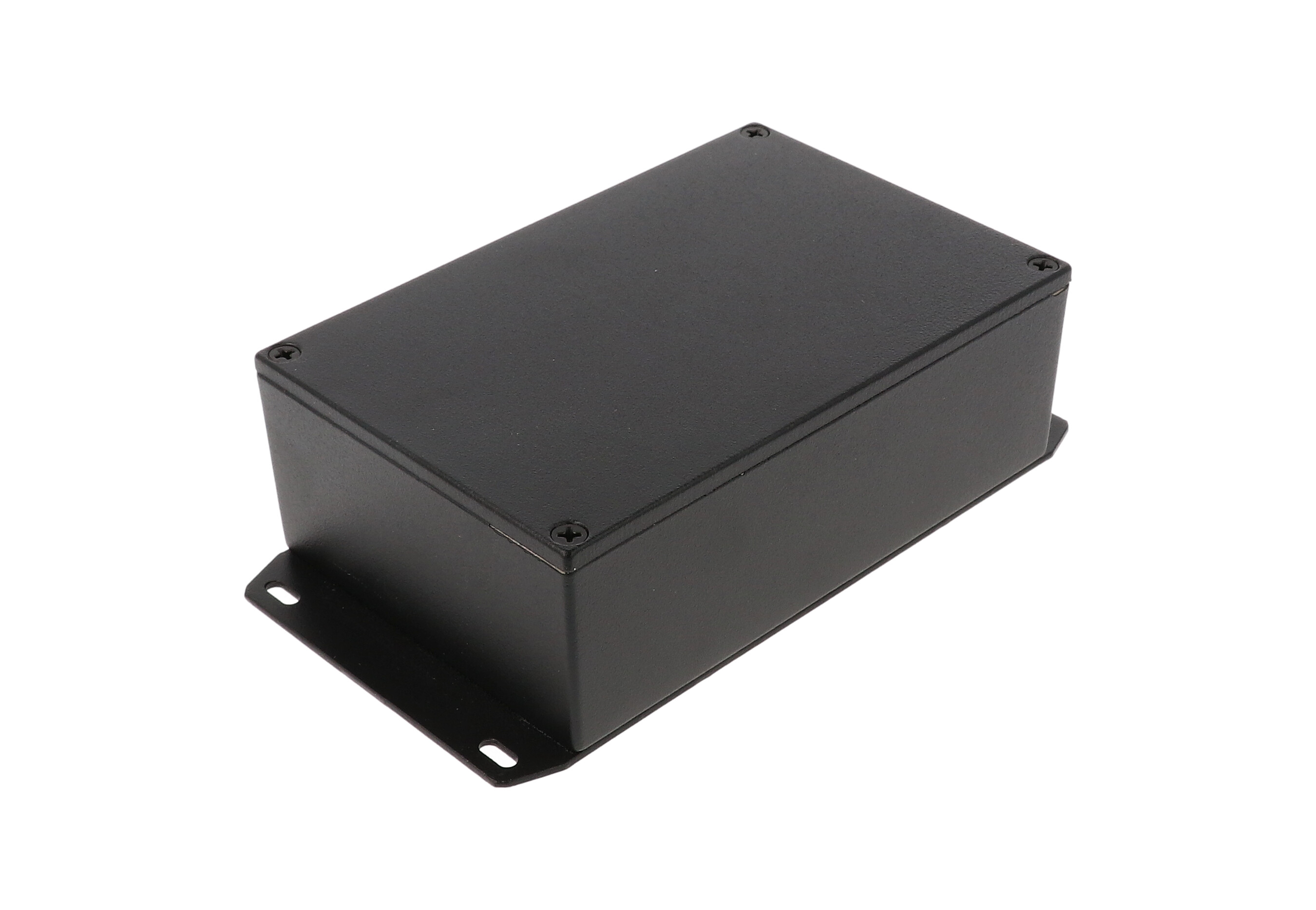

Save 52%1590JFBK — enclosure - diecast
