Hammond 1590J 145x95x49mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 5.71 x 3.74 x 1.93 in (145 x 95 x 49 mm) diecast aluminum box
- Inside 139.14 x 89.04 x 44.50 mm; max. P.C. board 138.14 x 88.04 mm
- Natural unpainted vibra finish with no sharp edges
- Lap joint lid designed to meet IP54
- IP65 option: 1590WJ or 1590JGASKET gasket kit
- Four 6-32 UNC cover screws included
- RoHS and REACH compliant; 0.7 lbs (0.32 kg)

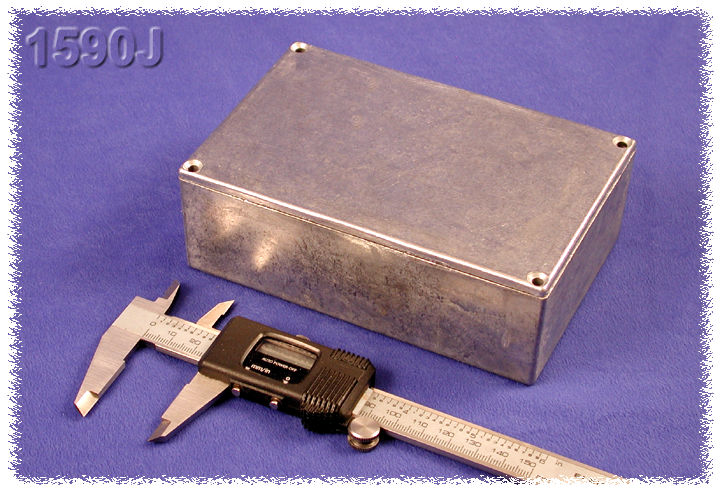

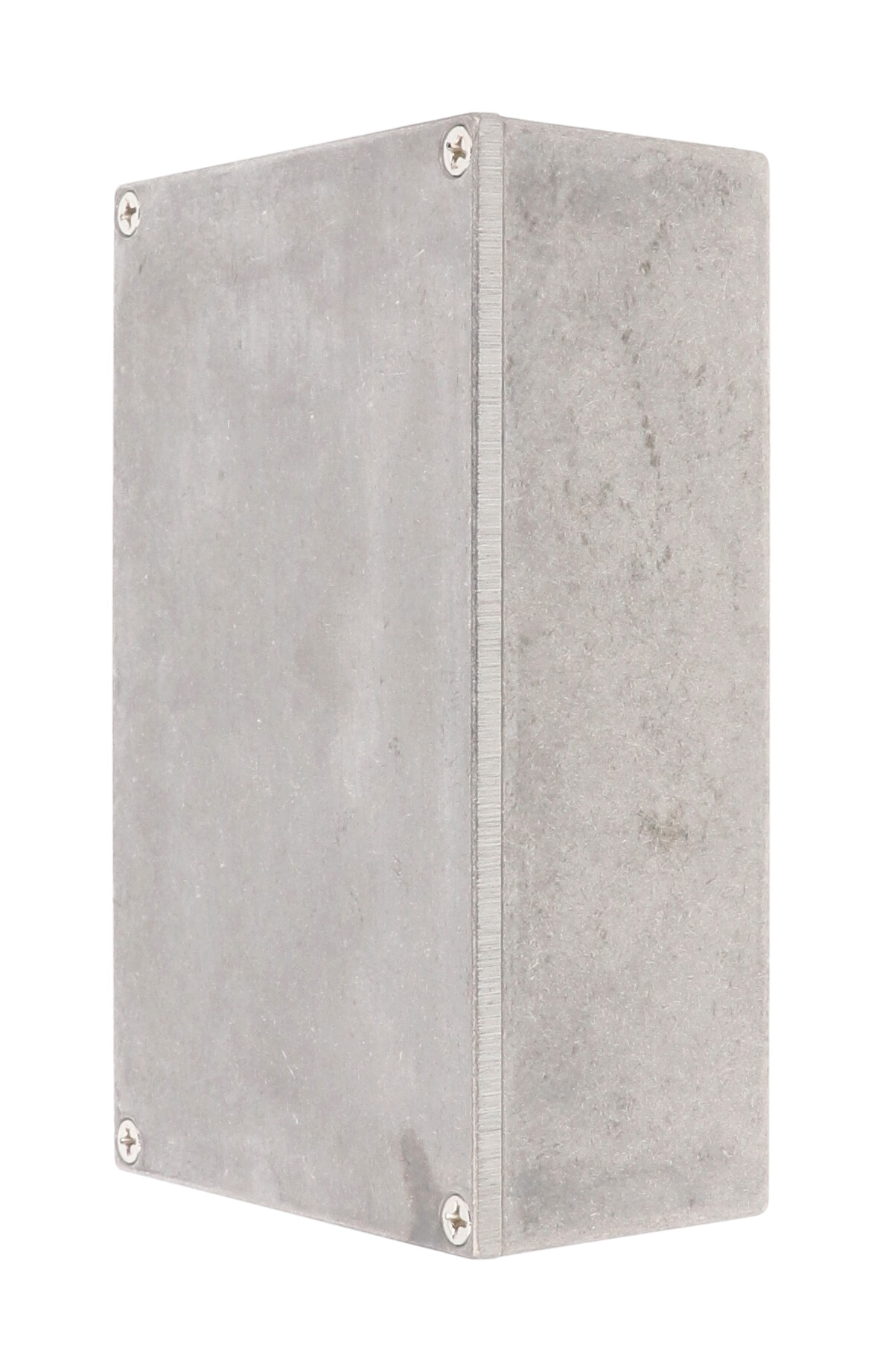

The 1590J is a mid-size, unflanged diecast aluminum enclosure measuring 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm). It is a general purpose electronic instrument housing for engineers, integrators and builders who need room for a larger P.C. board, terminals or connectors inside a rugged metal case.
According to the drawing, outside dimensions are 145.00 x 95.00 x 49.10 mm [5.709 x 3.740 x 1.933 in] and the interior is 139.14 mm [5.478 in] long, 89.04 mm [3.505 in] wide and 44.50 mm [1.752 in] high. The maximum P.C. board is 138.14 mm x 88.04 mm, and a side wall draft angle of 2° or less simplifies board mounting.
Box and lid are diecast aluminum alloy, which is tough yet easy to machine for glands, switches and displays. The natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard enclosure is designed to meet IP54.

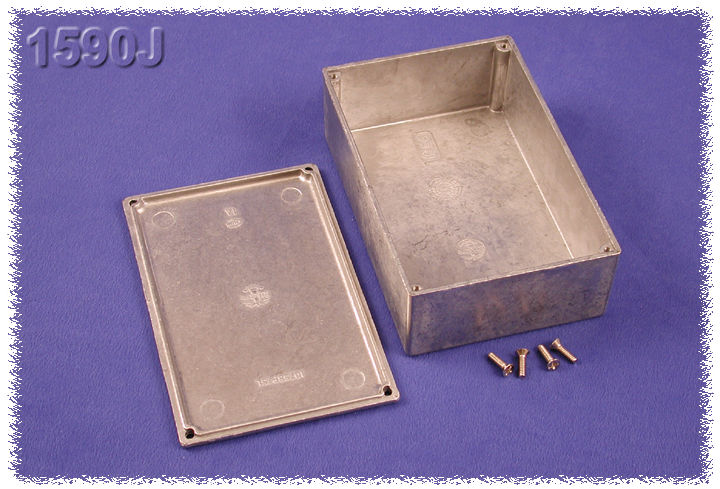

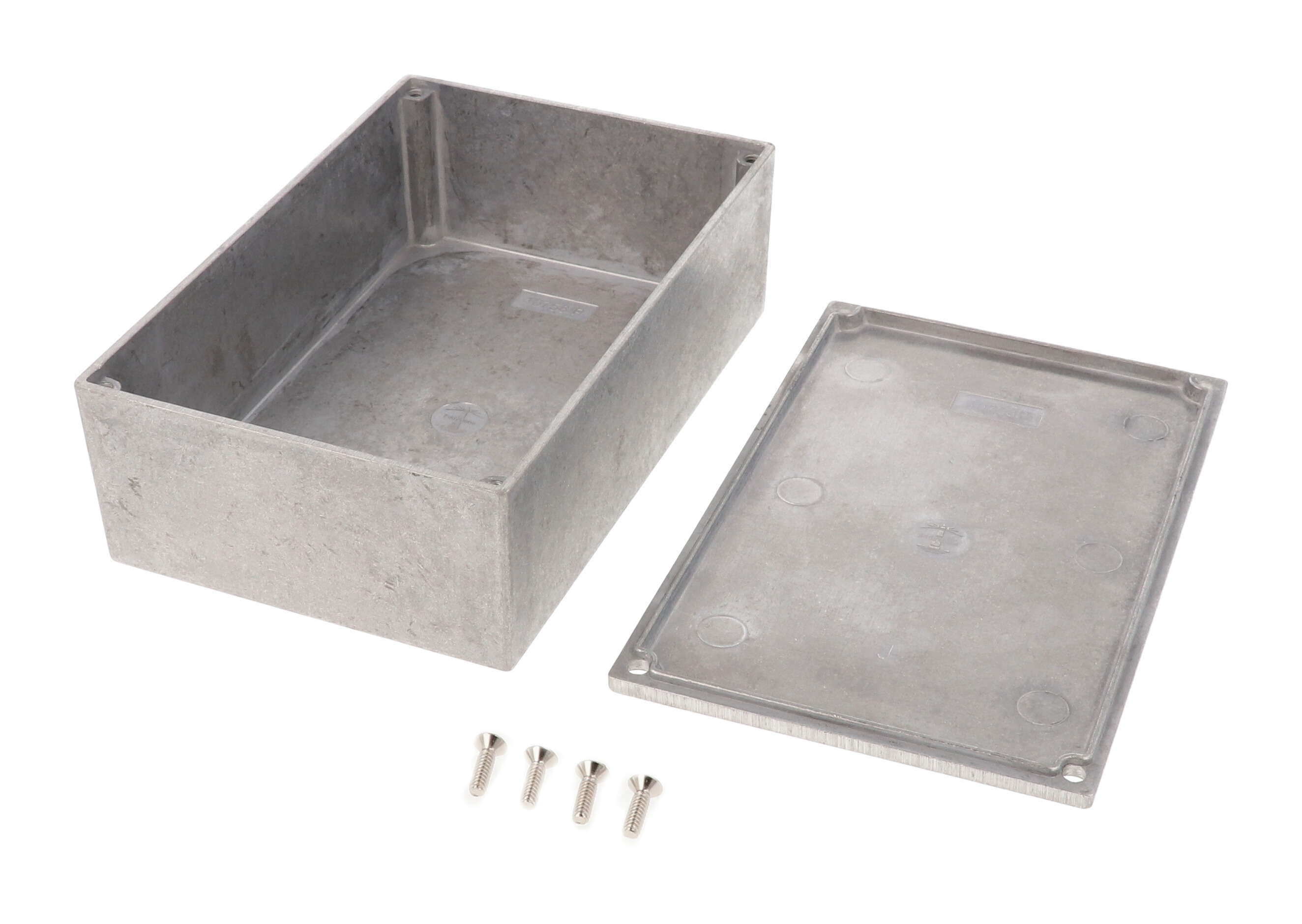

Each 1590J ships shrink wrapped with box, lid and four 6-32 UNC cover screws; recommended torque is 50-55 cN.m [71-78 ozf.in]. The water-tight version is 1590WJ, and the 1590JGASKET kit upgrades this box to IP65. RoHS and REACH compliant, 0.7 lbs (0.32 kg).
Ideal For
- Electronic instrument housings
- Larger P.C. board and terminal enclosures
- Machined control and interface boxes
- Dust- and splash-resistant equipment
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Overview
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 145 X 95 X 49MM ALM ENCLOSURE |
| Product Type | Die-cast box |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 138.14 mm |
| Inside Width (Drawing) | 89.04 mm [3.505 in] |
| Max. P.C. Board Length | 88.04 mm |
| Width (Ordering Table) | 3.74 in (95 mm) |
| Height (Ordering Table) | 1.93 in (49 mm) |
| Inside Height (Drawing) | 44.50 mm [1.752 in] |
| Inside Length (Drawing) | 139.14 mm [5.478 in] |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Nominal Size (L X W X H) | 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) |
| Overall Dimensions (Drawing, L X W X H) | 145.00 mm x 95.00 mm x 49.10 mm [5.709 in x 3.740 in x 1.933 in] |
Identifiers
| UPC | 623980542447 |
| UNSPSC | 39121301 |
| Part Number | 1590J |
Related Versions
| Flanged Bottom Plate (Natural) | 1590JF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.7 lbs (0.32 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WJ |
| Optional Replacement Gasket Kit | 1590JGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590J?▾
139.14 mm [5.478 in] long, 89.04 mm [3.505 in] wide and 44.50 mm [1.752 in] high.
What is the largest board it accepts?▾
138.14 mm by 88.04 mm, per the manufacturer's part data.
Is there a flanged 1590J?▾
Yes. The 1590JF has a flanged bottom plate. The ordering table lists no flanged-lid version for this size.
What is included?▾
Box, lid and four 6-32 UNC cover screws.
How do I get IP65?▾
Choose the water-tight 1590WJ, or install the 1590JGASKET kit and torque lid screws to 25-30 cN.m (36-43 ozf.in).
