Hammond 1590GFLBK 100x50x25mm Black Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged lid for wall mounting; 126.50 mm [4.980 in] overall length
- Lid mounting holes on 113.00 mm [4.449 in] centres
- Textured black powder paint with black screws included
- Nominal 100 x 50 x 25 mm (3.94 x 1.97 x 1 in) diecast aluminum
- Inside height 20.70 mm; max. P.C. board 94.23 x 44.23 mm
- IP54 lap joint; IP65 with 1590WGFLBK or 1590GGASKET kit
- RoHS and REACH compliant

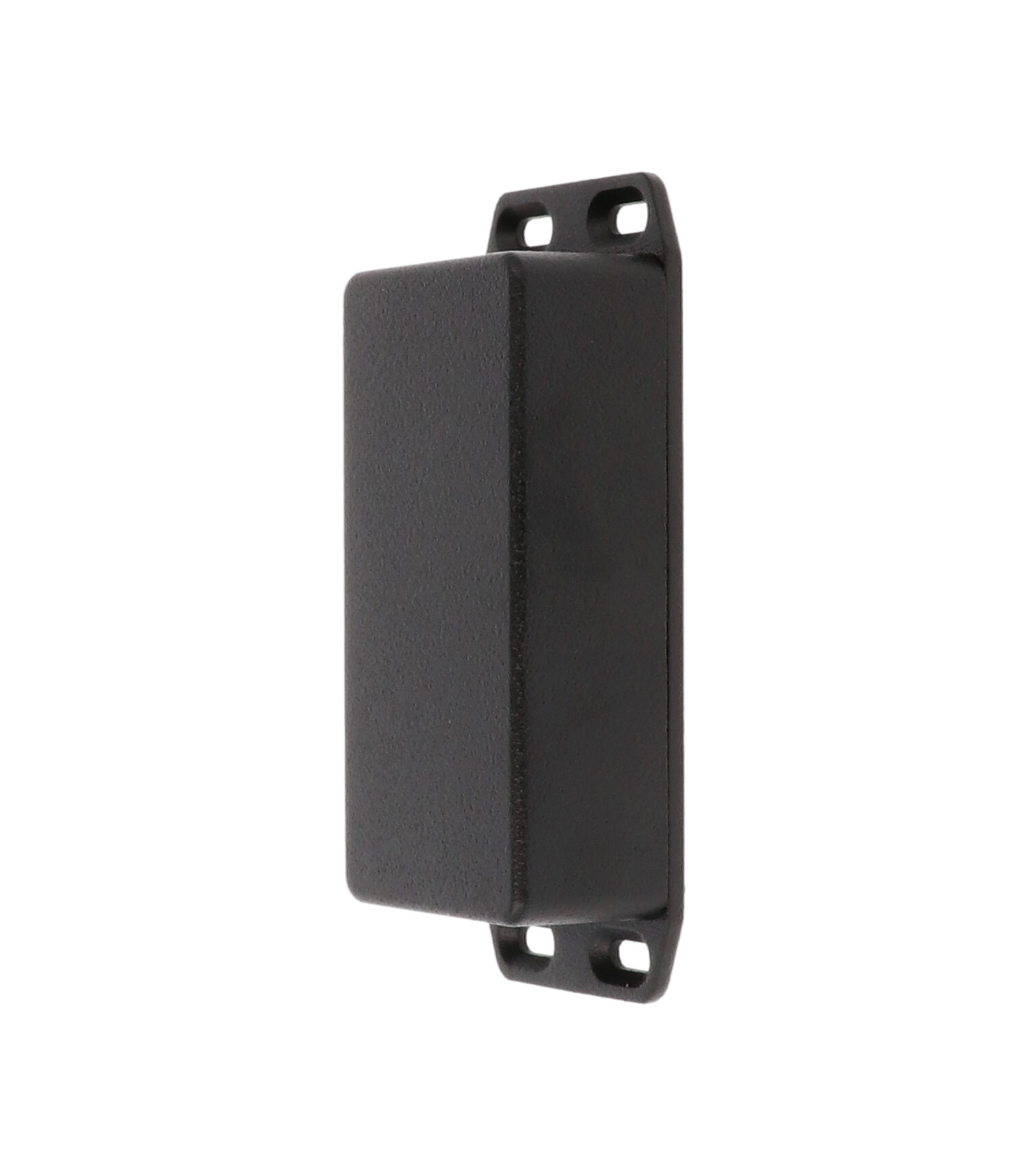

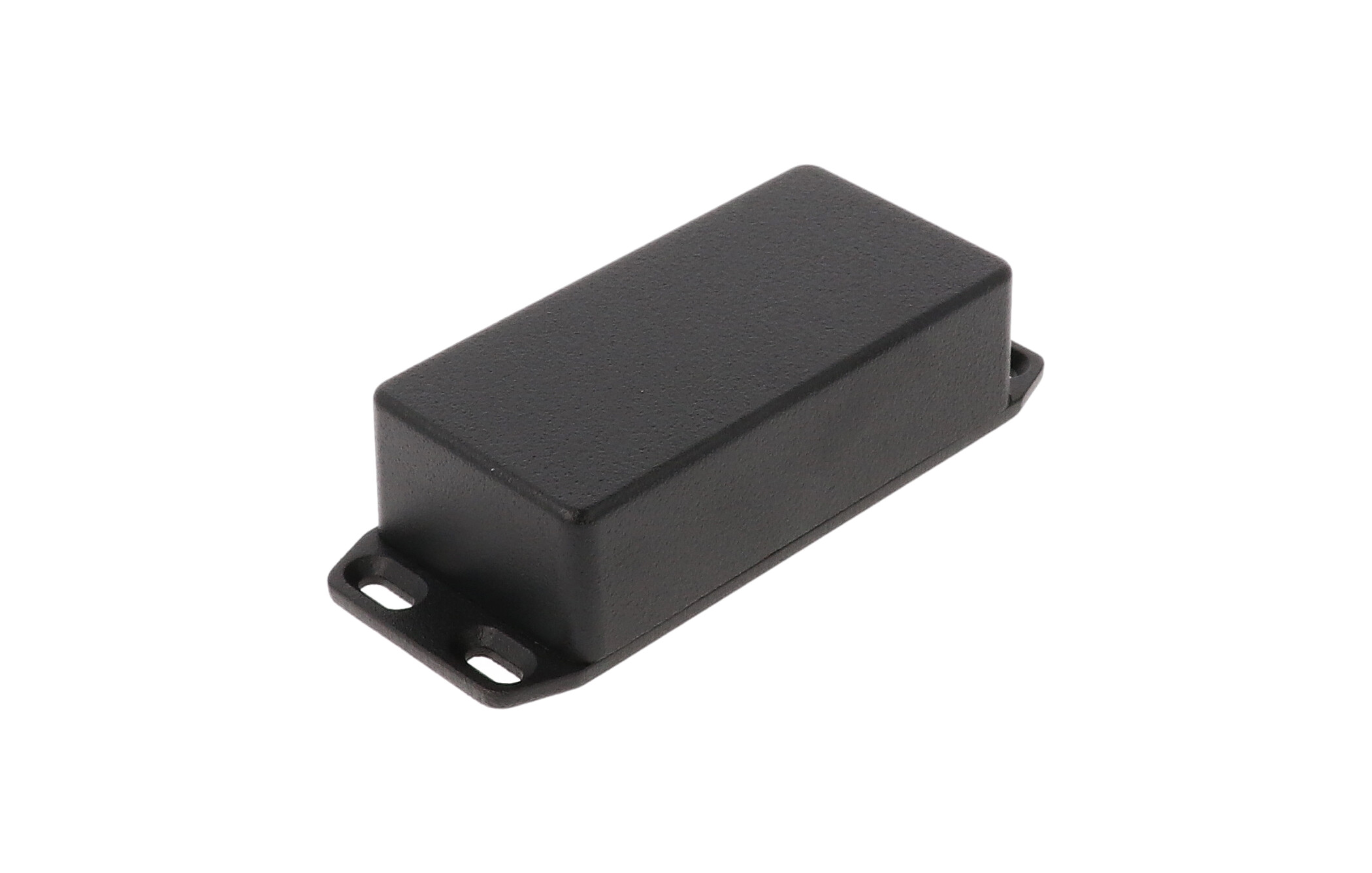

The 1590GFLBK pairs the small 1590G footprint, 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm), with a wall-mounting flange integrated into the lid and a textured black finish. It is designed for integrators and electronics builders who want a discreet, dark metal housing that fixes directly to a wall or panel.
The lid flange gives an overall length of 126.50 mm [4.980 in] on the drawing, with mounting holes on 113.00 mm [4.449 in] centres and an overall height of 25.50 mm [1.004 in]. Usable interior space is 95.23 mm [3.749 in] x 45.23 mm [1.781 in] with 20.70 mm [.815 in] of height; the maximum P.C. board is 94.23 x 44.23 mm.
Diecast aluminum alloy is tough yet easy to machine, and this version is coated with a tough textured polyester powder paint that stays intact even after machining. Black screws are included to complete the look. The lap joint between lid and box keeps out dust and splashing water to an IP54 design rating, and side walls are drafted at 2° or less for easy P.C. board mounting.
Shrink wrapped with box, lid and four 6-32 UNC cover screws (recommended torque 50-55 cN.m [71-78 ozf.in]), the 1590GFLBK is RoHS and REACH compliant and weighs 0.26 lbs (0.12 kg). The water-tight black version is 1590WGFLBK, and the 1590GGASKET kit offers an IP65 upgrade path.
Ideal For
- Wall-mounted black instrument housings
- Panel-mounted control electronics
- Compact P.C. board enclosures
- Dust- and splash-resistant equipment
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Lid Flange Mounting Hole Spacing (Drawing) | 113.00 mm [4.449 in] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 24MM ALM FLLID BLAK |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 94.23 mm |
| Inside Width (Drawing) | 45.23 mm [1.781 in] |
| Max. P.C. Board Length | 44.23 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.02 in (26 mm) |
| Inside Height (Drawing) | 20.70 mm [.815 in] |
| Inside Length (Drawing) | 95.23 mm [3.749 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm) |
| Overall Height (Drawing) | 25.50 mm [1.004 in] |
| Overall Length Including Lid Flange (Drawing) | 126.50 mm [4.980 in] |
Identifiers
| UPC | 623980791807 |
| UNSPSC | 39121301 |
| Part Number | 1590GFLBK |
Related Versions
| No Mounting Flanges (Black) | 1590GBK |
| Flanged Bottom Plate (Black) | 1590GFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WGBK |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590GFLBK the black version of the 1590GFL?▾
Yes. Both share the same flanged-lid design and dimensions; the 1590GFLBK has a textured black polyester powder paint and black screws.
What are the flange mounting hole centres?▾
113.00 mm [4.449 in], per the manufacturer drawing.
How many screws hold the lid?▾
Four 6-32 UNC cover screws, which are included and thread into factory-tapped holes.
Can I upgrade it to IP65?▾
Yes. Fit the 1590GGASKET silicone gasket kit and torque the lid screws to 25-30 cN.m (36-43 ozf.in), or order the water-tight 1590WGFLBK.
