Hammond 1590G2FLBK 100x50x31mm Black Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged lid for wall mounting; 126.50 mm [4.980 in] overall
- Lid mounting holes on 113.00 mm [4.449 in] centres
- Textured black powder paint; black screws included
- Nominal 100 x 50 x 31 mm; 26.70 mm [1.051 in] inside height
- Max. P.C. board 93.82 x 43.82 mm
- IP54 lap joint; IP65 via 1590WG2FLBK or 1590GGASKET
- RoHS and REACH compliant; 0.26 lbs (0.12 kg)

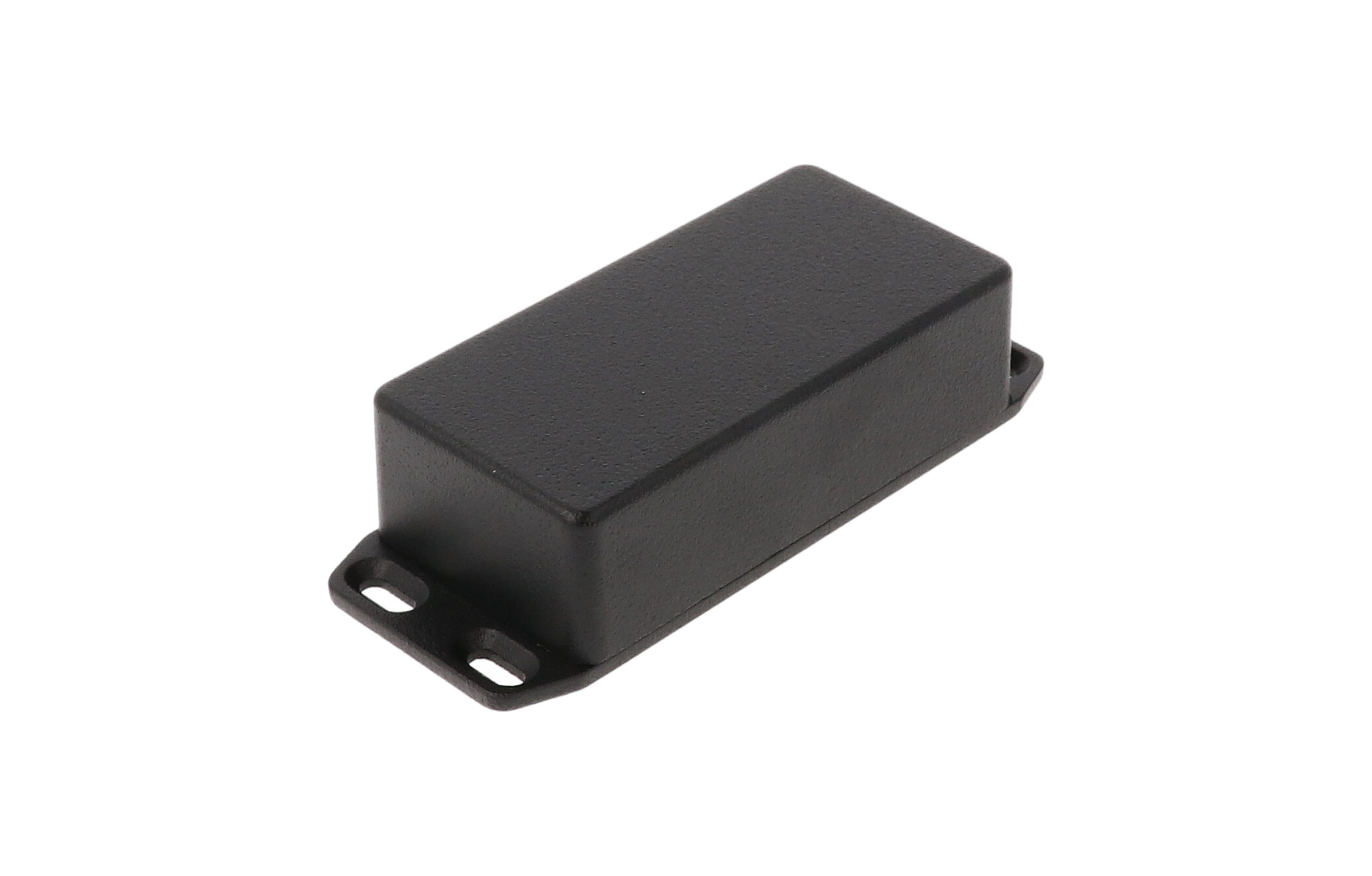

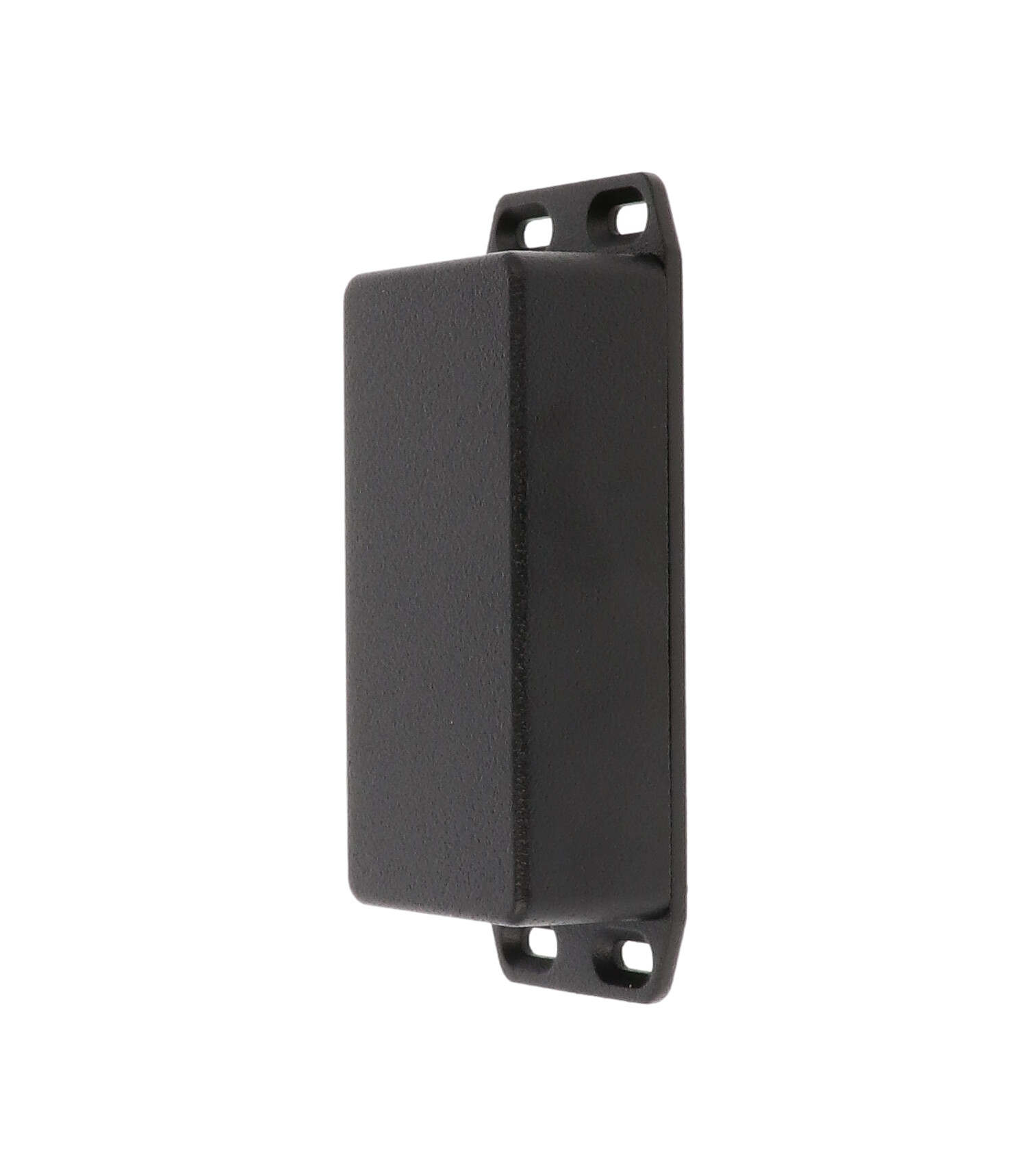

The 1590G2FLBK is a textured black diecast aluminum enclosure, nominally 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm), with the wall-mounting flange built into the lid. It is meant for integrators and OEM teams who need a compact, dark-finished metal housing with extra internal height that mounts flat to a wall or panel.
Per the drawing, the lid flange runs 126.50 mm [4.980 in] overall with mounting holes on 113.00 mm [4.449 in] centres, and overall height is 31.00 mm [1.220 in]. The inside measures 94.82 mm [3.733 in] long, 44.82 mm [1.764 in] wide and 26.70 mm [1.051 in] high, and accepts P.C. boards up to 93.82 x 43.82 mm.
The diecast aluminum alloy is tough yet easy to machine, and the tough textured black polyester powder paint keeps a lasting finish even after machining. Black screws are included to enhance appearance. Lap joint construction protects against dust and splashing water to an IP54 design rating, and side walls have a 2° or less draft angle for easy board mounting.

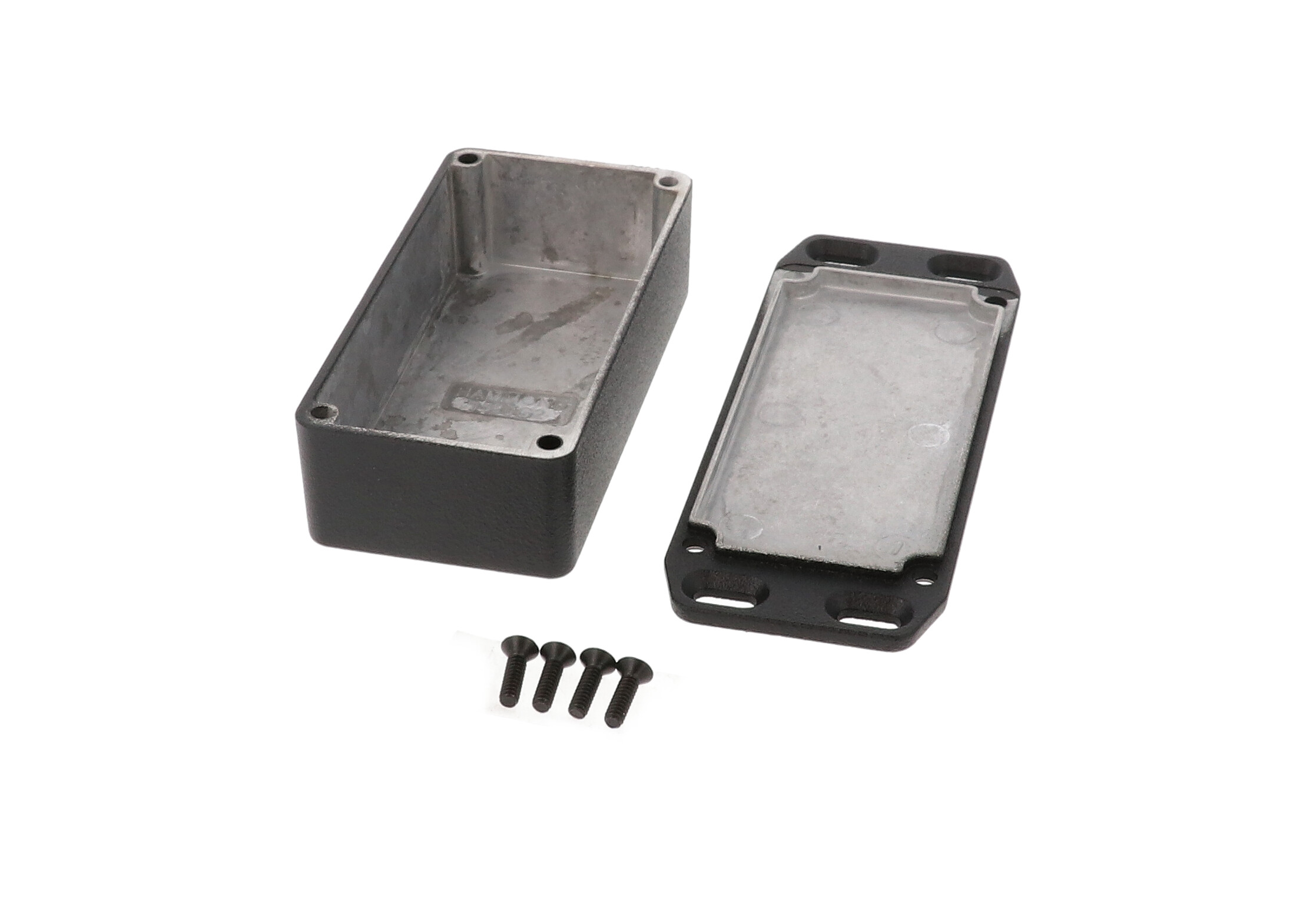

Shipped shrink wrapped with box, lid and four 6-32 UNC cover screws (recommended torque 50-55 cN.m [71-78 ozf.in]), the 1590G2FLBK is RoHS and REACH compliant. For IP65 choose the 1590WG2FLBK or install the 1590GGASKET kit.
Ideal For
- Wall-mounted black instrument housings
- Panel-mounted control electronics
- P.C. board housings needing extra height
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Wall-mounting flange integrated into lid |
| Lid Flange Mounting Hole Spacing (Drawing) | 113.00 mm [4.449 in] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 31MM ALM FLLID BLAK |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 93.82 mm |
| Inside Width (Drawing) | 44.82 mm [1.764 in] |
| Max. P.C. Board Length | 43.82 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.22 in (31 mm) |
| Inside Height (Drawing) | 26.70 mm [1.051 in] |
| Inside Length (Drawing) | 94.82 mm [3.733 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Length Including Lid Flange (Drawing) | 126.50 mm [4.980 in] |
Identifiers
| UPC | 623980810775 |
| UNSPSC | 39121301 |
| Part Number | 1590G2FLBK |
Related Versions
| No Mounting Flanges (Black) | 1590G2BK |
| Flanged Bottom Plate (Black) | 1590G2FBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WG2BK |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590G2FLBK?▾
A 100 x 50 x 31 mm diecast aluminum enclosure with a wall-mounting flanged lid and a textured black polyester powder paint finish.
What are the inside dimensions?▾
94.82 mm [3.733 in] x 44.82 mm [1.764 in] x 26.70 mm [1.051 in] high.
Are screws included?▾
Yes, four 6-32 UNC cover screws are included; black screws come with black versions.
Which gasket kit fits this enclosure?▾
1590GGASKET, which contains two pre-formed silicone gaskets with adhesive backing.
