Hammond 1590FFL 188x188x67mm Natural Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Square 188 x 188 x 67 mm; 217.00 mm overall with lid flange
- Fits PC boards up to 174.91 x 174.91 mm
- Eight 6-32 UNC cover screws included
- IP54 lap joint lid; 1590FGASKET for IP65
- Natural diecast aluminum, vibra finished
- RoHS and REACH compliant

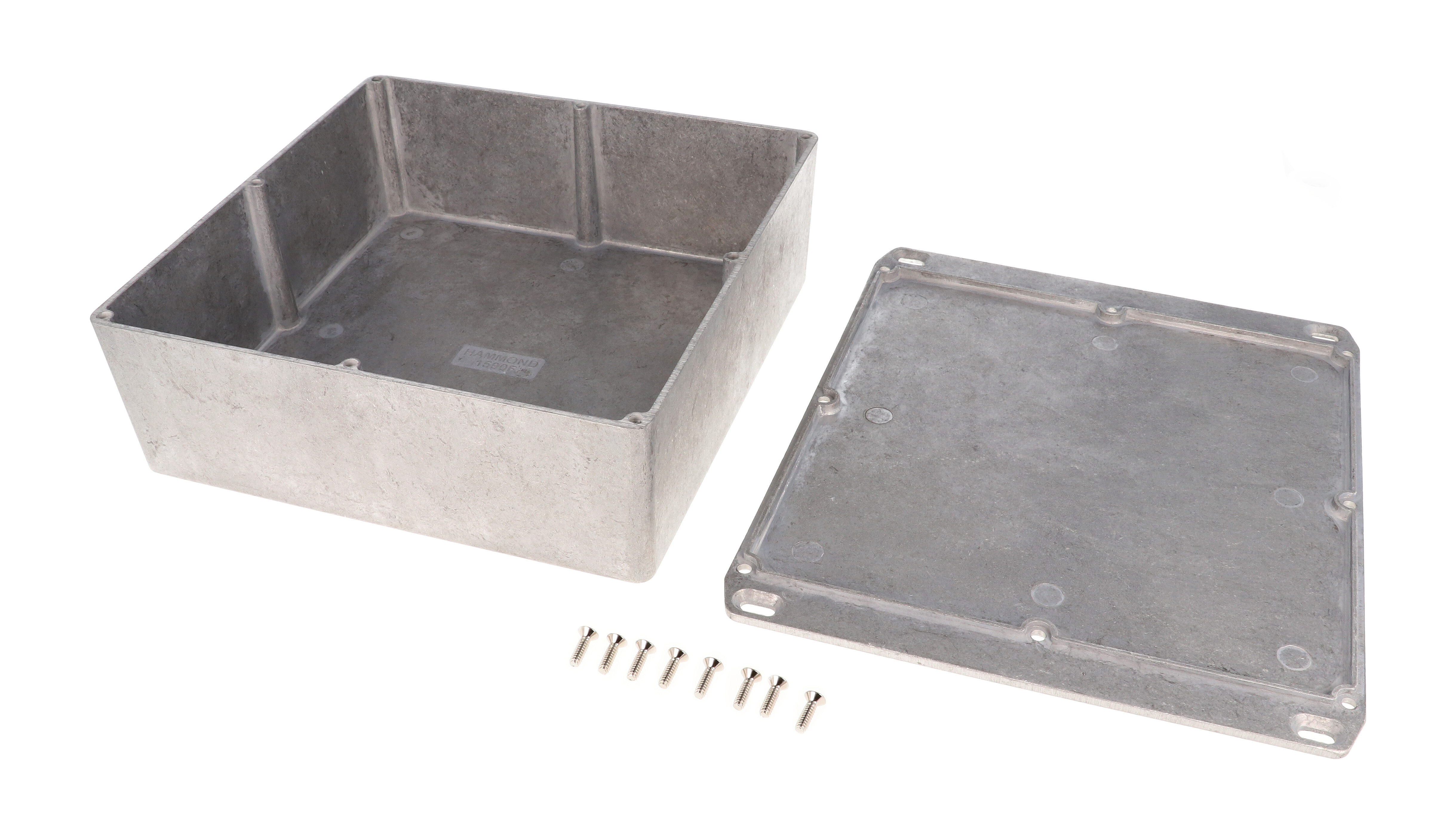

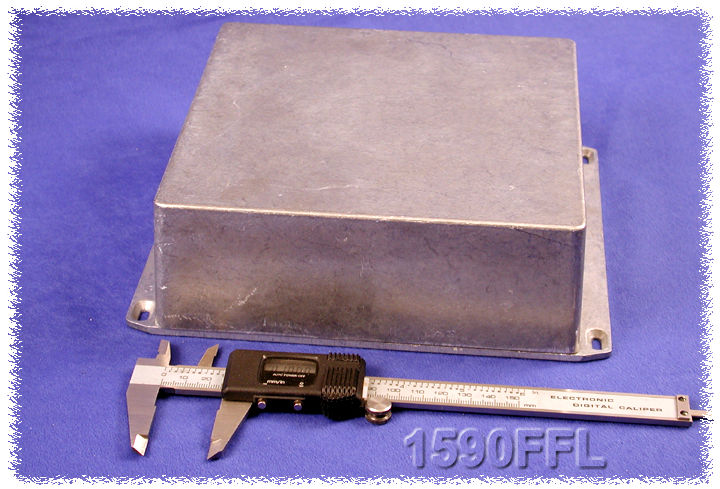

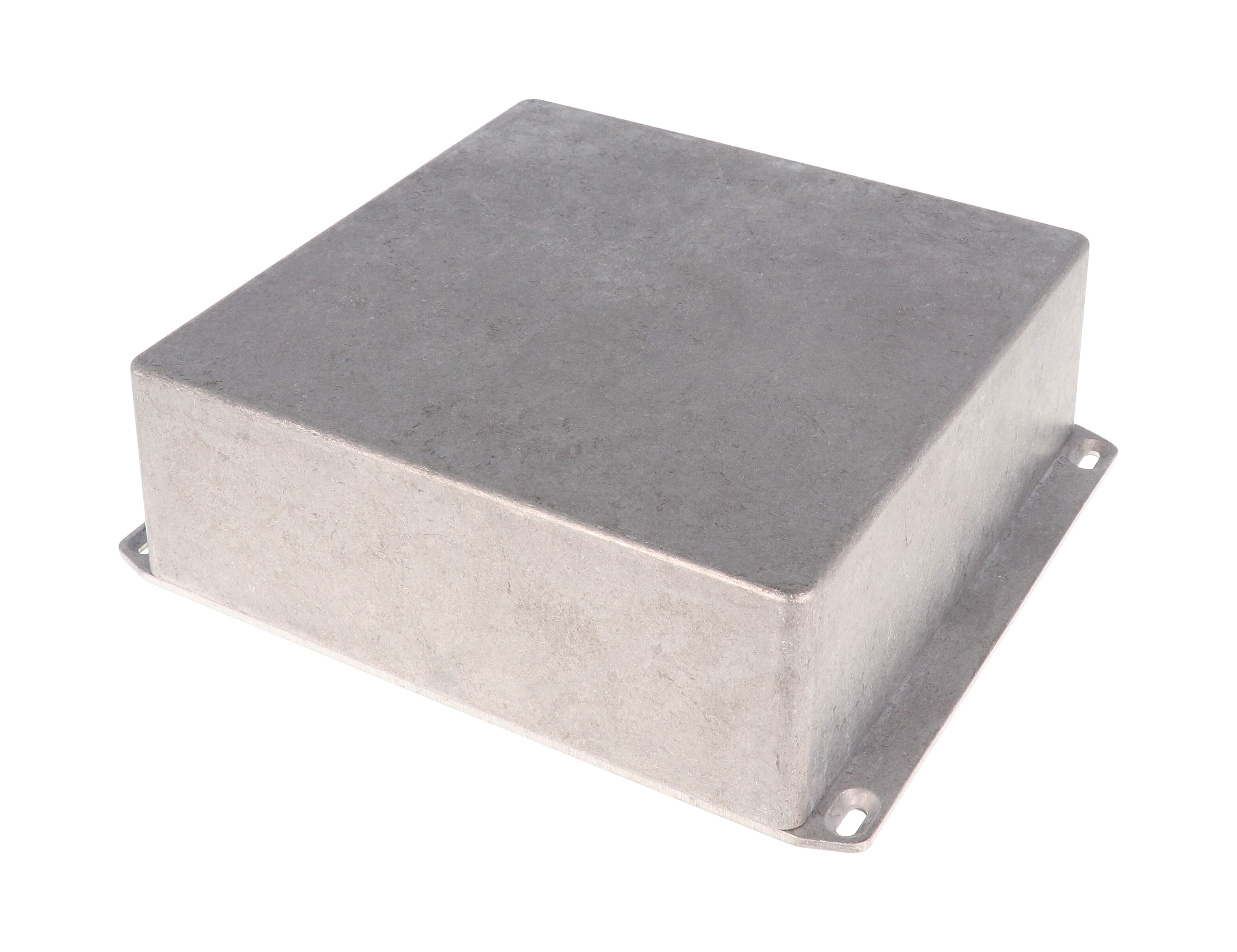

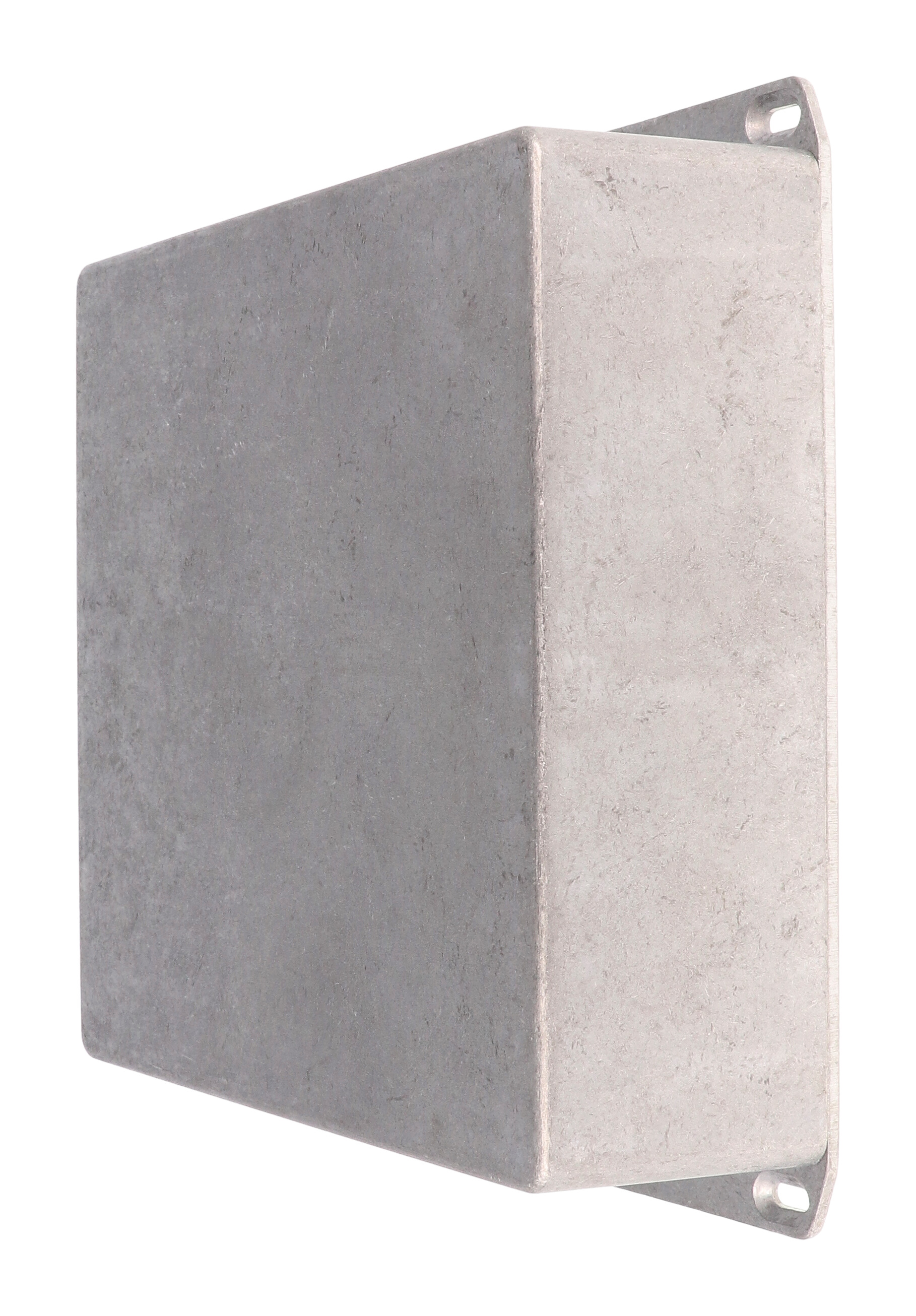

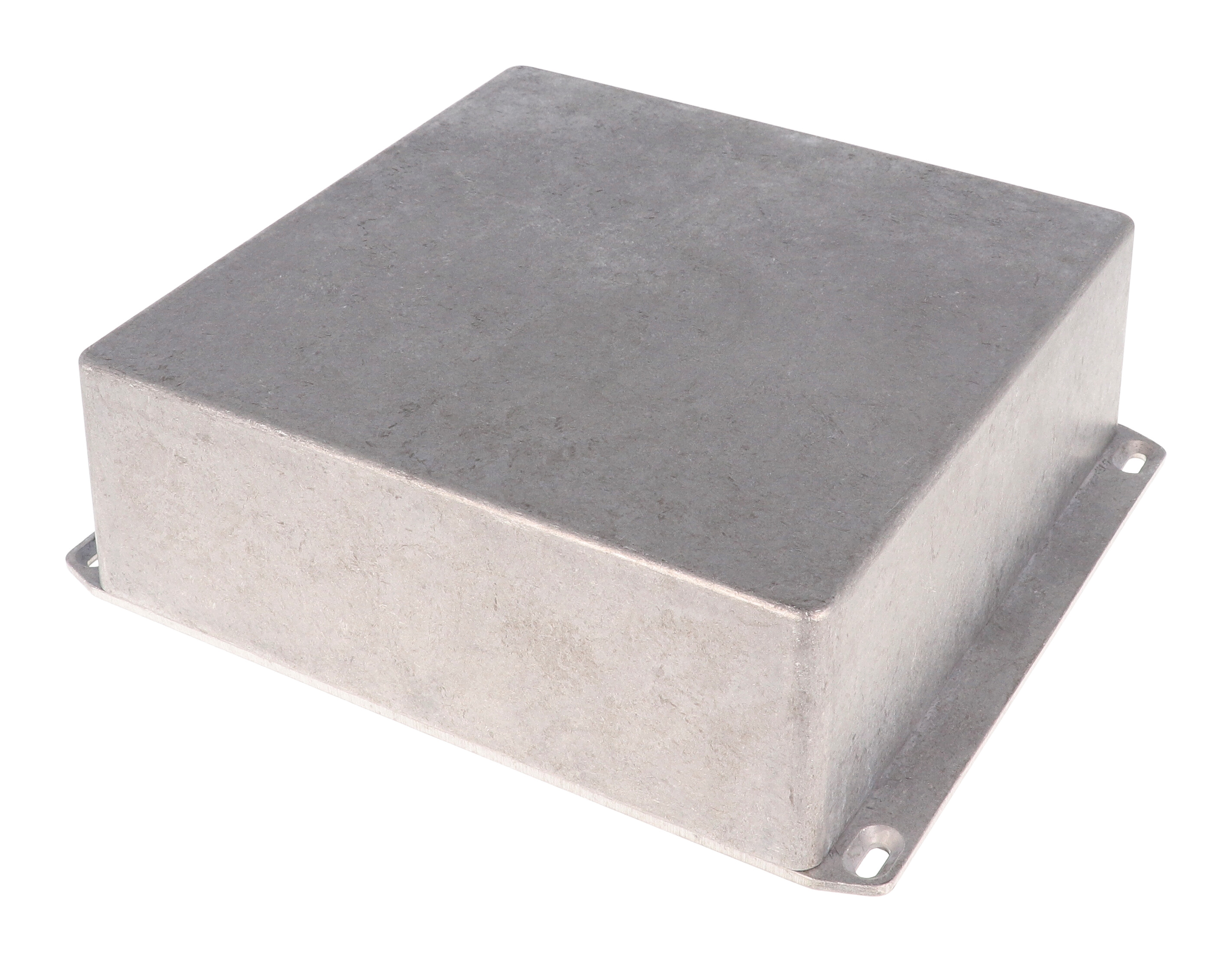

The 1590FFL is the square 1590F diecast aluminum enclosure with a flanged lid, where the wall-mounting flange is integrated into the lid. With a nominal 188 x 188 x 67 mm (7.4 x 7.4 x 2.64 in) body and room for 174.91 x 174.91 mm PC boards, it suits integrators mounting larger electronics on walls or panels.
The box and lid are natural diecast aluminum alloy, vibra finished for a smooth surface with no sharp edges. A lap joint where the lid meets the box protects against dust and splashing water, and the standard 1590FFL is designed to meet IP54. Side walls have a draft angle of 2° or less for easy board mounting.
The drawing lists an overall length of 217.00 mm [8.543 in] including the lid flange, a box width of 188.00 mm and a height of 67.00 mm. Inside width is 178.50 mm and inside height is 61.51 mm. Shipping weight is 1.97 lb (0.89 kg).

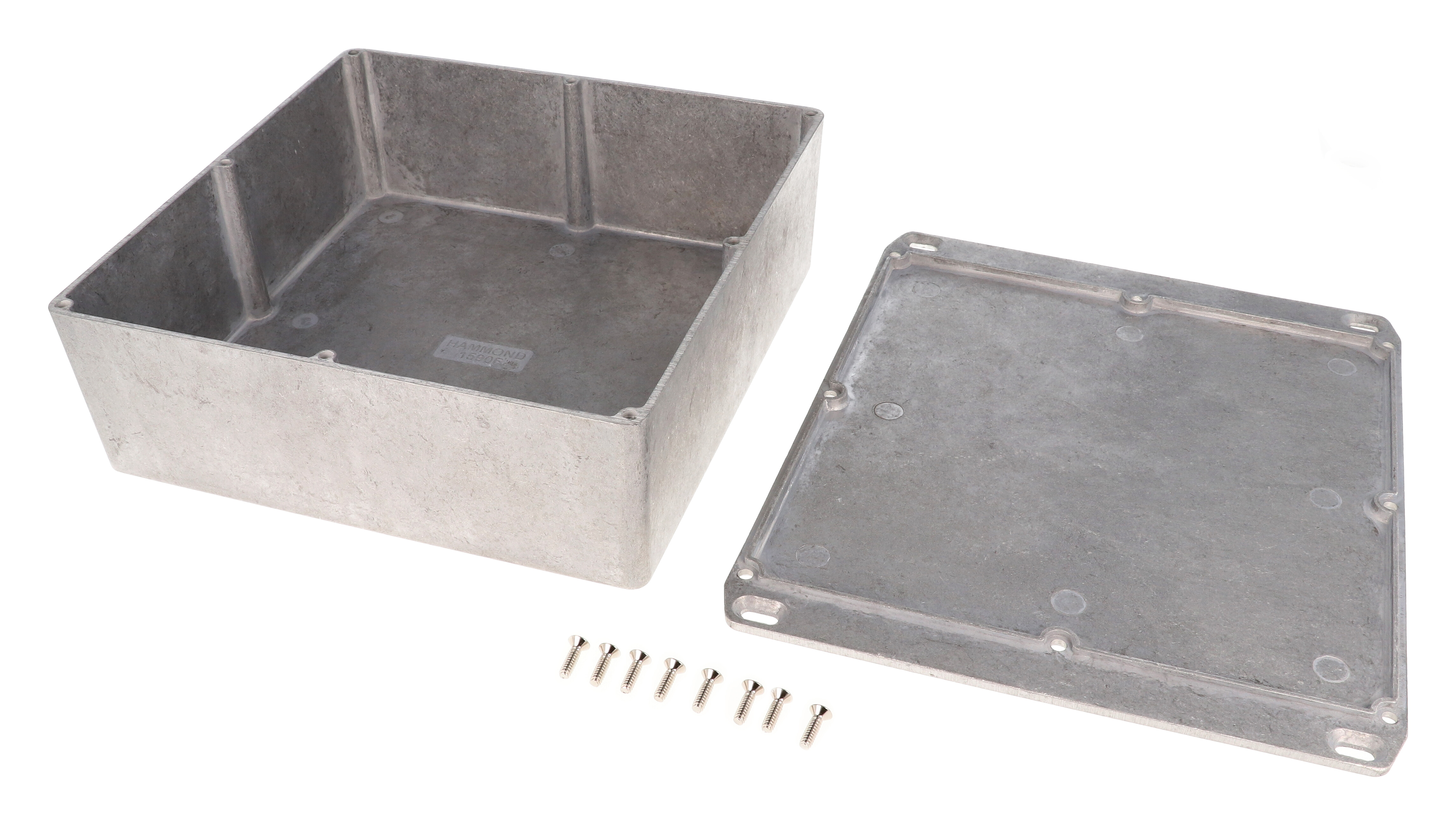

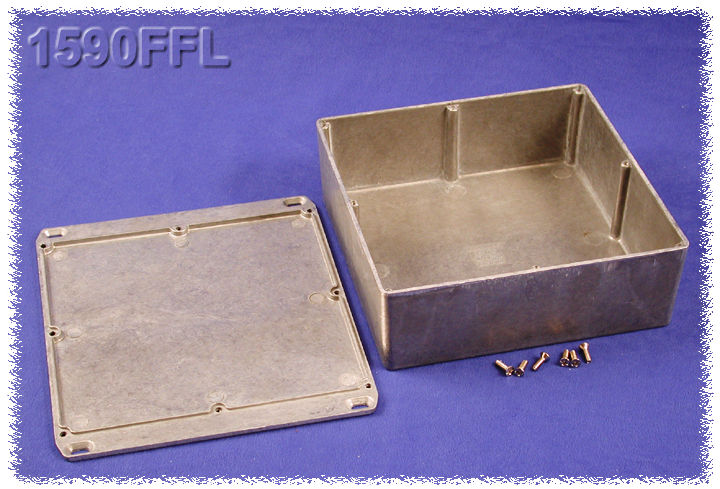

Eight cover screws are included and thread into factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m. The ordering table lists 1590FGASKET as the replacement gasket kit; with it, 1590WMS100 stainless O-ring screws and 25-30 cN.m lid torque, the enclosure can be brought to an IP65 design. The water-tight version is 1590WFFL.
RoHS and REACH compliant and shrink wrapped. Factory milling, drilling and printing are offered, and STEP or IGES models are available.
Ideal For
- Wall-mounted large-board electronics enclosures
- Panel-mounted square instrument housings
- General purpose wall-mount diecast boxes
- Dust- and splash-protected installations (IP54)
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590FFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Short Description | 1590F WITH FLANGED LID |
| Water-Tight Equivalent | 1590WFFL (includes silicone gasket) |
Dimensions
| Box Width | 188.00 mm [7.402 in] |
| Box Height | 67.00 mm [2.638 in] |
| Inside Width | 178.50 mm [7.027 in] |
| Inside Height | 61.51 mm [2.422 in] |
| Max. P.C. Board Width | 174.91 mm |
| Max. P.C. Board Length | 174.91 mm |
| Nominal Size (L X W X H) | 7.4 in x 7.4 in x 2.64 in (188 mm x 188 mm x 67 mm) |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 7.40 in (188 mm) x 2.64 in (67 mm) |
| Overall Length Incl. Lid Flange | 217.00 mm [8.543 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590FGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980676586 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.97 lbs (0.89 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 8 cover screws |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 8X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590FGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590FFL mounted?▾
Through the wall-mounting flange integrated into its lid; overall length including the flange is 217.00 mm.
What are the inside dimensions?▾
Inside width 178.50 mm and inside height 61.51 mm; maximum PC board is 174.91 x 174.91 mm.
How many lid screws are included?▾
Eight cover screws for factory-tapped 6-32 UNC holes.
Is there a water-tight version?▾
Yes, 1590WFFL. The replacement gasket kit listed in the ordering table is 1590FGASKET.
