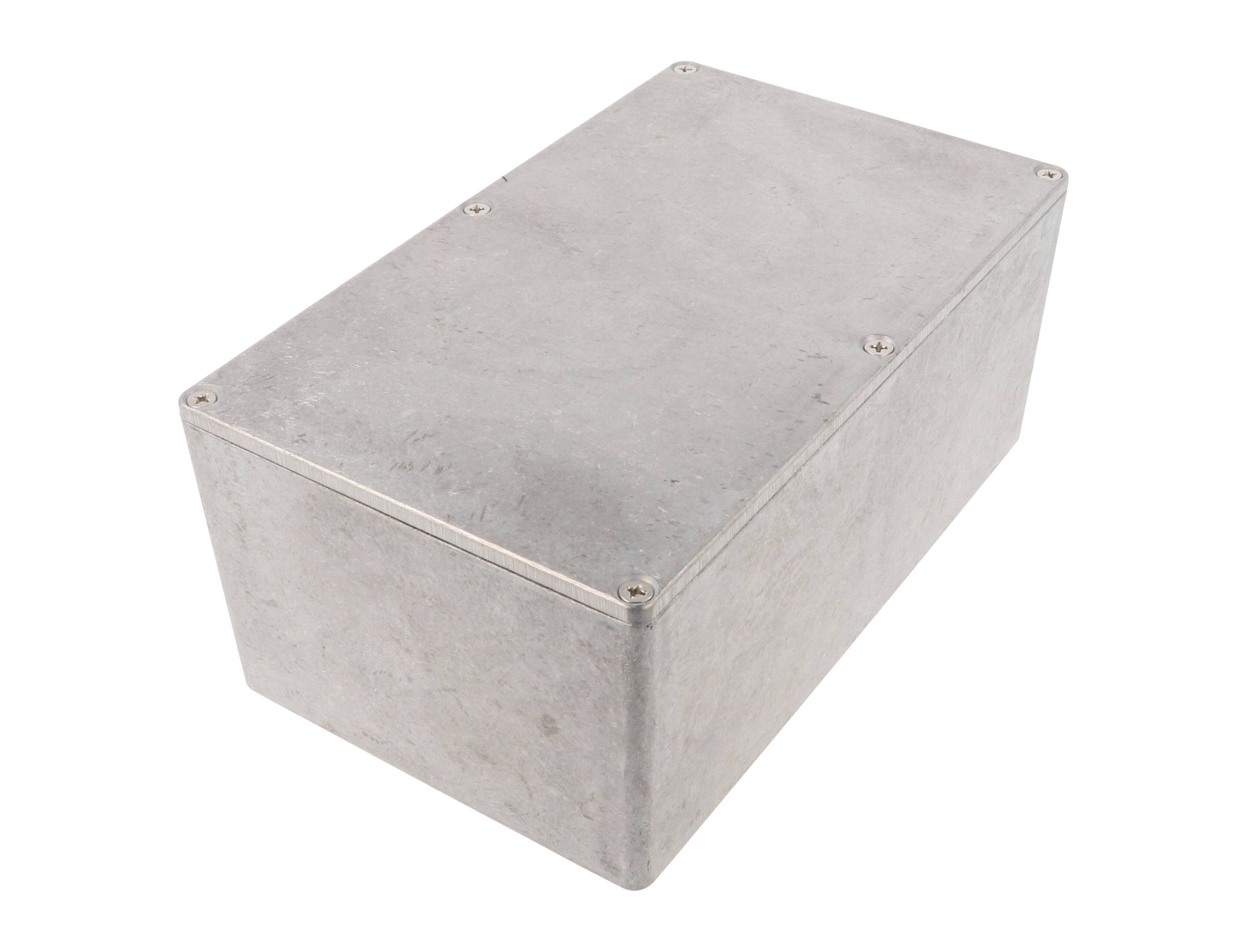

Hammond 1590EE 200x120x85mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 200 x 120 x 85 mm (7.88 x 4.73 x 3.33 in)
- Inside 191.63 x 111.63 x 80.00 mm for tall components
- Natural diecast aluminum, vibra finished with no sharp edges
- IP54 lap joint lid; IP65 with the 1590DEGASKET kit
- Six M3.5 x 0.6 cover screws included
- PC boards up to 175.67 x 107.67 mm; draft 2° or less
- RoHS and REACH compliant
The 1590EE is a 1590 Series diecast aluminum enclosure with a nominal size of 200 x 120 x 85 mm (7.88 x 4.73 x 3.33 in). It is the taller companion to the 1590DE, offering 80 mm of inside height for engineers and builders housing tall components, multiple boards or cable entries.
The box and lid are diecast aluminum alloy in a natural, unpainted finish, vibra finished for a smooth surface with no sharp edges. A lap joint lid-to-box interface protects against dust and splashing water, and the standard enclosure is designed to meet IP54. Side walls have a draft angle of 2° or less for easy PC board mounting, and the lid is 4 mm (0.16 in) high.
The drawing shows 200.20 x 120.20 x 84.50 mm overall, with an inside length of 191.63 mm, inside width of 111.63 mm and inside height of 80.00 mm. The maximum PC board is 175.67 x 107.67 mm. Shipping weight is 1.41 lb (0.64 kg).
The assembly includes box, lid and six cover screws that thread into factory-tapped M3.5 x 0.6 holes, tightened to 50-55 cN.m. For an IP65 design, install the 1590DEGASKET kit (shared with the 1590DE) and torque to 25-30 cN.m with 1550WMS100 stainless steel O-ring screws. The gasketed version of the 1590EE is 1590WEE.
RoHS and REACH compliant and shrink wrapped. The enclosure can be factory modified, and STEP or IGES solid models are available.
Ideal For
- Electronic instrument enclosures
- Housings for tall components or multiple boards
- General purpose diecast project boxes
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590EE |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST ENCL. 200X120 X84 |
| Water-Tight Equivalent | 1590WEE (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.63 mm [4.395 in] |
| Inside Height | 80.00 mm [3.150 in] |
| Inside Length | 191.63 mm [7.545 in] |
| Overall Width | 120.20 mm [4.732 in] |
| Overall Height | 84.50 mm [3.327 in] |
| Overall Length | 200.20 mm [7.882 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.88 in x 4.73 in x 3.33 in (200 mm x 120 mm x 85 mm) |
| Ordering Table Size (L X W X H) | 7.87 in (200 mm) x 4.72 in (120 mm) x 3.35 in (85 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1550MS100 (plated, M3.5 x 12mm, pkg 100); 1550MS100BK (black, M3.5 x 12mm, pkg 100) |
| Replacement Gasket Kit | 1590DEGASKET |
| Liquid Resistant Cover Screws | 1550WMS100 (stainless steel, M3.5 x 12mm with O-ring, pkg 100); 1550WMS100BK (black stainless steel, M3.5 x 12mm with O-ring, pkg 100) |
Identifiers
| UPC | 623980023144 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.41 lbs (0.64 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 6 cover screws |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X M3.5 x 0.6, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590DEGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is the 1590EE inside?▾
Inside height is 80.00 mm [3.150 in]; inside length is 191.63 mm and inside width 111.63 mm.
What IP rating does it meet?▾
IP54 as standard. With the 1590DEGASKET kit properly installed and lid screws at 25-30 cN.m it is designed to meet IP65; the gasketed version is 1590WEE.
What screw thread does the lid use?▾
Six factory-tapped M3.5 x 0.6 holes. Replacement screws are 1550MS100 (M3.5 x 12mm); liquid resistant O-ring screws are 1550WMS100.
Related Products
Save 52%1590EBK — enclosure - diecast
Hammond Manufacturing · 1590EBK

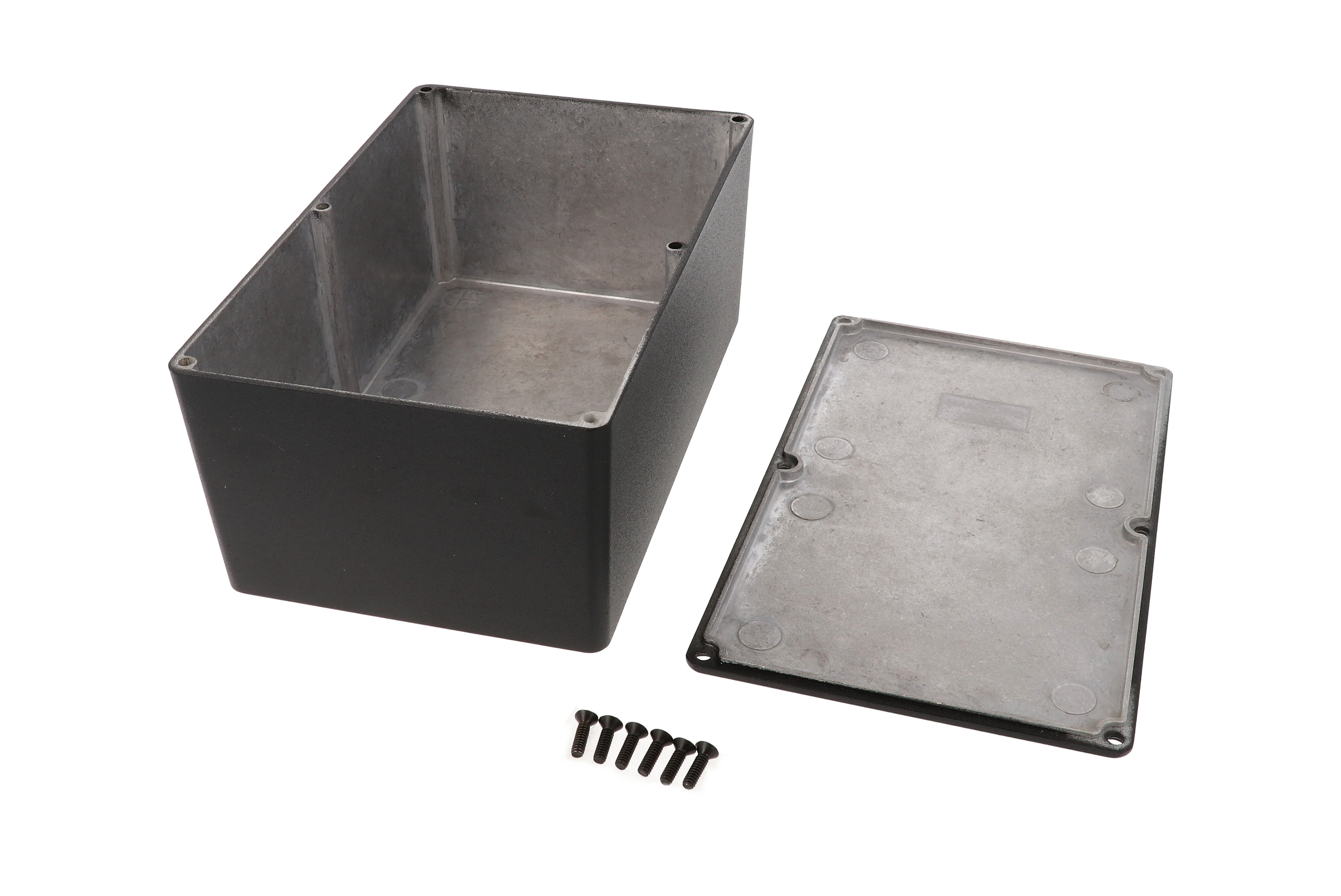

Save 52%1590EEBK — enclosure - diecast
Hammond Manufacturing · 1590EEBK
Save 52%1590E — enclosure - diecast
Hammond Manufacturing · 1590E

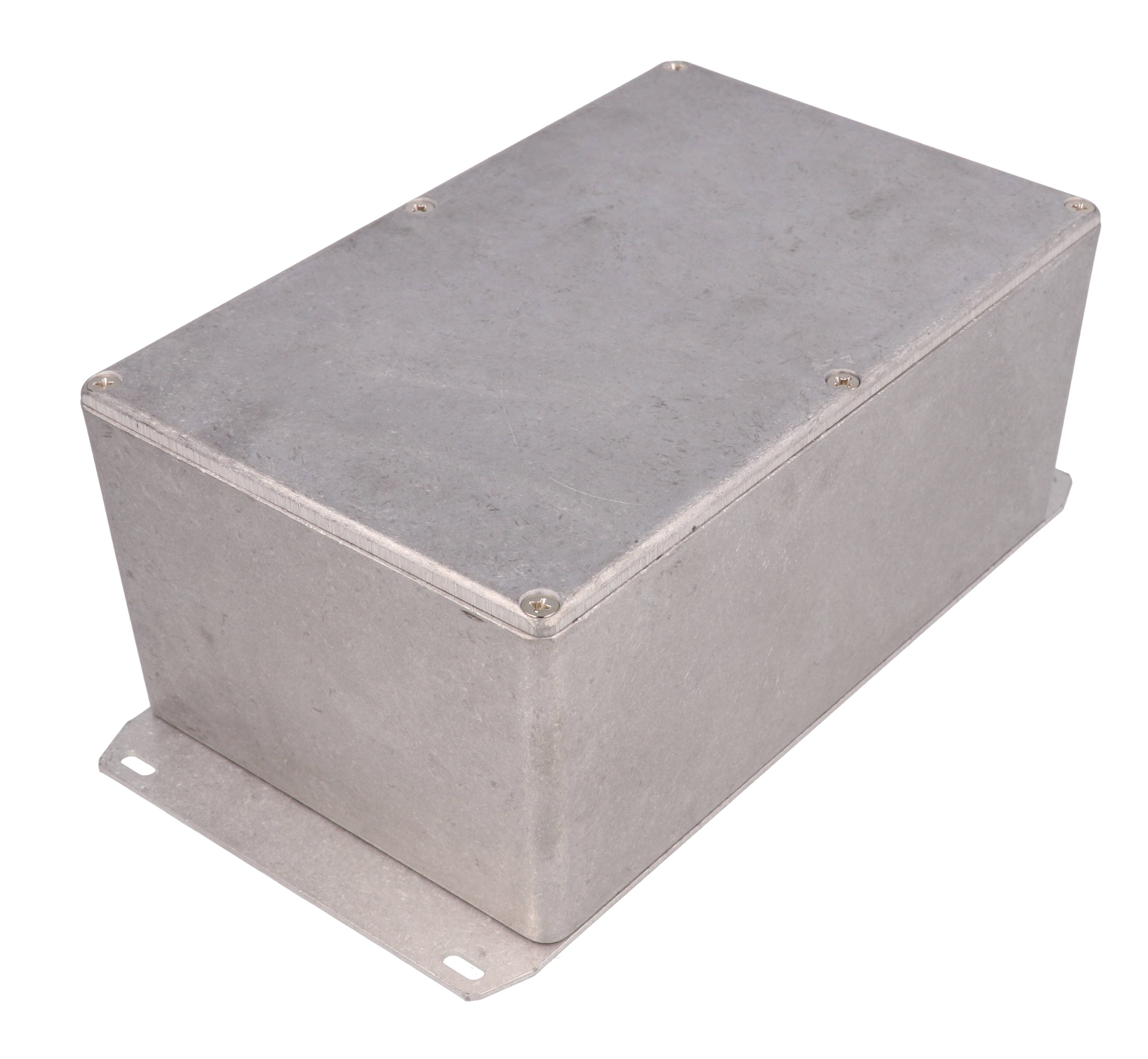

Save 52%1590EF — enclosure - diecast
