Hammond 1590EBK 188x120x82mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint; lasts even after machining
- Nominal 188 x 120 x 82 mm with 77.00 mm inside height
- Six black cover screws for 6-32 UNC factory-tapped holes
- IP54 lap joint lid; IP65 with 1590EGASKET kit
- PC boards up to 175.67 x 107.67 mm
- Side wall draft 2° or less for easy board mounting
- RoHS and REACH compliant

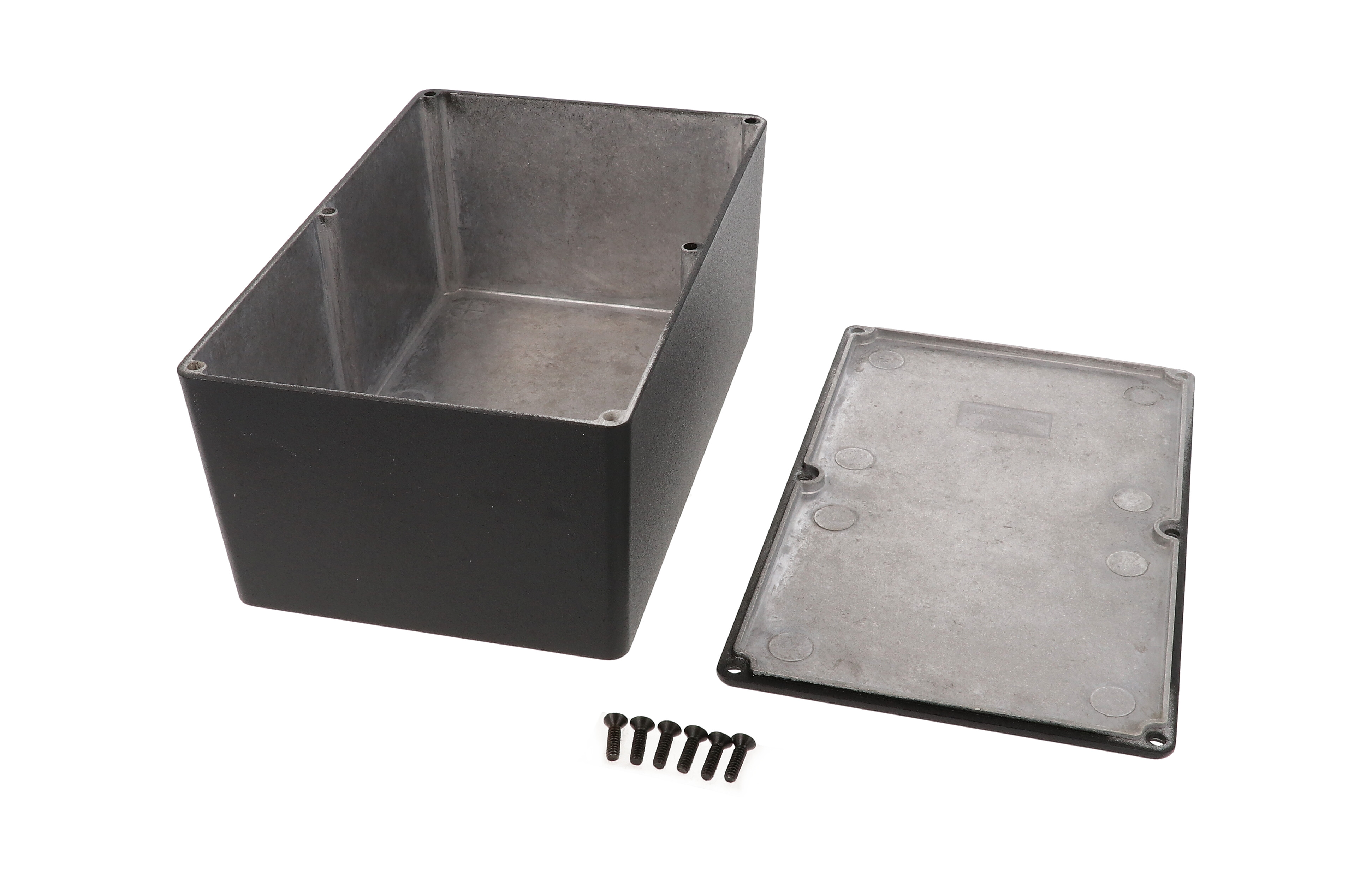

The 1590EBK is the textured black version of the 188 x 120 x 82 mm (7.4 x 4.72 x 3.23 in) 1590E diecast aluminum enclosure. It gives electronics builders and OEM product teams a deep, painted metal case with 77 mm of inside height for components, wiring and connectors.
The aluminum alloy box and lid are coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included. A lap joint where the lid meets the box keeps out dust and splashing water; the standard enclosure is designed to meet IP54, and the side walls have a draft of 2° or less for easy board mounting.
- Overall (drawing): 188.00 x 120.00 x 82.00 mm [7.402 x 4.724 x 3.228 in]
- Inside: 177.67 x 109.67 x 77.00 mm [6.995 x 4.318 x 3.031 in]
- Maximum PC board: 175.67 x 107.67 mm
- Lid height: 4 mm (0.16 in)
- Shipping weight: 1.31 lb (0.59 kg)
The 1590EBK ships with the box, lid and six cover screws for factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m. The 1590EGASKET kit and black stainless steel O-ring screws 1590WMS100BK, with the lid torqued to 25-30 cN.m, give an IP65 design. The gasketed black version is 1590WEBK, and flanged versions are 1590EFBK and 1590EFLBK.
RoHS and REACH compliant, shrink wrapped; factory machining and printing are available, and solid models come in STEP or IGES.
Ideal For
- Black-finished electronic instrument cases
- Deep housings for tall components
- Machined OEM control enclosures
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590EBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST 7.3X4.7X3.2 PAINTED |
| Water-Tight Equivalent | 1590WEBK (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 109.67 mm [4.318 in] |
| Inside Height | 77.00 mm [3.031 in] |
| Inside Length | 177.67 mm [6.995 in] |
| Overall Width | 120.00 mm [4.724 in] |
| Overall Height | 82.00 mm [3.228 in] |
| Overall Length | 188.00 mm [7.402 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 3.23 in (188 mm x 120 mm x 82 mm) |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 4.72 in (120 mm) x 3.23 in (82 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590EGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980541501 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.31 lbs (0.59 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 6 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is 1590EBK different from 1590E?▾
Same size and construction; 1590EBK is coated with textured black polyester powder paint and includes black screws, while 1590E is natural unpainted aluminum.
What are the inside dimensions?▾
177.67 mm long, 109.67 mm wide and 77.00 mm high inside.
Can it be sealed to IP65?▾
Yes, with the 1590EGASKET gasket kit installed on the lid and lid screws torqued to 25-30 cN.m. A factory-gasketed version is 1590WEBK.
What screws are used?▾
Six cover screws for factory-tapped 6-32 UNC holes. Black replacements are 1590MS100BK; black stainless O-ring screws are 1590WMS100BK.
