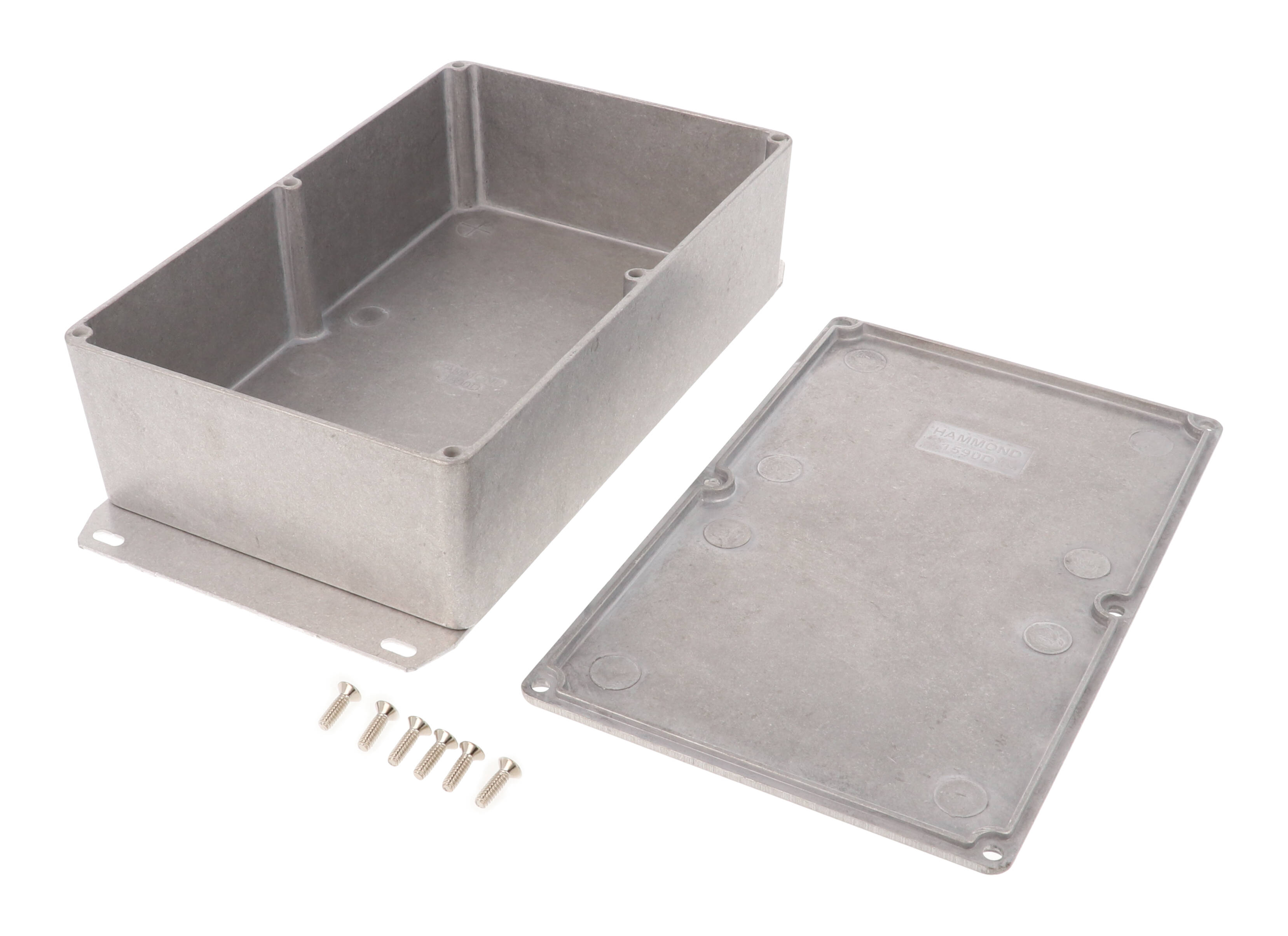

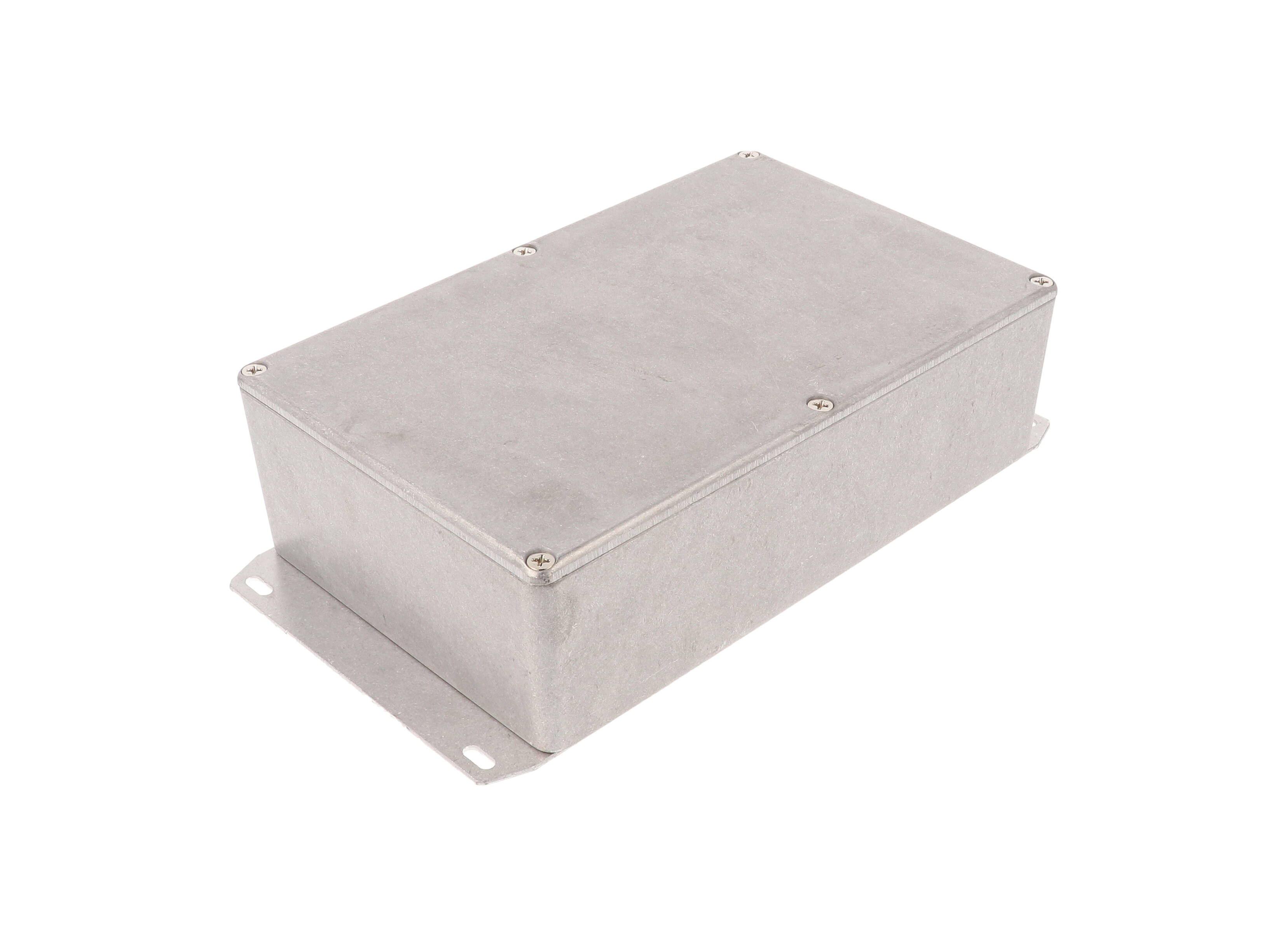

Hammond 1590DF 188x119x56mm Natural Aluminum Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface mounting; 216.64 mm overall length
- Box body 187.75 x 119.50 x 56.00 mm; inside 178.86 x 111.61 x 51.00 mm
- Natural diecast aluminum, vibra finished with no sharp edges
- IP54 lap joint lid; IP65 with the 1590EGASKET kit
- Six 6-32 UNC cover screws included
- PC boards up to 177.86 x 109.61 mm; side wall draft 2° or less
- RoHS and REACH compliant
The 1590DF is the flanged-bottom version of the 1590D diecast aluminum enclosure, with a nominal size of 188 x 119 x 56 mm (7.39 x 4.7 x 2.2 in). A welded bottom flange plate extends the base so the box can be screwed down to a panel, wall or chassis, which makes it a practical choice for installers and OEMs fitting electronics into equipment.
The box and lid are diecast aluminum alloy in a natural, unpainted finish that is vibra finished for a smooth surface with no sharp edges. A lap joint between lid and box protects against dust and splashing water, and the standard version is designed to meet IP54. Side walls have a draft angle of 2° or less for easy PC board mounting.
Per the drawing, the box body measures 187.75 x 119.50 x 56.00 mm, and the overall length including the bottom flange is 216.64 mm [8.529 in]; height including the flange is 57.50 mm. Inside dimensions are 178.86 mm long, 111.61 mm wide and 51.00 mm high, and the maximum PC board is 177.86 x 109.61 mm. Shipping weight is 1.32 lb (0.60 kg).
The 1590DF ships with the box, lid and six cover screws in factory-tapped 6-32 UNC holes (recommended torque 50-55 cN.m). For IP65, fit the 1590EGASKET kit and torque to 25-30 cN.m, using 1590WMS100 O-ring screws; the gasketed version is 1590WDF. It is RoHS and REACH compliant, shrink wrapped, and available with factory machining; STEP and IGES models are offered.
Ideal For
- Panel- or chassis-mounted electronics housings
- Flange-mounted instrument enclosures
- PC board enclosures for equipment builds
- Dust- and splash-protected installations (IP54)
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590DF |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Short Description | DIECAST BOX WITH FLANGE |
| Water-Tight Equivalent | 1590WDF (includes silicone gasket) |
Dimensions
| Box Width | 119.50 mm [4.705 in] |
| Box Height | 56.00 mm [2.205 in] |
| Box Length | 187.75 mm [7.392 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.61 mm [4.394 in] |
| Inside Height | 51.00 mm [2.008 in] |
| Inside Length | 178.86 mm [7.042 in] |
| Max. P.C. Board Width | 177.86 mm |
| Max. P.C. Board Length | 109.61 mm |
| Nominal Size (L X W X H) | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
| Height Incl. Bottom Flange | 57.50 mm [2.264 in] |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 4.72 in (120 mm) x 2.20 in (56 mm) |
| Overall Length Incl. Bottom Flange | 216.64 mm [8.529 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590EGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980536781 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.32 lbs (0.60 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Included Items | Box, lid and 6 cover screws |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590DF mount?▾
It has a flanged bottom plate; the drawing notes that the bottom flange is welded. Overall length including the flange is 216.64 mm [8.529 in].
What are the inside dimensions?▾
Inside length 178.86 mm [7.042 in], inside width 111.61 mm [4.394 in] and inside height 51.00 mm [2.008 in].
Which gasket kit fits the 1590DF?▾
The series ordering table lists 1590EGASKET as the optional replacement gasket kit. With it installed and the lid screws torqued to 25-30 cN.m, the enclosure is designed to meet IP65.
What screws does it use?▾
Six cover screws in factory-tapped 6-32 UNC holes are included. Replacements are 1590MS100 (plated, 6-32 x 1/2") and liquid resistant 1590WMS100 (stainless steel with O-ring).
What other mounting styles are there in this size?▾
The same size is offered without mounting flanges as 1590D and with a flanged lid as 1590DFL.
Related Products

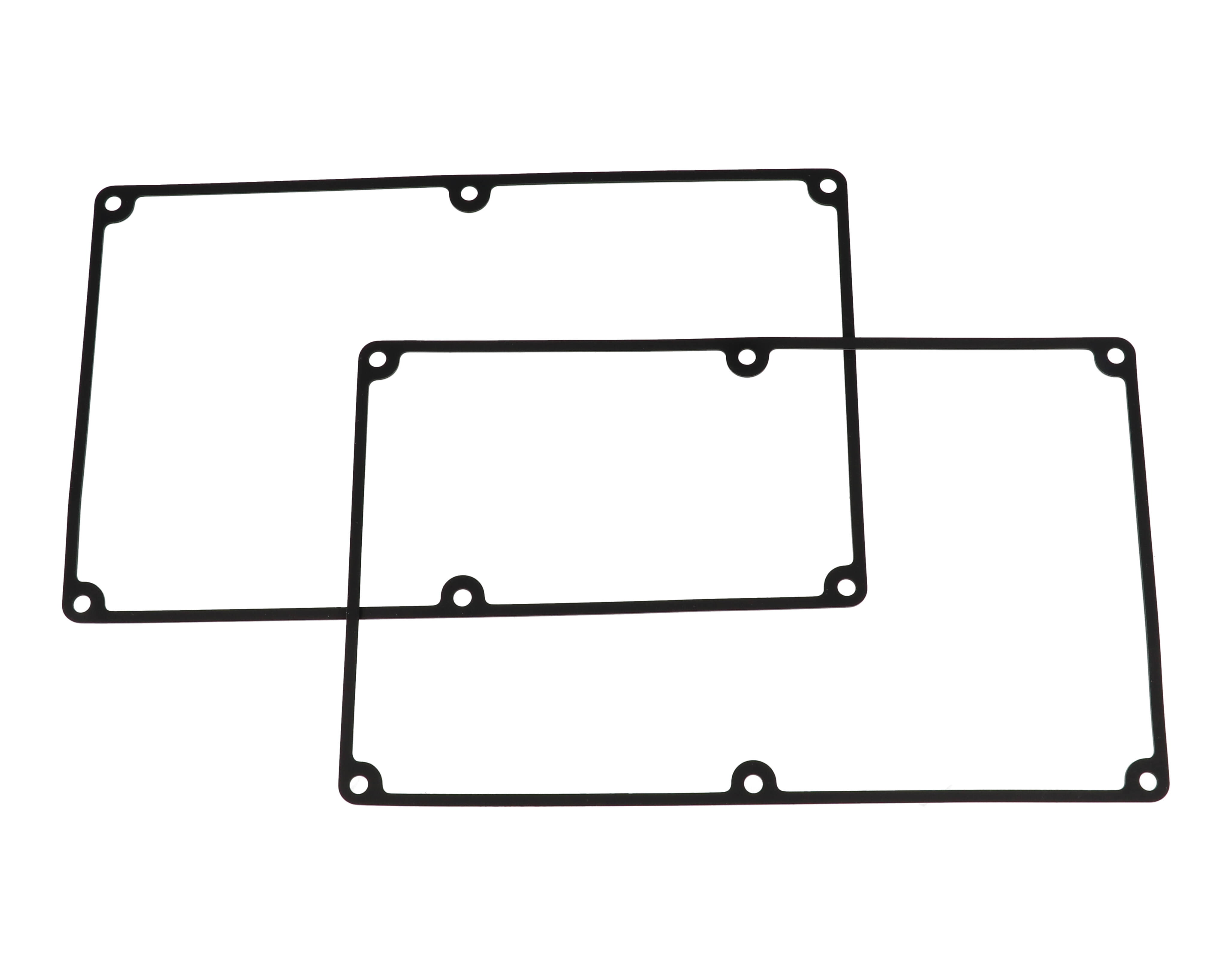

Save 52%1590DEGASKET — silicone gasket for 1590DE enclosures, 2-pack
Hammond Manufacturing · 1590DEGASKET
Save 52%1590DFBK — enclosure - diecast
Hammond Manufacturing · 1590DFBK

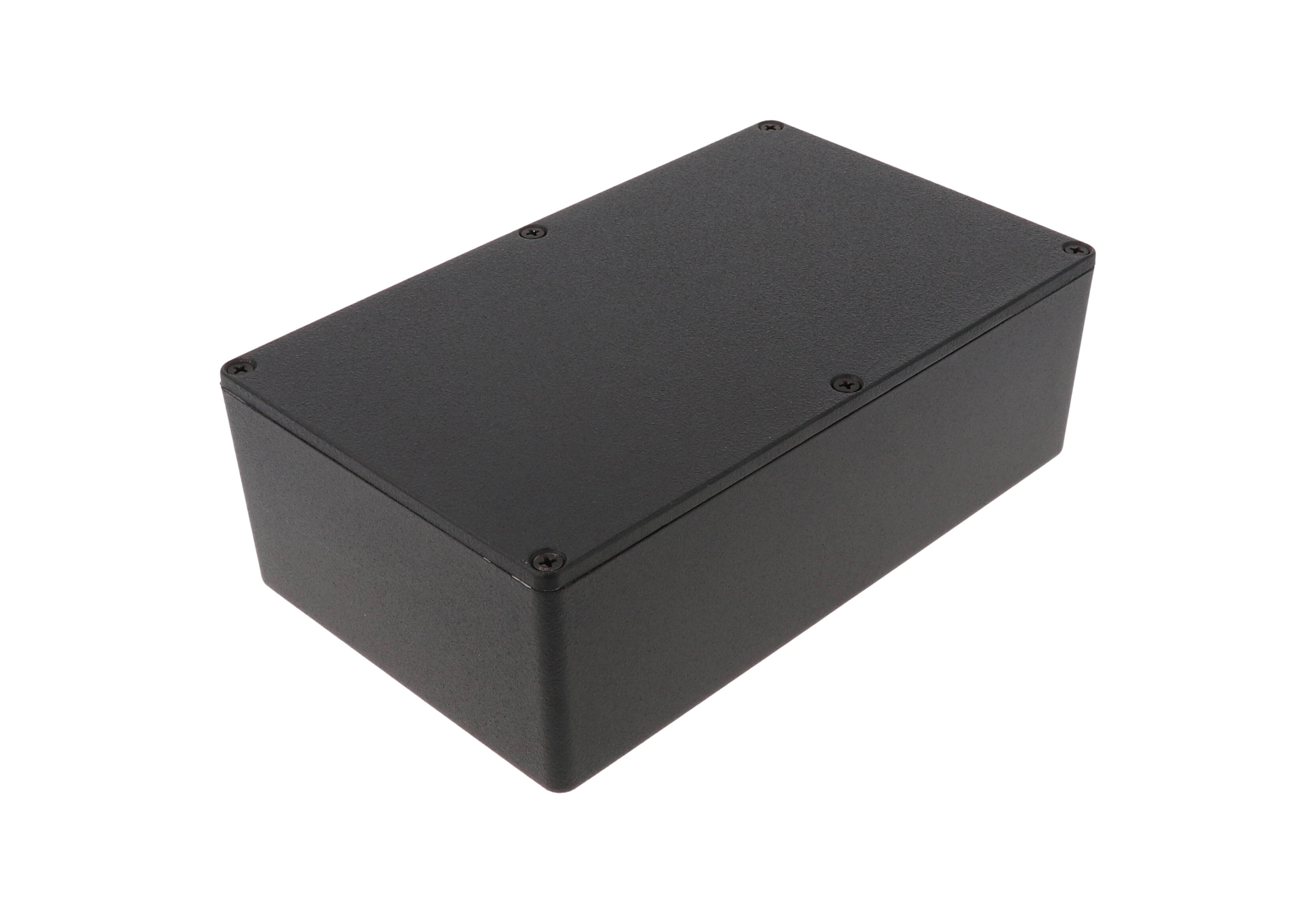

Save 52%1590DEBK — enclosure - diecast
Hammond Manufacturing · 1590DEBK
Save 52%1590DFL — enclosure - diecast
Hammond Manufacturing · 1590DFL

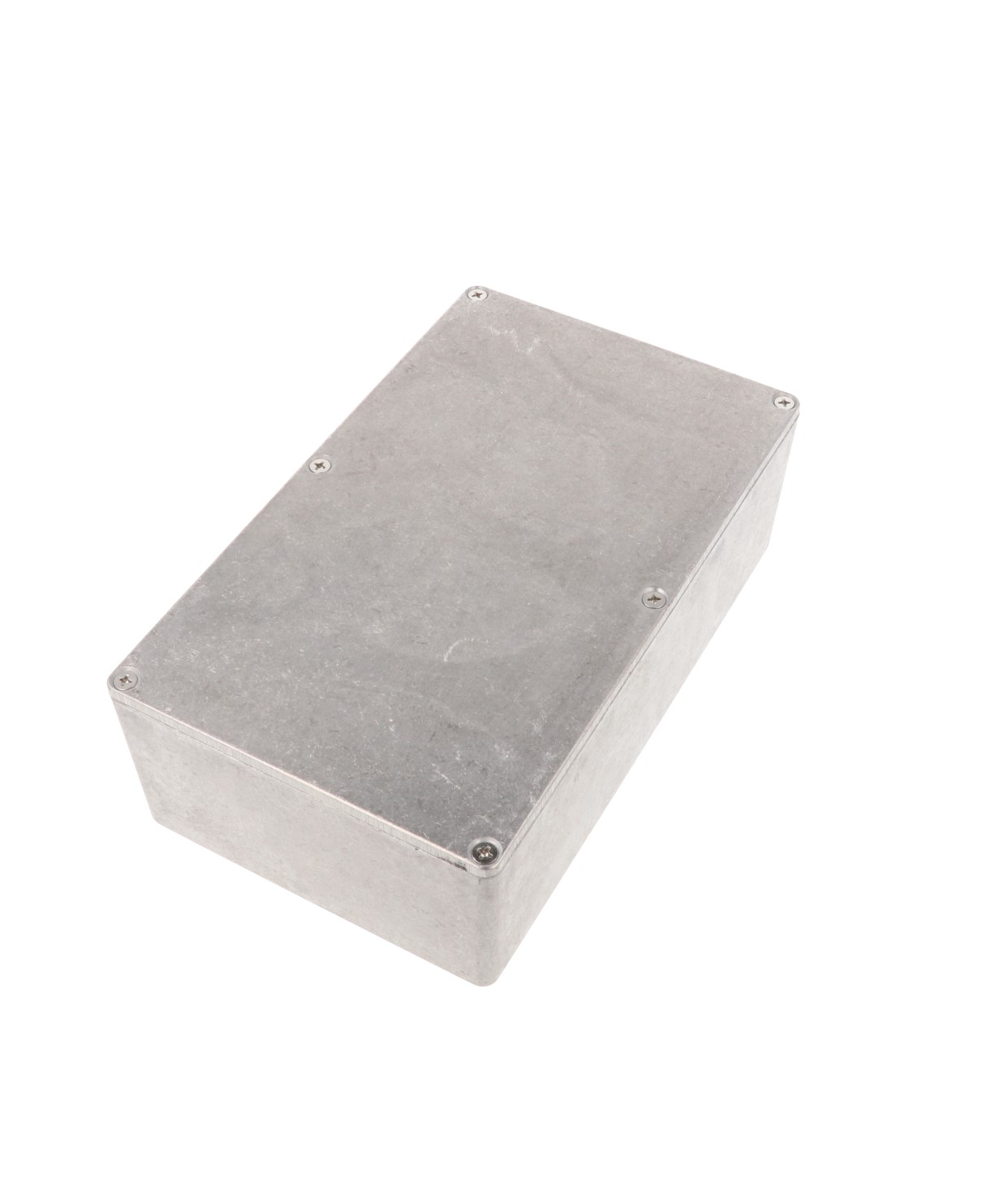

Save 52%1590DE — enclosure - diecast
