Hammond 1590DEBK 200x120x64mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint that lasts even after machining
- Nominal 200 x 120 x 64 mm; inside 192.69 x 112.69 x 59.80 mm
- Black cover screws included (six, M3.5 x 0.6 factory-tapped holes)
- Lap joint lid designed to meet IP54; upgrade to IP65 with 1590DEGASKET
- Accepts PC boards up to 175.67 x 107.67 mm
- Low side wall draft (2° or less) for easy board mounting
- RoHS and REACH compliant, shipping weight 1.21 lb (0.55 kg)
The 1590DEBK is the textured black version of the 200 x 120 x 64 mm (7.88 x 4.73 x 2.53 in) 1590 Series diecast aluminum enclosure. It is aimed at product designers and electronics builders who want a finished-looking metal case that still machines easily for connectors, switches and displays.

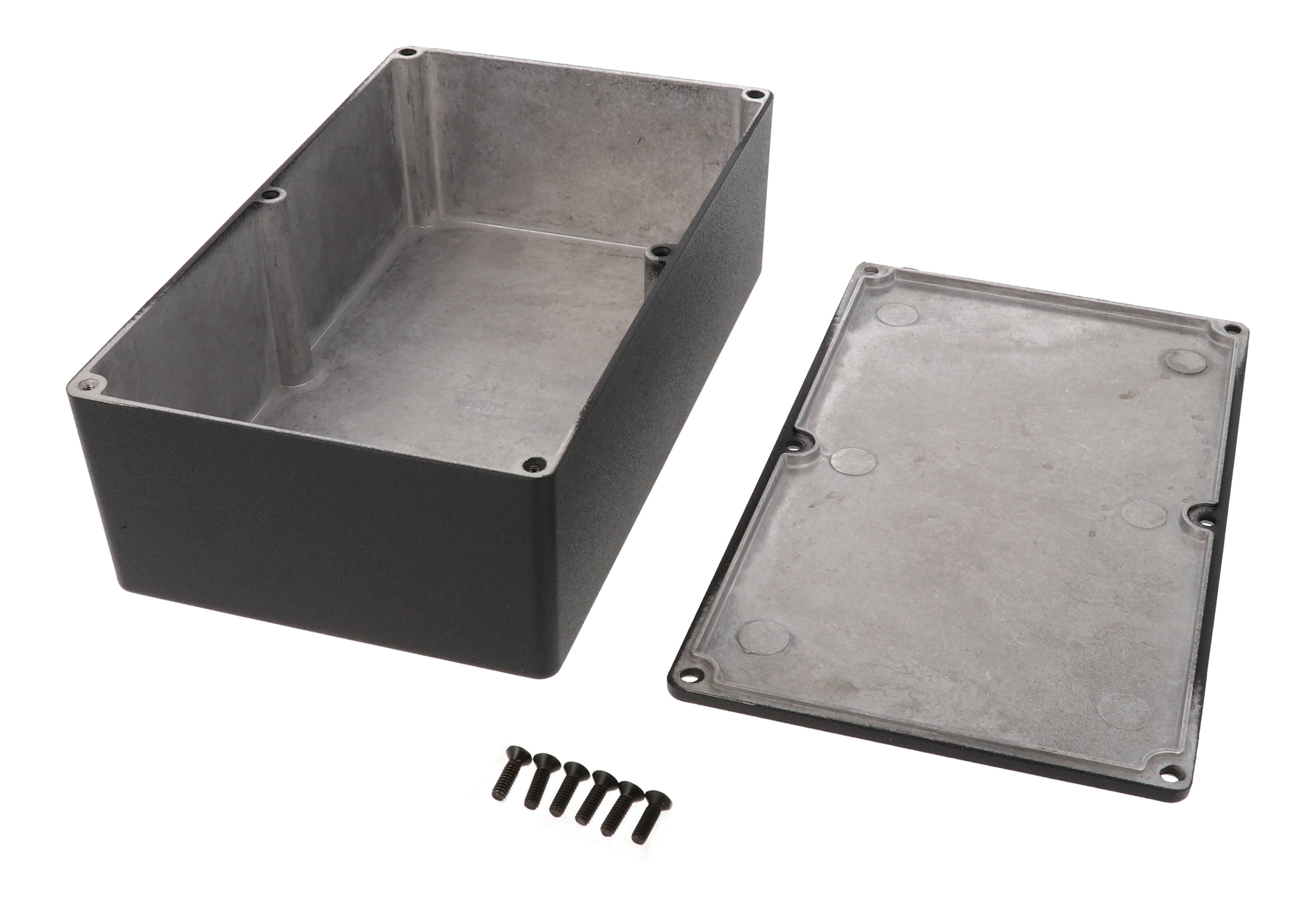

The diecast aluminum alloy box and lid are coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to match. A lap joint where the lid meets the box protects against dust and splashing water, and the standard enclosure is designed to meet IP54.
- Overall (drawing): 200.20 x 120.20 x 64.30 mm [7.882 x 4.732 x 2.531 in]
- Inside: 192.69 x 112.69 x 59.80 mm [7.586 x 4.437 x 2.354 in]
- Maximum PC board: 175.67 x 107.67 mm
- Lid height: 4 mm (0.16 in); side wall draft 2° or less
- Shipping weight: 1.21 lb (0.55 kg)
The assembly includes the box, lid and six cover screws that thread into factory-tapped M3.5 x 0.6 holes, with a recommended torque of 50-55 cN.m. For IP65 protection, fit the 1590DEGASKET silicone gasket kit to the lid and torque to 25-30 cN.m; black stainless steel O-ring screws are available as 1550WMS100BK. The factory-gasketed equivalent is 1590WDEBK.
1590DEBK is RoHS and REACH compliant and ships shrink wrapped. Factory modification (milling, drilling, printing) is offered, and STEP or IGES solid models are available for design work.
Ideal For
- Black-finished electronic instrument cases
- PC board housings for OEM products
- Machined front-panel electronics
- Dust- and splash-protected enclosures (IP54)
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590DEBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | PAINTED ENCL. 200X120 X64 |
| Water-Tight Equivalent | 1590WDEBK (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 112.69 mm [4.437 in] |
| Inside Height | 59.80 mm [2.354 in] |
| Inside Length | 192.69 mm [7.586 in] |
| Overall Width | 120.20 mm [4.732 in] |
| Overall Height | 64.30 mm [2.531 in] |
| Overall Length | 200.20 mm [7.882 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.88 in x 4.73 in x 2.53 in (200 mm x 120 mm x 64 mm) |
| Ordering Table Size (L X W X H) | 7.87 in (200 mm) x 4.72 in (120 mm) x 2.52 in (64 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1550MS100 (plated, M3.5 x 12mm, pkg 100); 1550MS100BK (black, M3.5 x 12mm, pkg 100) |
| Replacement Gasket Kit | 1590DEGASKET |
| Liquid Resistant Cover Screws | 1550WMS100 (stainless steel, M3.5 x 12mm with O-ring, pkg 100); 1550WMS100BK (black stainless steel, M3.5 x 12mm with O-ring, pkg 100) |
Identifiers
| UPC | 623980023168 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.21 lbs (0.55 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 6 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X M3.5 x 0.6, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590DEGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590DEBK finished?▾
It is coated with textured black polyester powder paint, described as a lasting finish even after machining. Black screws are included to match.
What size is the 1590DEBK?▾
Nominal size is 7.88 x 4.73 x 2.53 in (200 x 120 x 64 mm). The drawing shows 200.20 x 120.20 x 64.30 mm overall and 192.69 x 112.69 x 59.80 mm inside.
Can I make it water-tight?▾
Yes. Standard versions meet IP54; adding the 1590DEGASKET kit with the lid screws torqued to 25-30 cN.m is designed to meet IP65. Black stainless steel O-ring screws are 1550WMS100BK.
How many screws does it use?▾
Six cover screws, supplied with the enclosure, thread into factory-tapped M3.5 x 0.6 holes.
Is there a pre-gasketed black version?▾
The water-tight black version with silicone gasket is listed as 1590WDEBK.
