Hammond 1590DDFLBK Black 188x120x37mm Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid, 217.00 mm overall
- Textured black polyester powder finish; black screws included
- 188 x 120 x 37 mm nominal; 179.93 x 112.93 x 32.00 mm inside
- Six 6-32 UNC cover screws in factory-tapped holes
- Designed to meet IP54; IP65 with the 1590EGASKET kit
- RoHS and REACH compliant

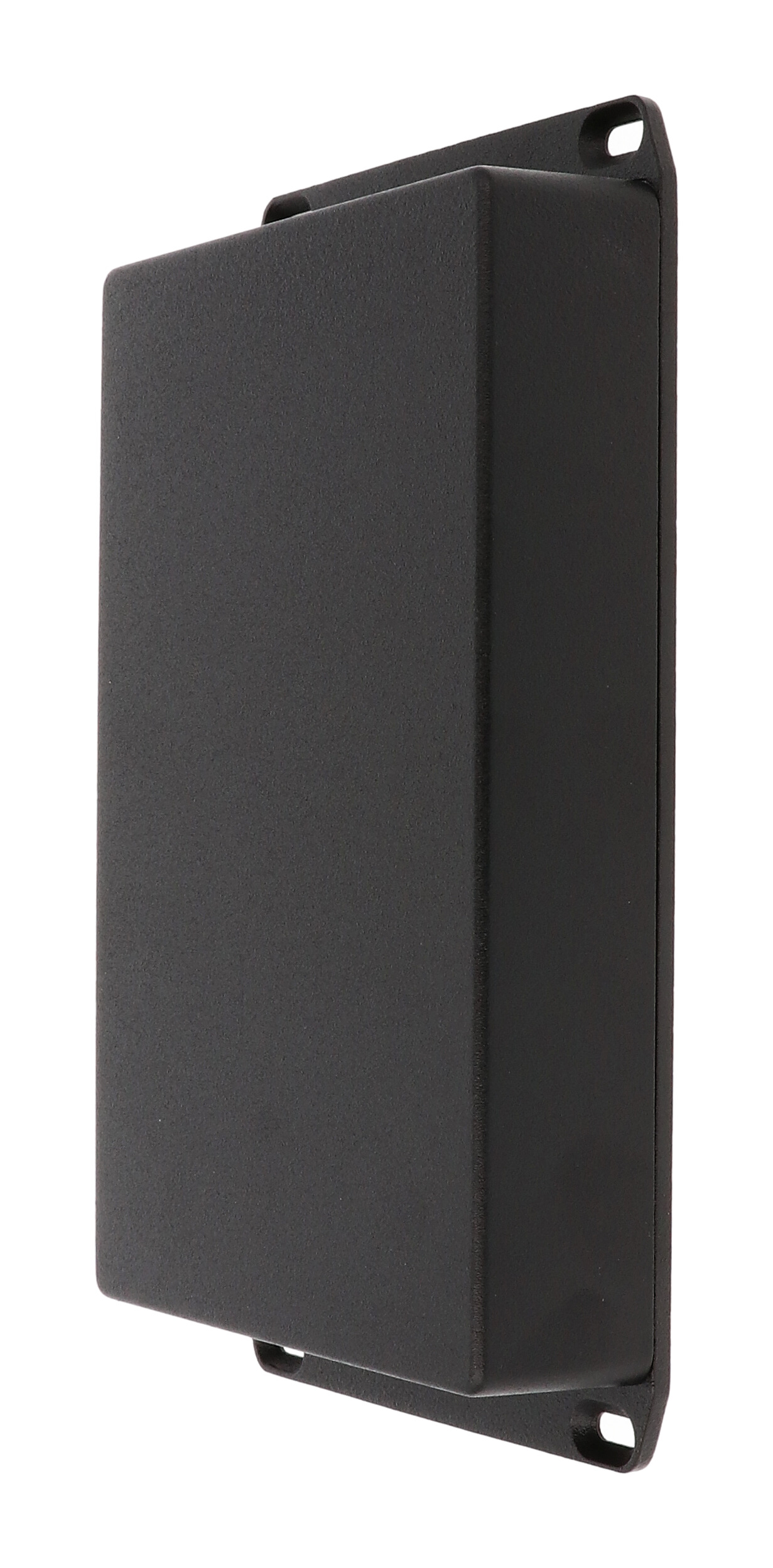

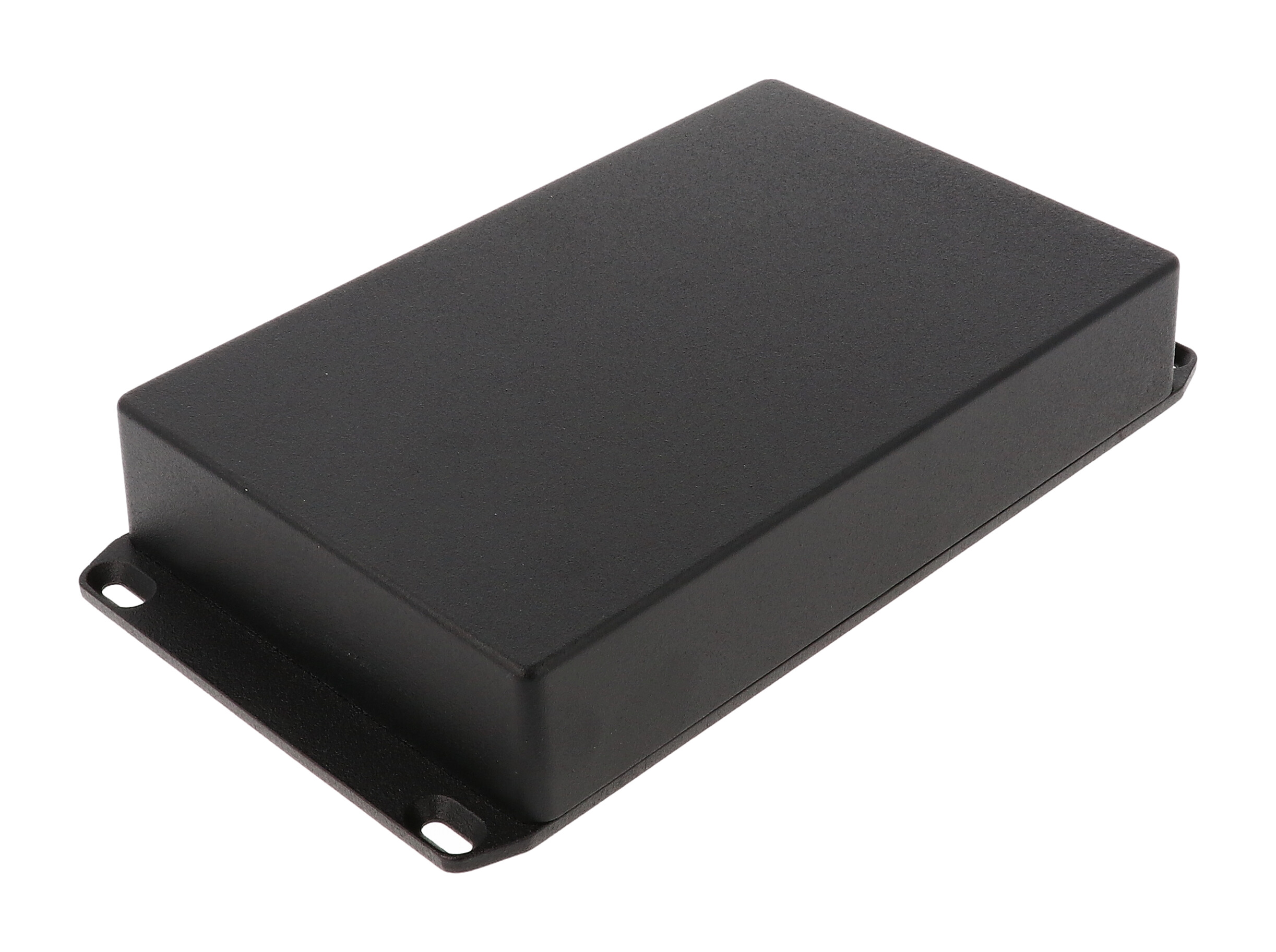

The 1590DDFLBK is a textured black diecast aluminum enclosure, nominal 188 x 120 x 37 mm (7.4 x 4.72 x 1.46 in), with a wall-mounting flange integrated into the lid. Overall length across the flanged lid is 217.00 mm (8.543 in). It gives installers a slim, finished black housing that mounts by its lid to walls, panels or equipment.
The polyester powder paint is tough and keeps a lasting finish even after machining, and black screws are included. Box and lid are diecast aluminum alloy with lap joint construction that protects against dust and splashing water; the standard version is designed to meet IP54.
- Box 188.00 x 120.00 mm, 37.00 mm high
- Inside 179.93 x 112.93 x 32.00 mm (this part's drawing)
- Listed maximum PC board dimensions: 178.26 mm and 110.26 mm
- Six 6-32 UNC cover screws
Recommended lid screw torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, fit the 1590EGASKET kit or order the water-tight 1590WDDFLBK. Shipping weight is 1.1 lbs (0.50 kg); RoHS and REACH compliant. Solid models are available in STEP or IGES, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Wall-mounted slim electronics with a black finish
- Panel-mounted large PC board housings
- Finished-look instrument enclosures
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590DD FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 112.93 mm [4.446 in] |
| Inside Height | 32.00 mm [1.260 in] |
| Inside Length | 179.93 mm [7.084 in] |
| Series Table Width | 4.72 in (120 mm) |
| Box Width (Drawing) | 120.00 mm [4.724 in] |
| Series Table Height | 1.46 in (37 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 1.46 in (188 mm x 120 mm x 37 mm) |
| Overall Height (Drawing) | 37.00 mm [1.457 in] |
| Max. P.C. Board Width (Listed) | 178.26 mm |
| Max. P.C. Board Length (Listed) | 110.26 mm |
| Overall Length Incl. Flanged Lid (Drawing) | 217.00 mm [8.543 in] |
Identifiers
| UPC | 623980676197 |
| UNSPSC | 39121301 |
| Part Number | 1590DDFLBK |
Related Parts
| No Flange, Standard | 1590DDBK |
| Flanged Lid, Standard | 1590DDFLBK |
| No Flange, Water-Tight | 1590WDDBK |
| Flanged Lid, Water-Tight | 1590WDDFLBK |
| Flanged Bottom Plate, Standard | 1590DDFBK |
| Flanged Bottom Plate, Water-Tight | 1590WDDFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WDDFLBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590DDFLBK mounted?▾
Through the wall-mounting flange integrated into its lid; the overall length across the flange is 217.00 mm (8.543 in).
What are the inside dimensions?▾
This part's drawing shows 179.93 mm (7.084 in) long, 112.93 mm (4.446 in) wide and 32.00 mm (1.260 in) high inside.
Is a water-tight version available?▾
Yes, the series table lists 1590WDDFLBK. The standard 1590DDFLBK can also be upgraded with the 1590EGASKET kit.
What does it weigh?▾
1.1 lbs (0.50 kg) shipping weight.
