Hammond 1590DDFBK Black 188x120x37mm Diecast Box, Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded box-mounted flange with 216.64 mm overall length
- Textured black polyester powder paint; black screws included
- 188 x 120 x 37 mm nominal; 179.93 x 112.93 x 32.00 mm inside
- Six 6-32 UNC cover screws in factory-tapped holes
- Designed to meet IP54; IP65 with the 1590EGASKET kit
- RoHS and REACH compliant

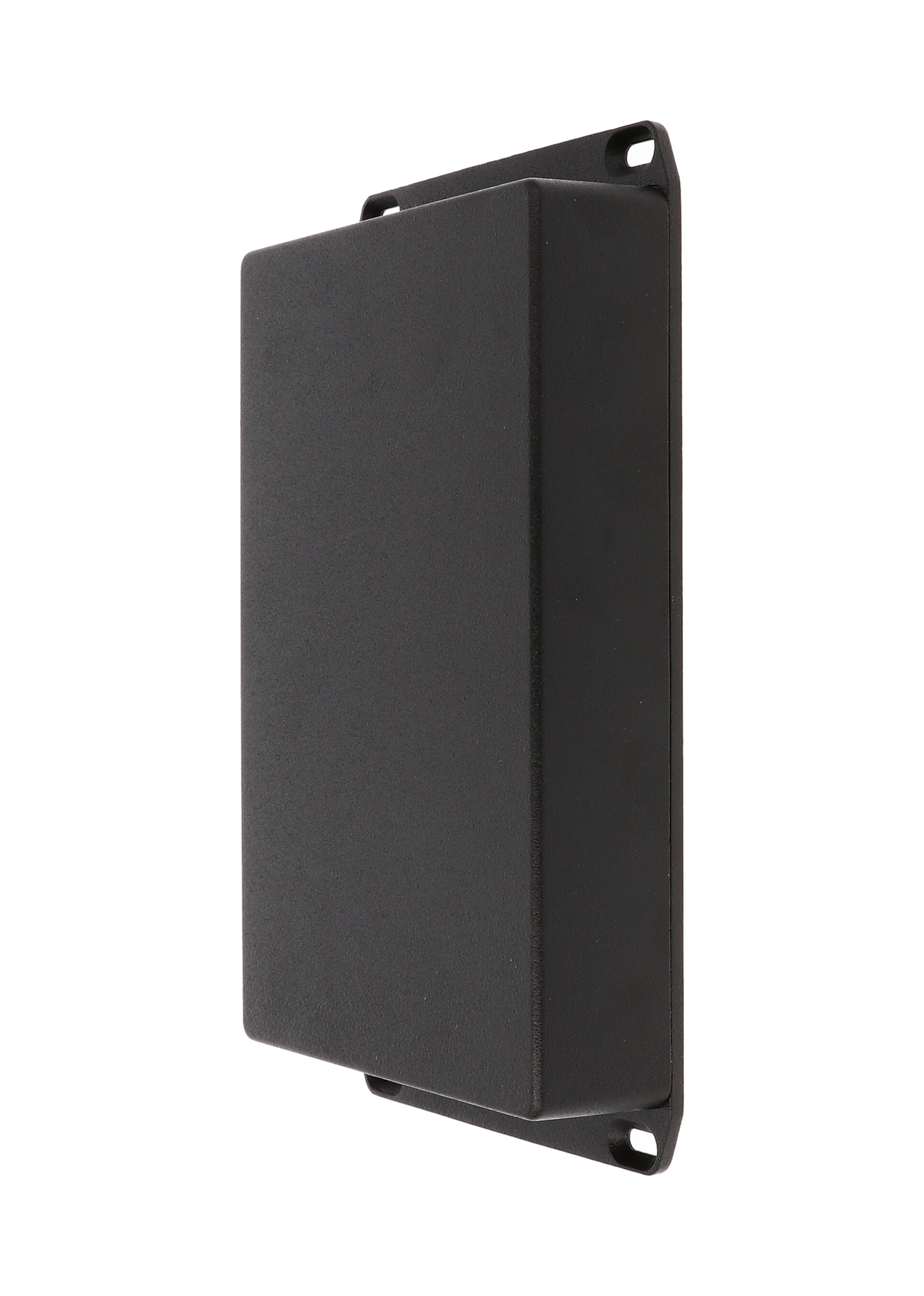

The 1590DDFBK is a textured black, slim diecast aluminum enclosure, nominal 188 x 120 x 37 mm (7.4 x 4.72 x 1.46 in), with a box-mounted flange for fastening to walls, panels and equipment. Per the drawing the bottom flange is welded, making the overall length 216.64 mm (8.529 in) and the overall height 38.50 mm (1.516 in).
The black finish is a tough polyester powder paint that lasts even after machining, with black screws included. Box and lid are diecast aluminum alloy joined by a lap joint that protects against dust and splashing water, and the standard version is designed to meet IP54.
- Box 188.00 x 120.00 mm; 216.64 mm overall with flange
- Inside 179.93 x 112.93 x 32.00 mm (this part's drawing)
- Listed maximum PC board dimensions: 178.26 mm and 110.26 mm
- Six 6-32 UNC cover screws
Torque the lid screws to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, the listed kit is 1590EGASKET, and the water-tight version is 1590WDDFBK. The 1590DDFBK ships shrink wrapped at 1.21 lbs (0.55 kg) and is RoHS and REACH compliant.
Ideal For
- Wall-mounted slim electronics with a black finish
- Equipment-mounted control boards
- Surface-mounted instrument enclosures
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged bottom plate (box-mounted flange) |
| Short Description | 1590DD BOX MTD FLANGE BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 112.93 mm [4.446 in] |
| Inside Height | 32.00 mm [1.260 in] |
| Inside Length | 179.93 mm [7.084 in] |
| Series Table Width | 4.72 in (120 mm) |
| Box Width (Drawing) | 120.00 mm [4.724 in] |
| Series Table Height | 1.46 in (37 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Box Length (Drawing) | 188.00 mm [7.402 in] |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 1.46 in (188 mm x 120 mm x 37 mm) |
| Overall Height (Drawing) | 38.50 mm [1.516 in] |
| Max. P.C. Board Width (Listed) | 178.26 mm |
| Max. P.C. Board Length (Listed) | 110.26 mm |
| Overall Length Incl. Bottom Flange (Drawing) | 216.64 mm [8.529 in] |
Identifiers
| UPC | 623980540672 |
| UNSPSC | 39121301 |
| Part Number | 1590DDFBK |
Related Parts
| No Flange, Standard | 1590DDBK |
| Flanged Lid, Standard | 1590DDFLBK |
| No Flange, Water-Tight | 1590WDDBK |
| Flanged Lid, Water-Tight | 1590WDDFLBK |
| Flanged Bottom Plate, Standard | 1590DDFBK |
| Flanged Bottom Plate, Water-Tight | 1590WDDFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.21 lbs (0.55 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Bottom Flange | Welded |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

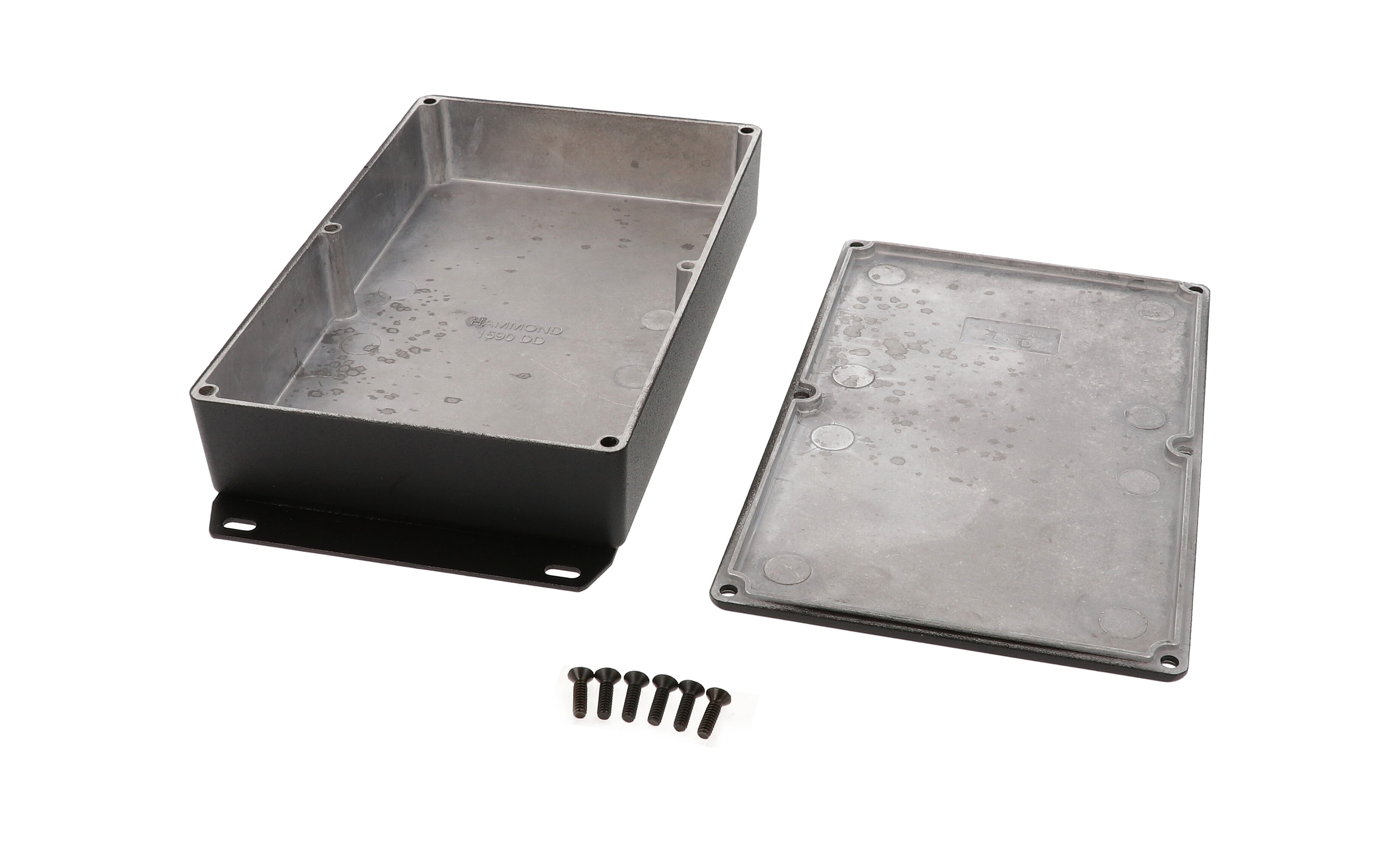

| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WDDFBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the overall length of the 1590DDFBK?▾
216.64 mm (8.529 in) including the flange, per the drawing.
Is the 1590DDFBK the black version of the 1590DDF?▾
Yes. The series table pairs 1590DDF (natural) with 1590DDFBK (black) as the standard flanged-bottom-plate versions of the 1590DD size.
What are its inside dimensions?▾
This part's drawing shows 179.93 mm (7.084 in) long, 112.93 mm (4.446 in) wide and 32.00 mm (1.260 in) high inside.
Can it be sealed to IP65?▾
Yes, with the 1590EGASKET kit and lid screws torqued to 25-30 cN.m, or order the water-tight 1590WDDFBK.
