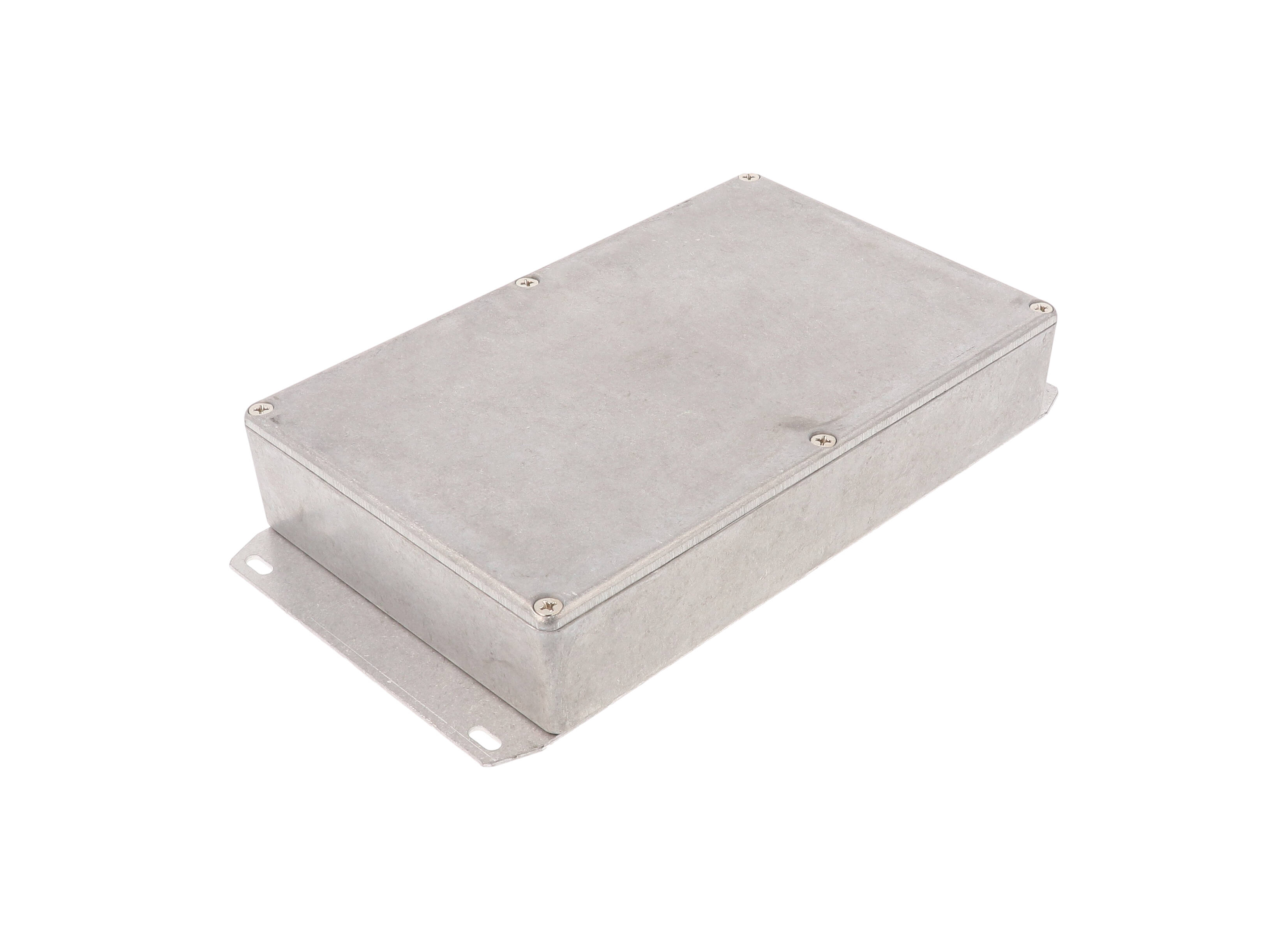

Hammond 1590DDF 188x120x37mm Diecast Box with Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded box-mounted flange; 216.64 mm overall length for surface mounting
- Nominal 188 x 120 x 37 mm; inside 179.26 x 112.26 x 32.00 mm
- Unpainted, vibra-finished diecast aluminum alloy
- Six 6-32 UNC cover screws in factory-tapped holes
- Lap joint construction designed to meet IP54
- IP65 upgrade with 1590EGASKET; water-tight version 1590WDDF
The 1590DDF is the slim 188 x 120 x 37 mm (7.4 x 4.72 x 1.46 in) 1590DD diecast aluminum enclosure with a box-mounted flange. According to the drawing the bottom flange is welded, bringing the overall length to 216.64 mm (8.529 in) and the height to 38.50 mm (1.516 in). It lets installers screw a large, flat electronics housing directly to a wall, panel or equipment frame.
Box and lid are diecast aluminum alloy, tough yet easy to machine, in an unpainted natural finish that is vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against dust and splashing water; the standard version is designed to meet IP54.
- Box 188.00 x 120.00 mm; 216.64 mm overall with flange
- Inside 179.26 x 112.26 x 32.00 mm
- Listed maximum PC board dimensions: 178.26 mm and 110.26 mm
- Six 6-32 UNC cover screws included
Recommended cover screw torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. The series table lists 1590EGASKET for an IP65 upgrade and 1590WDDF as the water-tight version. Shipping weight is 1.19 lbs (0.54 kg); RoHS and REACH compliant.
Ideal For
- Wall- or panel-mounted slim electronics housings
- Equipment-mounted control boards
- Surface-mounted instrument enclosures
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged bottom plate (box-mounted flange) |
| Short Description | 1590DD WITH BOX MTD FLANGE |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 112.26 mm [4.420 in] |
| Inside Height | 32.00 mm [1.260 in] |
| Inside Length | 179.26 mm [7.058 in] |
| Series Table Width | 4.72 in (120 mm) |
| Box Width (Drawing) | 120.00 mm [4.724 in] |
| Series Table Height | 1.46 in (37 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Box Length (Drawing) | 188.00 mm [7.402 in] |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 1.46 in (188 mm x 120 mm x 37 mm) |
| Overall Height (Drawing) | 38.50 mm [1.516 in] |
| Max. P.C. Board Width (Listed) | 178.26 mm |
| Max. P.C. Board Length (Listed) | 110.26 mm |
| Overall Length Incl. Bottom Flange (Drawing) | 216.64 mm [8.529 in] |
Identifiers
| UPC | 623980540665 |
| UNSPSC | 39121301 |
| Part Number | 1590DDF |
Related Parts
| No Flange, Standard | 1590DD |
| Flanged Lid, Standard | 1590DDFL |
| No Flange, Water-Tight | 1590WDD |
| Flanged Lid, Water-Tight | 1590WDDFL |
| Flanged Bottom Plate, Standard | 1590DDF |
| Flanged Bottom Plate, Water-Tight | 1590WDDF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.19 lbs (0.54 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Bottom Flange | Welded |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

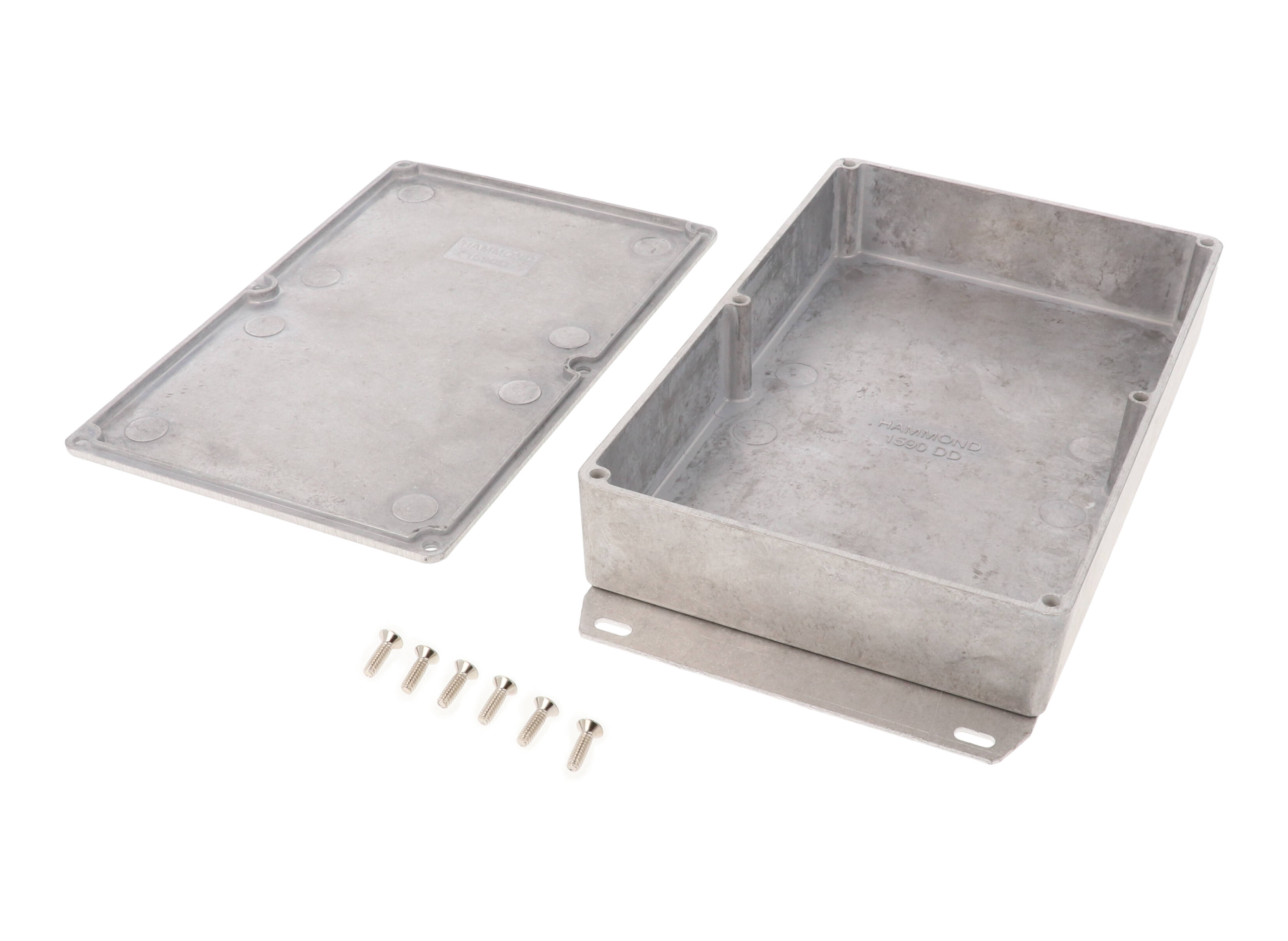

| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WDDF |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1590DDF including its flange?▾
216.64 mm (8.529 in) overall per the drawing; the box itself is 188.00 mm (7.402 in) long.
Is the flange welded or bolted?▾
The drawing notes that the bottom flange is welded.
What are the inside dimensions?▾
Inside length 179.26 mm, inside width 112.26 mm, inside height 32.00 mm.
Which gasket kit fits the 1590DDF?▾
1590EGASKET, per the series table. With lid screws torqued to 25-30 cN.m it is designed to meet IP65.
What does it weigh?▾
1.19 lbs (0.54 kg) shipping weight.
Related Products
Save 52%1590DDBK — enclosure - diecast
Hammond Manufacturing · 1590DDBK
Save 52%1590DDFBK — enclosure - diecast
Hammond Manufacturing · 1590DDFBK
Save 52%1590DD — enclosure - diecast
Hammond Manufacturing · 1590DD

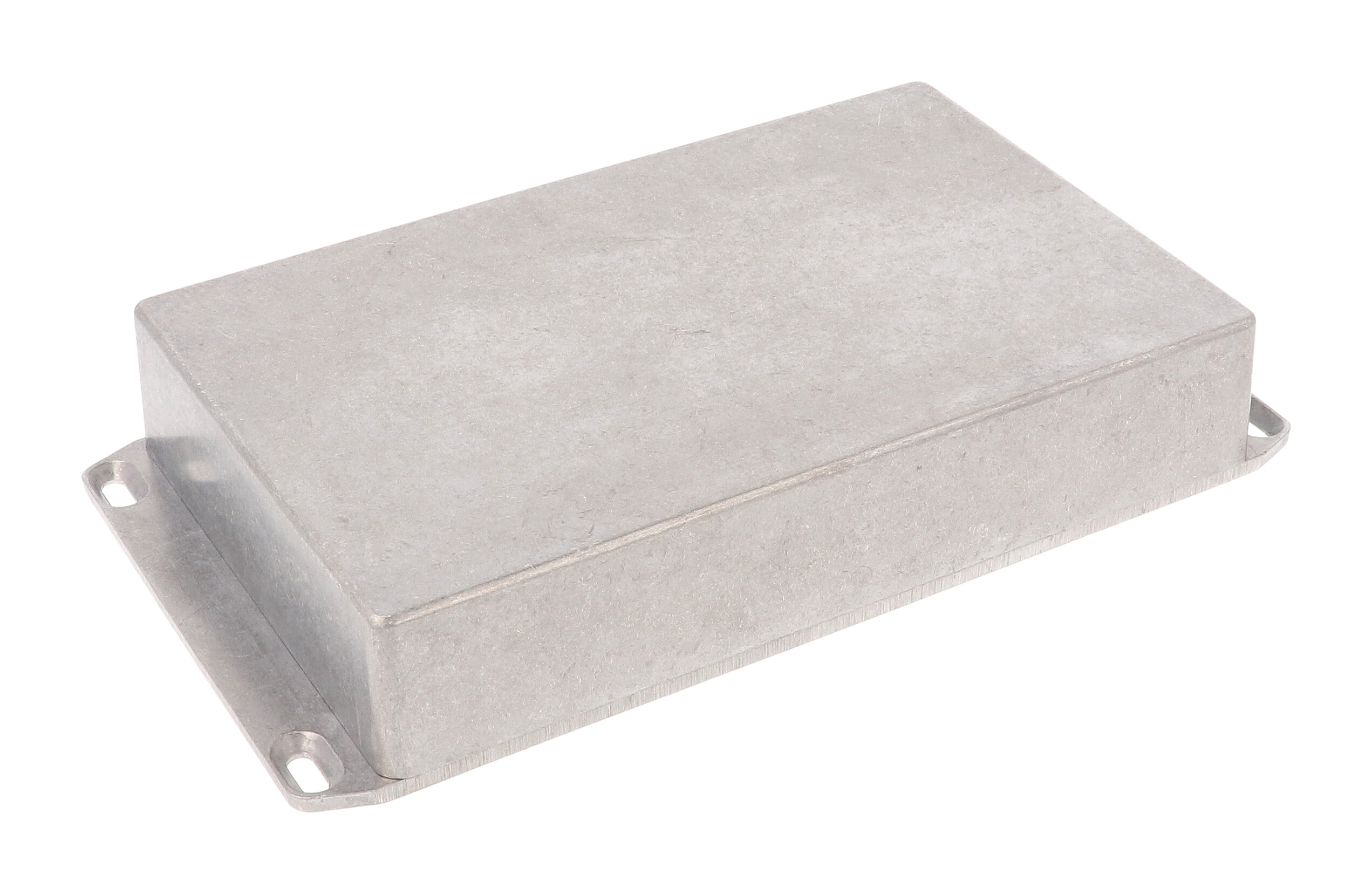

Save 52%1590DDFL — enclosure - diecast
