Hammond 1590DBK 188x119x56mm Black Textured Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint; black screws included
- 188 x 119 x 56 mm nominal; 178.86 x 111.61 x 51.00 mm inside
- Six 6-32 UNC cover screws in factory-tapped holes
- Diecast aluminum alloy with lap joint construction, designed to meet IP54
- IP65 upgrade via the 1590EGASKET kit; water-tight version 1590WDBK
- RoHS and REACH compliant

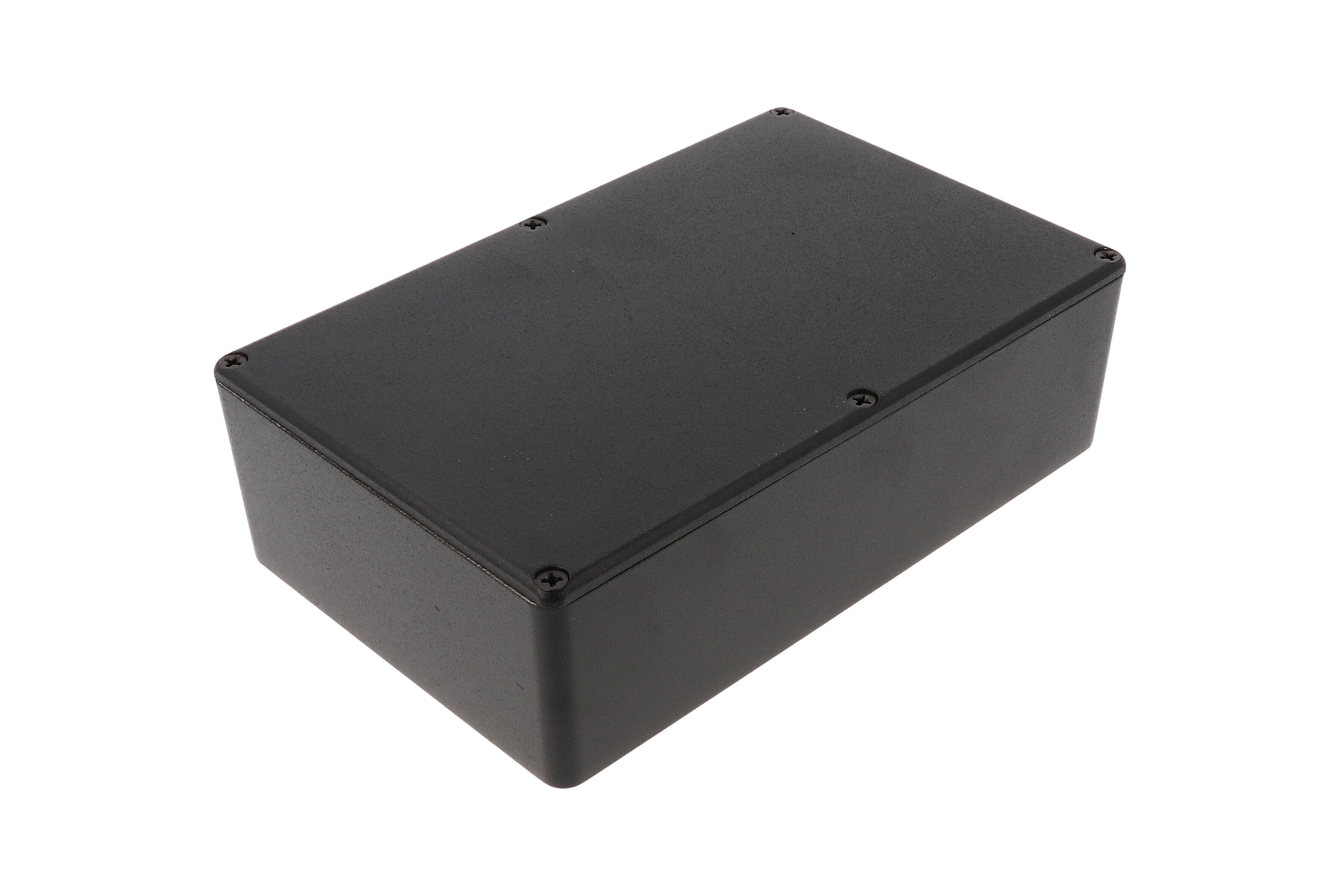

The 1590DBK is the textured black version of the 188 x 119 x 56 mm (7.39 x 4.7 x 2.2 in) 1590D diecast aluminum enclosure. It suits equipment builders who want a larger painted metal housing ready for front-panel work, without mounting flanges on the box or lid.
Its finish is a tough polyester powder paint that holds up even after machining, and black screws are included to match. The diecast aluminum alloy box and lid meet at a lap joint that protects against dust and splashing water; the standard version is designed to meet IP54.
- Drawing outside dimensions: 187.75 x 119.50 x 56.00 mm
- Inside 178.86 mm long, 111.61 mm wide, 51.00 mm high
- Listed maximum PC board dimensions of 177.86 mm and 109.61 mm
- Side walls drafted at 2° or less for board mounting
Six 6-32 UNC cover screws close the lid into factory-tapped holes; recommended torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, the listed gasket kit is 1590EGASKET and the water-tight version is 1590WDBK. Shipping weight is 1.1 lbs (0.50 kg); the 1590DBK is RoHS and REACH compliant.
Ideal For
- Finished-look equipment enclosures
- Control board and power electronics housings
- Front-panel machined instrument cases
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST 7.3X4.7X2.2 PAINTED |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.61 mm [4.394 in] |
| Inside Height | 51.00 mm [2.008 in] |
| Inside Length | 178.86 mm [7.042 in] |
| Series Table Width | 4.72 in (120 mm) |
| Series Table Height | 2.20 in (56 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Overall Width (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
| Overall Height (Drawing) | 56.00 mm [2.205 in] |
| Overall Length (Drawing) | 187.75 mm [7.392 in] |
| Max. P.C. Board Width (Listed) | 177.86 mm |
| Max. P.C. Board Length (Listed) | 109.61 mm |
Identifiers
| UPC | 623980540900 |
| UNSPSC | 39121301 |
| Part Number | 1590DBK |
Related Parts
| No Flange, Standard | 1590DBK |
| Flanged Lid, Standard | 1590DFLBK |
| No Flange, Water-Tight | 1590WDBK |
| Flanged Lid, Water-Tight | 1590WDFLBK |
| Flanged Bottom Plate, Standard | 1590DFBK |
| Flanged Bottom Plate, Water-Tight | 1590WDFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC - 2B |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WDBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1590DBK and 1590D?▾
Same size and construction; the 1590DBK is textured black with polyester powder paint and black screws, the 1590D is unpainted natural aluminum.
What size PC board fits the 1590DBK?▾
The listed maximum PC board dimensions are 177.86 mm and 109.61 mm.
How many cover screws are included?▾
Six 6-32 UNC cover screws, black on this version.
Can the 1590DBK be made IP65?▾
Yes, with the 1590EGASKET kit and lid screws torqued to 25-30 cN.m, or by ordering the water-tight 1590WDBK.
