Hammond 1590D 188x119x56mm Diecast Aluminum Enclosure, Natural
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 188 x 119 x 56 mm (7.39 x 4.7 x 2.2 in) diecast aluminum enclosure
- Inside space of 178.86 x 111.61 x 51.00 mm
- Unpainted, vibra finished with no sharp edges
- Six 6-32 UNC cover screws in factory-tapped holes
- Lap joint construction designed to meet IP54
- IP65 upgrade with 1590EGASKET; water-tight version 1590WD
- RoHS and REACH compliant

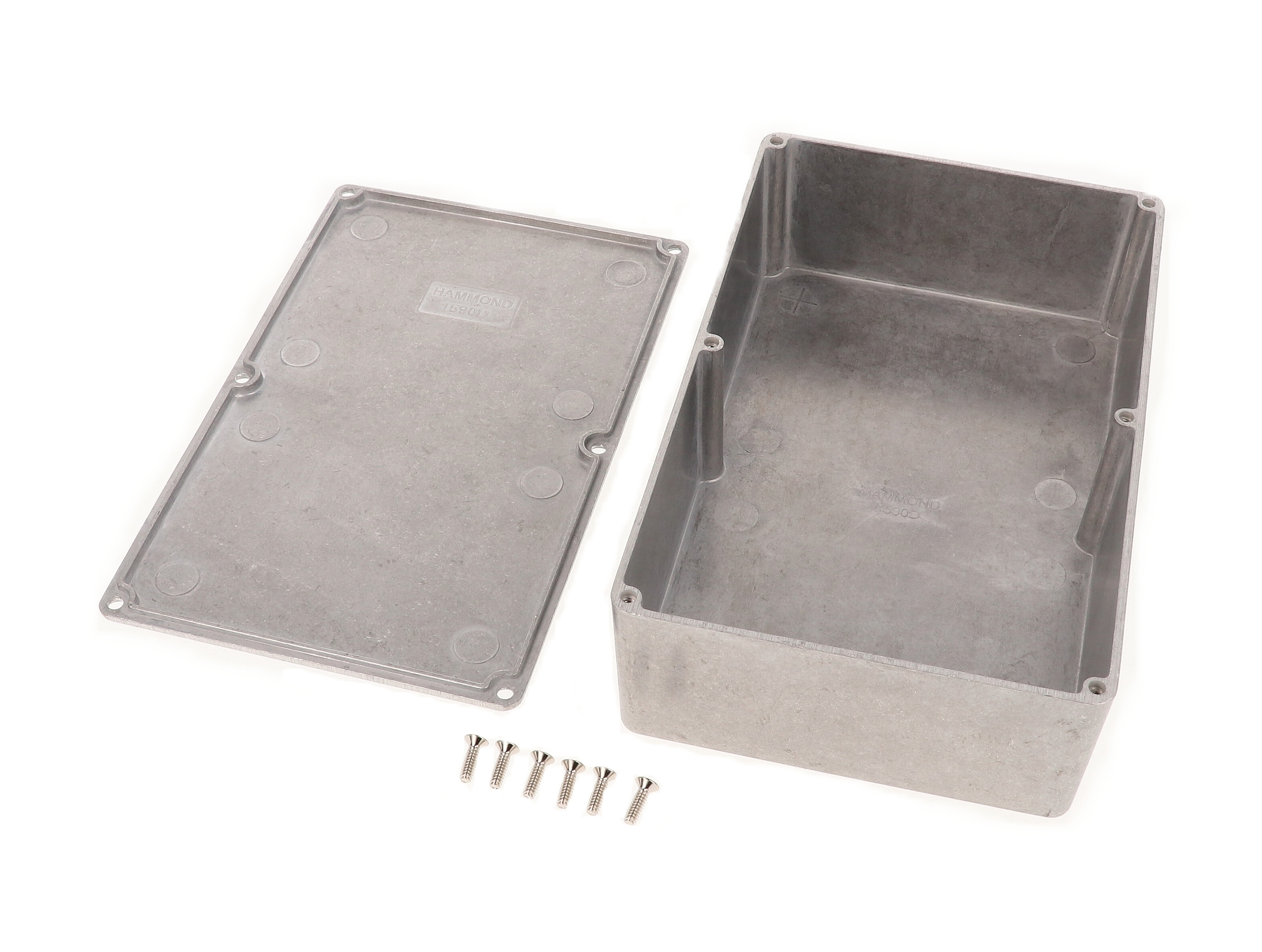

The 1590D is a larger-format diecast aluminum electronic instrument enclosure with a nominal size of 188 x 119 x 56 mm (7.39 x 4.7 x 2.2 in) and no mounting flanges. It gives engineers and builders a roomy, rigid metal housing for control boards, power electronics and multi-connector assemblies.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.
- Outside per drawing: 187.75 x 119.50 x 56.00 mm
- Inside length 178.86 mm, inside width 111.61 mm, inside height 51.00 mm
- Listed maximum PC board dimensions: 177.86 mm and 109.61 mm
- Side wall draft angle of 2° or less for easy PC board mounting
This size closes with six 6-32 UNC cover screws, included and threaded into factory-tapped holes. Recommended torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. The series table lists 1590EGASKET as the replacement gasket kit for an IP65 upgrade, and 1590WD as the water-tight version. Shipping weight is 1.1 lbs (0.50 kg); RoHS and REACH compliant.
Ideal For
- Larger electronic instrument enclosures
- Control board and multi-connector housings
- Custom machined equipment boxes
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST BOX 7.3X4.7X2.2 C90 |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.61 mm [4.394 in] |
| Inside Height | 51.00 mm [2.008 in] |
| Inside Length | 178.86 mm [7.042 in] |
| Series Table Width | 4.72 in (120 mm) |
| Series Table Height | 2.20 in (56 mm) |
| Series Table Length | 7.40 in (188 mm) |
| Overall Width (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
| Overall Height (Drawing) | 56.00 mm [2.205 in] |
| Overall Length (Drawing) | 187.75 mm [7.392 in] |
| Max. P.C. Board Width (Listed) | 177.86 mm |
| Max. P.C. Board Length (Listed) | 109.61 mm |
Identifiers
| UPC | 623980540603 |
| UNSPSC | 39121301 |
| Part Number | 1590D |
Related Parts
| No Flange, Standard | 1590D |
| Flanged Lid, Standard | 1590DFL |
| No Flange, Water-Tight | 1590WD |
| Flanged Lid, Water-Tight | 1590WDFL |
| Flanged Bottom Plate, Standard | 1590DF |
| Flanged Bottom Plate, Water-Tight | 1590WDF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WD |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590D?▾
Inside length 178.86 mm (7.042 in), inside width 111.61 mm (4.394 in) and inside height 51.00 mm (2.008 in).
How many screws does the 1590D use?▾
Six 6-32 UNC cover screws, included with the box and lid.
Which gasket kit fits the 1590D?▾
The series table lists 1590EGASKET as the optional replacement gasket kit.
Are flanged versions available?▾
Yes. The series table lists 1590DFL (flanged lid) and 1590DF (flanged bottom plate).
What does the 1590D weigh?▾
1.1 lbs (0.50 kg) shipping weight.
