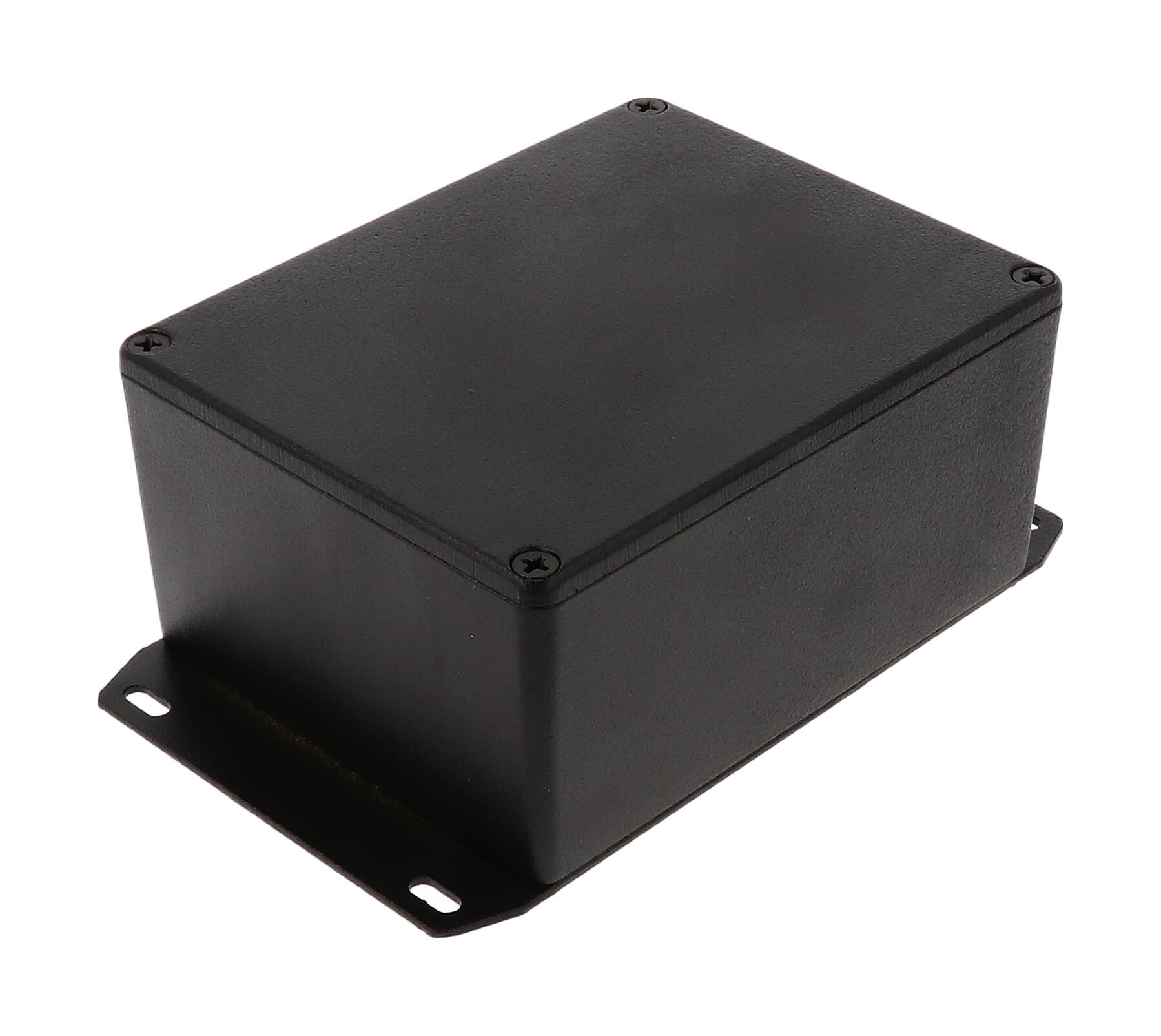

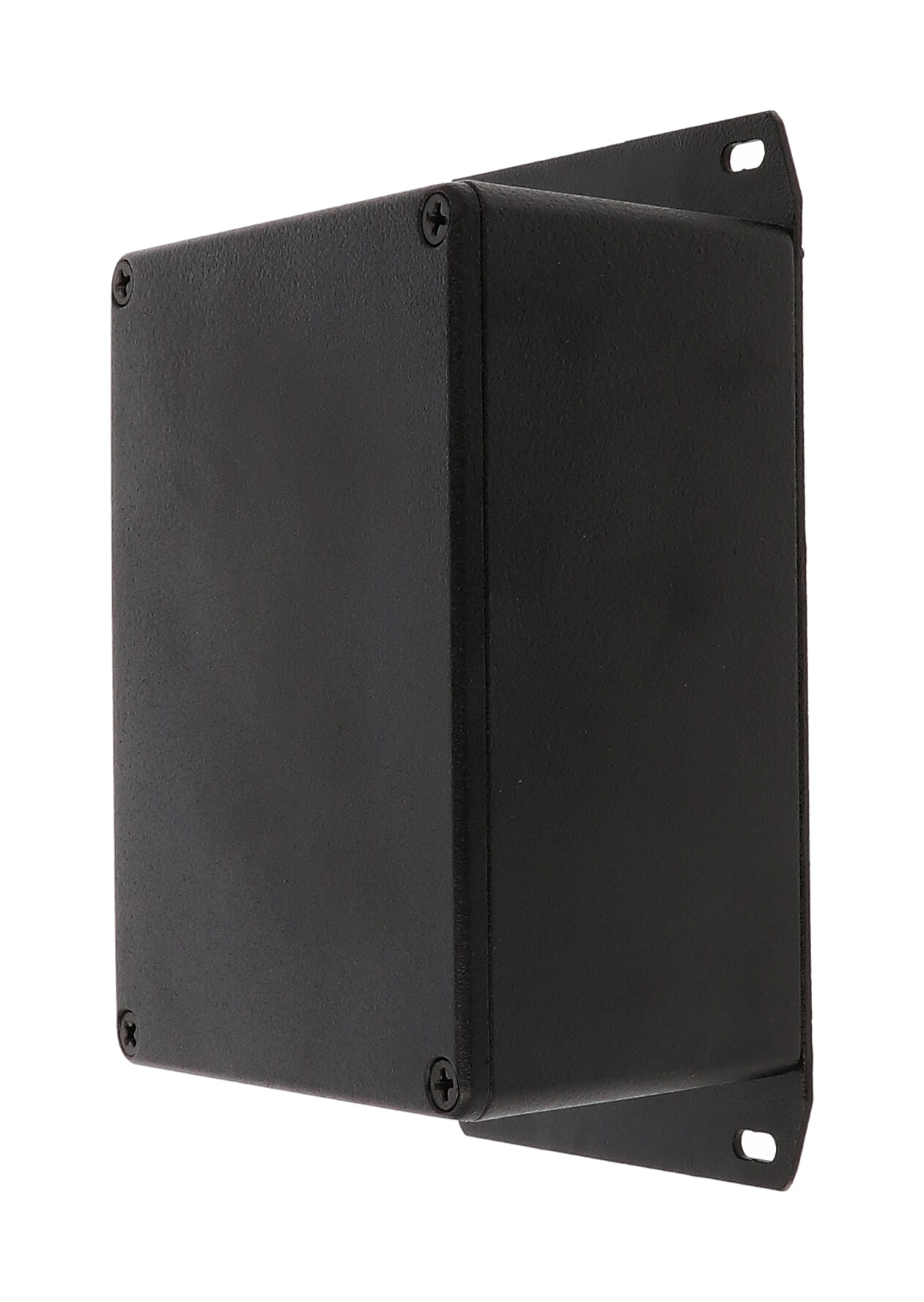

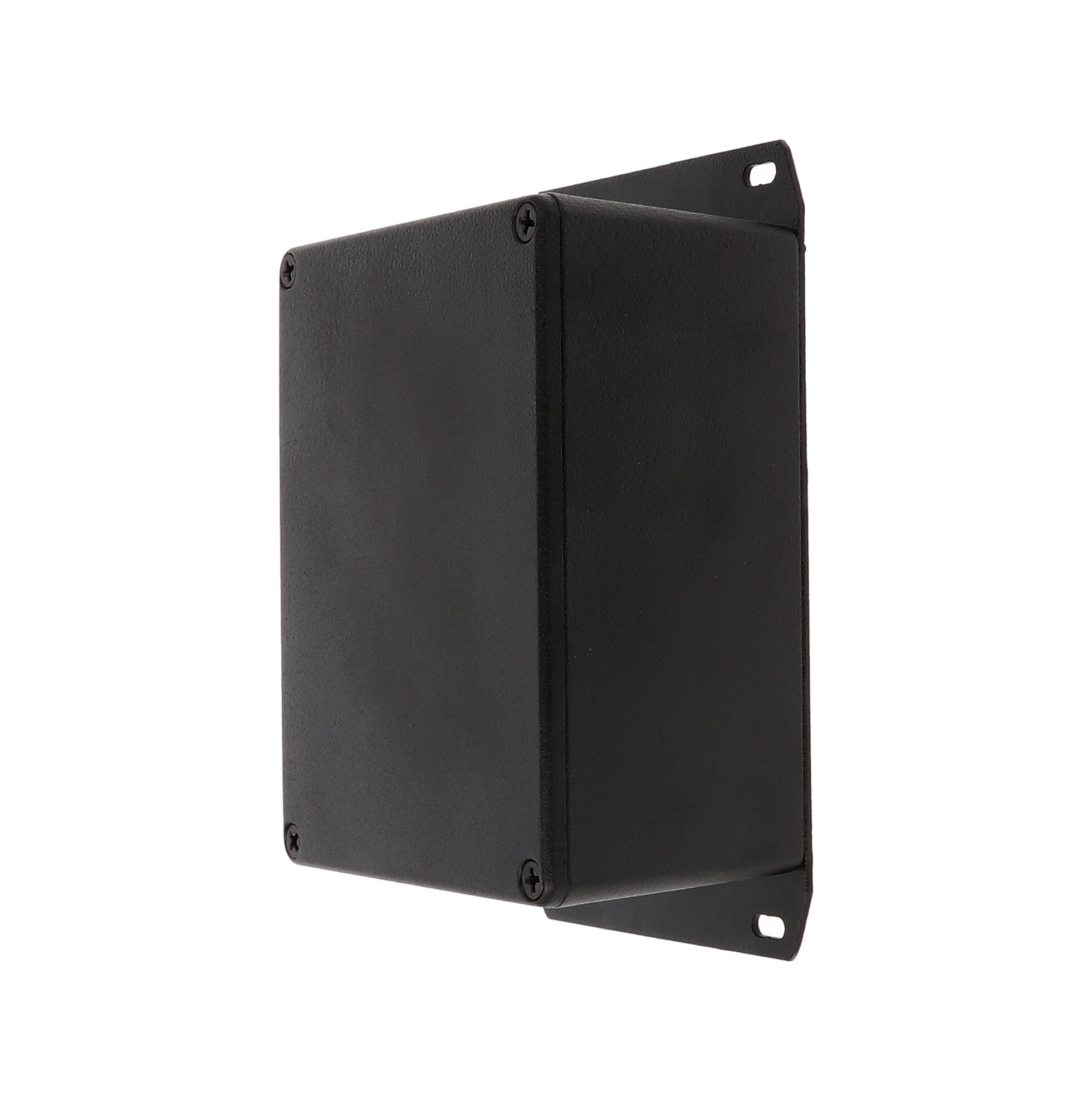

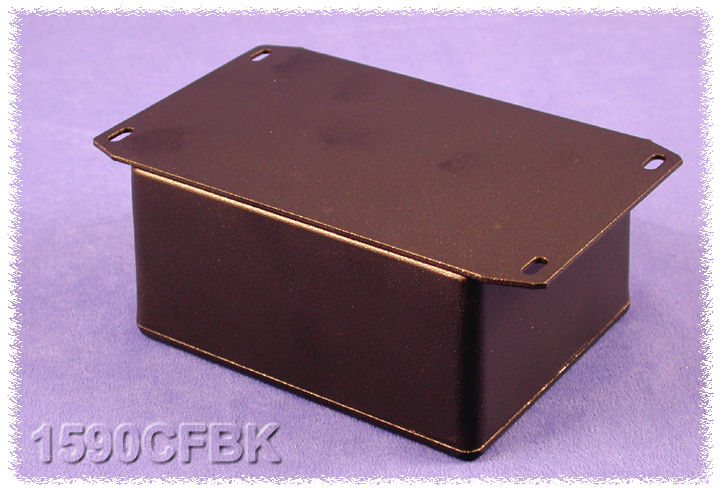

Hammond 1590CFBK Black 119x94x56mm Diecast Box, Welded Mounting Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate; 148.24 mm overall length for surface mounting
- Textured black polyester powder paint with matching black screws
- 119 x 94 x 56 mm nominal; 111.27 x 85.77 x 52.25 mm inside
- Diecast aluminum alloy, tough yet easy to machine
- Designed to meet IP54; IP65 with the 1590BBGASKET kit
- RoHS and REACH compliant
The 1590CFBK takes the black 1590CBK diecast aluminum enclosure and adds a flanged bottom plate, so a painted 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in) box can be screwed straight onto a wall, panel or equipment frame. Per the drawing, the bottom flange is welded and extends the overall length to 148.24 mm (5.836 in).
The textured black coating is a tough polyester powder paint that keeps a lasting finish even after machining, and black screws are included. Box and lid are diecast aluminum alloy joined by a lap joint that protects against dust and splashing water, with the standard version designed to meet IP54.
- Box body 119.50 x 94.00 mm, overall height 58.00 mm
- Inside 111.27 mm long, 85.77 mm wide, 52.25 mm high
- Listed maximum PC board dimensions: 109.27 mm and 83.77 mm
- Four 6-32 UNC cover screws in factory-tapped holes
Recommended lid screw torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, add the listed 1590BBGASKET kit or choose the water-tight 1590WCFBK. The 1590CFBK ships shrink wrapped at 0.74 lbs (0.34 kg) and is RoHS and REACH compliant.
Ideal For
- Wall- or panel-mounted electronics with a finished black look
- Equipment-mounted control and interface boxes
- Surface-mounted instrument enclosures
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged bottom plate |
| Short Description | 1590CBK WITH FLANGE |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Box Width (Drawing) | 94.00 mm [3.701 in] |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Box Length (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 58.00 mm [2.283 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
| Overall Length Incl. Bottom Flange (Drawing) | 148.24 mm [5.836 in] |
Identifiers
| UPC | 623980536958 |
| UNSPSC | 39121301 |
| Part Number | 1590CFBK |
Related Parts
| No Flange, Standard | 1590CBK |
| Flanged Lid, Standard | 1590CFLBK |
| No Flange, Water-Tight | 1590WCBK |
| Flanged Lid, Water-Tight | 1590WCFLBK |
| Flanged Bottom Plate, Standard | 1590CFBK |
| Flanged Bottom Plate, Water-Tight | 1590WCFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.74 lbs (0.34 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Bottom Flange | Welded |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

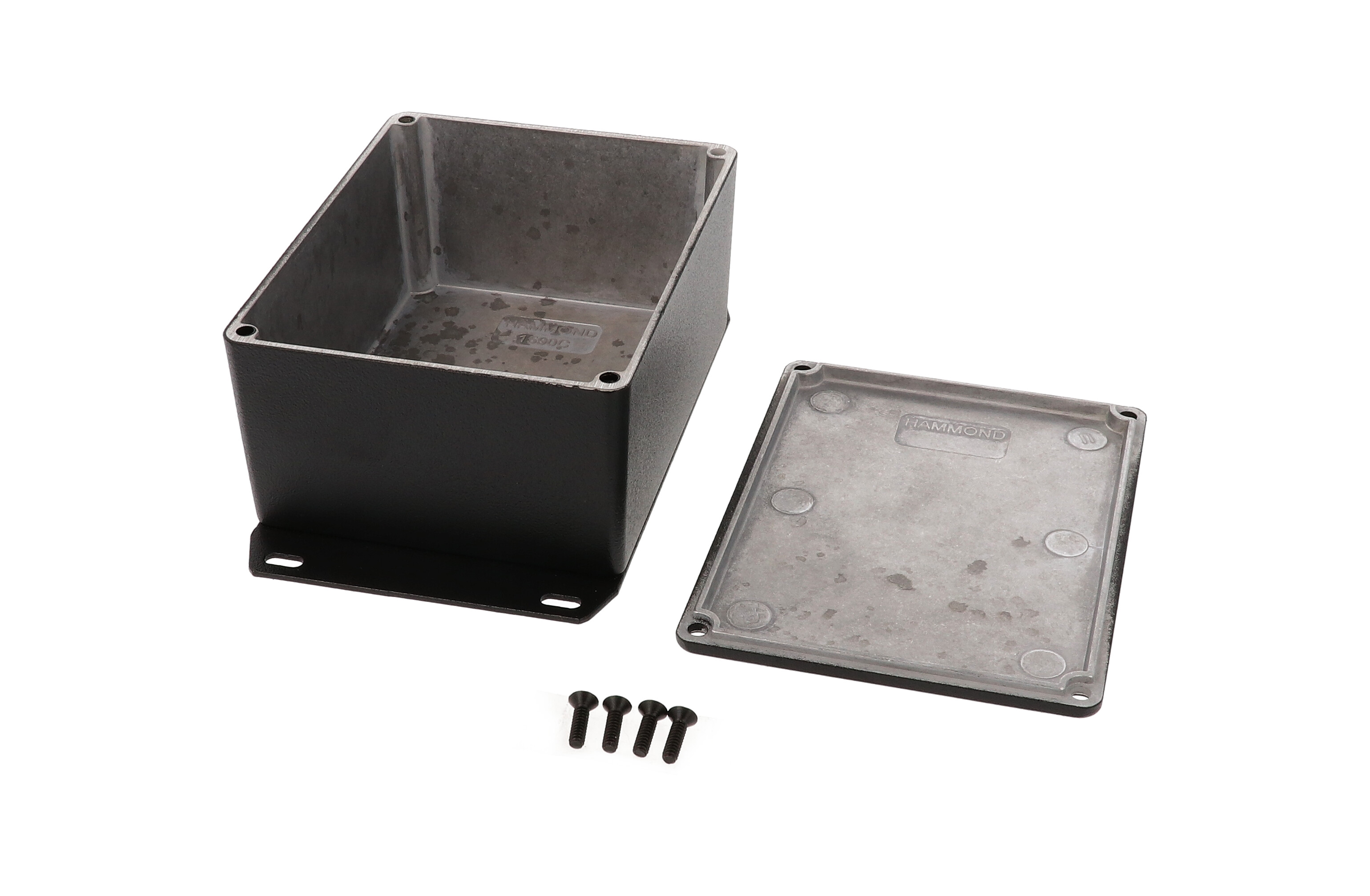

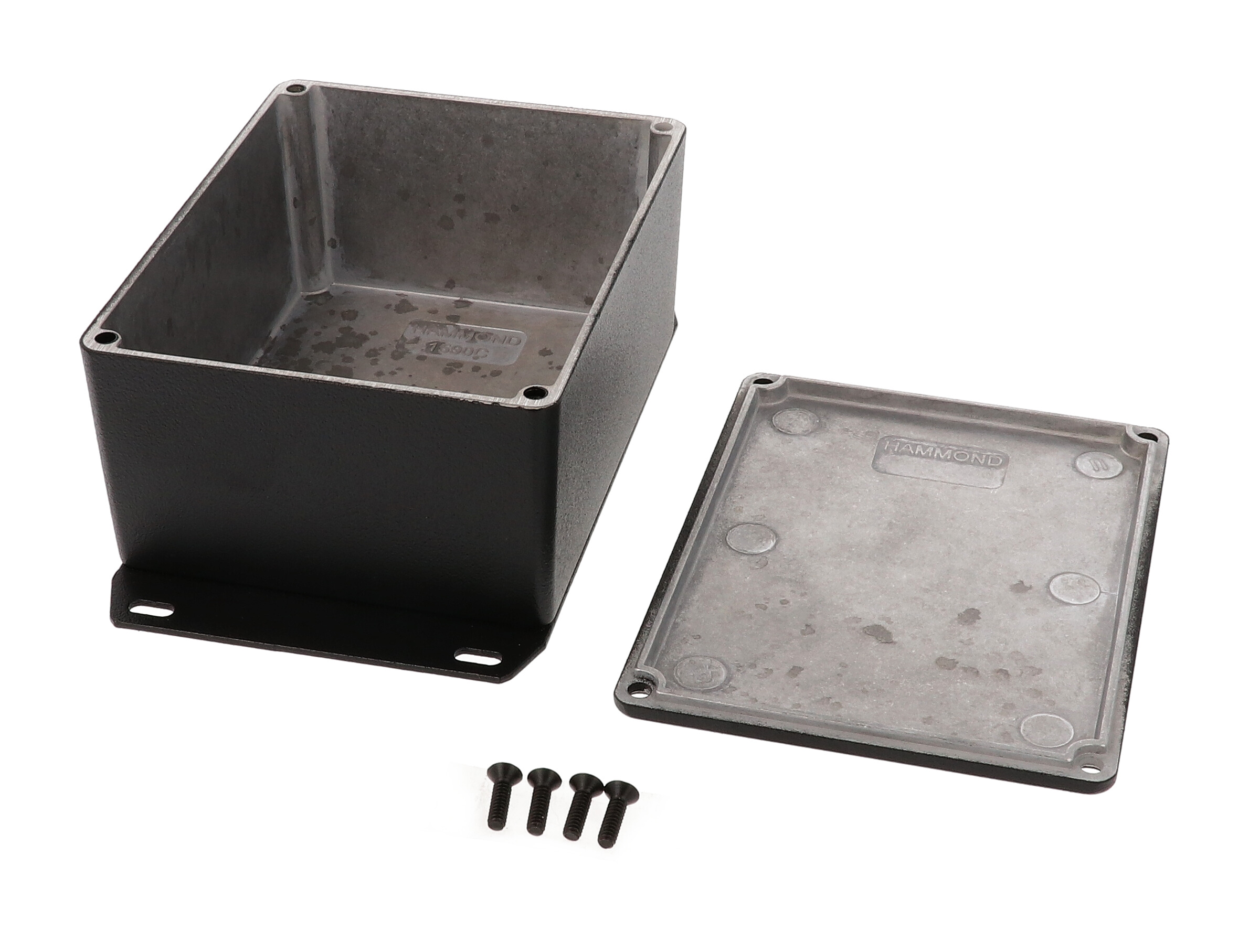

| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCFBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590CFBK the same as the 1590CBK?▾
It is the 1590CBK black enclosure with a flanged bottom plate added. The drawing notes the bottom flange is welded.
What is the overall footprint including the flange?▾
The overall length across the flange is 148.24 mm (5.836 in); the box is 94.00 mm (3.701 in) wide.
Which gasket kit fits the 1590CFBK?▾
The series table lists 1590BBGASKET as the optional replacement gasket kit.
What screws come with it?▾
Four 6-32 UNC cover screws; black screws are included with black versions.
