Hammond 1590CF 119x94x56mm Diecast Box with Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for direct surface mounting; 148.24 mm overall length
- Nominal 119 x 94 x 56 mm; inside 111.27 x 85.77 x 52.25 mm
- Unpainted, vibra-finished diecast aluminum alloy
- Lap joint construction designed to meet IP54
- Four 6-32 UNC cover screws in factory-tapped holes
- IP65 upgrade with 1590BBGASKET; water-tight version 1590WCF

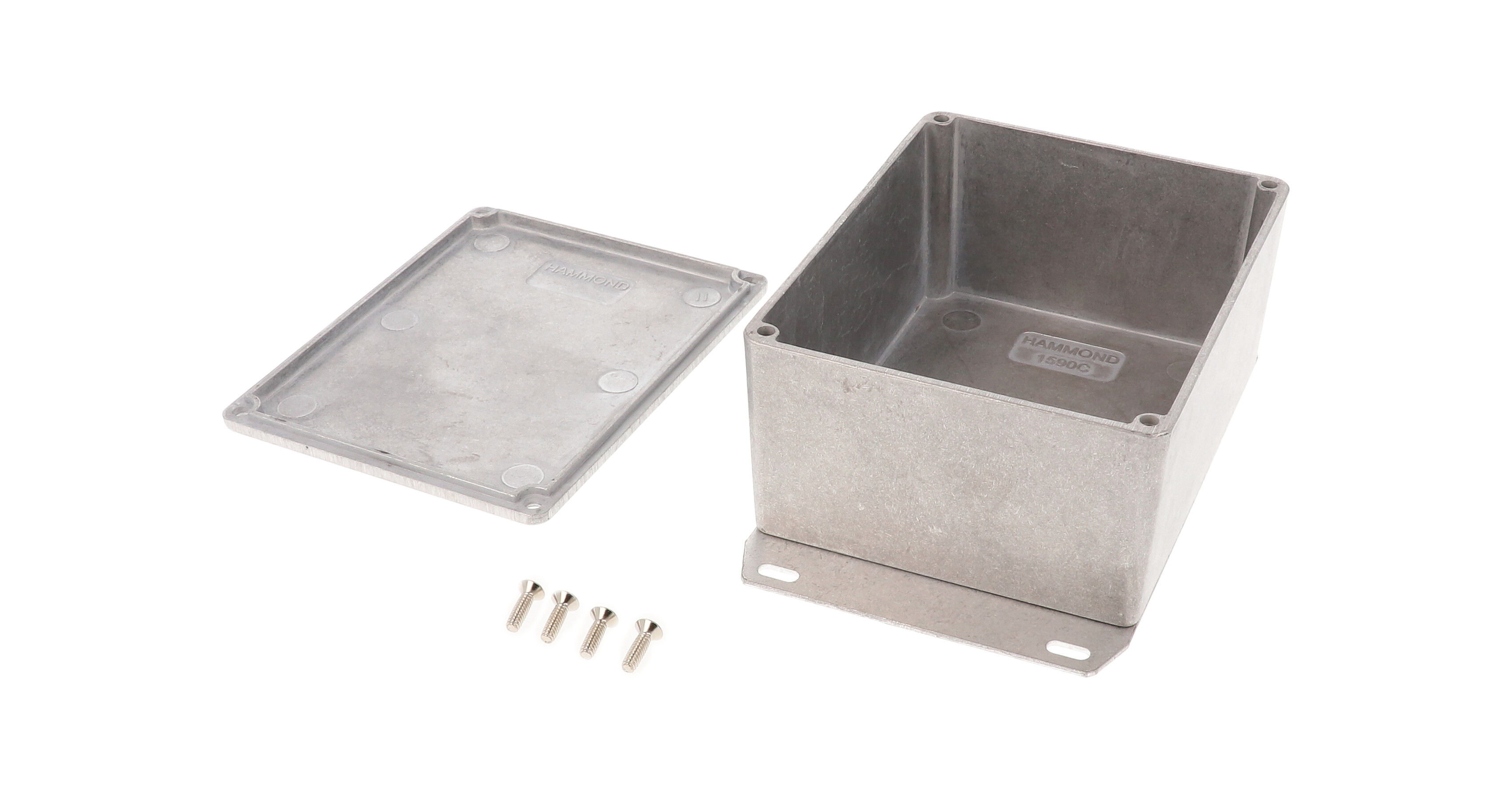

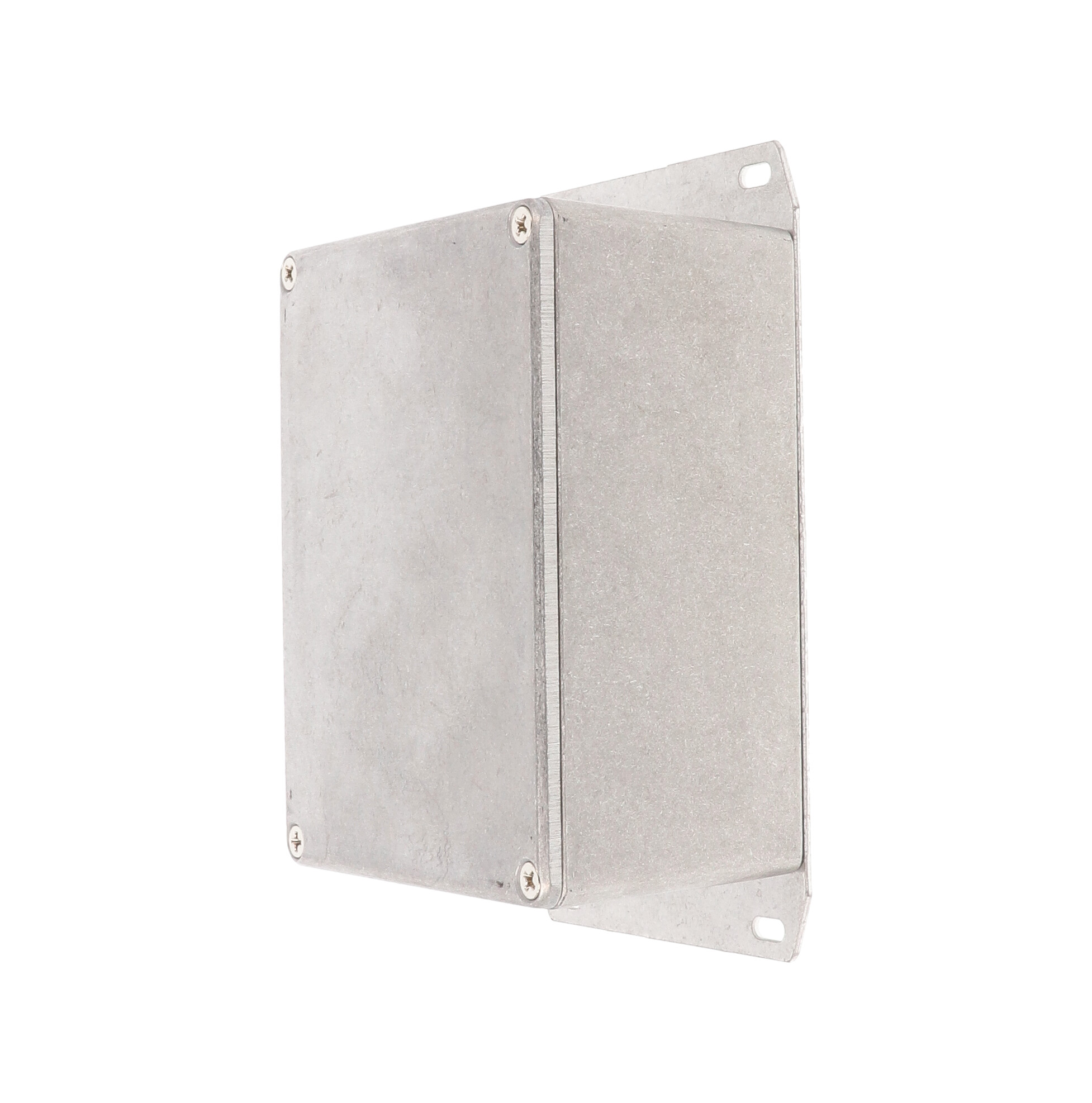

The 1590CF is the 1590C diecast aluminum enclosure fitted with a flanged bottom plate, giving a nominal 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in) box that fastens directly to a wall, panel or machine frame. The drawing notes that the bottom flange is welded, and the overall length across the flange is 148.24 mm (5.836 in).
It is built for integrators and electricians who need a mounted metal housing without adding brackets. Box and lid are diecast aluminum alloy, tough yet easy to machine, in an unpainted natural finish that is vibra finished for a smooth surface with no sharp edges. Lap joint construction protects against dust and splashing water; the standard version is designed to meet IP54.
- Box body 119.50 x 94.00 mm; overall height 58.00 mm with the flange
- Inside length 111.27 mm, width 85.77 mm, height 52.25 mm
- Listed maximum PC board dimensions: 109.27 mm and 83.77 mm
- Four 6-32 UNC cover screws included
Lid screws should be torqued to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket fitted. The series table lists 1590BBGASKET for an IP65 upgrade, with 1590WCF as the water-tight version. Shipping weight is 0.74 lbs (0.34 kg); the 1590CF is RoHS and REACH compliant.
Ideal For
- Surface-mounted electronics housings
- Wall- or panel-mounted control electronics
- Machine-mounted sensor and interface boxes
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged bottom plate |
| Short Description | DIECAST BOX WITH FLANGE |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Box Width (Drawing) | 94.00 mm [3.701 in] |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Box Length (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 58.00 mm [2.283 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
| Overall Length Incl. Bottom Flange (Drawing) | 148.24 mm [5.836 in] |
Identifiers
| UPC | 623980536774 |
| UNSPSC | 39121301 |
| Part Number | 1590CF |
Related Parts
| No Flange, Standard | 1590C |
| Flanged Lid, Standard | 1590CFL |
| No Flange, Water-Tight | 1590WC |
| Flanged Lid, Water-Tight | 1590WCFL |
| Flanged Bottom Plate, Standard | 1590CF |
| Flanged Bottom Plate, Water-Tight | 1590WCF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.74 lbs (0.34 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Bottom Flange | Welded |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCF |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the flange attached on the 1590CF?▾
The drawing notes that the bottom flange is welded. The overall length across the flange is 148.24 mm (5.836 in).
What are the inside dimensions?▾
Inside length 111.27 mm, inside width 85.77 mm and inside height 52.25 mm.
Is there a version with the flange on the lid?▾
Yes, the 1590CFL has a flanged lid. The 1590C has no flanges.
What IP rating does the 1590CF have?▾
It is designed to meet IP54. With the 1590BBGASKET kit and lid screws at 25-30 cN.m it is designed to meet IP65; the water-tight version is 1590WCF.
What does the 1590CF weigh?▾
0.74 lbs (0.34 kg) shipping weight.
