Hammond 1590BX2FBK 254x70x35mm Black Diecast Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged bottom plate; 273.00 mm overall length
- Textured black powder paint with black screws included
- Slim 254 x 70 x 35 mm body, 36.00 mm tall with flange
- Inside 248.33 x 64.33 x 29.70 mm
- Six 6-32 UNC screws into factory-tapped holes
- Designed to meet IP54; water-tight 1590WBX2FBK available
- RoHS and REACH compliant

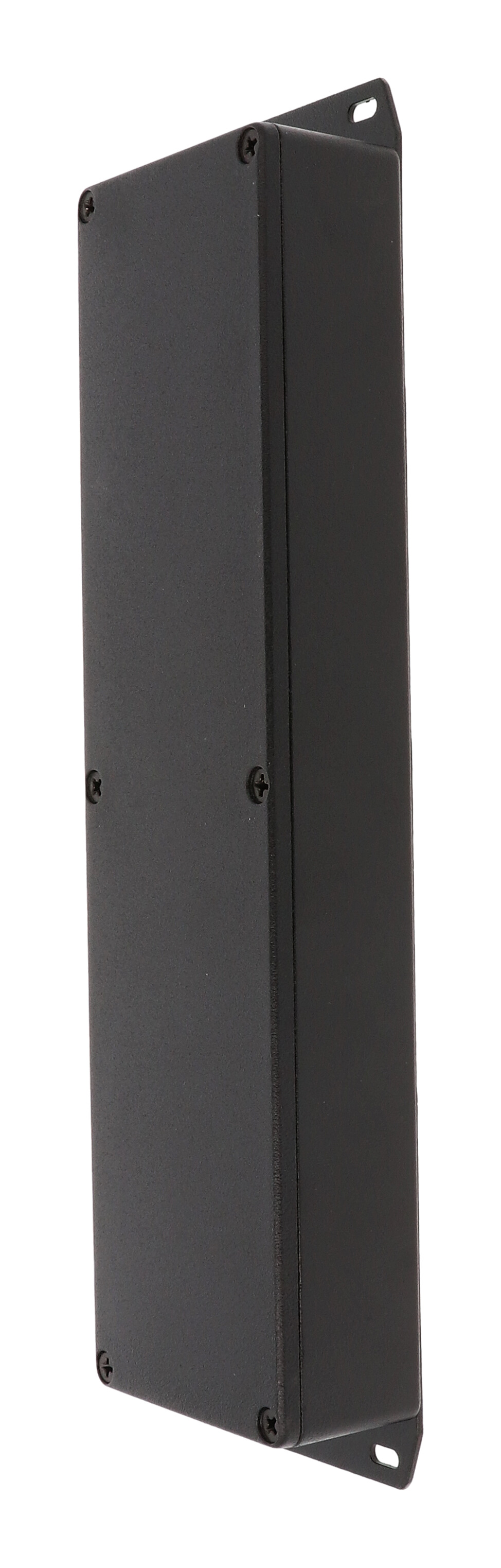

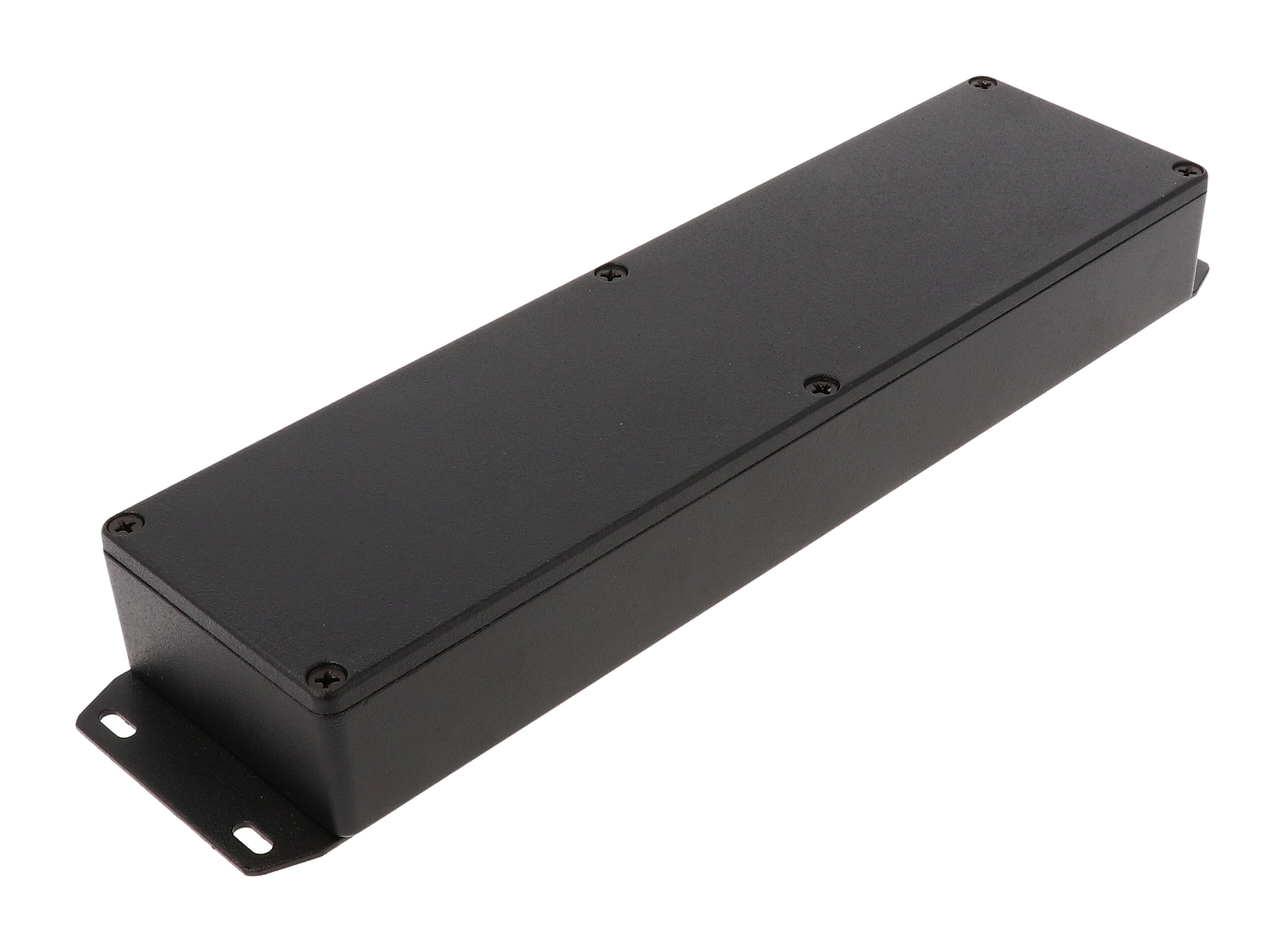

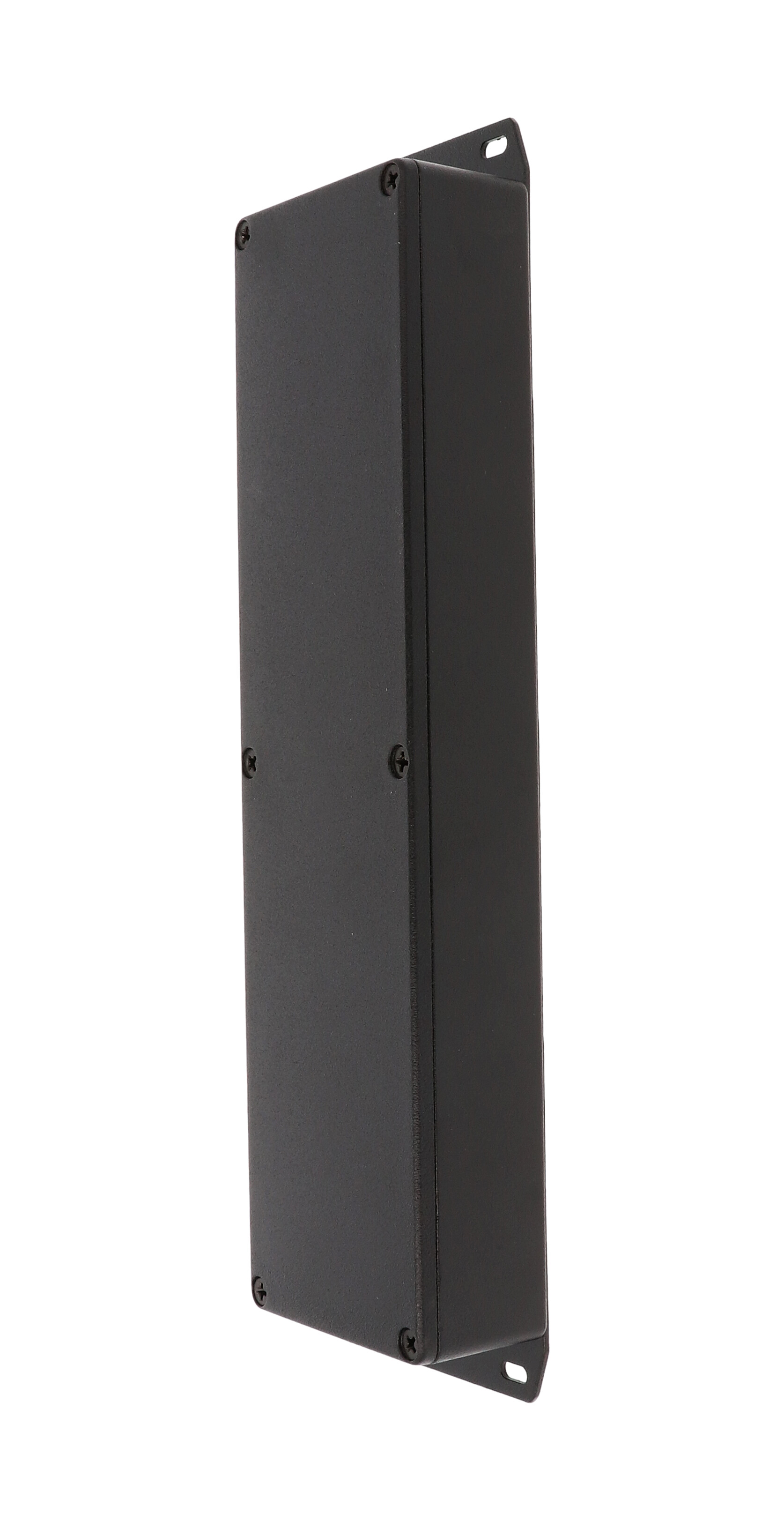

The 1590BX2FBK is the black textured, flanged-base version of the long and slim 1590BX2 diecast aluminum enclosure. It gives installers and OEM engineers a painted housing for long, flat circuit boards that fastens down through a flanged bottom plate. The part page lists 10 x 2.76 x 1.36 in (254 x 70 x 35 mm).
The diecast aluminum alloy box and lid are coated with a tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
The drawing gives an overall length of 273.00 mm [10.748 in] across the flange, a box length of 253.89 mm [9.996 in], a width of 70.00 mm [2.756 in] and an overall height of 36.00 mm [1.417 in]. Inside there is 248.33 x 64.33 x 29.70 mm [9.777 x 2.533 x 1.169 in]. Side walls have a draft angle of 2 degrees or less for easy PC board mounting, and the part data lists maximum P.C. board figures of 62.33 mm and 246.33 mm.
Six 6-32 UNC screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. The lap joint between lid and box protects against dust and splashing water, and this standard version is designed to meet IP54. The water-tight equivalent is 1590WBX2FBK, and the gasket kit listed for this size is 1590BXGASKET.
The 1590BX2FBK weighs 0.8 lbs (0.36 kg), ships shrink wrapped, and is RoHS and REACH compliant.
Ideal For
- Surface-mounted painted housings for long PC boards
- Panel, wall or chassis mounted control electronics
- Custom-machined long enclosures
- Dust and splash protected equipment (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX2 FLANGED BASE BLACK |
| Part Number | 1590BX2FBK |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged bottom plate |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Box Length (Drawing) | 253.89 mm [9.996 in] |
| Max. P.C. Board Width | 246.33 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 64.33 mm [2.533 in] |
| Max. P.C. Board Length | 62.33 mm |
| Inside Height (Drawing) | 29.70 mm [1.169 in] |
| Inside Length (Drawing) | 248.33 mm [9.777 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.36 in (254 mm x 70 mm x 35 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.38 in (35 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
| Overall Height Incl. Bottom Flange (Drawing) | 36.00 mm [1.417 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 273.00 mm [10.748 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405476 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |

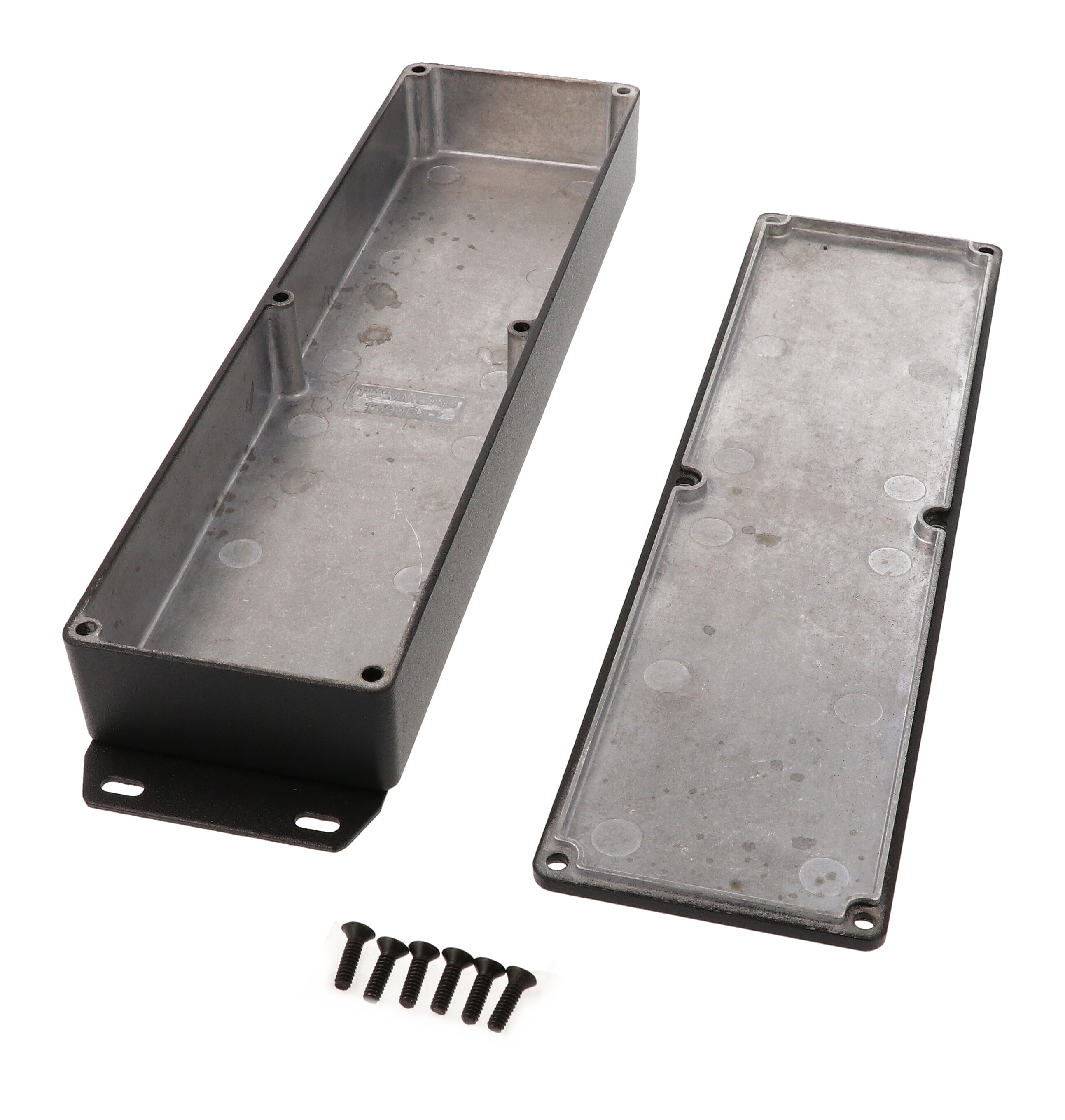

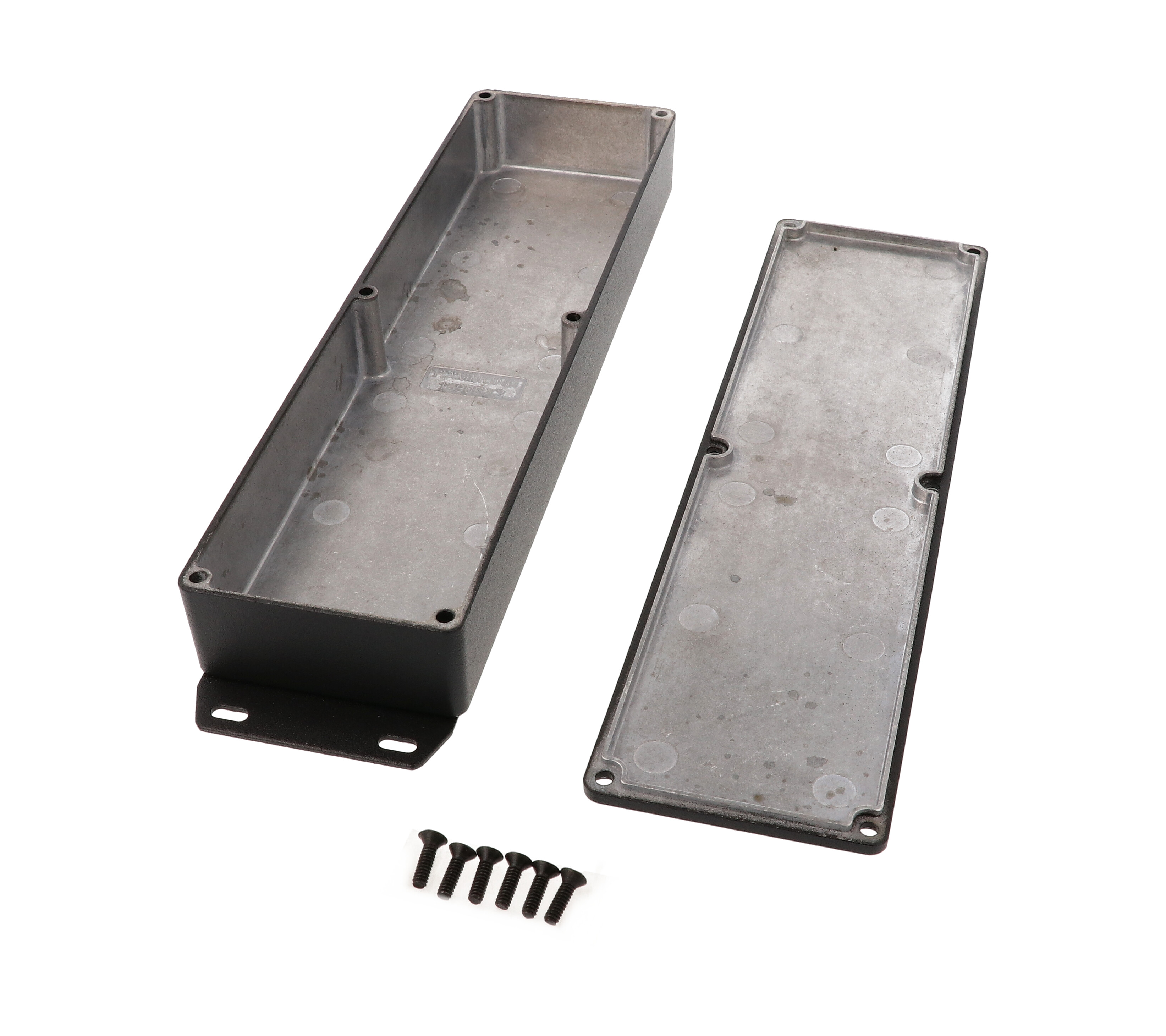

| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBX2FBK |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590BX2FBK?▾
The black textured, flanged-bottom-plate version of the 1590BX2 diecast aluminum enclosure, 254 x 70 x 35 mm per the part page.
What is the overall length with the flange?▾
273.00 mm [10.748 in], per the drawing.
What are the inside dimensions?▾
Inside length 248.33 mm, inside width 64.33 mm, inside height 29.70 mm.
Are screws included?▾
Yes, six 6-32 UNC cover screws are included; black screws come with black versions.
Is there an IP65 version?▾
Yes, the water-tight 1590WBX2FBK is designed to meet IP65. The gasket kit listed for this size is 1590BXGASKET.
