Hammond 1590BX2F 254x70x35mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged bottom plate; 273.00 mm overall length
- Slim 254 x 70 x 35 mm body, 36.00 mm tall with flange
- Inside 248.33 x 64.33 x 29.70 mm for long, flat boards
- Six 6-32 UNC lid screws in factory-tapped holes
- Natural vibra finish with no sharp edges
- Designed to meet IP54; water-tight 1590WBX2F available
- RoHS and REACH compliant

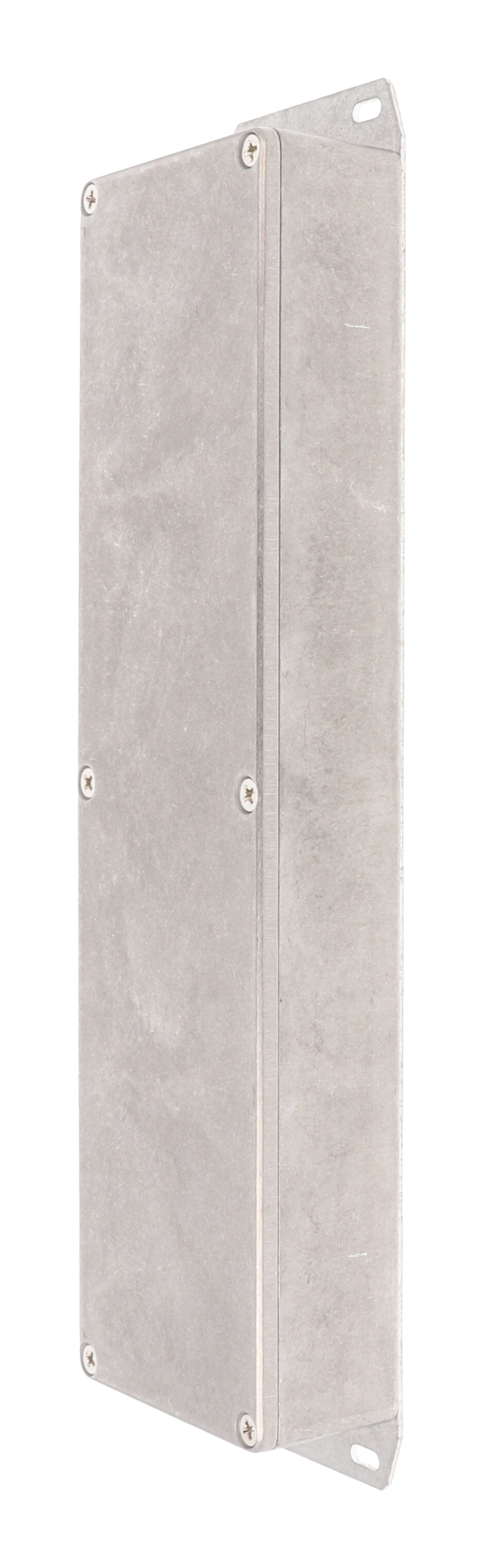

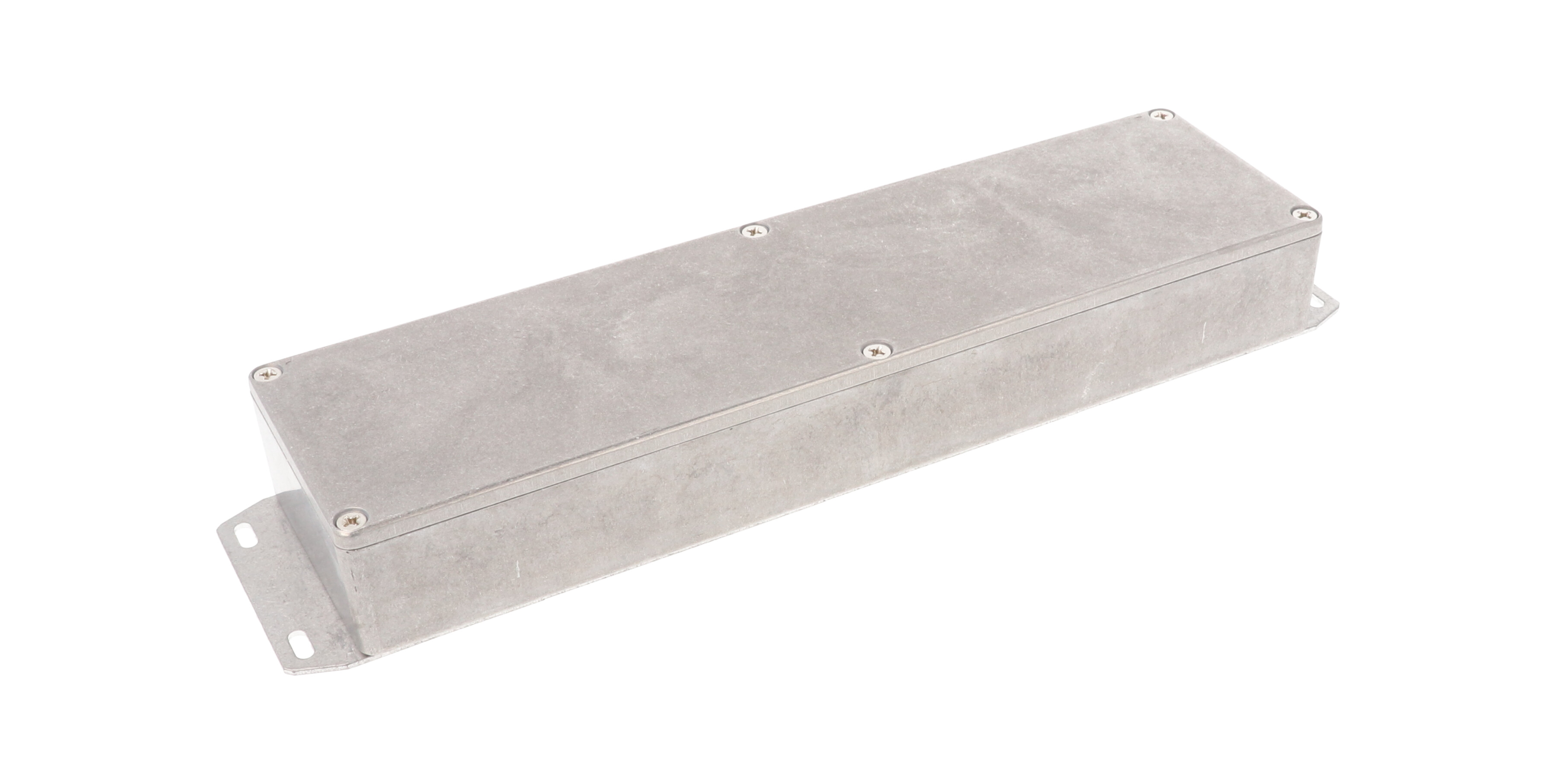

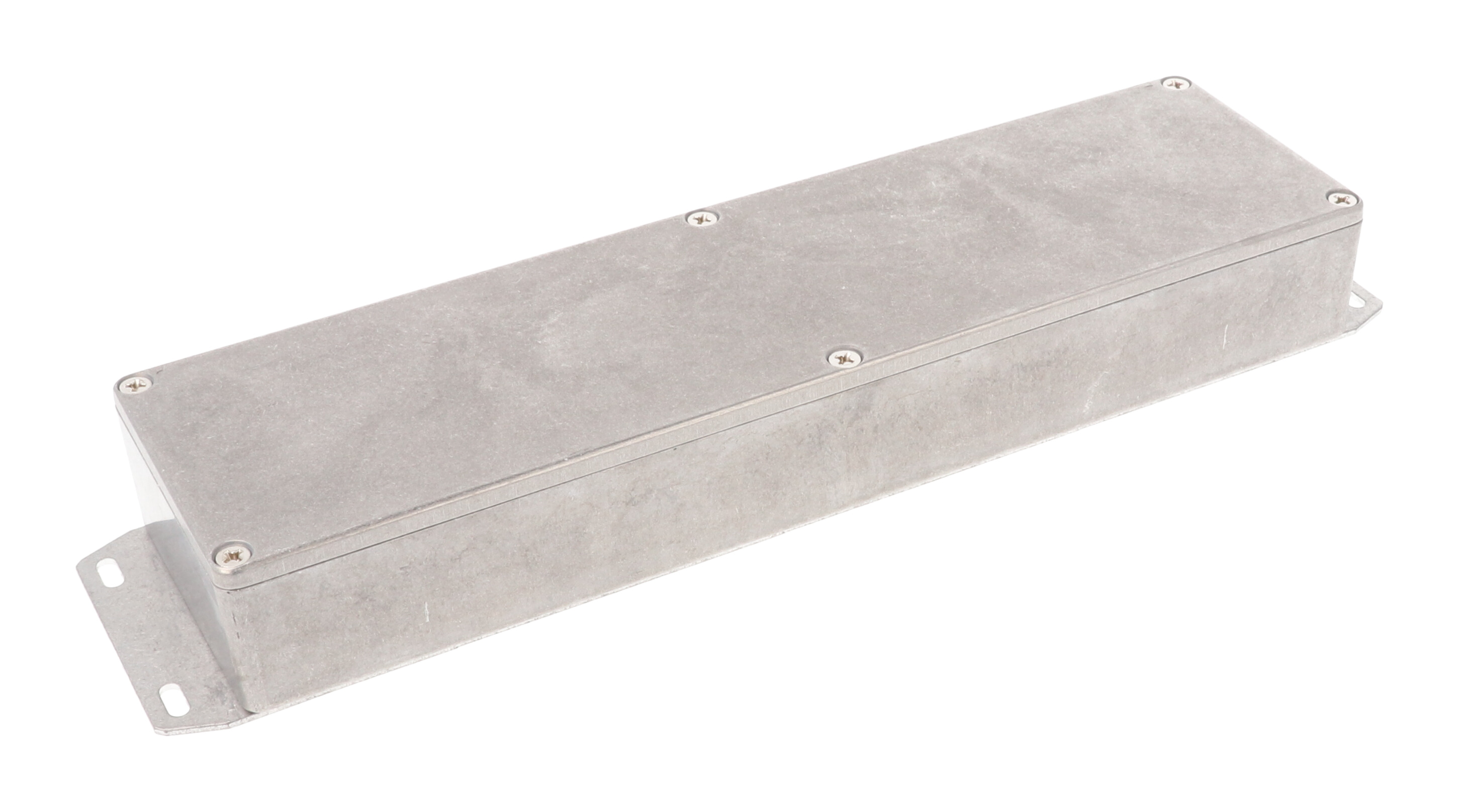

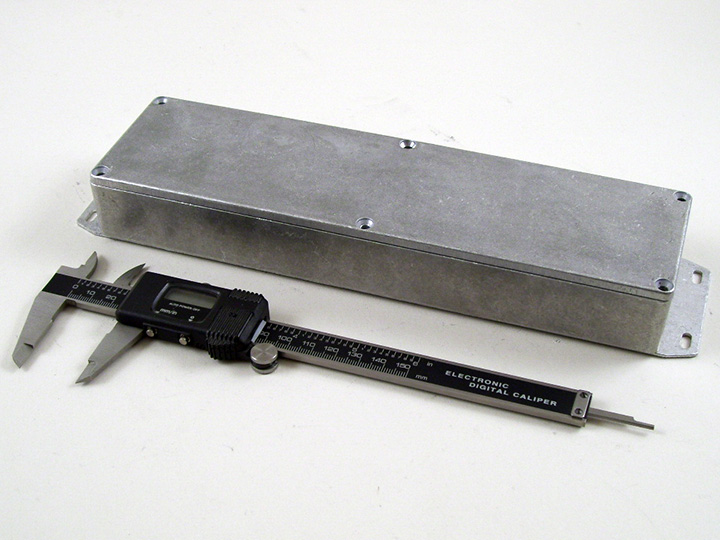

The 1590BX2F is the flanged-base version of the long, slim 1590BX2 diecast aluminum enclosure, in natural finish. The flanged bottom plate lets you fix the box to a panel, wall or chassis and remove the lid for access, a practical arrangement for integrators and OEM engineers mounting long, flat boards. The part page lists 10 x 2.76 x 1.36 in (254 x 70 x 35 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine; the unpainted version is vibra finished for a smooth surface with no sharp edges.
Across the flange the drawing shows an overall length of 273.00 mm [10.748 in], with a box length of 253.89 mm [9.996 in], width of 70.00 mm [2.756 in] and overall height of 36.00 mm [1.417 in]. Inside dimensions are 248.33 x 64.33 x 29.70 mm [9.777 x 2.533 x 1.169 in]. Side walls have a draft angle of 2 degrees or less for easy PC board mounting, and maximum P.C. board figures are 62.33 mm and 246.33 mm.
Six 6-32 UNC cover screws thread into factory-tapped holes, torqued to 50-55 cN.m [71-78 ozf.in]. The lap joint protects against dust and splashing water, and the 1590BX2F is designed to meet IP54. The water-tight equivalent is 1590WBX2F; the optional replacement gasket kit is 1590BXGASKET.
It weighs 0.8 lbs (0.36 kg), ships shrink wrapped, and is RoHS and REACH compliant. STEP and IGES models are available.
Ideal For
- Surface-mounted housings for long, flat PC boards
- Panel, wall or chassis mounted instrument electronics
- Custom-machined long enclosures
- Dust and splash protected equipment (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590BX2 FLANGED BASE ENCL |
| Part Number | 1590BX2F |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged bottom plate |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Box Length (Drawing) | 253.89 mm [9.996 in] |
| Max. P.C. Board Width | 246.33 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 64.33 mm [2.533 in] |
| Max. P.C. Board Length | 62.33 mm |
| Inside Height (Drawing) | 29.70 mm [1.169 in] |
| Inside Length (Drawing) | 248.33 mm [9.777 in] |
| Size L X W X H (Part Page) | 10 in x 2.76 in x 1.36 in (254 mm x 70 mm x 35 mm) |
| Nominal Width (Series Table) | 2.76 in (70 mm) |
| Nominal Height (Series Table) | 1.38 in (35 mm) |
| Nominal Length (Series Table) | 10.00 in (254 mm) |
| Overall Height Incl. Bottom Flange (Drawing) | 36.00 mm [1.417 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 273.00 mm [10.748 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980405469 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |

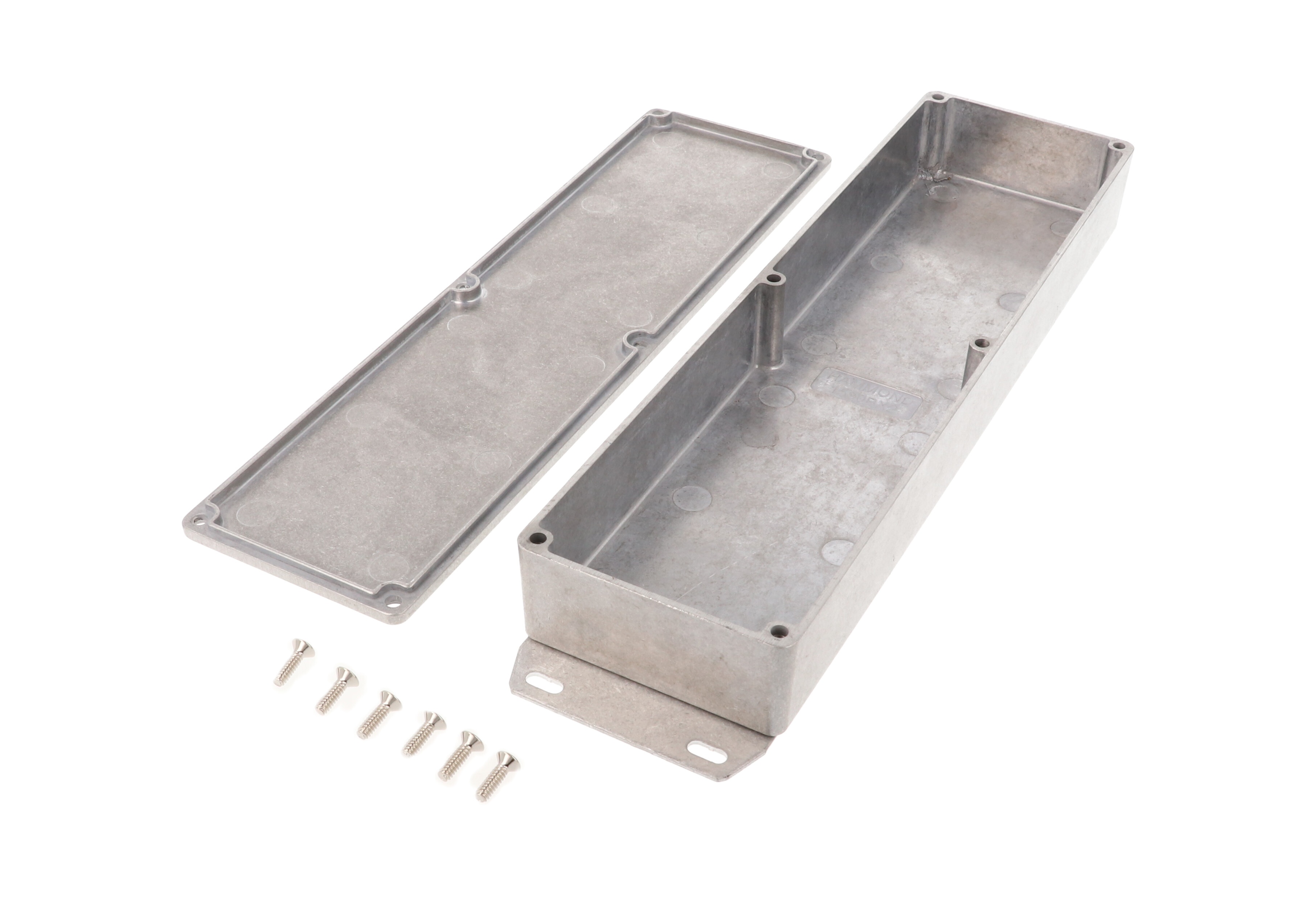

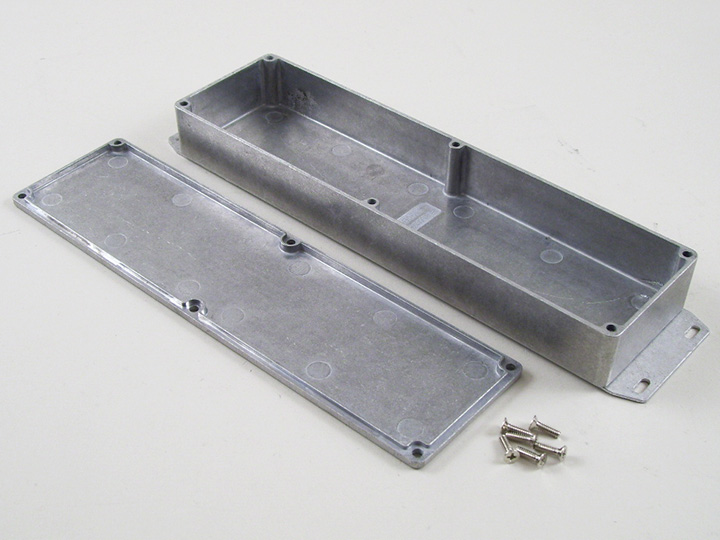

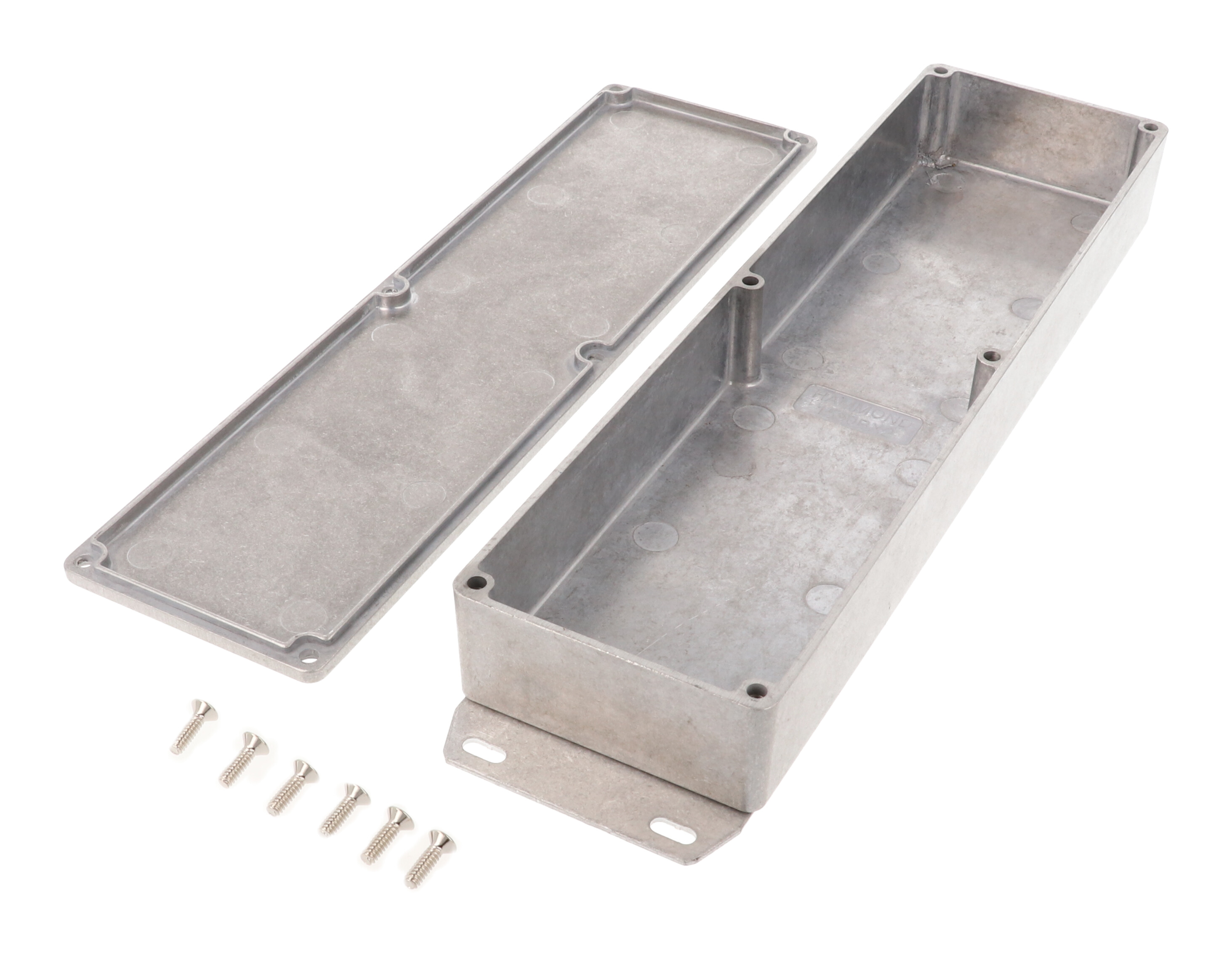

| Contents | Box, lid and 6 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 6 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBX2F |
| Optional Replacement Gasket Kit | 1590BXGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590BX2F mount?▾
It is the 'w/ Flanged Bottom Plate' version of the 1590BX2, with an overall length of 273.00 mm [10.748 in] across the flange.
What are the inside dimensions?▾
248.33 mm [9.777 in] long, 64.33 mm [2.533 in] wide and 29.70 mm [1.169 in] high.
How tall is it?▾
The drawing shows an overall height of 36.00 mm [1.417 in] including the flange.
How many screws secure the lid?▾
Six 6-32 UNC cover screws, included.
Is a black version available?▾
Yes, 1590BX2FBK is the black textured version.
