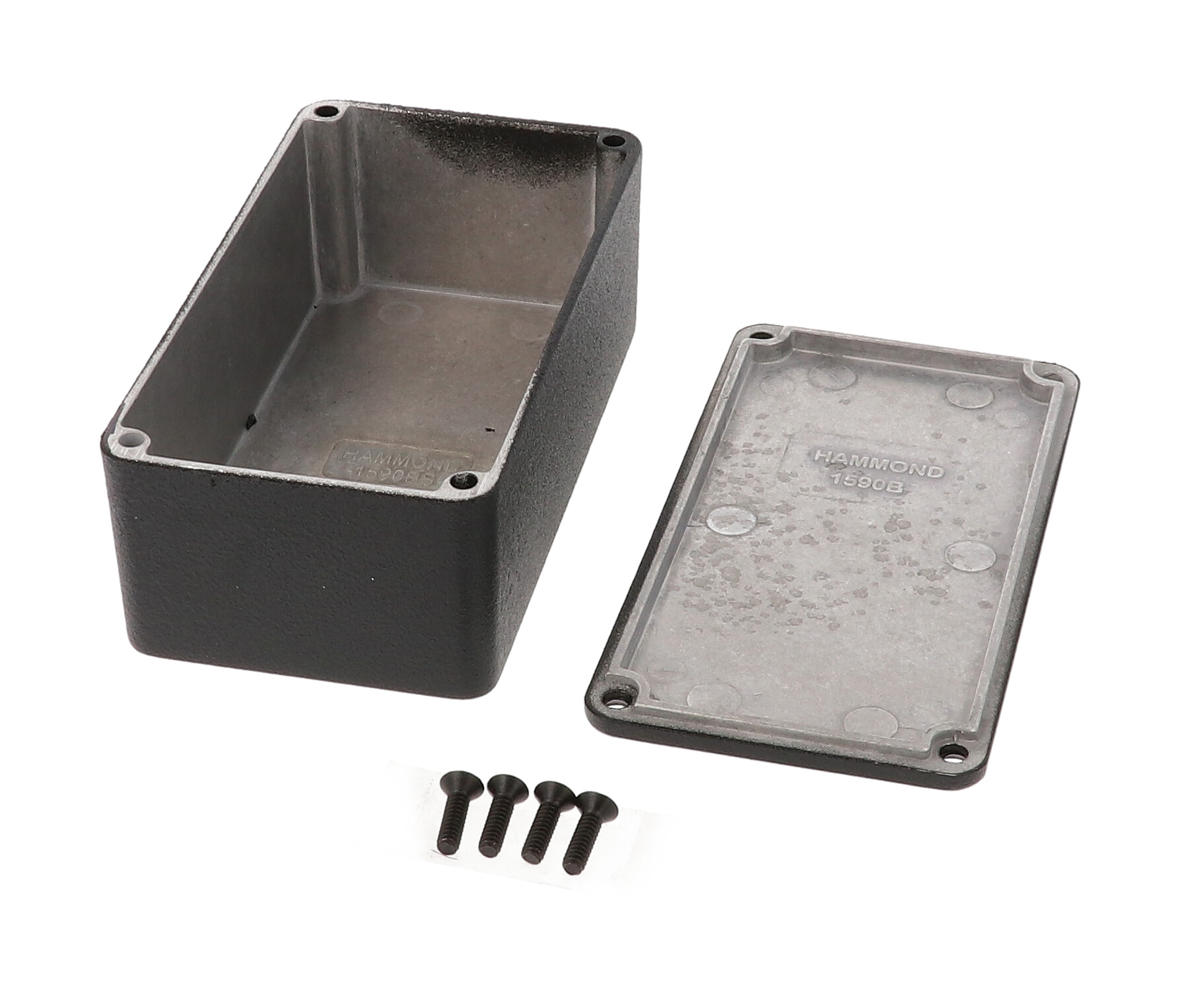

Hammond 1590BSBK 112x60x42mm Black Powder-Coated Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint that lasts after machining
- Black cover screws included to match
- 112 x 60 x 42 mm body with 106.47 x 54.97 x 38.00 mm inside
- Designed to meet IP54 via lap joint; IP65 upgrade with 1590BGASKET
- Four 6-32 UNC screws into factory-tapped holes
- 2 degree or less wall draft for easy PCB mounting
- RoHS and REACH compliant
The 1590BSBK is the black textured version of the 1590BS diecast aluminum enclosure: the deeper member of the 1590B-size family, with no mounting flanges. It is aimed at electronics designers, OEM engineers and builders who need a compact, painted metal housing with room for taller components. The part page size is 4.41 x 2.38 x 1.65 in (112 x 60 x 42 mm).
The diecast aluminum alloy box and lid are coated with a tough polyester powder paint for a lasting finish, even after machining, so openings for jacks, switches and displays can be cut without losing the black look. Black screws are included to enhance appearance.
According to the drawing, the outside measures 112.00 x 60.50 x 42.00 mm and the inside 106.47 x 54.97 x 38.00 mm [4.192 x 2.164 x 1.496 in]. Wall draft is 2 degrees or less for easy PC board mounting, and the part data gives maximum P.C. board figures of 52.97 mm and 104.47 mm. Nominal ordering-table dimensions are 4.41 x 2.40 x 1.50 in (112 x 61 x 38 mm).
Lap joint construction protects against dust and splashing water, and the 1590BSBK is designed to meet IP54. Four 6-32 UNC screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. For IP65 there is the water-tight 1590WBSBK, or add the 1590BGASKET kit plus black stainless O-ring screws (1590WMS100BK).
It ships shrink wrapped at 0.5 lbs (0.23 kg) and is RoHS and REACH compliant.
Ideal For
- Painted electronic instrument enclosures
- PC board housings needing taller component clearance
- Machined enclosures for OEM electronics
- Dust and splash protected equipment (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | PAINTED DIECAST 4.4x2.3x1.6 |
| Part Number | 1590BSBK |
| Product Type | Die-cast box |
| Mounting Style | No mounting flanges |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 60.50 mm [2.382 in] |
| Box Length (Drawing) | 112.00 mm [4.409 in] |
| Max. P.C. Board Width | 104.47 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 54.97 mm [2.164 in] |
| Max. P.C. Board Length | 52.97 mm |
| Inside Height (Drawing) | 38.00 mm [1.496 in] |
| Inside Length (Drawing) | 106.47 mm [4.192 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Size L X W X H (Part Page) | 4.41 in x 2.38 in x 1.65 in (112 mm x 60 mm x 42 mm) |
| Nominal Width (Series Table) | 2.40 in (61 mm) |
| Nominal Height (Series Table) | 1.50 in (38 mm) |
| Nominal Length (Series Table) | 4.41 in (112 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980026220 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Contents | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 4 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBSBK |
| Optional Replacement Gasket Kit | 1590BGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590BSBK?▾
The part page lists 4.41 x 2.38 x 1.65 in (112 x 60 x 42 mm). The drawing gives inside dimensions of 106.47 x 54.97 x 38.00 mm.
Is the black finish painted?▾
Yes. The black version is coated with a textured polyester powder paint, described as a lasting finish even after machining.
Does it include screws?▾
Yes, four 6-32 UNC cover screws are included, black to match the finish.
How do I get IP65 protection?▾
Order the water-tight 1590WBSBK, or fit the 1590BGASKET kit to this IP54 enclosure and torque the lid screws to 25-30 cN.m. Watertight stainless screws with o-ring are recommended when converting.
Are flanged versions available?▾
Yes. 1590BSFLBK has a flanged lid and 1590BSFBK has a flanged bottom plate, both in black.
