Hammond 1590BGASKET IP65 Silicone Lid Gasket Kit, Two-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Upgrades a standard IP54 1590B-size enclosure to IP65
- Two pre-formed silicone gaskets per kit
- Adhesive backing; gasket is applied to the lid
- Machine and/or paint the enclosure first, gasket later
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Listed for 1590B, 1590B2 and 1590BS families, including flanged and colored versions
- RoHS and REACH compliant

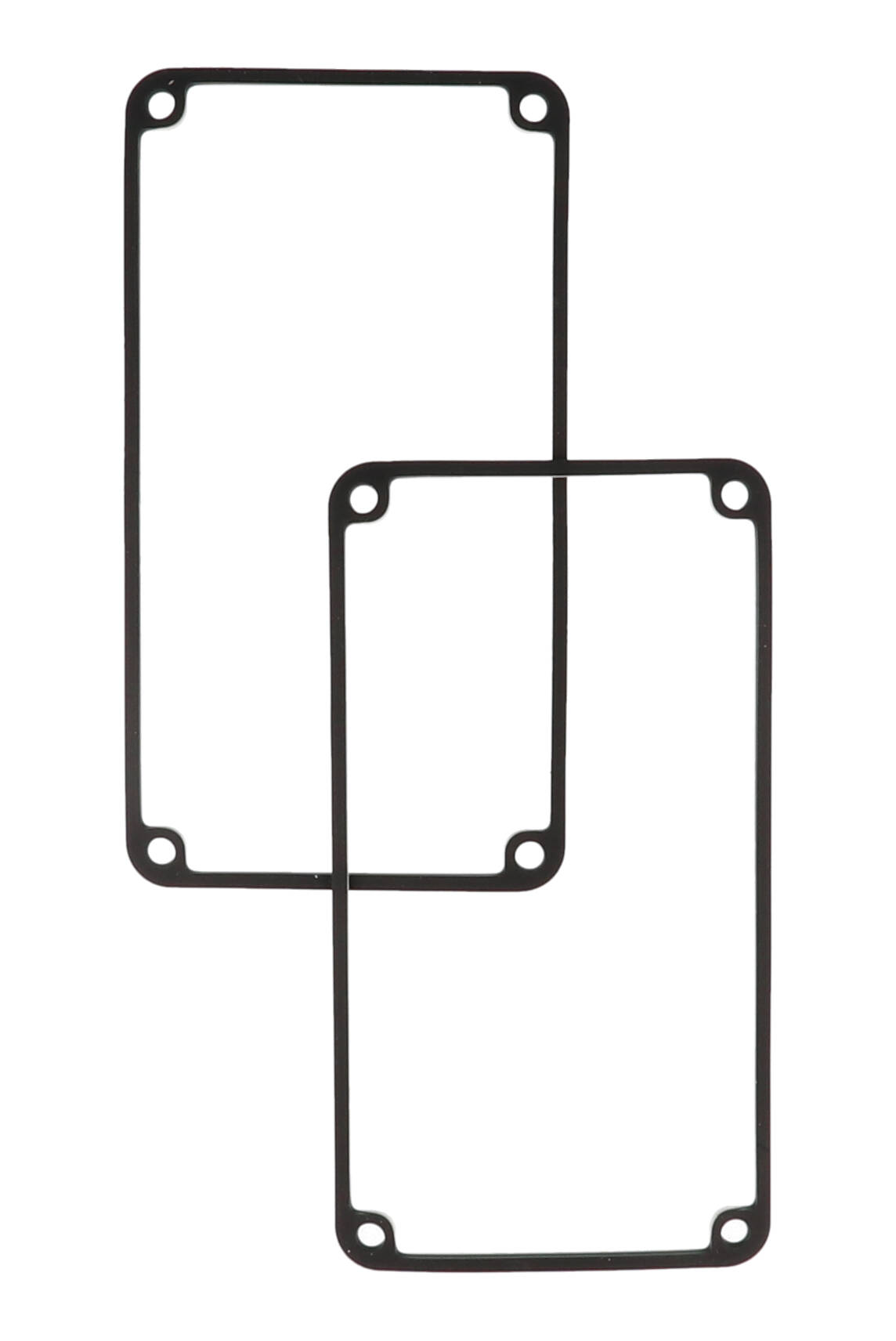

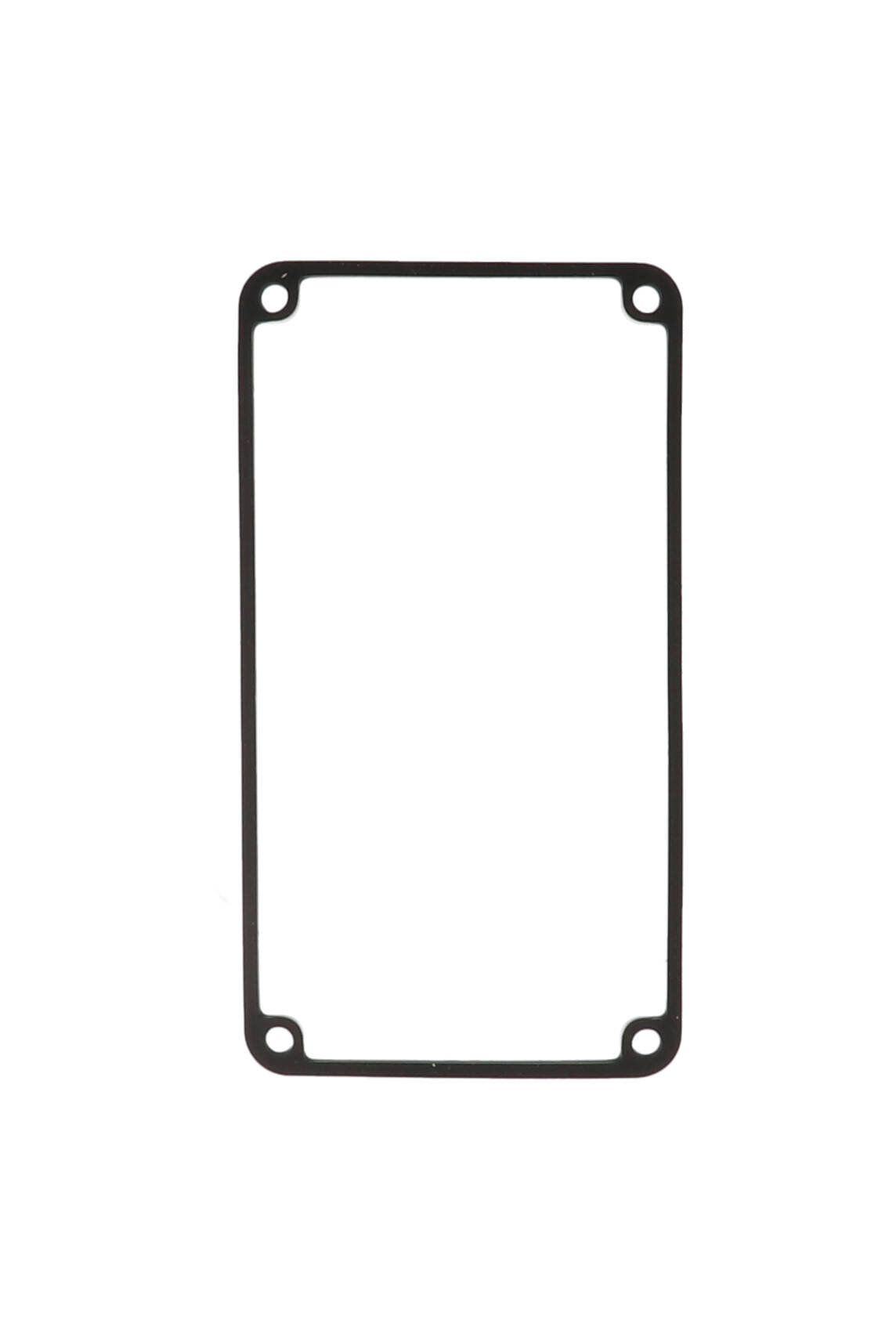

The 1590BGASKET is a two-pack of pre-formed silicone gaskets for Hammond 1590B-size diecast aluminum enclosures. It is the optional replacement gasket kit listed in the 1590 Series ordering table for the 112 x 61 mm enclosures in 31 mm and 38 mm heights, including the 1590B, 1590B2 and 1590BS families with their flanged-lid, flanged-bottom, black and colored versions.
Gaskets are included with the water-tight 1590 enclosures, but the kit lets you upgrade a standard IP54 enclosure to IP65. Because the gasket is applied afterwards, you can machine and/or paint the enclosure first and add the gasket later, which makes it a practical choice for panel builders and OEM engineers who drill connector and switch holes before final assembly.
Each gasket has adhesive backing for easy installation and is applied to the lid. The silicone carries a temperature rating of -40°C to 150°C (-40°F to 302°F).
The enclosure is designed to meet IP65 with a properly installed gasket and the lid screws torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard enclosure, order the watertight screws as well; the enclosure drawings list 1590WMS100 stainless steel and 1590WMS100BK black stainless steel 6-32 x 1/2 in screws with O-ring in packs of 100.

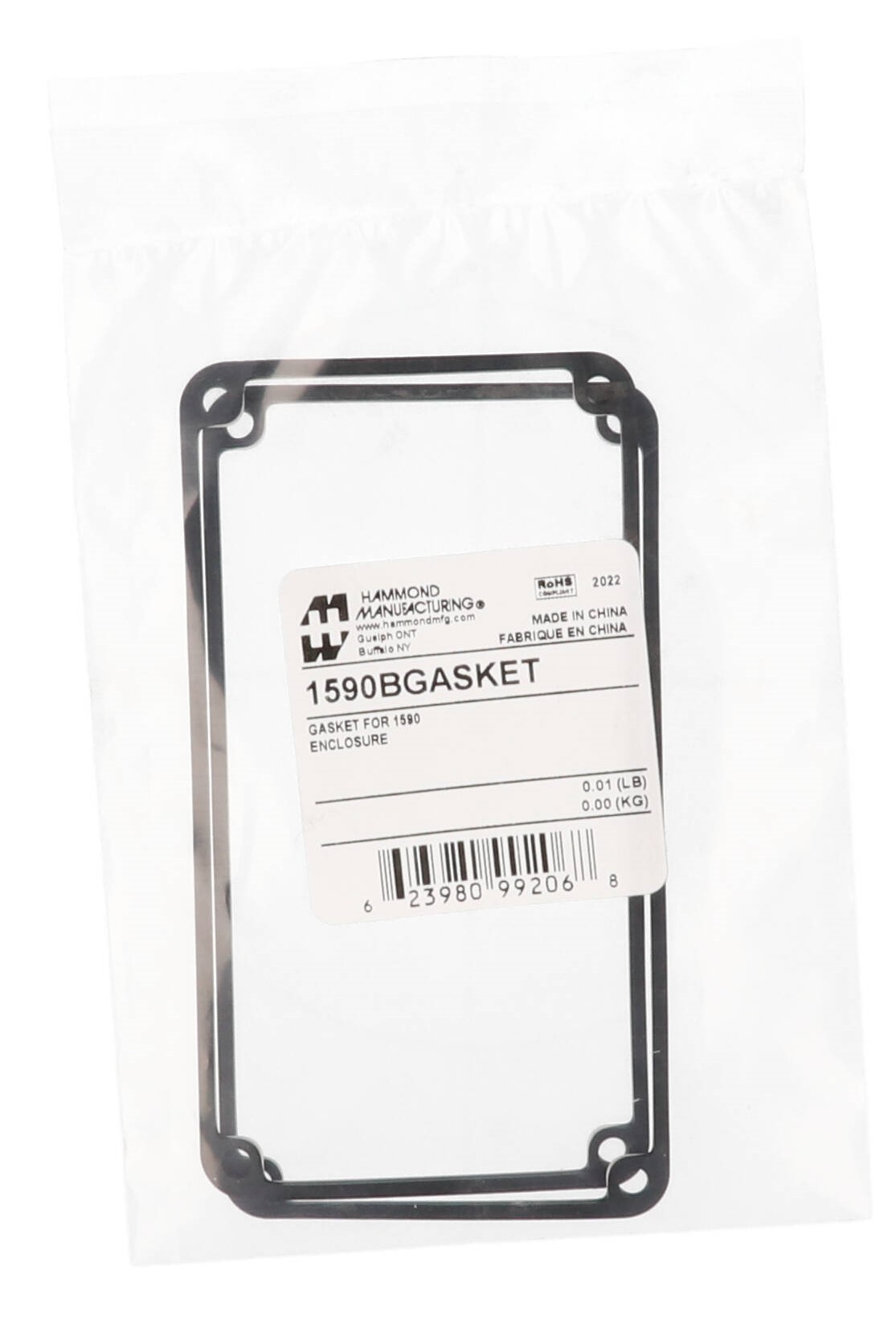

The kit ships in a bag, weighs 0.01 lbs, and is RoHS and REACH compliant.
Ideal For
- Upgrading IP54 1590B-size enclosures to IP65
- Replacing gaskets on water-tight 1590WB, 1590WB2 and 1590WBS enclosures
- Sealing enclosures after machining or painting
- Outdoor or wash-down electronics housings needing IP65
Overview
| Category | Accessories |
| Description | SILICONE GASKET - 2 PACK |
| Part Number | 1590BGASKET |
| Product Type | Gasket |
| Pack Quantity | 2 pre-formed silicone gaskets per kit |
| Long Description | silicone gasket for 1590B enclosures, 2-pack |
Identifiers
| UPC | 623980992068 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Sizes (Series Table) | 4.41 x 2.40 x 1.22 in (112 x 61 x 31 mm); 4.41 x 2.40 x 1.50 in (112 x 61 x 38 mm) |
| Listed Enclosures (1590B Family) | 1590B, 1590WB, 1590BFL, 1590WBFL, 1590BF, 1590WBF, 1590BBK, 1590WBBK, 1590BFLBK, 1590WBFLBK, 1590BFBK, 1590WBFBK, 1590BCB, 1590BGR, 1590BLG, 1590BOR, 1590BPR, 1590BRD, 1590BYL |
| Listed Enclosures (1590B2 Family) | 1590B2, 1590WB2, 1590B2FL, 1590WB2FL, 1590B2F, 1590WB2F, 1590B2BK, 1590WB2BK, 1590B2FLBK, 1590WB2FLBK, 1590B2FBK, 1590WB2FBK, 1590B2CB, 1590B2GR, 1590B2LG, 1590B2OR, 1590B2PR, 1590B2RD, 1590B2YL |
| Listed Enclosures (1590BS Family) | 1590BS, 1590WBS, 1590BSFL, 1590WBSFL, 1590BSF, 1590WBSF, 1590BSBK, 1590WBSBK, 1590BSFLBK, 1590WBSFLBK, 1590BSFBK, 1590WBSFBK, 1590BSCB, 1590BSGR, 1590BSLG, 1590BSOR, 1590BSPR, 1590BSRD, 1590BSYL |
| Recommended Screws For Conversion | Watertight screws (stainless steel with o-ring) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Application Point | Applied to the lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590BGASKET fit?▾
The 1590 ordering table lists it as the replacement gasket kit for the 1590B, 1590B2 and 1590BS families (112 x 61 mm, 31 mm and 38 mm heights), including their water-tight, flanged-lid (FL), flanged-bottom (F), black (BK) and colored versions.
How many gaskets are in the kit?▾
Each kit includes two pre-formed silicone gaskets.
Will it make my enclosure IP65?▾
The enclosure is designed to meet IP65 with a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in). Watertight screws (stainless steel with o-ring) should also be ordered when converting a standard enclosure.
How is the gasket installed?▾
It has an adhesive backing and is applied to the lid. This lets the enclosure be machined and/or painted first and gasketed later.
What temperature can the gasket handle?▾
The gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F).
Do water-tight 1590 enclosures already include a gasket?▾
Yes. Gaskets are included with water-tight 1590 enclosures, supplied loose inside the enclosure; this kit is for upgrades and replacements.
