Hammond 1590BFLBK 113x60x31mm Black Diecast Box, Wall-Mount Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Mounting flange integrated into the lid; 138.00 mm overall length
- Textured black polyester powder paint, lasting even after machining
- Black cover screws included to match the finish
- 113 x 60 x 31 mm body; 107.05 x 55.45 x 27.00 mm inside
- Designed to meet IP54; IP65 upgrade with 1590BGASKET kit
- Four 6-32 UNC screws in factory-tapped holes
- RoHS and REACH compliant

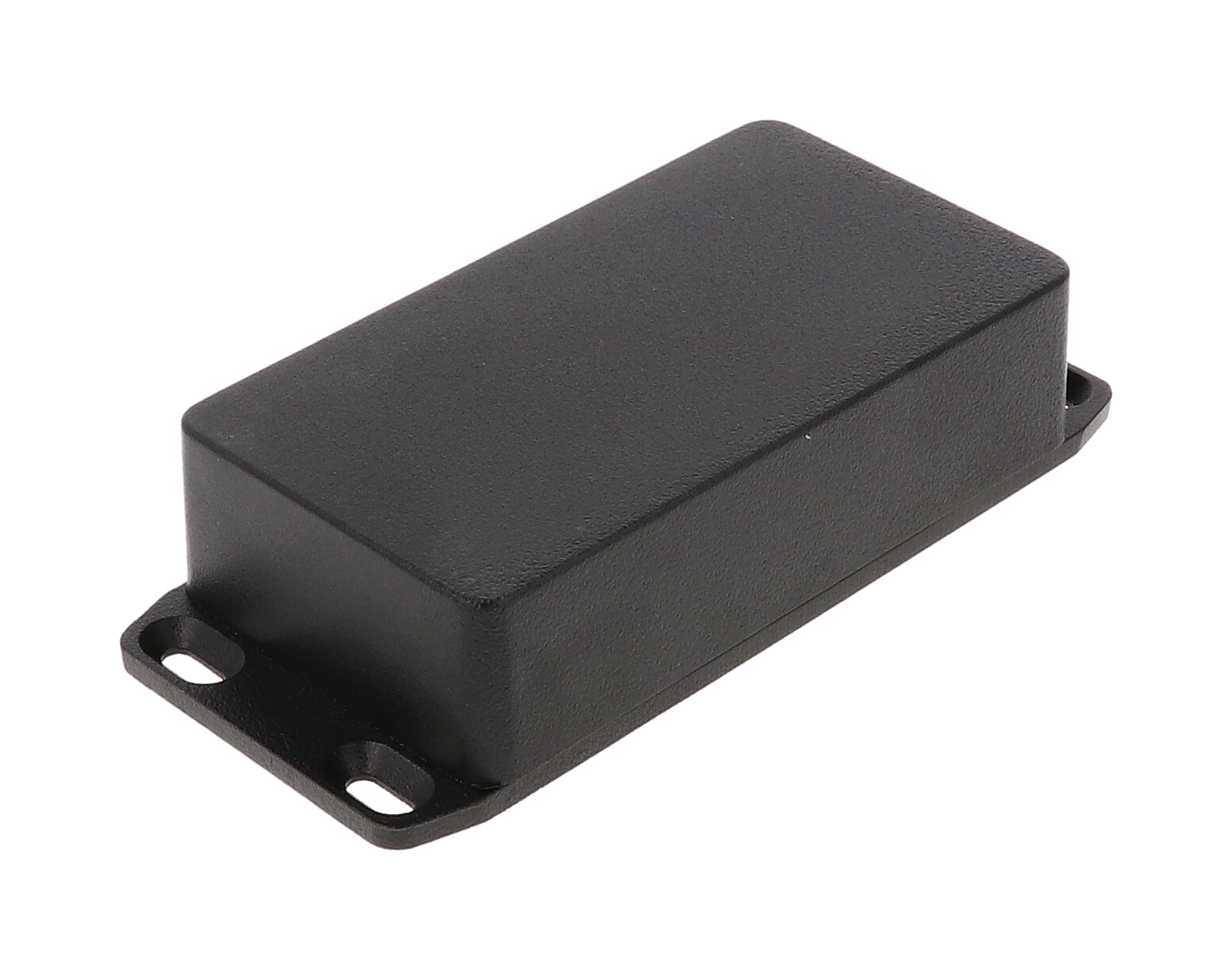

The 1590BFLBK pairs the compact 1590B footprint with a lid that carries its own mounting flange, finished in textured black. It suits integrators, OEM engineers and technicians who want a small electronics housing that fastens lid-first to a wall or panel while presenting a painted exterior. Part page size is 4.43 x 2.38 x 1.22 in (113 x 60 x 31 mm), and the flanged lid brings the overall length to 138.00 mm [5.433 in].
The box and lid are diecast aluminum alloy coated with a tough polyester powder paint that keeps a lasting finish even after machining. Black screws are included to enhance appearance.
Inside the box there is 107.05 mm [4.215 in] of length, 55.45 mm [2.183 in] of width and 27.00 mm [1.063 in] of height, with a 31.00 mm [1.220 in] overall height. Side walls have a draft angle of 2 degrees or less for easy PC board mounting, and the part data lists maximum P.C. board figures of 53.45 mm and 105.05 mm.
Lap joint construction guards against dust and splashing water, and this standard version is designed to meet IP54. Four 6-32 UNC cover screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. Need IP65? Choose the water-tight 1590WBFLBK, or add the 1590BGASKET kit and 1590WMS100BK black stainless O-ring screws, torqued to 25-30 cN.m.
The 1590BFLBK weighs 0.34 lbs (0.15 kg), ships shrink wrapped, and is RoHS and REACH compliant.
Ideal For
- Wall-mounted instrument and control housings
- Visible installations needing a painted black exterior
- Machined PCB enclosures for OEM equipment
- Dust and splash protected electronics (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | 1590B FLANGED LID BLACK |
| Part Number | 1590BFLBK |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged lid |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 60.50 mm [2.382 in] |
| Max. P.C. Board Width | 105.05 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 55.45 mm [2.183 in] |
| Max. P.C. Board Length | 53.45 mm |
| Inside Height (Drawing) | 27.00 mm [1.063 in] |
| Inside Length (Drawing) | 107.05 mm [4.215 in] |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Size L X W X H (Part Page) | 4.43 in x 2.38 in x 1.22 in (113 mm x 60 mm x 31 mm) |
| Nominal Width (Series Table) | 2.40 in (61 mm) |
| Nominal Height (Series Table) | 1.22 in (31 mm) |
| Nominal Length (Series Table) | 4.41 in (112 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 138.00 mm [5.433 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980676159 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.34 lbs (0.15 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |

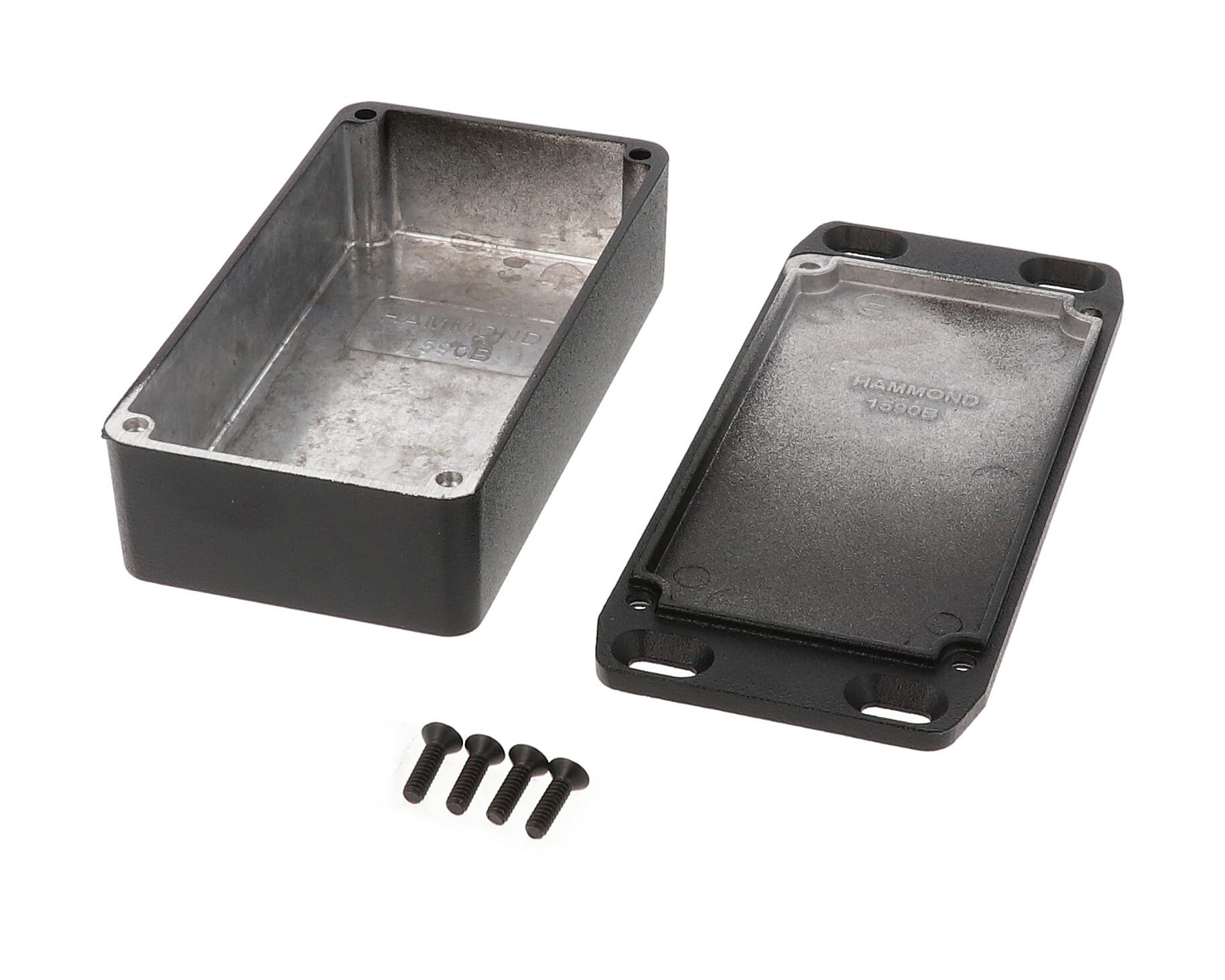

| Contents | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 4 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBFLBK |
| Optional Replacement Gasket Kit | 1590BGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590BFLBK mount?▾

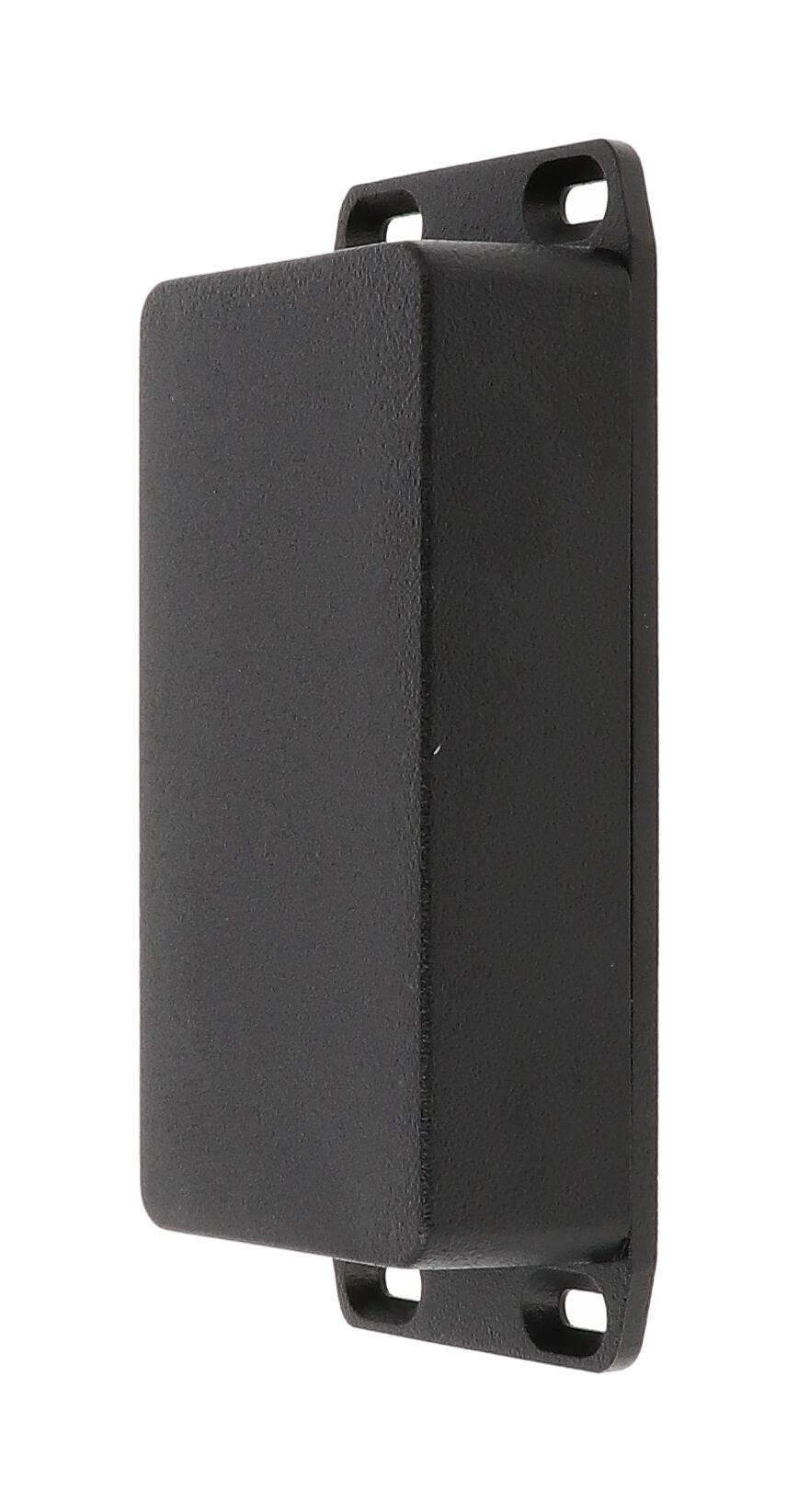

The mounting flange is integrated into the lid ('w/ Flanged Lid' version), giving an overall length of 138.00 mm [5.433 in].
What finish does it have?▾
Textured black polyester powder paint, which the manufacturer describes as giving a lasting finish even after machining. Black screws are included.
How much room is inside?▾
Inside length 107.05 mm [4.215 in], inside width 55.45 mm [2.183 in], inside height 27.00 mm [1.063 in].
Can I make it IP65?▾
Yes. The 1590BGASKET kit upgrades the IP54 enclosure to IP65 when installed properly with the lid screws torqued to 25-30 cN.m. A factory water-tight version, 1590WBFLBK, is also listed.
What is the natural finish equivalent?▾
1590BFL is the natural finish version of this flanged-lid enclosure.
