Hammond 1590B2F 112x61x38mm Diecast Aluminum Box, Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface or wall mounting
- 140.21 mm [5.520 in] overall length including flange
- Box 112.40 x 60.50 mm; 39.00 mm [1.535 in] overall height
- Inside 106.77 x 55.17 x 33.50 mm [4.203 x 2.172 x 1.319 in]
- Natural vibra finish; designed to meet IP54
- Box, lid and 4 cover screws; 6-32 UNC factory-tapped holes
- Liquid resistant version 1590WB2F; 1590BGASKET kit fits
- RoHS and REACH compliant; 0.41 lbs (0.19 kg)

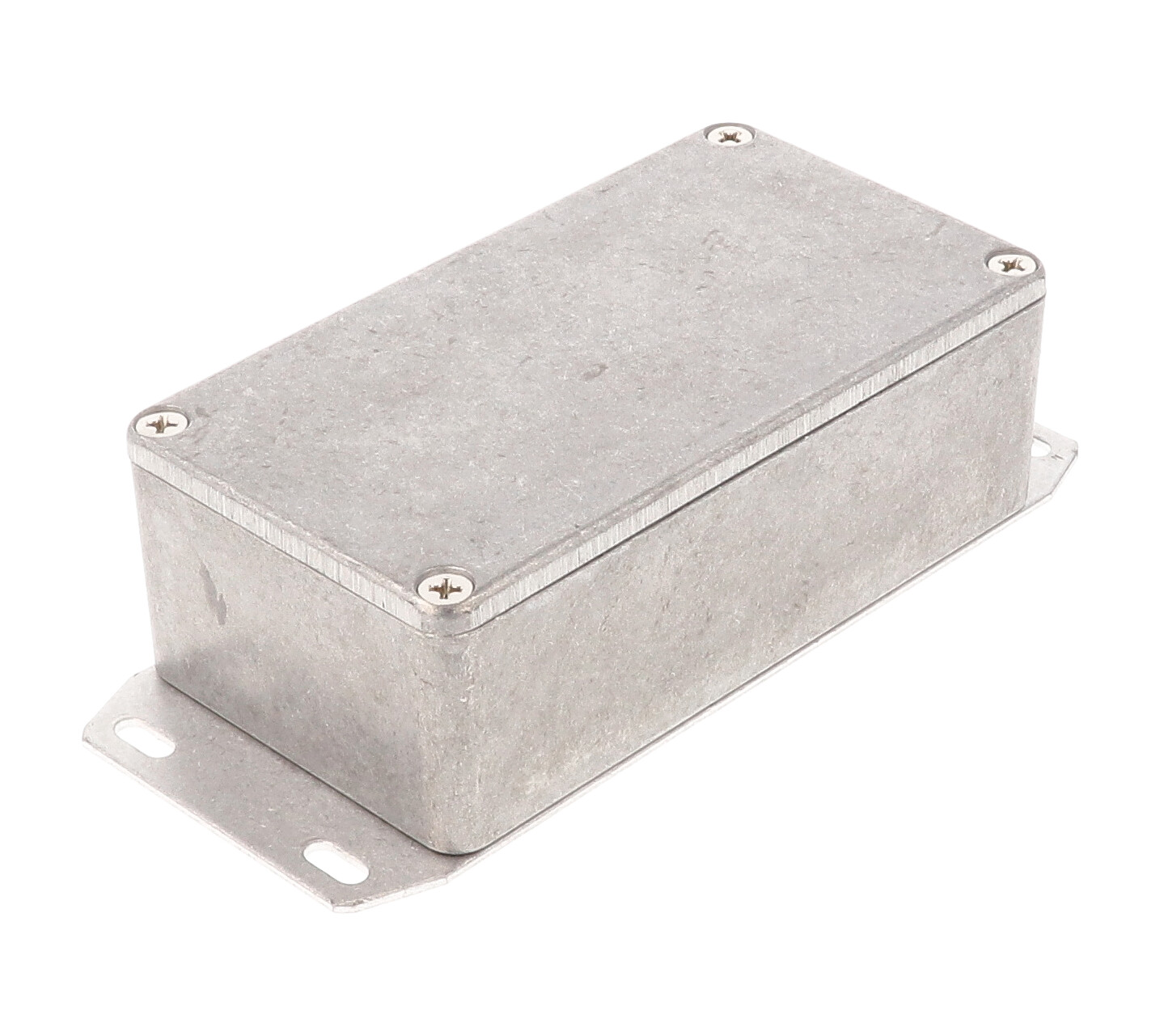

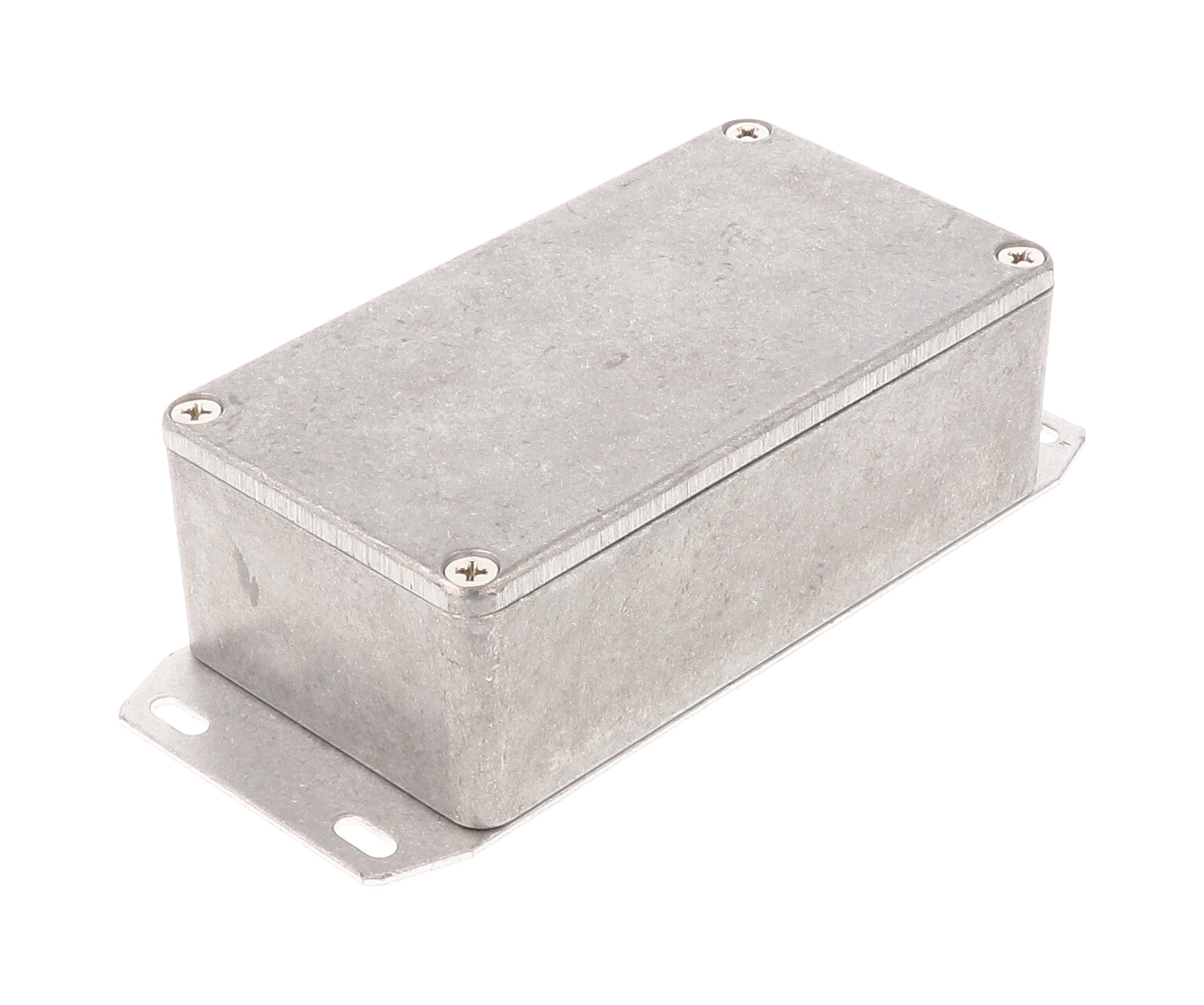

The 1590B2F is the 112 x 61 x 38 mm 1590B2 diecast aluminum enclosure fitted with a flanged bottom plate for screwing down to walls, panels or equipment chassis. It is supplied in natural aluminum for OEM engineers, electricians and integrators who need a mountable instrument housing.
Box and lid are diecast aluminum alloy, and the bottom flange is welded. The unpainted finish is vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard 1590B2F is designed to meet IP54.
The part page lists 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm). On the drawing the overall length including the flange is 140.21 mm [5.520 in], the box itself is 112.40 mm [4.425 in] long and 60.50 mm [2.382 in] wide, and overall height is 39.00 mm [1.535 in]. Inside dimensions are 106.77 x 55.17 x 33.50 mm [4.203 x 2.172 x 1.319 in]. The side wall draft angle of 2° or less aids PC board mounting.

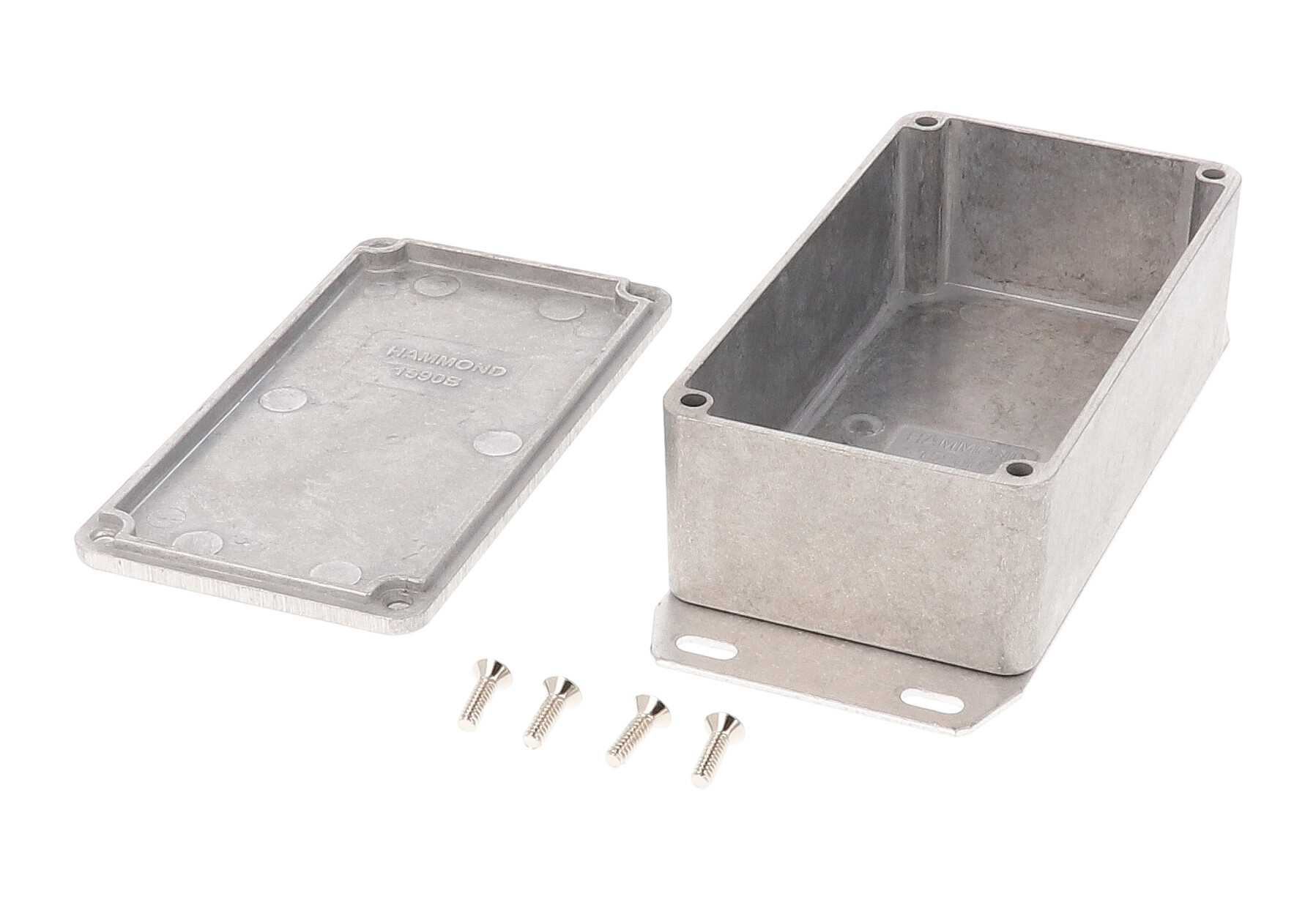

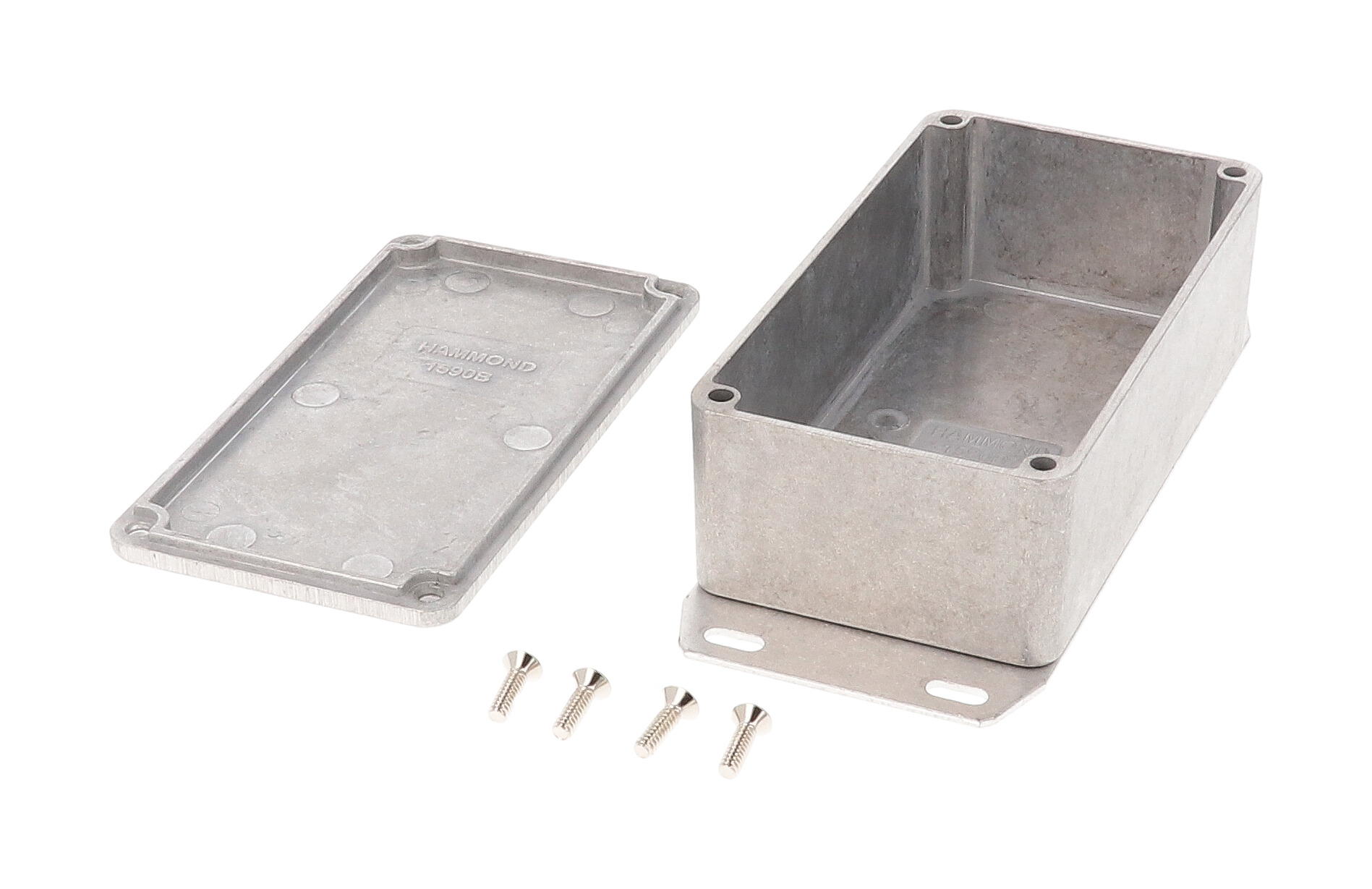

Box, lid and 4 cover screws are included; the screws thread into factory-tapped 6-32 UNC holes at 50-55 cN.m [71-78 ozf.in]. The liquid resistant counterpart is 1590WB2F, and the 1590BGASKET kit fits this size. Factory modification and STEP or IGES solid models are offered.
Ideal For
- Surface and wall mounted electronic instruments
- Chassis-mounted PC board enclosures
- General purpose electronics housings
- Custom machined mounting boxes
Hardware
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | DIECAST BOX WITH FLANGE |
| Part Number | 1590B2F |
| Mounting Style | Flanged bottom plate |
| Long Description | enclosure - diecast |
| Series Table Color | Natural |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 55.17 mm [2.172 in] |
| Inside Height | 33.50 mm [1.319 in] |
| Inside Length | 106.77 mm [4.203 in] |
| Nominal Width | 2.40 in (61 mm) |
| Nominal Height | 1.50 in (38 mm) |
| Nominal Length | 4.41 in (112 mm) |
| Size (L X W X H) | 4.43 in x 2.38 in x 1.48 in (113 mm x 60 mm x 38 mm) |
| Box Length (Drawing) | 112.40 mm [4.425 in] |
| Overall Width (Drawing) | 60.50 mm [2.382 in] |
| Overall Height (Drawing) | 39.00 mm [1.535 in] |
| Max. P.C. Board Width (Mm) | 104.77 |
| Max. P.C. Board Length (Mm) | 53.17 |
| Overall Length Incl. Bottom Flange | 140.21 mm [5.520 in] |
Identifiers
| UPC | 623980810188 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.41 lbs (0.19 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast Aluminum Alloy |
| Bottom Flange | Welded |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590BGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WB2F (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1590B2F including the flange?▾
The drawing shows an overall length of 140.21 mm [5.520 in] including the flanged bottom plate; the box itself is 112.40 mm [4.425 in].
Is the flange cast or welded?▾
The drawing notes that the bottom flange is welded.
What are the internal dimensions?▾
Inside length 106.77 mm, inside width 55.17 mm and inside height 33.50 mm.
Can I make the 1590B2F water-tight?▾
The standard version is designed to meet IP54. The liquid resistant 1590WB2F includes a silicone gasket, and the 1590BGASKET kit is designed to meet IP65 with lid screws torqued to 25-30 cN.m.
Is there a black flanged version?▾
Yes, 1590B2FBK is the textured black version.
