Hammond 1590AFLBK 93x39x31mm Black Diecast Box, Flanged Mounting Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint with matching black screws
- Wall-mounting flange integrated into the lid, 121.50 mm overall length
- 93 x 39 x 31 mm nominal; 87.80 x 33.70 x 27.30 mm inside
- Designed to meet IP54 via lap joint construction
- 4 cover screws included in factory-tapped 6-32 UNC holes
- Liquid resistant version 1590WAFLBK; gasket kit 1590AGASKET
- RoHS and REACH compliant; 0.21 lbs (0.10 kg)

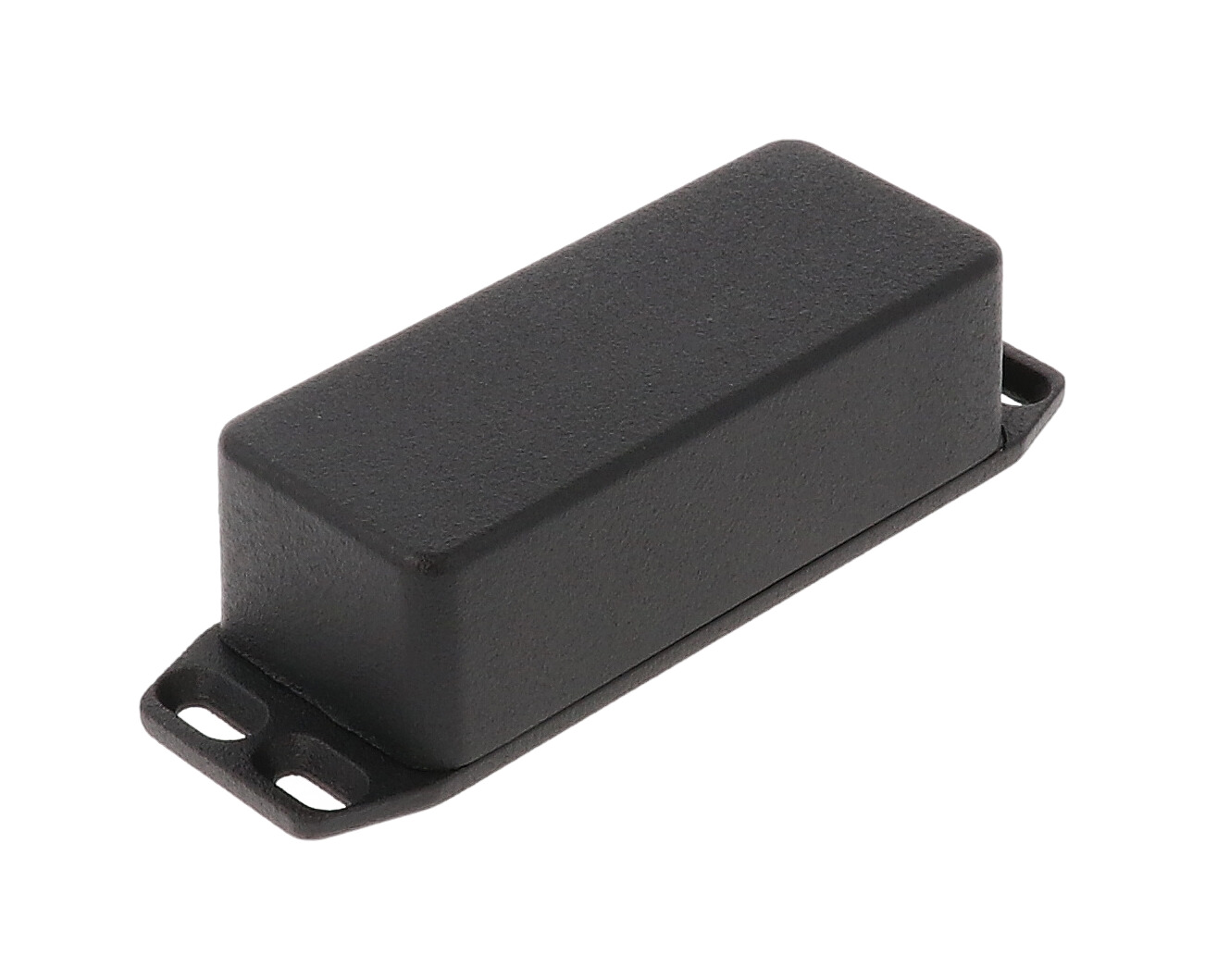

The 1590AFLBK combines the compact 93 x 39 x 31 mm 1590A body with a lid that carries an integrated wall-mounting flange, finished in textured black. It is a practical choice for integrators and OEM designers who want a small, wall-mountable instrument enclosure with a painted appearance.
The diecast aluminum alloy box and lid are coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet protects against dust and splashing water; the standard 1590AFLBK is designed to meet IP54.
The part page lists 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm). From the drawing, overall length with the lid flange is 121.50 mm [4.783 in], width 38.50 mm [1.516 in] and height 31.00 mm [1.220 in]. The interior measures 87.80 x 33.70 x 27.30 mm [3.457 x 1.327 x 1.075 in], and a side wall draft angle of 2° or less aids PC board mounting.

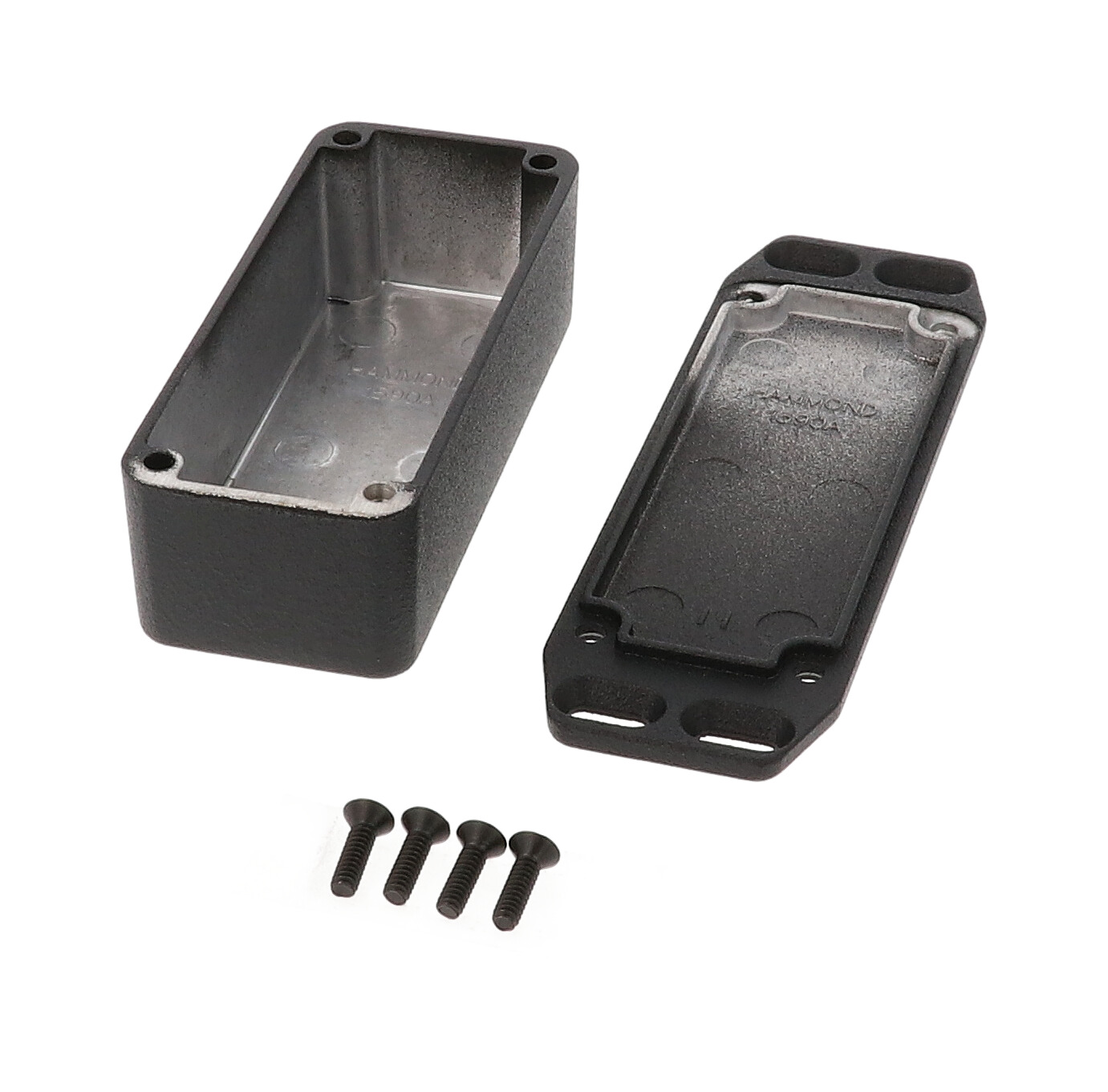

Supplied shrink wrapped with box, lid and 4 cover screws (factory-tapped 6-32 UNC holes, recommended torque 50-55 cN.m [71-78 ozf.in]). For liquid resistance order 1590WAFLBK, or fit the 1590AGASKET kit. Factory milling, drilling and printing are available, and solid models come in STEP or IGES.
Ideal For
- Wall-mounted control and sensor housings
- Black instrument enclosures for visible installations
- Compact PC board enclosures
- Enclosures machined for connectors
Hardware
| Screw Color | Black screws included |
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | DIECAST BOX W/FLANGE LID BLACK |
| Part Number | 1590AFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Series Table Color | Black |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 33.70 mm [1.327 in] |
| Inside Height | 27.30 mm [1.075 in] |
| Inside Length | 87.80 mm [3.457 in] |
| Nominal Width | 1.54 in (39 mm) |
| Nominal Height | 1.22 in (31 mm) |
| Nominal Length | 3.66 in (93 mm) |
| Size (L X W X H) | 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm) |
| Overall Width (Drawing) | 38.50 mm [1.516 in] |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Max. P.C. Board Width (Mm) | 86.8 |
| Max. P.C. Board Length (Mm) | 32.7 |
| Overall Length Incl. Lid Flange | 121.50 mm [4.783 in] |
Identifiers
| UPC | 623980676142 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast Aluminum Alloy |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590AGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WAFLBK (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590AFLBK have?▾
Textured black polyester powder paint, which gives a lasting finish even after machining. Black screws are included.
How is it mounted?▾
A wall-mounting flange is integrated into the lid; overall length including the flange is 121.50 mm [4.783 in].
How much internal space is there?▾
Inside length 87.80 mm, inside width 33.70 mm and inside height 27.30 mm, per the drawing.
Is there a water-tight version?▾
Yes, 1590WAFLBK is the liquid resistant version supplied with a silicone gasket. The 1590AGASKET kit can also upgrade this IP54 enclosure to IP65.
What screw torque is recommended?▾
50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] when a gasket is fitted.
