Hammond 1590AFL 93x39x31mm Diecast Aluminum Box, Wall-Mount Lid
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- 121.50 mm [4.783 in] overall length including lid flange
- Natural diecast aluminum, vibra finished with no sharp edges
- Inside dimensions 87.80 x 33.70 x 27.30 mm [3.457 x 1.327 x 1.075 in]
- Designed to meet IP54 with lap joint construction
- Box, lid and 4 cover screws included; 6-32 UNC factory-tapped holes
- Liquid resistant version 1590WAFL; 1590AGASKET upgrade kit
- RoHS and REACH compliant; 0.2 lbs (0.09 kg) shipping weight

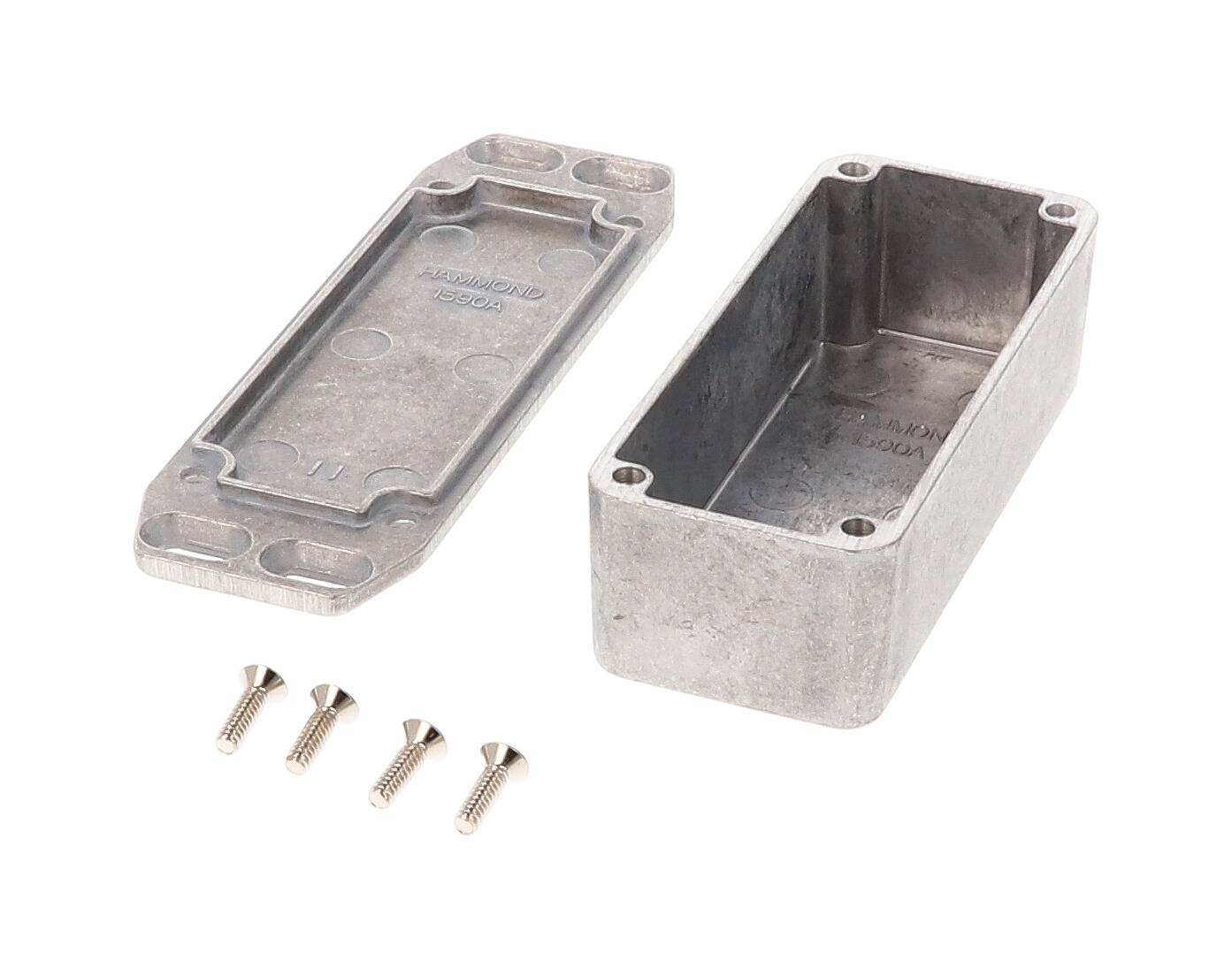

The 1590AFL is the flanged-lid version of the 93 x 39 x 31 mm 1590A diecast aluminum enclosure. Rather than a separate plate, the wall-mounting flange is integrated into the lid, so the box can be fixed to a wall or panel with the lid as the mounting face. It is aimed at OEM engineers, electricians and integrators housing small electronics.
Box and lid are diecast aluminum alloy, tough yet easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against access of dust and splashing water, and the standard 1590AFL is designed to meet IP54.
The listed size is 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm). The drawing shows 121.50 mm [4.783 in] overall length including the lid flange, 38.50 mm [1.516 in] width and 31.00 mm [1.220 in] height. Inside dimensions are 87.80 mm [3.457 in] long, 33.70 mm [1.327 in] wide and 27.30 mm [1.075 in] high, with a side wall draft angle of 2° or less for PC board mounting.
The assembly ships shrink wrapped with box, lid and 4 cover screws in factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m [71-78 ozf.in]. The liquid resistant version is 1590WAFL, and the 1590AGASKET kit is available as an upgrade. Factory modification and STEP or IGES solid models are offered.
Ideal For
- Wall-mounted electronic instrument enclosures
- Compact sensor and interface housings
- Small PC board enclosures
- Custom machined enclosures
Hardware
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | DIECAST BOX W/FLANGE LID |
| Part Number | 1590AFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Series Table Color | Natural |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 33.70 mm [1.327 in] |
| Inside Height | 27.30 mm [1.075 in] |
| Inside Length | 87.80 mm [3.457 in] |
| Nominal Width | 1.54 in (39 mm) |
| Nominal Height | 1.22 in (31 mm) |
| Nominal Length | 3.66 in (93 mm) |
| Size (L X W X H) | 3.65 in x 1.52 in x 1.22 in (93 mm x 39 mm x 31 mm) |
| Overall Width (Drawing) | 38.50 mm [1.516 in] |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Max. P.C. Board Width (Mm) | 86.8 |
| Max. P.C. Board Length (Mm) | 32.7 |
| Overall Length Incl. Lid Flange | 121.50 mm [4.783 in] |
Identifiers
| UPC | 623980676517 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.2 lbs (0.09 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast Aluminum Alloy |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590AGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WAFL (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590AFL?▾
The wall-mounting flange is integrated into the lid. The overall length including the lid flange is 121.50 mm [4.783 in].
What are the inside dimensions?▾
Inside length 87.80 mm [3.457 in], inside width 33.70 mm [1.327 in] and inside height 27.30 mm [1.075 in].
What IP rating does the 1590AFL have?▾
The standard version is designed to meet IP54. The liquid resistant 1590WAFL is supplied with a silicone gasket, and the 1590AGASKET kit is designed to meet IP65 when properly installed.
What hardware is included?▾
Box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes.
Is there a black version?▾
Yes, 1590AFLBK is the textured black version of this flanged-lid enclosure.
