Hammond 1583T8A1BKX 1U 15A Rack PDU, 8 Outlets, Front and Rear
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U horizontal 19-inch rackmount PDU rated 15A, 120 VAC single-phase
- 8 total NEMA 5-15R outlets: 2 front-facing and 6 rear-facing
- 6 ft heavy-duty 14/3 SJT cord with integral moulded NEMA 5-15P straight blade plug
- Built-in 15 Amp, 125 VAC circuit breaker prevents accidental overload
- Red power indicator light (no on/off switch) confirms the strip is energized
- Black powder coat finish meeting Greenguard indoor air quality guidelines
- UL/cUL recognized to UL1363 and CSA C22.2 No. 308-14; UL File # E166039
- TAA-compliant, RoHS and REACH compliant, made in North America

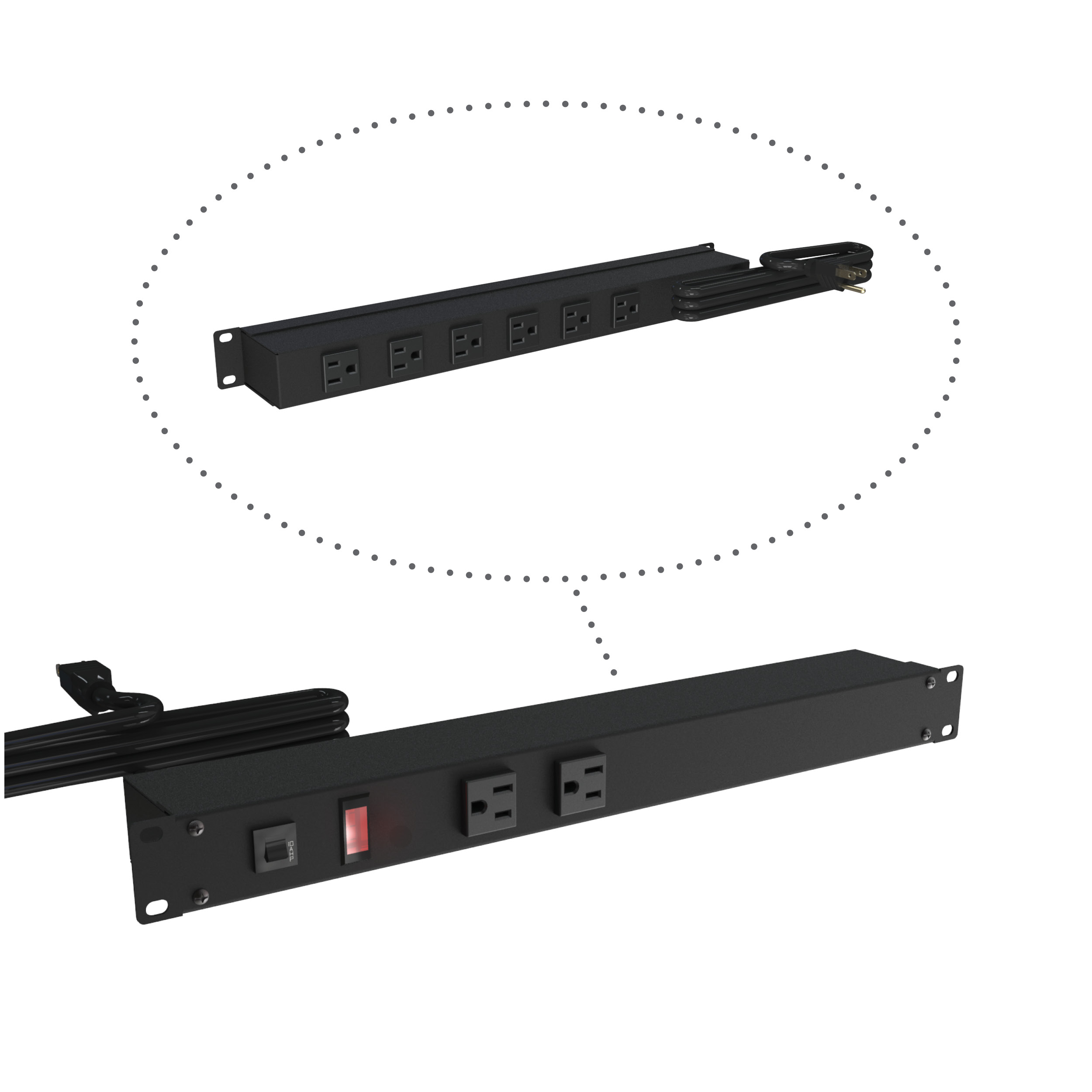

The 1583T8A1BKX is a 1U, 19-inch rack mount basic PDU rated 15A at 120 VAC, built for IT, AV and industrial racks that need straightforward plug-in power distribution. It provides eight NEMA 5-15R outlets split between the front and rear of the unit: two facing front for quick access to test gear or frequently swapped devices, and six at the rear for permanently cabled equipment. In place of a rocker switch, this version uses a red power indicator light to confirm the strip is energized.
Power comes in through an integral moulded NEMA 5-15P straight blade plug on a 6 ft heavy-duty 14 gauge, 14/3 SJT cord rated for extreme temperature ranges. A 15 Amp, 125 VAC circuit breaker is built in to guard against accidental overload. The housing measures 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep for standard 1U horizontal 19-inch rackmount installation, and ships at 4.5 lbs (2.04 kg).
The 1583T8A1BKX is finished in black powder coat that complies with Greenguard guidelines for indoor air quality. Outlets are not rotated on this model, and it is supplied without surge protection, ammeter or shielded cord — see the other 1583 Series variants if those options are required.
- UL/cUL recognized to UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 (UL File # E166039)
- TAA-compliant for federal GSA schedule purchases within the USA
- RoHS, REACH and USMCA compliant; manufactured in North America
Ideal For
- Power distribution from the rear of server and network racks
- 1U horizontal power strip in 19-inch equipment cabinets
- AV and broadcast rack power with front-accessible outlets
- Federal GSA schedule projects requiring TAA-compliant PDUs
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Black |
| Part Number | 1583T8A1BKX |
| Outlet Strip Type | 1U 19in Rack Mount |
| Companion Switched Version | 1583H8A1BKX (illuminated on/off switch) |
Dimensions
| Depth | 2.66 in (68 mm) |
| Width | 19.00 in (483 mm) |
| Height | 1.72 in (44 mm) |
Electrical
| Phase | Single-phase 125V (series) |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | No Switch. Power Indicator Light |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Shielded Cord | No |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Circuit Breaker | 15 Amp, 125 VAC |
| Outlets (Front) | 2 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Surge Protection | No |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type with integral moulded plug |
| Metered (Ammeter) | No |
Identifiers
| UPC | 623980222219 |
| ECCN | EAR99 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980222219 |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA |
Rack Mounting
| Rack Units | 1U horizontal |
| Rack Width | 19 inch |
Packaging & Shipping
| Shipping Weight | 4.5 lbs (2.04 kg) |
Construction & Finish
| Color | Black |
| Finish | RAL9005 black powder coat |
| Indoor Air Quality | Complies with Greenguard guidelines |
Compliance & Certifications
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| UL/cUL Recognized | UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Manufacturing Origin | Manufactured in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many outlets does the 1583T8A1BKX have and where are they located?▾
It has 8 total NEMA 5-15R outlets: 2 on the front and 6 on the rear of the unit.
Does this PDU have an on/off switch?▾
No. The 1583T8A1BKX uses a red power indicator light instead of a switch. The equivalent model with an illuminated on/off rocker switch is 1583H8A1BKX.
What are the cord and plug specifications?▾
It includes a 6 ft heavy-duty 14 gauge, 14/3 SJT cord with an integral moulded NEMA 5-15P straight blade plug.
Is there overload protection?▾
Yes, a 15 Amp, 125 VAC circuit breaker is included to prevent accidental overload. This model does not include surge protection.
How much rack space does it occupy?▾
It is a 1U horizontal 19-inch rackmount unit measuring 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep.
Is the 1583T8A1BKX suitable for federal GSA purchases?▾
Yes, the 1583 Series is TAA-compliant for federal GSA schedule purchases within the USA, and this part is also RoHS, REACH and USMCA compliant.
Related Products
Save 35%1583T8A1BK — 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Black
Hammond Manufacturing · 1583T8A1BK

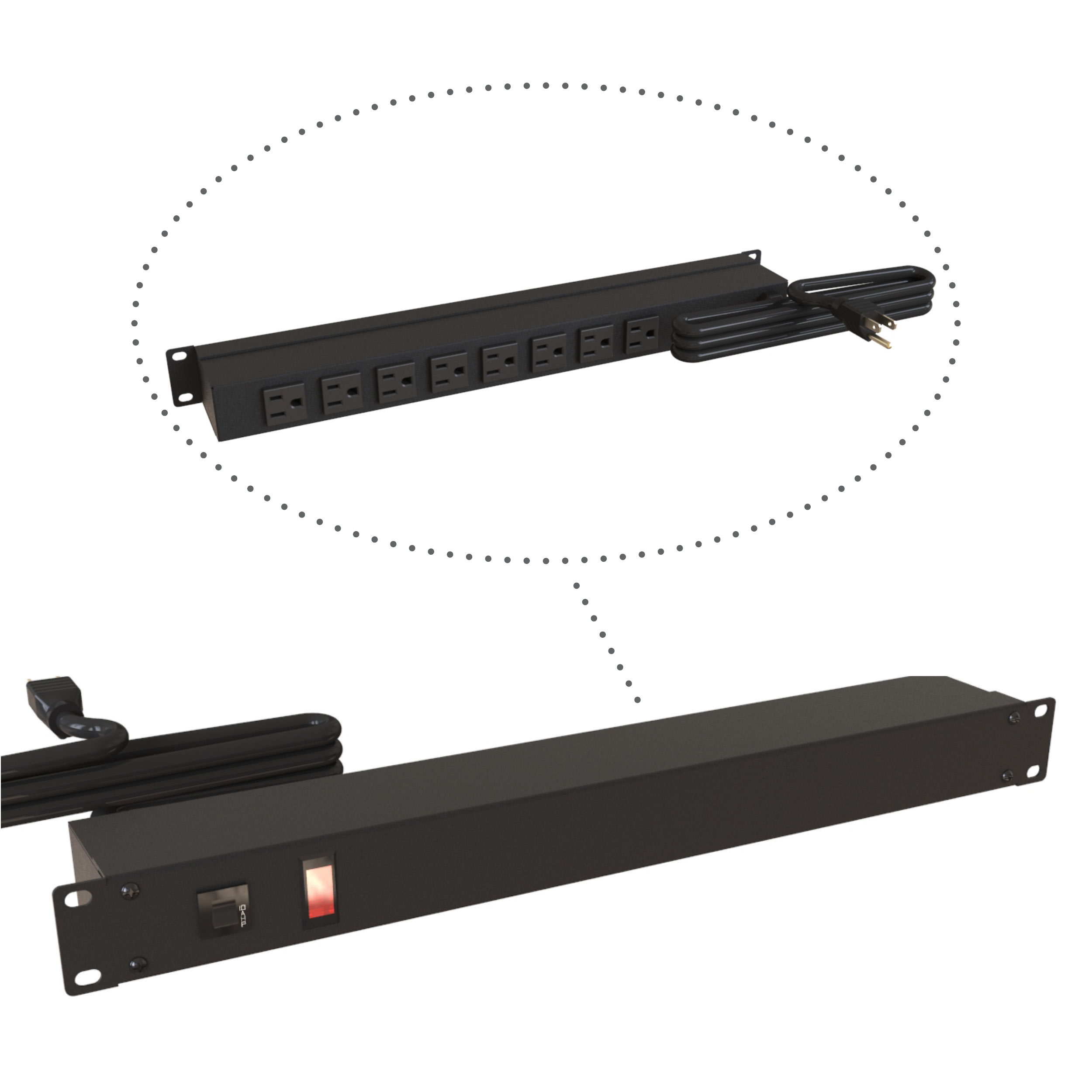

Save 35%1583T8B1BK — 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 15 ft cord, Black
