Hammond 1583T6B1BKX 1U 15A Rack PDU, 6 Rear 5-15R Outlets
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U horizontal 19-inch rack mount PDU rated 15 A, 125 VAC, 60 Hz single-phase
- Six NEMA 5-15R outlets for rack equipment; designed for distribution from the rear of the unit
- 15 ft heavy-duty 14/3 SJT cord with integral moulded NEMA 5-15P straight-blade plug
- Red power indicator light instead of an on/off switch, avoiding accidental shutdown
- Resettable 15 Amp, 125 VAC circuit breaker helps prevent accidental overload
- Black painted steel front and back, RAL9005 powder coat meeting Greenguard indoor air quality guidelines
- UL/cUL recognized to UL1363, CSA C22.2, UL file E166039; RoHS, REACH and USMCA compliant
- TAA-compliant for federal GSA schedule purchases; manufactured in North America

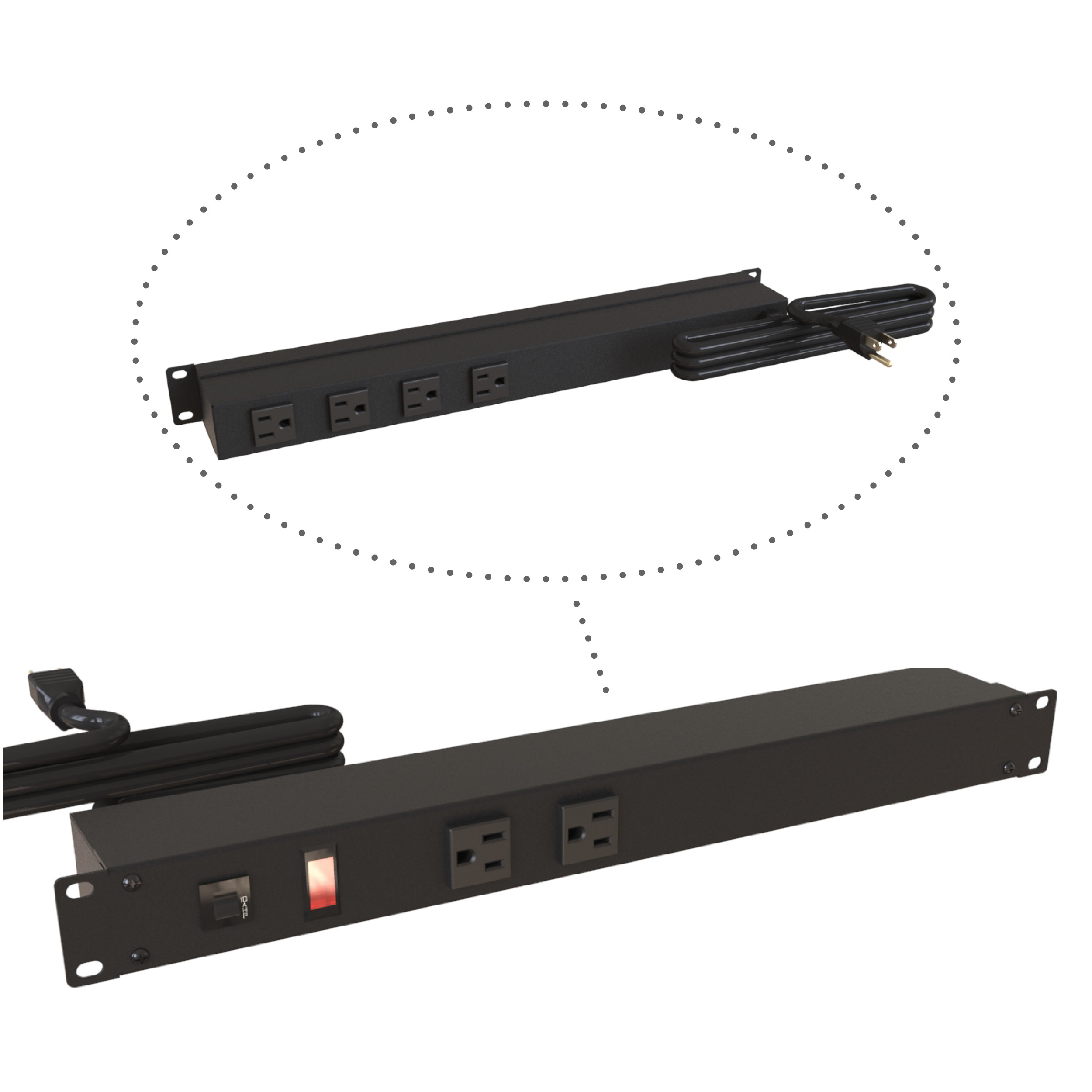

The 1583T6B1BKX is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) rated 15 A at 125 VAC, 60 Hz, built for IT, AV and industrial racks that need straightforward power distribution without metering or surge suppression. It carries six NEMA 5-15R receptacles and terminates in a 15 ft cord with an integral moulded NEMA 5-15P straight-blade plug, so equipment can be fed from a wall or floor receptacle well away from the rack.
This variant uses the "T" configuration: instead of an illuminated on/off rocker switch, it is fitted with a red power indicator (pilot) light, so downstream equipment is not exposed to accidental switching. A resettable 15 Amp, 125 VAC circuit breaker is built in to guard against accidental overload, and the heavy-duty 14/3 SJT cord is rated for extreme temperature ranges.
Construction is painted steel, black front and back, finished in RAL9005 black powder coat that complies with the Greenguard guidelines for indoor air quality. Overall dimensions are 482.60 mm [19.000 in] wide, 43.64 mm [1.718 in] high and 67.58 mm [2.661 in] deep, for standard 1U mounting in a 19-inch rack or cabinet. Shipping weight is 4 lbs (1.81 kg).
- Rated voltage: 120 VAC (drawing: 125 VAC, 60 Hz, 15 Amps)
- Six 5-15R outlets; part page lists 0 front / 6 rear, while the manufacturer short description reads "4 REAR, 2 FRNT"
- No surge protection, no shielded cord, not metered, not hospital grade, outlets not rotated
1583T6B1BKX is UL/cUL recognized to UL1363 with CSA certification under UL file E166039, is RoHS, REACH and USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and is manufactured in North America.
Ideal For
- Power distribution from the rear of a 19-inch server or network rack
- 1U horizontal PDU for AV and broadcast equipment racks
- Rack power for facilities needing a non-switched strip with power indicator light
- Federal GSA schedule projects requiring TAA-compliant rack power
- Installations where a 15 ft cord reach to the branch receptacle is needed
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Part Number | 1583T6B1BKX |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 6 Outlets, 15 ft cord, Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, 4 REAR, 2 FRNT |
Dimensions
| Overall Depth | 67.58 mm [2.661 in] |
| Overall Width | 482.60 mm [19.000 in] |
| Overall Height | 43.64 mm [1.718 in] |
| Body Width (Front View) | 444.50 mm [17.500 in] |
| Nominal Size (H X W X D) | 1.72 in x 19.00 in x 2.66 in |
| Mounting Flange Hole Span (Front View) | 461.98 mm [18.188 in] |
Electrical
| Metered | No |
| Cord Type | Heavy-duty 14 gauge, 14/3 SJT with integral moulded plug |
| Plug Type | NEMA 5-15P straight blade |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | No switch; power indicator light (red pilot light) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Shielded Cord | No |
| Total Outlets | 6 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Circuit Breaker | Resettable 15 Amp, 125 VAC circuit breaker included |
| Outlets (Front) | 0 |
| Rotated Outlets | No |
| Rating (Drawing) | 125 VAC, 60 Hz, 15 Amps |
| Surge Protection | No |
Identifiers
| UPC | 623980198668 |
| ECCN | EAR99 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980198668 |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA (Manufactured in North America) |
| UPC W/o Check Digit | 62398019866 |
Rack Mounting
| Rack Space | 1U horizontal |
| Rack Width | 19 inch |
| Orientation | Designed for power distribution from the rear of the unit |
Packaging & Shipping
| Shipping Weight | 4 lbs (1.81 kg) |
Construction & Finish
| Colour | Black |
| Powder Coat | RAL9005 black |
| Material / Finish (Back) | Black painted steel |
| Material / Finish (Front) | Black painted steel |
Environmental & Protection
| Indoor Air Quality | Complies with the Greenguard guidelines |
Compliance & Certifications
| CSA | CSA Certified Standards C22.2 (No. 21-95, 42-99); CSA C22.2 No. 308-14 & C22.2 No. 0.4-04 |
| TAA | TAA-compliant for federal GSA schedule purchases within the USA |
| UL / CUL | UL Recognized Standard UL1363 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1583T6B1BKX have an on/off switch?▾
No. This is the "T" version, which uses a red power indicator (pilot) light rather than an illuminated on/off rocker switch. Within the 1583 Series, the "H" part numbers are the versions with the illuminated on/off switch.
How many outlets does it have, and where are they?▾
It has six NEMA 5-15R outlets in total. The part page lists 0 outlets front and 6 outlets rear, while the manufacturer's short description for this part reads "4 REAR, 2 FRNT" - both figures are given in the manufacturer data, so confirm the arrangement you need before ordering.
What are the electrical ratings?▾
The part is listed at 120 VAC and 15 A, and the drawing states 125 VAC, 60 Hz, 15 Amps. A resettable 15 Amp, 125 VAC circuit breaker is built in to help prevent accidental overload.
What cord and plug are supplied?▾
A 15 ft cord is included: heavy-duty 14 gauge 14/3 SJT cable rated for extreme temperature ranges, with an integral moulded NEMA 5-15P straight-blade plug.
Is this PDU surge protected or metered?▾
No. 1583T6B1BKX is a basic PDU - the data lists no surge protection, no ammeter (not metered) and a non-shielded cord. Other 1583 Series part numbers add surge, metering or shielded cord options.
How much rack space does it take, and how deep is it?▾
It mounts horizontally in one rack unit of a 19-inch rack. Overall dimensions are 482.60 mm [19.000 in] wide, 43.64 mm [1.718 in] high and 67.58 mm [2.661 in] deep.
Is it suitable for US federal purchases?▾
The data states it is TAA-compliant for federal GSA schedule purchases within the USA, is USMCA compliant, and is manufactured in North America with country of origin CA.
