Hammond 1583H8D1BK 1U 8-Outlet Rack PDU, L5-15P Locking Cord
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight rear-facing NEMA 5-15R outlets for power distribution behind rack-mounted equipment
- 1U horizontal 19-inch rack mount: 1.72 x 19.00 x 2.66 in (44 x 483 x 68 mm)
- Rated 15 A, 125 VAC, 60 Hz with included 15 A 125 VAC resettable circuit breaker
- 15 ft heavy-duty 14/3 SJT cord with integral moulded plug; drawing shows NEMA L5-15P locking plug
- Illuminated on/off rocker power switch on the front panel
- Black painted steel front and back; series finishes meet Greenguard indoor air quality guidelines
- UL Recognized UL1363, CSA Certified C22.2 (No. 21-95, 42-99), UL file E166039, cRUus
- TAA-compliant, USMCA, RoHS and REACH compliant; manufactured in North America

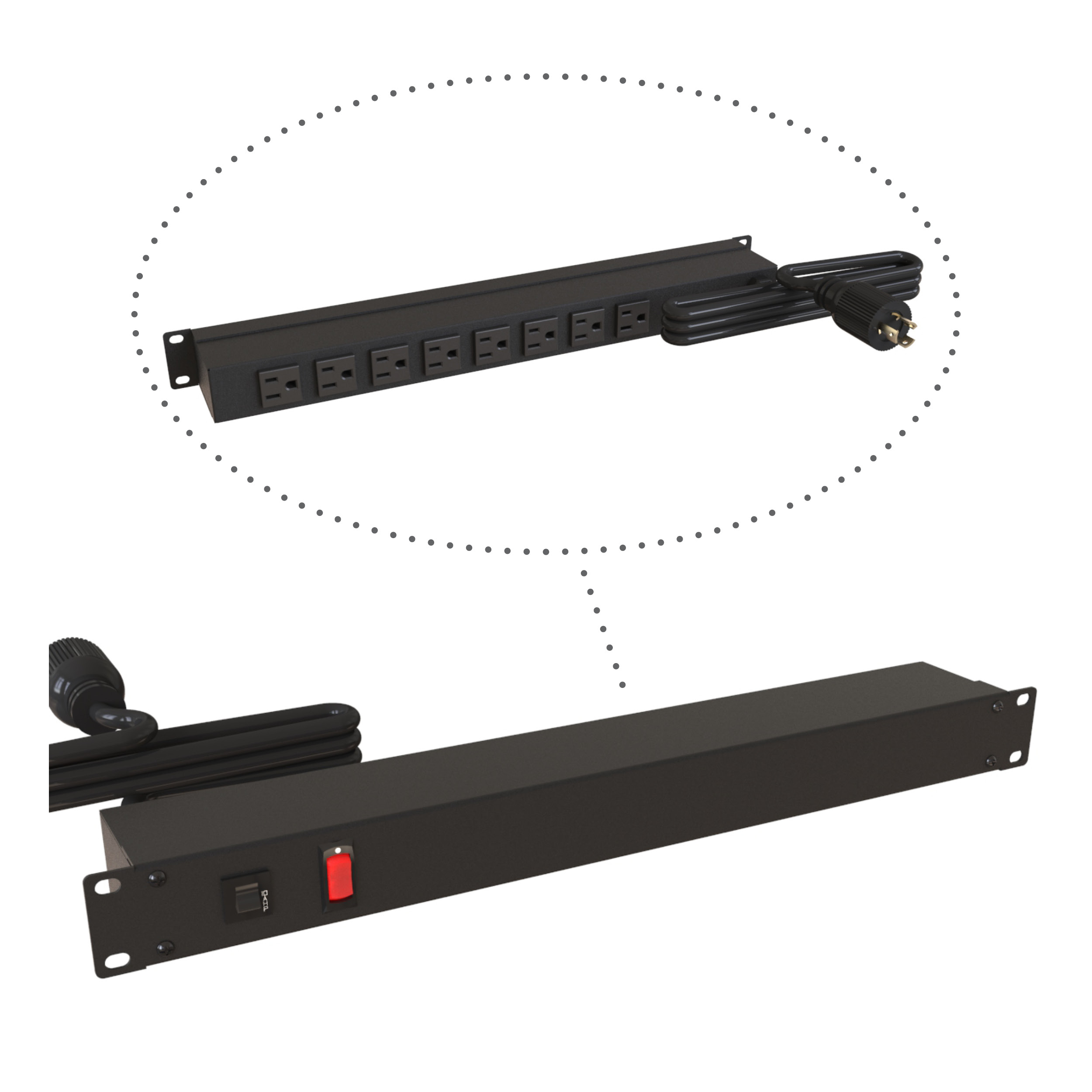

The 1583H8D1BK is a 1U horizontal rack mount basic PDU (outlet strip) for 19-inch racks and cabinets, giving IT, AV, broadcast and OEM installers eight NEMA 5-15R outlets on the rear of the unit for tidy, out-of-the-way power distribution behind mounted equipment. It is rated 15 A at 125 VAC, 60 Hz (rated voltage listed as 120 VAC on the part data), and carries an illuminated on/off rocker switch plus a resettable circuit breaker on the front panel.
Construction is painted steel, front and back, finished in black. The series finishes use RAL9005 black or ASA61 gray powder coat and comply with the Greenguard guidelines for indoor air quality. Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, with a 17.500 in mounting-hole span on the flanges; shipping weight is 4.5 lbs (2.04 kg).
Power is supplied by a 15 ft heavy-duty 14/3 SJT cord with an integral moulded plug, suited to extreme temperature ranges. The drawing for 1583H8D1BK shows a 15 ft locking power cord terminated in a NEMA L5-15P plug (the part attributes also list plug type 5-15P), so confirm the cord end against your receptacle before ordering. A 15 A, 125 VAC circuit breaker is included to guard against accidental overload.
- All eight outlets face the rear; no front outlets.
- No surge protection, no amp meter, no shielded cord and non-rotated outlets on this model.
The unit is UL Recognized to UL1363 and CSA Certified to C22.2 (No. 21-95, 42-99) under UL file E166039, is cRUus marked, RoHS and REACH compliant, USMCA compliant and TAA-compliant for federal GSA schedule purchases within the USA. Manufactured in North America.
Ideal For
- Rear-of-rack power distribution in 19-inch server and network cabinets
- 1U horizontal PDU for AV and broadcast equipment racks
- Powering rack-mounted equipment where a locking L5-15P supply cord is required
- OEM and industrial rack builds needing UL1363 recognized outlet strips
- TAA-compliant federal GSA schedule rack power installations
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Part Number | 1583H8D1BK |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 15 ft cord, Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, 8 REC ON REAR |
| Equivalent Power-Indicator Version | 1583T8D1BK (illuminated power indicator instead of on/off switch) |
Dimensions
| Depth | 2.66 in (68 mm) / 67.58 mm [2.661 in] |
| Width | 19.00 in (483 mm) / 482.60 mm |
| Height | 1.72 in (44 mm) / 43.64 mm [1.718 in] |
| Mounting Hole Span (Width) | 444.50 mm [17.500 in] |
| Panel Width Between Flanges | 461.98 mm [18.188 in] |
Electrical
| Cord Type | Heavy-duty 14 gauge, 14/3 SJT, integral moulded plug |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (illuminated) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC (drawing rated 125 VAC, 60 Hz) |
| Shielded Cord | No |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 8 |
| Outlets (Front) | 0 |
| Rotated Outlets | No |
| Surge Protection | No |
| Metered (Amp Meter) | No |
| Overcurrent Protection | Resettable 15 Amp, 125 VAC circuit breaker included |
| Plug Type (Part Attributes) | 5-15P |
| Plug Type (Series Table & Drawing) | NEMA L5-15P, locking blade type |
Identifiers
| UPC | 623980004921 |
| ECCN | EAR99 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980004921 |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398000492 |
Rack Mounting
| Rack Units | 1U horizontal rackmount installation |
| Rack Width | 19 inch |
Packaging & Shipping
| Shipping Weight | 4.5 lbs (2.04 kg) |
Construction & Finish
| Color | Black |
| Material / Finish | Black painted steel, front and back |
| Series Finish Options | RAL9005 black or ASA61 gray powder coat |
Environmental & Protection
| Indoor Air Quality | Complies with Greenguard guidelines |
Compliance & Certifications
| UL | UL Recognized Standard UL1363 |
| CSA | CSA Certified Standards C22.2 (No. 21-95, 42-99) |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Series Standards | UL/cUL recognized UL1363, CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Standards Marking | cRUus, TAA-compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many outlets does the 1583H8D1BK have and where are they located?▾
It has eight NEMA 5-15R outlets, all on the rear of the unit (0 front, 8 rear), so it is designed for power distribution from the rear of the rack.
What plug is on the cord?▾
The cord is 15 ft long. The part drawing for 1583H8D1BK shows a 15-foot locking power cord with a NEMA L5-15P plug, while the part attribute list shows plug type 5-15P. Verify the cord end against your receptacle before ordering.
Does this PDU include surge protection or metering?▾
No. This model lists surge protection as No, metered as No, shielded cord as No and rotated outlets as No. It does include a 15 Amp, 125 VAC resettable circuit breaker.
How much rack space does it take and how wide is it?▾
It is a 1U horizontal unit for 19-inch racks, measuring 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep, with a 17.500 in mounting hole span.
Is the 1583H8D1BK TAA compliant?▾
Yes. The series is TAA-compliant for federal GSA schedule purchases within the USA, and the unit is also RoHS, REACH and USMCA compliant with country of origin CA.
What approvals does it carry?▾
It is UL Recognized to Standard UL1363 and CSA Certified to C22.2 (No. 21-95, 42-99) under UL file E166039, and is marked cRUus.
Is there a version with a power indicator light instead of a switch?▾
Yes. The series ordering table lists 1583T8D1BK as the illuminated power indicator version of this configuration.
