Hammond 1583H8B1BK 1U 8-Outlet Rear-Facing 15A Rack PDU, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight rear-facing NEMA 5-15R outlets for cabling behind the rack; no front outlets
- 1U horizontal 19-inch rackmount, 1.72 x 19.00 x 2.66 in (44 x 483 x 68 mm)
- Rated 15 A, 120/125 VAC, 60 Hz with a 15 A 125 VAC resettable circuit breaker
- 15 ft heavy-duty 14/3 SJT cord with integral moulded straight-blade NEMA 5-15P plug
- Illuminated on/off rocker switch on the front panel
- Black painted steel front and back, RAL9005 powder coat meeting Greenguard indoor air quality guidelines
- UL Recognized to UL1363 and CSA Certified to C22.2 No. 21-95 and 42-99 (UL File E166039)
- TAA-compliant, RoHS, REACH and USMCA compliant; made in North America

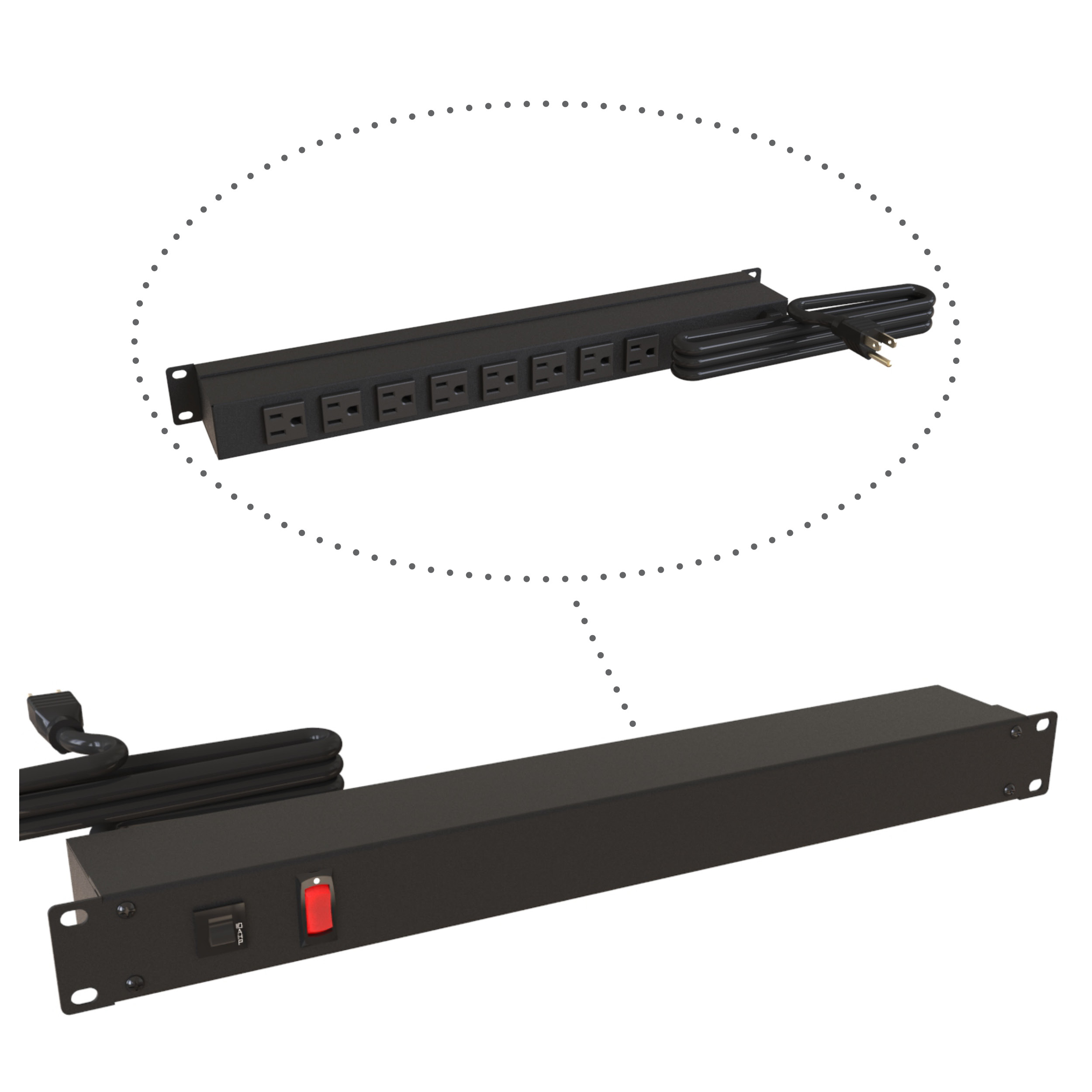

The 1583H8B1BK is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) with eight rear-facing NEMA 5-15R receptacles, intended for distributing single-phase 125 V power to equipment mounted in racks and cabinets. With all outlets on the rear face and a lighted on/off rocker switch plus a resettable circuit breaker on the front, it suits IT, AV, broadcast and OEM installations where cabling is kept behind the rack and switching is done from the aisle.
Construction is painted steel, black on both the front and back panels, finished in RAL9005 black powder coat that complies with the Greenguard guidelines for indoor air quality. The unit measures 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep and ships at 4.38 lbs (1.99 kg), mounting in a single rack unit of a standard 19-inch rack rail using 17.500 in (444.50 mm) hole centres.
Power comes in on an integral 15 ft heavy-duty 14/3 SJT cord with a moulded straight-blade NEMA 5-15P plug, rated for extreme temperature ranges. A 15 Amp, 125 VAC circuit breaker guards against accidental overload, and the drawing rates the assembly at 125 VAC, 60 Hz, 15 Amps. This version of the 1583 series is supplied without surge protection, without a shielded cord, without an ammeter and with standard (non-rotated) outlet orientation.
- 8 rear outlets, 0 front outlets
- Lighted on/off power switch and resettable circuit breaker
- UL Recognized to UL1363; CSA Certified to C22.2 No. 21-95 and 42-99; UL File E166039
1583H8B1BK is TAA-compliant for federal GSA schedule purchases within the USA, RoHS and REACH compliant, USMCA compliant and manufactured in North America.
Ideal For
- Rear-of-rack power distribution in server and network cabinets
- 1U power strip for 19-inch AV and broadcast racks
- Rack-mounted power for OEM and industrial equipment assemblies
- GSA/TAA-compliant federal facility rack builds
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Part Number | 1583H8B1BK |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 15 ft cord, Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 8XREAR 5-15R RACK OUTLET STRIP |
| Equivalent Power-Indicator Version | 1583T8B1BK (illuminated power indicator instead of on/off switch) |
Dimensions
| Depth | 2.66 in (68 mm) |
| Width | 19.00 in (483 mm) |
| Height | 1.72 in (44 mm) |
| Overall Depth (Drawing) | 67.58 mm [2.661 in] |
| Overall Width (Drawing) | 482.60 mm [19.000 in] |
| Overall Height (Drawing) | 43.64 mm [1.718 in] |
Electrical
| Plug Type | NEMA 5-15P |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (lighted) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Shielded Cord | No |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 8 |
| Circuit Breaker | 15 Amp, 125 VAC resettable circuit breaker |
| Outlets (Front) | 0 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Rating (Drawing) | 125 VAC, 60 Hz, 15 Amps |
| Surge Protection | No |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type, integral moulded plug |
| Metered / Ammeter | No |
Identifiers
| UPC | 623980758909 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980758909 |
| UPC W/o Check Digit | 62398075890 |
Rack Mounting
| Rack Size | 19 inch |
| Rack Units | 1U horizontal |
| Mounting Hole Centres | 444.50 mm [17.500 in] |
| Mounting Flange Dimension | 19.05 mm [0.750 in] |
Packaging & Shipping
| Tariff Code | 8537.10.9170 |
| Shipping Weight | 4.38 lbs (1.99 kg) |
| Country Of Origin | CA |
| Manufacturing Location | North America |
Construction & Finish
| Color | Black |
| Finish | RAL9005 black powder coat |
| Material | Painted steel (front and back) |
Compliance & Certifications
| UL | UL Recognized Standard UL1363 |
| CSA | CSA Certified Standards C22.2 (No. 21-95, 42-99) |
| ECCN | EAR99 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where are the outlets located on the 1583H8B1BK?▾
All eight NEMA 5-15R outlets face the rear of the unit; there are zero front outlets, so the PDU is designed for power distribution from the rear of the rack.
How long is the power cord and what plug does it use?▾
It has an integral 15 ft heavy-duty 14/3 SJT cord with a moulded straight-blade NEMA 5-15P plug.
Does this model include surge protection or an ammeter?▾
No. 1583H8B1BK is a basic PDU without surge protection, without a shielded cord and without an amp meter. Other part numbers in the 1583 series add those options.
Is there overload protection?▾
Yes, the unit includes a resettable 15 Amp, 125 VAC circuit breaker to prevent accidental overload, plus a lighted on/off power switch on the front panel.
How much rack space does it take up?▾
One rack unit in a 19-inch rack. Overall dimensions are 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep.
Is this part TAA compliant for government purchases?▾
Yes. It is TAA-compliant for federal GSA schedule purchases within the USA, and is also RoHS, REACH and USMCA compliant, manufactured in North America.
