Hammond 1583H8A1BKX 1U 15A Rack PDU, 8 Outlets Front and Rear
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U horizontal 19-inch rackmount PDU rated 15A, 120 VAC single-phase
- 8 NEMA 5-15R outlets: 2 front-facing and 6 rear-facing
- Illuminated on/off rocker switch for local load control
- Integral 15 Amp, 125 VAC circuit breaker prevents accidental overload
- 6 ft heavy-duty 14/3 SJT cord with integral moulded NEMA 5-15P straight blade plug
- RAL9005 black powder coat finish meeting Greenguard indoor air quality guidelines
- UL/cUL recognized to UL1363 and CSA C22.2 No. 308-14; TAA-compliant; RoHS and REACH compliant

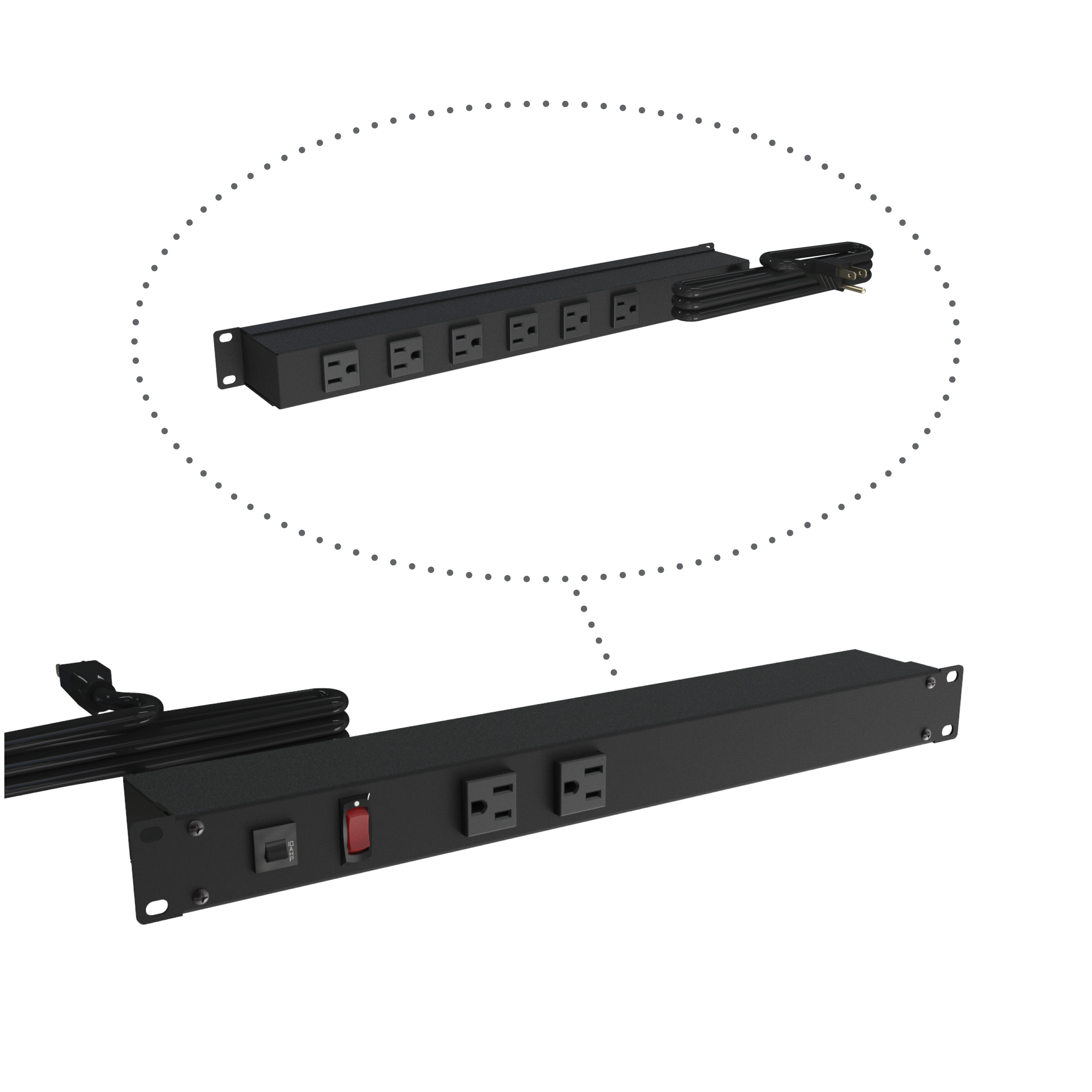

The 1583H8A1BKX is a 1U horizontal 19-inch rack mount basic PDU rated 15A at 120 VAC, built for IT, AV and industrial racks that need straightforward single-phase power distribution. It provides eight NEMA 5-15R outlets split between the front and rear of the strip — two facing front for quick access to test gear or temporary loads, and six facing rear for permanently cabled equipment.
Power is switched by an illuminated on/off rocker switch, and an integral 15 Amp, 125 VAC circuit breaker guards against accidental overload. The unit is supplied with a 6 ft heavy-duty 14 gauge cord — 14/3 SJT type for extreme temperature ranges — terminated in an integral moulded NEMA 5-15P straight blade plug. This configuration has non-rotated outlets, is not metered, has no surge protection and uses an unshielded cord.
Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, so the 1583H8A1BKX occupies a single rack unit in a standard 19-inch rack, cabinet or relay rack. Shipping weight is 4.5 lbs (2.04 kg). The black finish is RAL9005 powder coat that complies with Greenguard guidelines for indoor air quality.
- UL/cUL recognized to UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 (UL File # E166039)
- TAA-compliant for federal GSA schedule purchases within the USA
- RoHS and REACH compliant; USMCA compliant; manufactured in North America
An equivalent version with a red illuminated power indicator instead of the switch is offered as 1583T8A1BKX.
Ideal For
- Rear-of-rack power distribution in 19-inch server and network cabinets
- AV and broadcast equipment racks needing front-accessible outlets
- Telecom and relay rack power strips in equipment rooms
- TAA-compliant GSA schedule federal rack builds
- Industrial control and OEM rack-mounted equipment power
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Black |
| Part Number | 1583H8A1BKX |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" PBAR 8REC, SWITCH, 6' CORD |
| Power Indicator Version | 1583T8A1BKX (illuminated power indicator equivalent) |
Dimensions
| Depth | 2.66 in (68 mm) |
| Width | 19.00 in (483 mm) |
| Height | 1.72 in (44 mm) |
Electrical
| Metered | No |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (illuminated) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Shielded Cord | No |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Circuit Breaker | 15 Amp, 125 VAC |
| Outlets (Front) | 2 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Surge Protection | No |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type with integral moulded plug |
Identifiers
| UPC | 623980222264 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980222264 |
| UPC W/o Check Digit | 62398022226 |
Rack Mounting
| Mounting | 1U horizontal 19" rackmount installation |
Packaging & Shipping
| Tariff Code | 8537.10.9170 |
| Shipping Weight | 4.5 lbs (2.04 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Color | Black |
| Finish | RAL9005 black powder coat |
Environmental & Protection
| Indoor Air Quality | Complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| UL/cUL Recognition | UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How are the 8 outlets arranged on the 1583H8A1BKX?▾
There are two NEMA 5-15R outlets on the front of the unit and six on the rear, for eight outlets total.
Does this PDU include surge protection or metering?▾
No. The 1583H8A1BKX has no surge protection and is not amp metered. It does include a 15 Amp, 125 VAC circuit breaker.
What cord and plug are supplied?▾
A 6 ft heavy-duty 14 gauge 14/3 SJT cord with an integral moulded NEMA 5-15P straight blade plug is included.
How much rack space does it take?▾
It is a 1U horizontal 19-inch rackmount unit measuring 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep.
Is this part TAA-compliant for government purchases?▾
Yes. The 1583 Series is TAA-compliant for federal GSA schedule purchases within the USA, and this unit is made in North America (country of origin CA).
Is there a version without the on/off switch?▾
Yes. 1583T8A1BKX is the equivalent model with an illuminated red power indicator instead of the illuminated on/off rocker switch.
