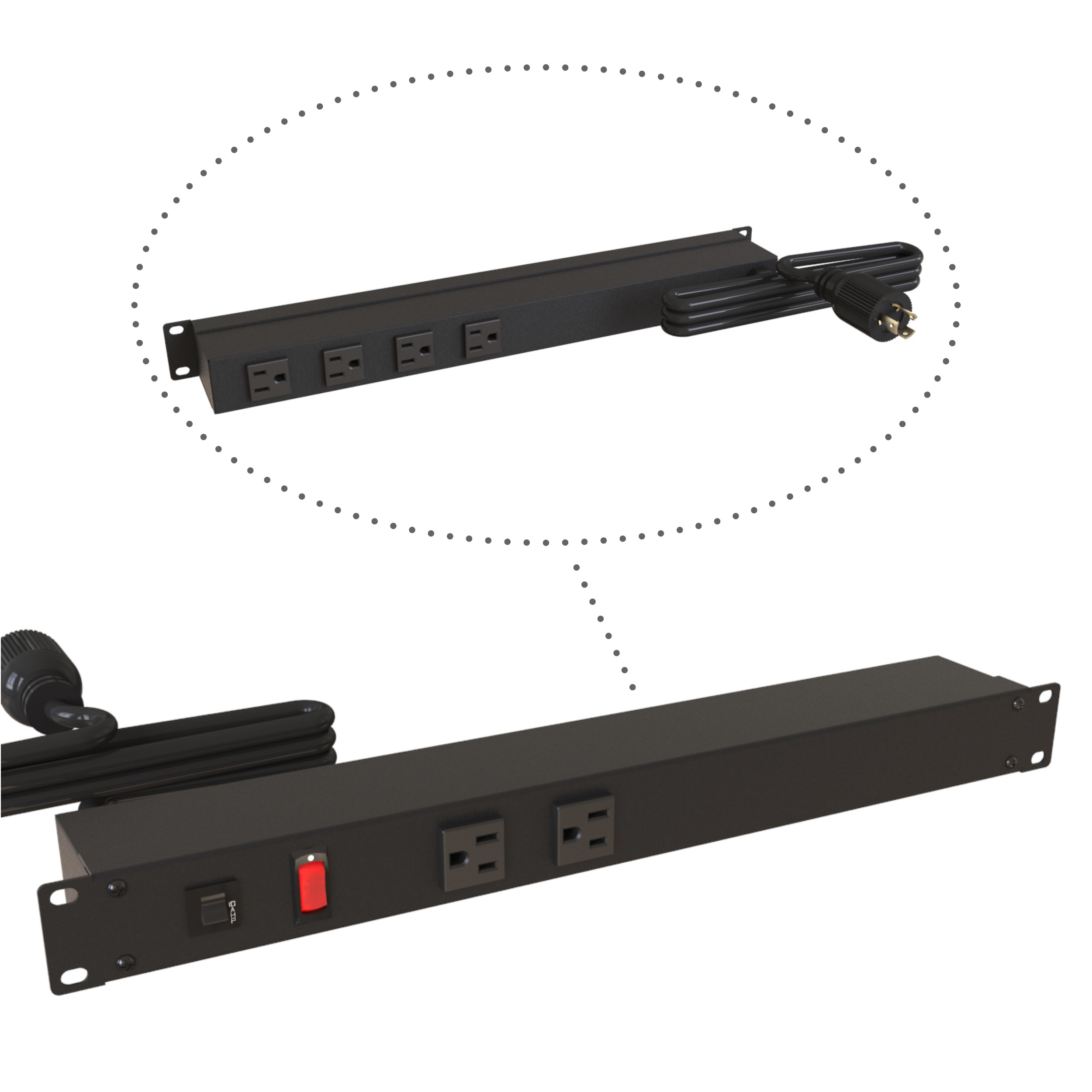

Hammond 1583H6C1BKX 1U 15A Rack Mount PDU, 6 Outlets Front and Rear

The 1583H6C1BKX is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) rated 125 VAC, 60 Hz, 15 Amps, built for IT, AV, broadcast and industrial racks that need straightforward single-phase power distribution. It carries six NEMA 5-15R outlets split two on the front and four at the rear, so rack-mounted equipment can be fed from behind while two outlets stay accessible at the front for test gear or temporary loads.

Power is controlled by a lighted on/off rocker switch, and a resettable 15 Amp, 125 VAC circuit breaker is included to guard against accidental overload. The supplied cord is a heavy-duty 14/3 SJT type 14 gauge wire cord rated for extreme temperature ranges with an integral moulded plug; the part drawing for 1583H6C1BKX shows a 6 ft NEMA L5-15P locking power cord, while the part attribute table lists plug type 5-15P and 15 ft, so confirm the cord and plug configuration required for your installation.

Construction is steel with black painted front and back panels, finished in RAL9005 black powder coat that complies with Greenguard guidelines for indoor air quality. Overall dimensions are 1.72 in (43.64 mm) high by 19.00 in (482.60 mm) wide by 2.66 in (67.58 mm) deep, and shipping weight is 4 lbs (1.81 kg), making it a shallow 1U addition to a standard 19-inch rack or cabinet.

• Six 5-15R outlets: 2 front, 4 rear
• Illuminated on/off rocker switch and resettable breaker
• 1U, 19-inch horizontal rack mounting

This PDU is UL Recognized to UL1363 and CSA Certified to C22.2 (No. 21-95, 42-99) under UL file E166039, cRUus marked, TAA-compliant for federal GSA schedule purchases within the USA, RoHS and REACH compliant, USMCA compliant and manufactured in North America.
