Hammond 1583H6C1 1U 6-Outlet Rack PDU, L5-15P Locking Cord
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Six rear-facing NEMA 5-15R outlets for power distribution behind rack equipment (0 front, 6 rear)
- 6 ft 14/3 SJT heavy-duty cord with integral moulded NEMA L5-15P locking plug
- Resettable 15 Amp, 125 VAC circuit breaker prevents accidental overload
- Illuminated on/off rocker switch on the front panel
- 1U horizontal 19-inch rackmount format: 1.72 x 19.00 x 2.66 in (44 x 483 x 68 mm)
- ASA 61 grey powder coat steel front and back, meeting Greenguard indoor air quality guidelines
- CSA Certified to C22.2 No. 21-95 and 42-99; UL Recognized to UL1363 (UL File E166039)
- TAA-compliant, RoHS and REACH compliant, manufactured in North America

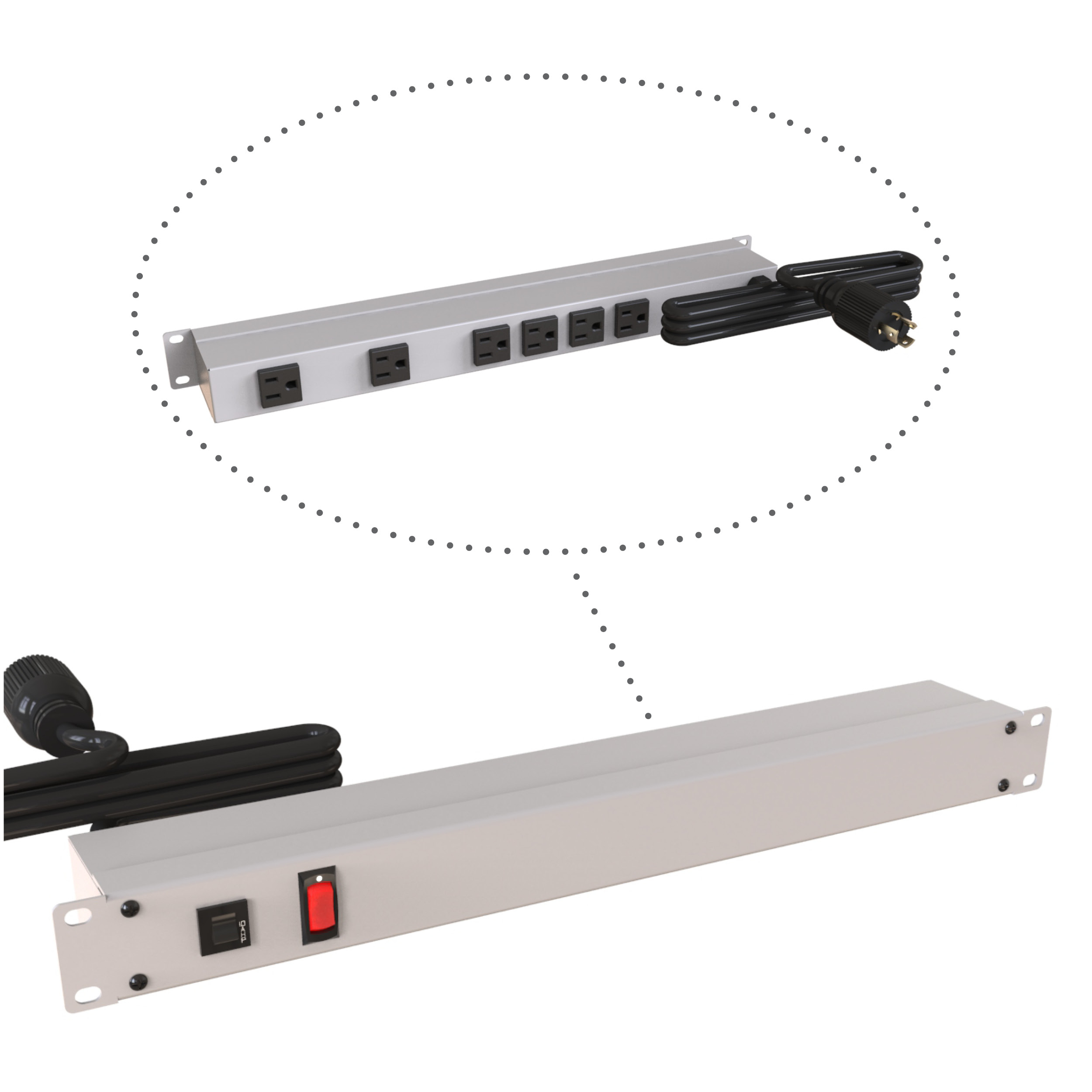

The 1583H6C1 is a 1U horizontal 19-inch rack mount outlet strip (basic PDU) rated 15A, with six NEMA 5-15R receptacles positioned on the rear of the unit for power distribution behind rack-mounted equipment. It suits IT and AV integrators, broadcast and shop-floor panel builders, and facilities teams who need a simple, breaker-protected power strip inside a 19-inch rack or cabinet.
Power is supplied through a 6 ft integral cord terminated in a NEMA L5-15P locking plug, so the connection stays secure at the branch circuit or rack receptacle. The cord is heavy-duty 14 gauge, 14/3 SJT type, selected for extreme temperature ranges, with an integral moulded plug. An illuminated on/off rocker switch and a resettable 15 Amp, 125 VAC circuit breaker are provided on the front to guard against accidental overload.
Construction is steel finished in ASA 61 grey powder coat on both the front and back, giving the unit its gray appearance; the finish complies with the Greenguard guidelines for indoor air quality. Overall dimensions are 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep, and shipping weight is 3.5 lbs (1.59 kg).
1583H6C1 carries CSA Certified Standards C22.2 (No. 21-95, 42-99) and is UL Recognized to Standard UL1363 under UL File E166039. It is RoHS and REACH compliant, USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America.
- Rear-facing outlets only: 0 front, 6 rear
- No surge protection, no ammeter, no shielded cord and no rotated outlets on this model
Ideal For
- Rear-of-rack power distribution in 19-inch server and network cabinets
- AV rack and equipment rack power feeds using a locking L5-15P branch connection
- Overload-protected power strip for 15A, 120 VAC rack-mounted equipment
- Government and GSA schedule rack builds requiring TAA-compliant parts
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Metered | No |
| Part Number | 1583H6C1 |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 6 Outlets, 6 ft cord, Gray |
| Surge Protection | No |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, 6 REC ON REAR |
Dimensions
| Depth | 2.66 in (68 mm); drawing: 67.58 mm [2.661 in] |
| Width | 19.00 in (483 mm); drawing: 482.60 mm [19.000 in] |
| Height | 1.72 in (44 mm); drawing: 43.64 mm [1.718 in] |
Electrical
| Cord Type | Heavy-duty 14 gauge wire cord, 14/3 SJT type for extreme temperature ranges, integral moulded plug |
| Plug Type | NEMA L5-15P |
| Cord Length | 6 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (lighted on/off power switch) |
| Cord Included | Yes |
| Rated Current | 15 Amps |
| Rated Voltage | 120 VAC (drawing: 125 VAC, 60 Hz) |
| Shielded Cord | No |
| Total Outlets | 6 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Outlets (Front) | 0 |
| Plug Blade Type | Locking |
| Rotated Outlets | No |
| Overcurrent Protection | Resettable 15 Amp, 125 VAC circuit breaker |
Identifiers
| UPC | 623980998138 |
| ECCN | EAR99 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980998138 |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398099813 |
Rack Mounting
| Rack Units | 1U horizontal rackmount installation |
| Rack Width | 19 in |
Packaging & Shipping
| Shipping Weight | 3.5 lbs (1.59 kg) |
Construction & Finish
| Color | Gray |
| Finish | ASA 61 grey powder coat |
| Material | Painted steel (front and back) |
Compliance & Certifications
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
| Series Recognition | UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Approvals (Drawing) | CSA Certified Standards C22.2 (No. 21-95, 42-99); UL Recognized Standard UL1363 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where are the outlets located on the 1583H6C1?▾
All six NEMA 5-15R outlets are on the rear of the unit (0 front, 6 rear). The unit is designed for power distribution from the rear, with the illuminated on/off rocker switch and resettable circuit breaker on the front.
What plug does the cord use and how long is it?▾
The 1583H6C1 comes with a 6 ft cord terminated in a NEMA L5-15P locking plug. The cord is heavy-duty 14 gauge, 14/3 SJT type with an integral moulded plug.
How much rack space does it take up?▾
It is a 1U horizontal 19-inch rackmount unit measuring 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep.
Does this model include surge protection or an ammeter?▾
No. The 1583H6C1 is a basic PDU: surge protection is listed as No and it is not metered. It does include a 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
Is it TAA-compliant for government purchases?▾
Yes. The 1583 Series is TAA-compliant for federal GSA schedule purchases within the USA, and the unit is manufactured in North America with country of origin CA.
What color and finish is this part?▾
1583H6C1 is gray, finished in ASA 61 grey powder coat on painted steel front and back, and the finish complies with the Greenguard guidelines for indoor air quality.
