Hammond 1583H12C1BKX 1U 12-Outlet 15A Rack Mount PDU, Locking Plug
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Twelve NEMA 5-15R outlets: 6 front-facing and 6 rear-facing for equipment on both sides of the rack
- 1U horizontal 19-inch rack mount installation, 444.50 mm [17.500 in] mounting hole centres
- Rated 125 VAC, 60 Hz, 15 Amps with resettable 15 Amp, 125 VAC circuit breaker
- Lighted on/off rocker power switch on the front panel
- Heavy-duty 14/3 SJT cord with integral moulded plug; drawing shows 6 ft NEMA L5-15P locking cord
- Black painted steel front and back, textured black finish, Greenguard indoor air quality guidelines
- CSA Certified C22.2 (No. 21-95, 42-99) and UL Recognized UL1363, UL File # E166039
- RoHS, REACH and USMCA compliant; TAA-compliant; made in North America

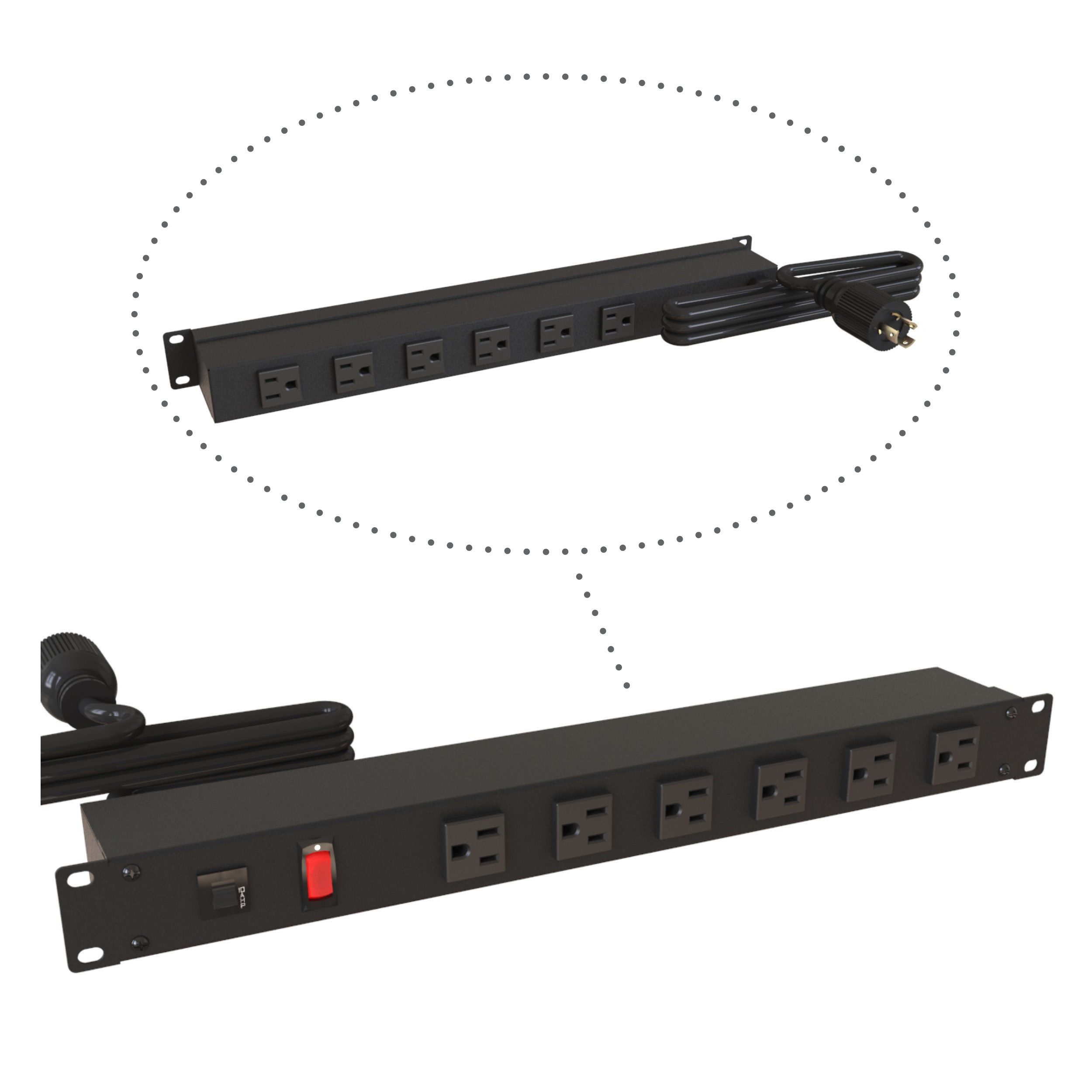

The 1583H12C1BKX is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) rated 15A single-phase, with twelve NEMA 5-15R outlets split six on the front and six on the rear. It is built for IT, AV, broadcast and industrial users who need to distribute 125 VAC power inside a rack or cabinet while keeping cord routing tidy and a switch within reach.
Construction is painted steel, black on both the front and the back, in a textured black finish; the 1583 Series is finished in RAL9005 black or ASA61 gray powder coat and complies with the Greenguard guidelines for indoor air quality. A lighted on/off rocker power switch and a resettable circuit breaker are mounted on the front panel. The included 15 Amp, 125 VAC circuit breaker guards against accidental overload, and the heavy-duty 14/3 SJT cord with integral moulded plug is rated for extreme temperature ranges.
Overall dimensions are 482.60 mm [19.000 in] wide by 43.64 mm [1.718 in] high by 67.58 mm [2.661 in] deep, with 444.50 mm [17.500 in] between mounting hole centres for standard 19-inch rack rails. Shipping weight is 4 lbs (1.81 kg).
The unit is rated 125 VAC, 60 Hz, 15 Amps and is CSA Certified to C22.2 (No. 21-95, 42-99) and UL Recognized to Standard UL1363 (UL File # E166039). 1583H12C1BKX is RoHS and REACH compliant, USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America.
- Note: the drawing and short description for 1583H12C1BKX specify a 6 ft locking NEMA L5-15P power cord; the product attribute table lists plug type 5-15P and cord length 15 ft. Confirm the plug and cord configuration you require before ordering.
Ideal For
- Power distribution from the rear of a rack or cabinet
- 1U horizontal power strip for 19-inch server and network racks
- AV and broadcast rack power with front-accessible outlets
- Federal GSA schedule and TAA-compliant rack build-outs
- Industrial and OEM equipment racks needing breaker-protected 15A power
Overview
| Product Type | Rack Mount Basic PDU / outlet strip (1583 Series) |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 12 Outlets, 6 ft cord, Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, SWITCH, TW LCK |
Dimensions
| Overall Depth | 67.58 mm [2.661 in] (series table: 2.66 in) |
| Overall Width | 482.60 mm [19.000 in] |
| Overall Height | 43.64 mm [1.718 in] (series table: 1.72 in) |
Electrical
| Phase | Single-phase |
| Metered | No |
| Plug Type | NEMA L5-15P locking (drawing and short description); product attributes list 5-15P |
| Cord Length | 6 ft (drawing and long description); product attribute lists 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (lighted) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC (product attributes); 125 VAC, 60 Hz on drawing |
| Shielded Cord | No |
| Total Outlets | 12 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Outlets (Front) | 6 |
| Rotated Outlets | No |
| Surge Protection | No |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type with integral moulded plug |
Identifiers
| UPC | 623980211602 |
| ECCN | EAR99 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980211602 |
| Part Number | 1583H12C1BKX |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398021160 |
Rack Mounting
| Rack Units | 1U horizontal |
| Rack Width | 19 inch |
| Mounting Hole Centres | 444.50 mm [17.500 in] |
| Mounting Flange Dimension | 461.98 mm [18.188 in] |
Packaging & Shipping
| Shipping Weight | 4 lbs (1.81 kg) |
Construction & Finish
| Color | Black (textured black finish per series nomenclature; series finishes RAL9005 black or ASA61 gray powder coat) |
| Material / Finish - Back | Black painted steel |
| Material / Finish - Front | Black painted steel |
Environmental & Protection
| Indoor Air Quality | Complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| TAA | TAA-compliant for federal GSA schedule purchases within the USA |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Series Recognition | UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Approvals (Drawing) | CSA Certified Standards C22.2 (No. 21-95, 42-99); UL Recognized Standard UL1363 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many outlets does 1583H12C1BKX have and where are they located?▾
It has 12 NEMA 5-15R outlets in total: 6 facing the front and 6 facing the rear of the 1U panel.
What plug and cord length does it come with?▾
The part drawing and the short description ("TW LCK") indicate a 6 ft locking NEMA L5-15P power cord, while the product attribute table lists a 5-15P plug and 15 ft cord length. Confirm the required configuration before ordering, as both values appear in the manufacturer data.
Is there overload protection and a power switch?▾
Yes. The unit includes a resettable 15 Amp, 125 VAC circuit breaker to prevent accidental overload and a lighted on/off rocker power switch on the front panel.
How much rack space does it take and what are the mounting dimensions?▾
It is a 1U horizontal unit for 19-inch racks, measuring 482.60 mm [19.000 in] wide, 43.64 mm [1.718 in] high and 67.58 mm [2.661 in] deep, with mounting hole centres 444.50 mm [17.500 in] apart.
Does this PDU include surge protection or metering?▾
No. 1583H12C1BKX is a basic PDU: surge protection, amp metering, shielded cord and rotated outlets are all listed as "No" for this part number.
Is it suitable for US federal purchases?▾
Yes. It is TAA-compliant for federal GSA schedule purchases within the USA, is USMCA compliant, and is manufactured in North America (country of origin CA).
