Hammond 1582H8E1BK 1U 10A PDU, 8 Front C13 Outlets, Switched

The 1582H8E1BK is a 1U horizontal IEC rackmount PDU that distributes single-phase power to networking, server, AV, telecom and other electronic equipment using standard C13 connections. All eight IEC C13 outlets face the front of the unit, making it a practical choice when patching and power connections are made at the front of a 19-inch rack. It is part of the Hammond 1582E Series of 10A IEC rack PDUs.

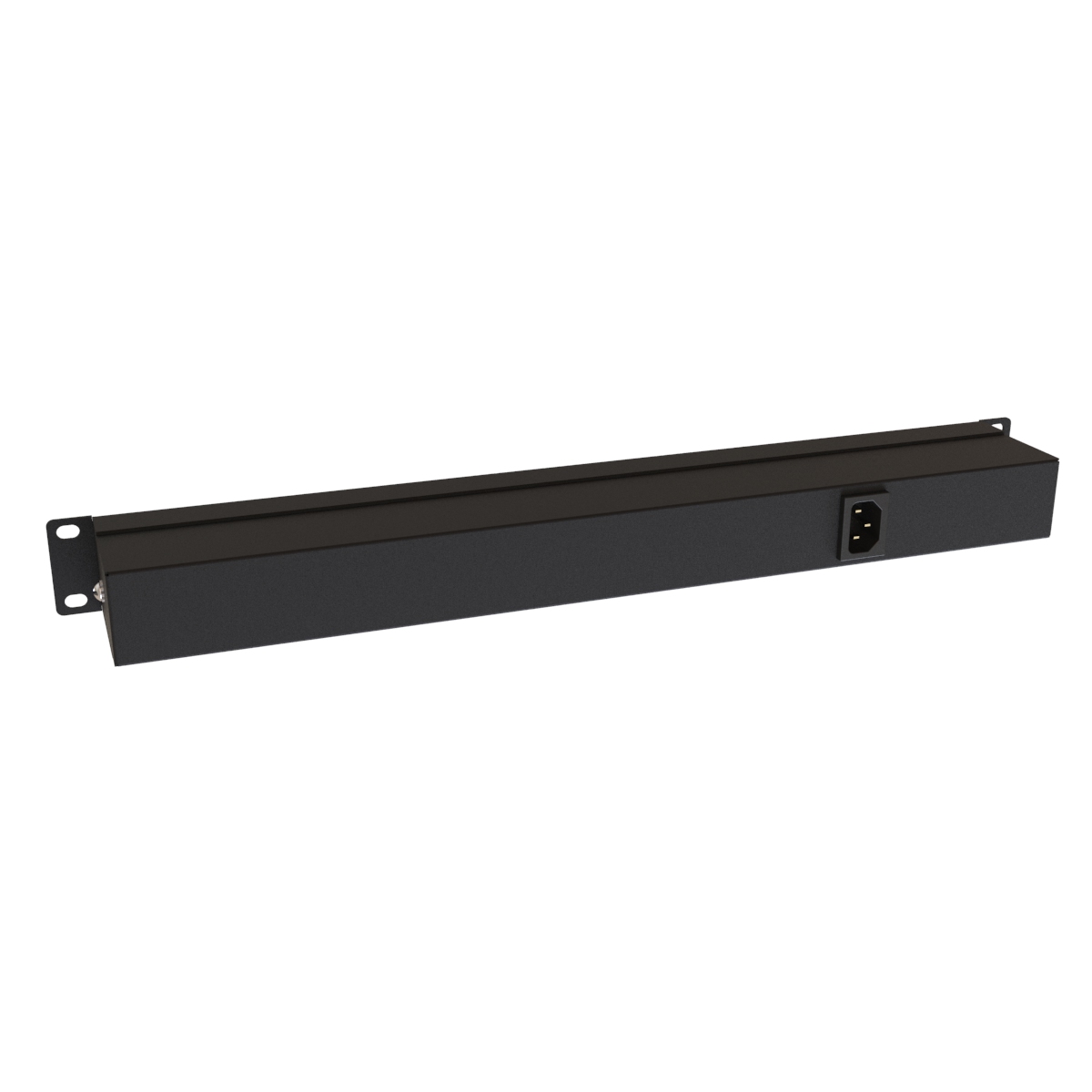

Power comes in through a rear-mounted IEC 320 C14 inlet, so the appropriate IEC input cord can be selected for the installation and regional power connection. An illuminated on/off rocker switch gives a clear visual indication of PDU status, and a resettable circuit breaker protects against accidental line overload. The unit is rated 100-240VAC by TUV and 120-240VAC by UL, 10A, 50/60Hz. It is not metered and does not include surge protection or a power cord.

Overall dimensions are 1.72 in (44 mm) high x 19.00 in (483 mm) wide x 2.66 in (68 mm) deep, with a shipping weight of 2.8 lbs (1.27 kg). The compact 1U horizontal format mounts directly in standard 19-inch racks and cabinets. The finish is a textured RAL9005 black powder coat that meets applicable GREENGUARD indoor air quality and RoHS requirements.

Compliance is extensive: cULus Listed to UL 62368-1 (2nd Edition), 2014-12-01 and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition); TUV-SUD certified to EN 62368-1:2020/A11:2020 and IEC 62368-1:2018; TUV-SUD tested for EMC to EN 55032 and EN 55035; and meeting applicable CE Low Voltage, EMC Directive and UKCA requirements. The 1582H8E1BK is made in Canada, is USMCA and REACH compliant, and is TAA compliant for applicable U.S. federal procurement.
