Hammond 1554YAGY 300x240x120mm IP66 Abs Enclosure, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

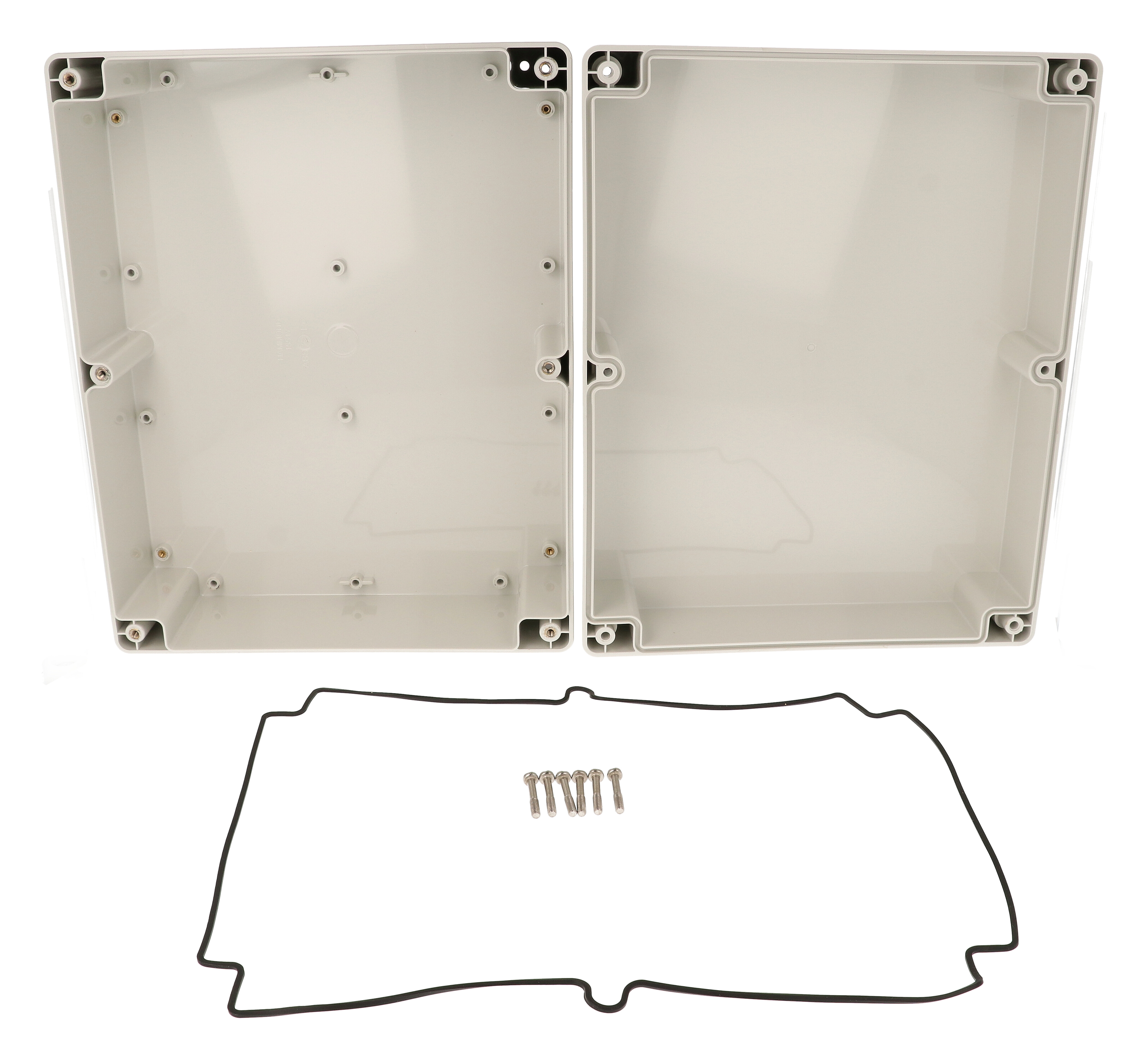

- 300 x 240 x 120 mm (11.81 x 9.45 x 4.72 in) light gray ABS enclosure
- Tested to and meets IP66; IK07 impact rating per IEC 62262:2021
- 111.75 mm (4.40 in) inside height per drawing
- PC boards up to 285 x 225 mm; card guides for 1.5mm boards
- Gasketed tongue and groove lid with 6 self-captivating M4 stainless screws
- 4 M3 brass inserts and 10 #8 self-tapping screw bosses
- Indoor use, -20°C to +60°C (-4°F to +140°F); UL94-HB material
The 1554YAGY is a general purpose ABS enclosure measuring 300 x 240 x 120 mm (11.81 x 9.45 x 4.72 in) in light gray RAL 7035. It is the deep YA size of the 1554 series, with 111.75 mm (4.40 in) of inside height on the drawing, and suits indoor projects where OEMs and electricians need a sealed plastic housing for circuit boards or DIN rail components but do not need UL listing.
ABS versions are molded from a general purpose material rated UL94-HB. They have been tested to and meet IP66 and carry an IK07 impact rating per IEC 62262:2021. The recommended operating temperature is -20°C to +60°C (-4°F to +140°F), and the enclosure is intended for indoor use. The 1554YAGY is RoHS and REACH compliant.
The lid uses the same sealing system as the polycarbonate models: two-piece tongue and groove construction with a replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure. Six self-captivating M4 stainless steel screws thread into corrosion resistant inserts. The recommended torque is 8-9 lbf-in (90-100 cN-m).
The enclosure takes a PC board up to 285 x 225 mm. Internal mounting includes 4 M3 brass inserts and 10 bosses for #8 self-tapping screws, with molded card guides for 1.5mm boards and DIN rail tabs. Pair it with the 1554YPL steel inner panel or the 1554FT-XY foot kit. Shipping weight is 2.79 lbs (1.27 kg). For outdoor or UL 508A applications, the polycarbonate equivalent is 1554YA2GY.
Ideal For
- Indoor control and PCB enclosures
- DIN rail mounted component housings
- Deep indoor junction boxes
- OEM electronics housings
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in (series: all sizes except C and D) |
| Wall Mounting | 4 mounting holes located outside of the gasket channel |
| PC Card Guides | Vertical PC card guides molded in, for 1.5mm thick PC boards |
| Internal Mounting | 4 x M3 brass inserts; 10 x bosses accepting #8 self-tapping screws |
| Foot Kit (Accessory) | 1554FT-XY |
| Inner Panel (Accessory) | 1554YPL steel inner panel, order separately |
Overview
| Type | Water-tight |
| Series | 1554 Series (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Version | ABS, gray lid |
| Lid Style | Flat screw-cover lid |
| Short Description | 300X240X120MM ABS NEMA ENCL |
Dimensions
| Width | 9.45 in (240 mm) |
| Length | 11.81 in (300 mm) |
| Total Height | 4.72 in (120 mm) |
| Size (L X W X H) | 11.81 in x 9.45 in x 4.72 in (300 mm x 240 mm x 120 mm) |
| Max. P.C. Board Width | 225 mm |
| Max. P.C. Board Length | 285 mm |
| Inside Height (Drawing) | 111.75 mm [4.40 in] |
| Inside Length (Drawing) | 289.09 mm [11.38 in] |
| Overall Width (Drawing) | 239.46 mm [9.43 in] |
| Overall Height (Drawing) | 119.73 mm [4.71 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554YGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing available from the factory on quote |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm plated, pkg 100) |
| Replacement Cover Screws | SC583-50 (stainless steel M4-0.7 x 25mm, pkg 50) |
| Panel / P.C. Board Self-Tapping Screw | SC554-100 (#8 x 5/16" (6.4mm)) |
Identifiers
| UPC | 623980406671 |
| UNSPSC | 39121301 |
| Part Number | 1554YAGY |
| Drawing Revision | 28.02.2020 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.79 lbs (1.27 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554YAGY |
| Polycarbonate Gray Lid Version | 1554YA2GY |
| Polycarbonate Clear Lid Version | 1554YA2GYCL |
| Polycarbonate Smoked Lid Version | 1554YA2GYSL |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One-piece replaceable gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| Material | General purpose ABS plastic |
| Lid Screws | 6 x M4 stainless steel machine screws (M4-0.7 x 25mm), self-captivating |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction |
| Lid Screw Inserts | 6 x M4 corrosion resistant inserts; lid holes are threaded with the first installation of lid screws |
| Included In Assembly | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| Environment | For indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | General purpose ABS version is not UL listed |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 (applies to the polycarbonate versions) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554YAGY suitable for outdoor use?▾
No. ABS versions are specified for indoor use. The polycarbonate 1554YA2GY is UV stabilized for outdoor use.
What IP rating does it have?▾
ABS versions have been tested to and meet IP66.
Is it UL listed?▾
No. The general purpose ABS version is not UL listed; the polycarbonate versions are cUL and UL 508A listed under file E65324.
What fits inside?▾
PC boards up to 285 x 225 mm, or the optional 1554YPL steel inner panel. Inside height per the drawing is 111.75 mm.
What comes with it?▾
The box, lid, 6 cover screws and a preformed silicone gasket supplied loose inside the enclosure.
