Hammond 1554XA2GYCL 300x200x120 mm Clear-Lid NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a deep 300 x 200 x 120 mm box
- Interior 289.09 x 189.31 x 111.75 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; IK08
- PC boards up to 285 x 174 mm
- Six M4 stainless steel lid screws, self-captivating
- UV stabilized for outdoor use

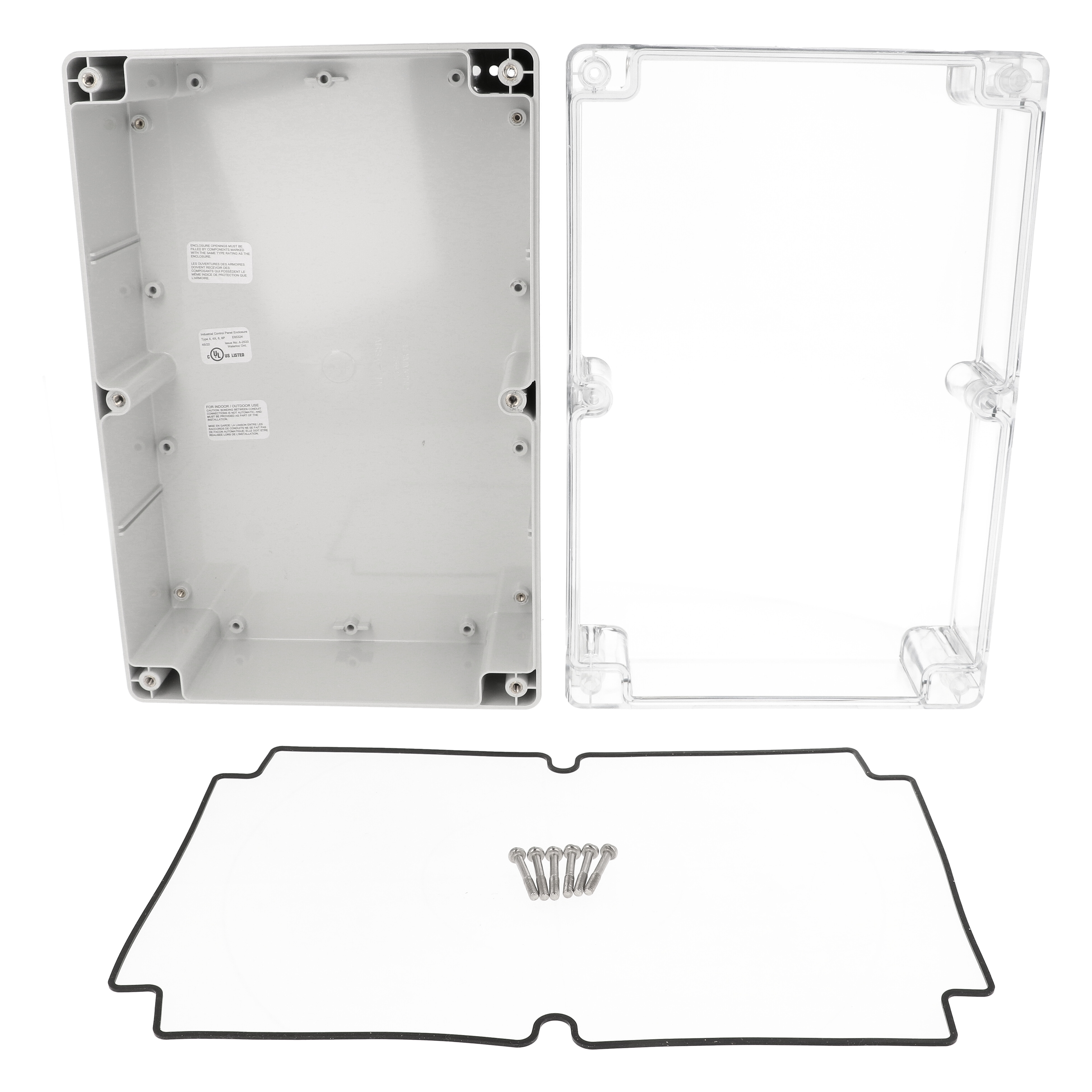

The 1554XA2GYCL is a 300 x 200 x 120 mm watertight polycarbonate enclosure with a clear polycarbonate lid, the deepest clear-cover option in this 300 x 200 mm footprint of the 1554 Series. Its light gray (RAL 7035) box houses PC boards or DIN rail mounted components, while the clear lid keeps displays and indicators in view.
Nominal size is 11.81 x 7.87 x 4.72 in. The drawing shows 299.33 x 199.55 x 119.73 mm overall and a usable interior of 289.09 mm length, 189.31 mm width and 111.75 mm height, with PC boards up to 285 x 174 mm accommodated.
- Four M3 brass inserts and ten #8 self-tapping screw positions for boards or inner panels
- Molded DIN rail tabs and 1.5 mm PC card guides
- 1554XPL steel inner panel, ordered separately
- Six self-captivating M4 stainless steel lid screws; torque 8-9 lbf-in (90-100 cN-m)
A two piece tongue and groove lid and replaceable one-piece silicone gasket (shipped loose) protect against oil, dust and water. Polycarbonate versions are UV stabilized for outdoor use, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 and cUL and UL 508A listed under E65324. The 1554XA2GYCL part page lists UL94 5VA; series data states clear lids carry UL94V-0.
Recommended operating temperature is -40°C to +110°C (-40°F to +230°F). Mount through four 4.39 mm wall holes outside the gasket channel, or with the 1554FT-XY foot kit. Shipping weight is 2.86 lb (1.30 kg).
Ideal For
- Deep outdoor enclosures with visible displays
- Meter and indicator housings
- DIN rail component assemblies
- Wash-down and wet locations
Mounting
| Foot Kit | 1554FT-XY (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.39 mm, located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | Polycarbonate box / clear polycarbonate lid |
| Lid Style | Screw cover, flat gasketed lid |
| Short Description | 300X200X120MM P/C NEMA CLR LID |
| Enclosure Size Family | 1554XA |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 189.31 mm [7.45 in] |
| Total Height | 4.72 in (120 mm) |
| Inside Height | 111.75 mm [4.40 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size L X W X H | 11.81 in x 7.87 in x 4.72 in (300 mm x 200 mm x 120 mm) |
| Max. P.C. Board Width | 174 mm |
| Max. P.C. Board Length | 285 mm |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 119.73 mm [4.71 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| Steel Inner Panel | 1554XPL (order separately) |
| Replacement Gasket | 1554XGASKET |
| Replacement Screws (50-pk) | SC583-50 |
| Related Versions (Same Size) | ABS gray lid 1554XAGY; polycarbonate gray lid 1554XA2GY; clear lid 1554XA2GYCL; smoked lid 1554XA2GYSL |
| Stainless Steel Cover Screws | SC583-50 — M4-0.7 x 25 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554XGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 — #8 x 5/16" (6.4 mm) |
Identifiers
| UPC | 623980406411 |
| UNSPSC | 39121301 |
| Part Number | 1554XA2GYCL |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | 4X M3 brass inserts; standoffs accept #8 self-tapping screws |
| Self-Tapping Positions (Drawing) | 10X #8 self-tapping screw positions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.86 lbs (1.30 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 6 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | 6X M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Purchased Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| UV / Outdoor | UV stabilized for outdoor use |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed, cULus Listed Type 4, 4X, 6, 6P |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flame Ratings (Series Data) | Solid gray polycarbonate UL94-5VA (@ 3 mm); clear and smoked lids UL94V-0 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1554XA2GYCL different from 1554XA2GY?▾
It has a clear polycarbonate lid instead of a solid gray one; the 300 x 200 x 120 mm box is the same.
How much inside height is there?▾
111.75 mm (4.40 in) per the drawing.
What replacement screws does it take?▾
SC583-50, stainless steel M4-0.7 x 25 mm cover screws in a pack of 50.
Is it suitable for NEMA 4X locations?▾
Polycarbonate versions have been independently tested to NEMA Type 4, 4X, 6, 6P, 12 and 13.
What torque should be used on the lid?▾
8-9 lbf-in (90-100 cN-m).
Related Products

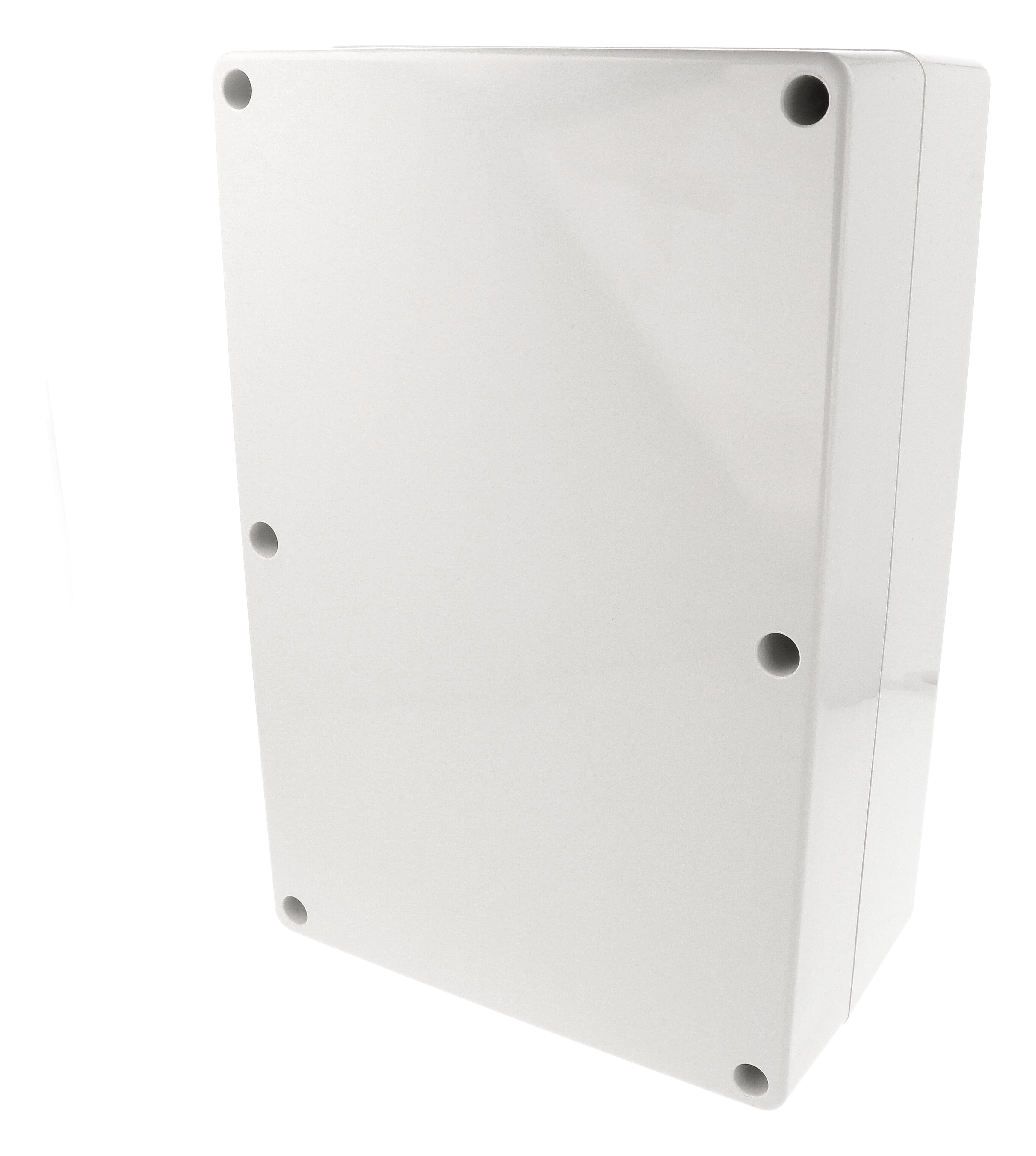

Save 52%1554XA2GY — 300X200X120MM Polycarb NEMA
Hammond Manufacturing · 1554XA2GY
Save 52%1554XA2GYSL — 300X200X120MM P/C NEMA Smk Ld
Hammond Manufacturing · 1554XA2GYSL

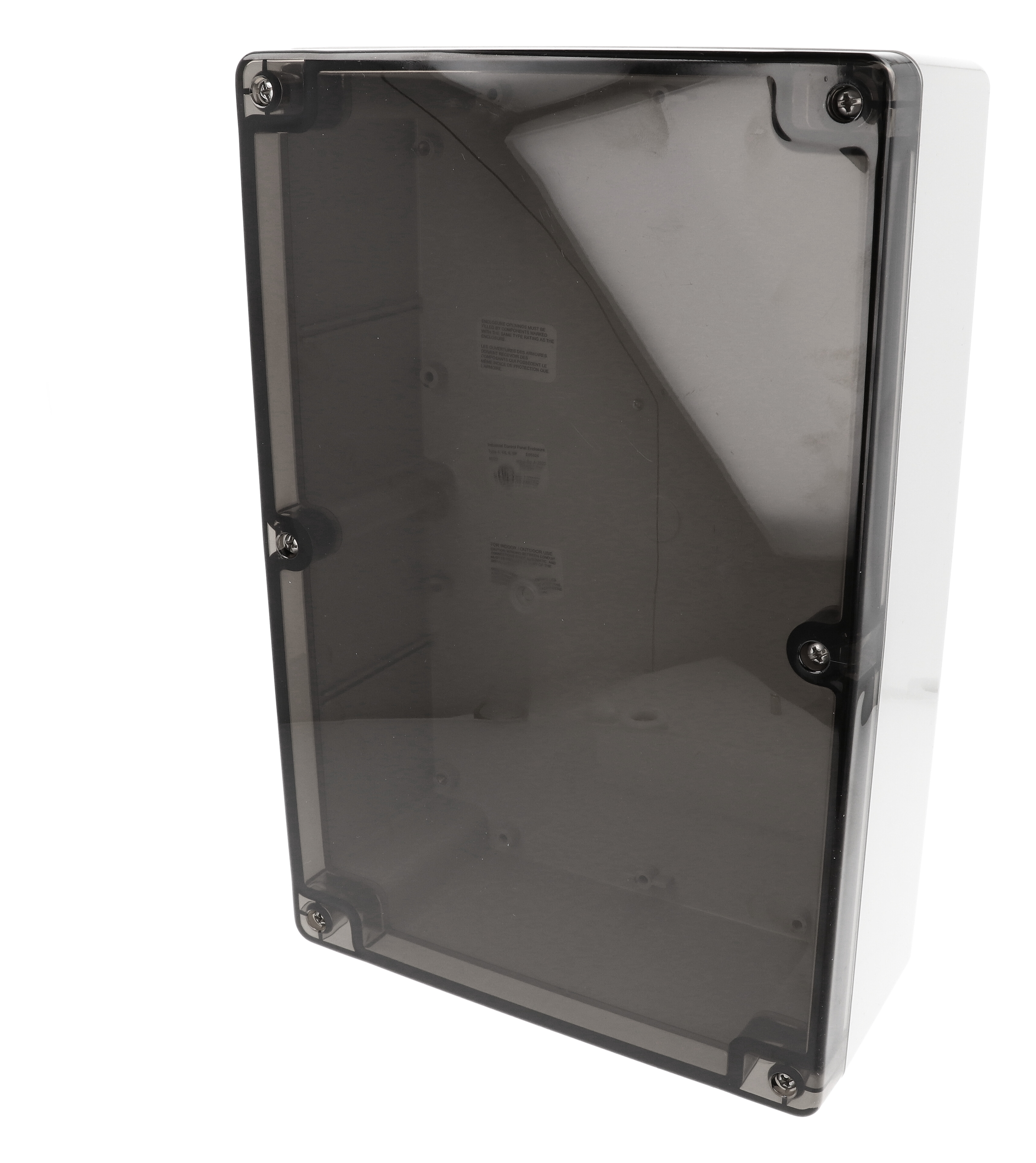

Save 52%1554X2GYSL — 300X200X90MM P/C NEMA Smk Lid
Hammond Manufacturing · 1554X2GYSL
Save 52%1554XACL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554XACL

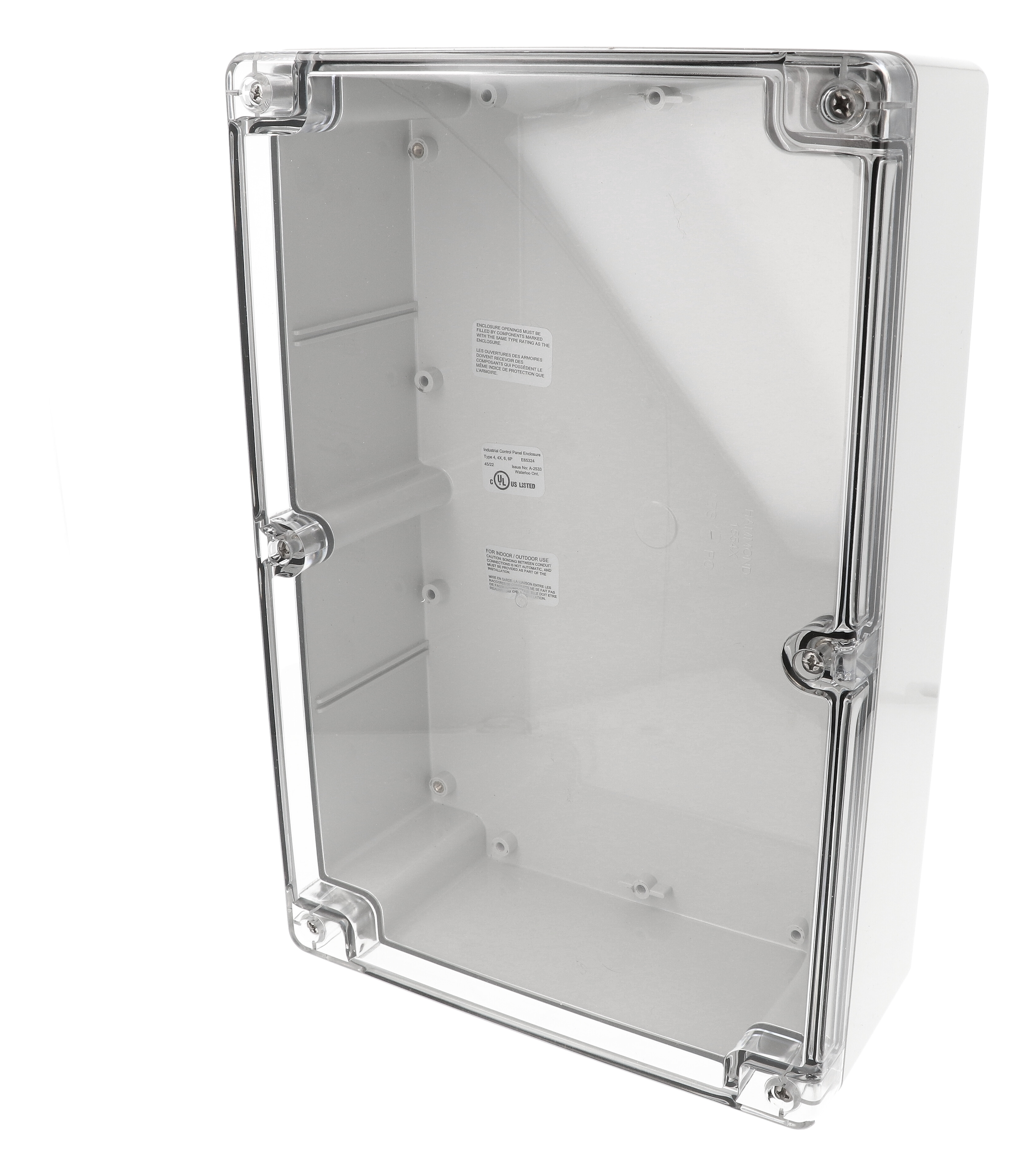

Save 52%1554X2GYCL — 300X200X90MM P/C NEMA Clr Lid
