Hammond 1554X2GYCL 300x200x90 mm Clear Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid for viewing internal displays and indicators
- 300 x 200 x 90 mm nominal; inside 289.09 x 189.31 x 81.82 mm
- IP68, NEMA 4, 4X, 6, 6P, 12 & 13; IK08 impact
- cUL and UL 508A listed, file E65324
- Holds PC boards up to 285 x 174 mm
- Six M4 stainless lid screws, torque 8-9 lbf-in
- UV stabilized for outdoor use, -40°C to +110°C

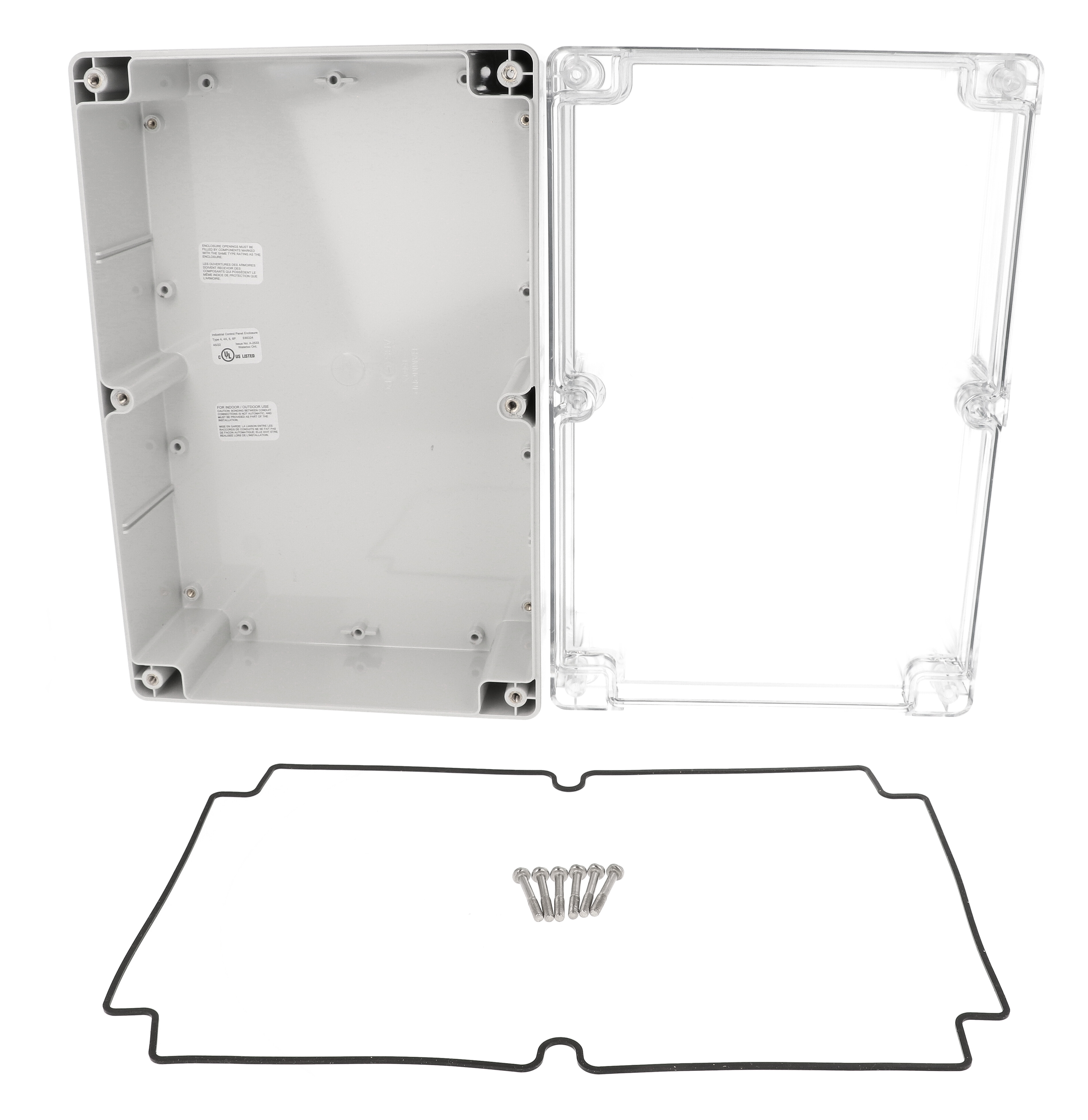

1554X2GYCL combines a light gray (RAL 7035) polycarbonate box with a clear polycarbonate lid in the 300 x 200 x 90 mm size of the 1554 Series. The window-style cover lets technicians read meters, displays and indicator LEDs on PC boards or DIN rail mounted components without breaking the seal, in outdoor or wash-down locations.
The enclosure is 11.81 x 7.87 x 3.54 in (300 x 200 x 90 mm) nominal and 299.33 x 199.55 x 89.80 mm on the drawing. Usable interior space is 289.09 x 189.31 x 81.82 mm, with a maximum PC board of 285 x 174 mm.
- Four M3 brass inserts and ten positions accepting #8 self-tapping screws
- Molded DIN rail tabs and vertical card guides for 1.5 mm boards
- Optional 1554XPL steel inner panel, ordered separately
- Six self-captivating M4 stainless steel lid screws in corrosion resistant inserts
- Replaceable one-piece silicone gasket, shipped loose
The tongue and groove lid seals against oil, dust and water; tighten cover screws to 8-9 lbf-in (90-100 cN-m). Polycarbonate versions are UV stabilized, IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 rated, IK08 impact rated and cUL and UL 508A listed under file E65324. The 1554X2GYCL part page lists a UL94 5VA flame rating; the series data gives clear lids a UL94V-0 rating. Recommended operating range is -40°C to +110°C. Mount via four 4.39 mm wall holes or the 1554FT-XY foot kit.
Ideal For
- Outdoor enclosures with visible meters or displays
- Indicator LED and status panel housings
- PC board assemblies up to 285 x 174 mm
- Wet and wash-down industrial sites
Mounting
| Foot Kit | 1554FT-XY (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.39 mm, located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | Polycarbonate box / clear polycarbonate lid |
| Lid Style | Screw cover, flat gasketed lid |
| Short Description | 300X200X90MM P/C NEMA CLR LID |
| Enclosure Size Family | 1554X |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 189.31 mm [7.45 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 81.82 mm [3.22 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size L X W X H | 11.81 in x 7.87 in x 3.54 in (300 mm x 200 mm x 90 mm) |
| Max. P.C. Board Width | 174 mm |
| Max. P.C. Board Length | 285 mm |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 89.80 mm [3.54 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
Accessories
| Steel Inner Panel | 1554XPL (order separately) |
| Replacement Gasket | 1554XGASKET |
| Replacement Screws (50-pk) | SC583-50 |
| Related Versions (Same Size) | ABS gray lid 1554XGY; polycarbonate gray lid 1554X2GY; clear lid 1554X2GYCL; smoked lid 1554X2GYSL |
| Stainless Steel Cover Screws | SC583-50 — M4-0.7 x 25 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554XGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 — #8 x 5/16" (6.4 mm) |
Identifiers
| UPC | 623980406367 |
| UNSPSC | 39121301 |
| Part Number | 1554X2GYCL |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | 4X M3 brass inserts; standoffs accept #8 self-tapping screws |
| Self-Tapping Positions (Drawing) | 10X #8 self-tapping screw positions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.39 lbs (1.08 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 6 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | 6X M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Purchased Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| UV / Outdoor | UV stabilized for outdoor use |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed, cULus Listed Type 4, 4X, 6, 6P |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flame Ratings (Series Data) | Solid gray polycarbonate UL94-5VA (@ 3 mm); clear and smoked lids UL94V-0 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why choose the clear lid 1554X2GYCL?▾
The clear polycarbonate lid lets you see inside the 300 x 200 x 90 mm enclosure without opening it.
What are the inside dimensions?▾
289.09 mm long, 189.31 mm wide and 81.82 mm high, per the drawing.
What flame rating applies?▾
The part page lists UL94 5VA; the series data states clear and smoked lids carry UL94V-0 and solid gray polycarbonate UL94-5VA.
Is the gasket pre-installed?▾
No. The replaceable silicone gasket is supplied loose inside the enclosure; replacements are 1554XGASKET.
Which inner panel fits?▾
The 1554XPL steel inner panel, ordered separately.
