Hammond 1554WAGY 180x180x90 mm ABS Watertight Enclosure, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS box and lid in light gray RAL 7035
- 180 x 180 x 90 mm nominal; inside 171.32 x 168.38 x 83.70 mm
- Tested to and meets IP66; IK07 impact rating
- UL94-HB material, for indoor use, -20°C to +60°C
- PC boards up to 167 x 167.5 mm; DIN rail tabs and card guides
- Four M4 stainless lid screws with corrosion resistant bushings
- Replaceable silicone gasket, supplied loose
The 1554WAGY is the general purpose ABS member of the 180 x 180 x 90 mm size in the 1554 Series. Box and lid are both light gray (RAL 7035) ABS, making it a cost-conscious choice for indoor projects that still need a gasketed, watertight screw-cover housing for printed circuit boards or DIN rail mounted components.
Nominal dimensions are 7.09 x 7.09 x 3.54 in (180 x 180 x 90 mm). Per the drawing the interior offers 171.32 mm length, 168.38 mm width and 83.70 mm height, and the listed maximum PC board is 167 x 167.5 mm. Inside you get molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards; the 1554WPL steel inner panel is available separately.

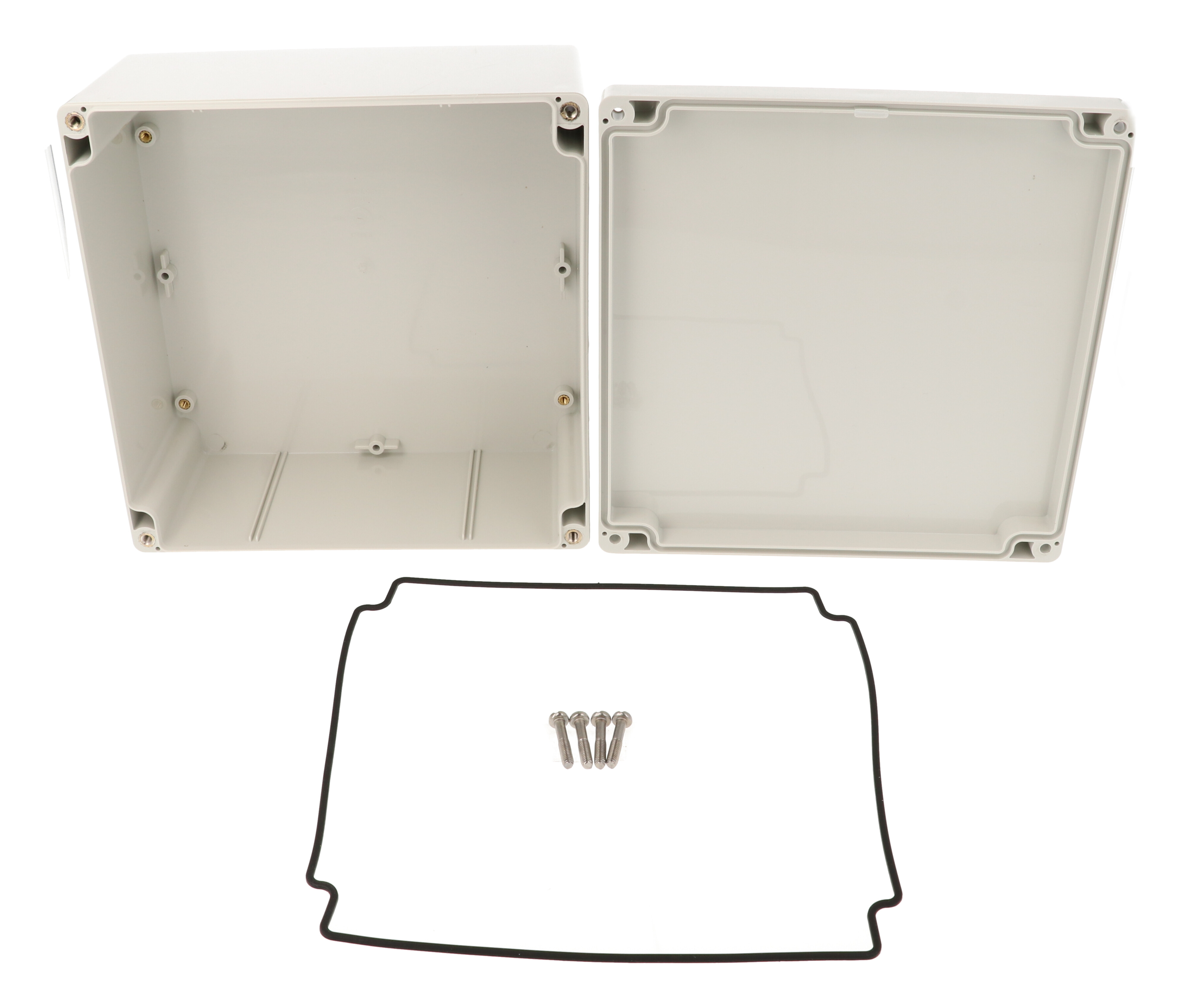

The lid uses two piece tongue and groove construction with a replaceable one-piece silicone gasket, supplied loose, to keep out oil, dust and water. Four included M4 stainless steel screws thread into corrosion resistant bushings and are self-captivating. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).
ABS versions are molded from general purpose UL94-HB material for indoor use. They are not UL listed but have been tested to and meet IP66, with an IK07 impact rating per IEC 62262:2021 and a recommended operating range of -20°C to +60°C (-4°F to +140°F). Mount 1554WAGY through four 4.30 mm wall holes outside the gasket channel, or fit the 1554FT foot kit.
Ideal For
- Indoor PC board housings
- DIN rail mounted control components
- Indoor electronics in dusty or damp areas
- Prototype and OEM instrument enclosures
Mounting
| Foot Kit | 1554FT (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.30 mm [0.17 in], located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | General Purpose ABS, gray lid |
| Lid Style | Screw cover, flat gasketed lid |
| Long Description | RAL7035 grey ABS plastic watertight enclosure |
| Short Description | 180X180X90MM ABS NEMA ENCL. |
| Enclosure Size Family | 1554WA |
Dimensions
| Width | 7.09 in (180 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 168.38 mm [6.63 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 83.70 mm [3.30 in] |
| Inside Length | 171.32 mm [6.74 in] |
| Size L X W X H | 7.1 in x 7.1 in x 3.54 in (180 mm x 180 mm x 90 mm) |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Overall Width (Drawing) | 180.00 mm [7.09 in] |
| Overall Height (Drawing) | 90.10 mm [3.55 in] |
| Overall Length (Drawing) | 180.00 mm [7.09 in] |
Accessories
| Steel Inner Panel | 1554WPL (order separately) |
| Replacement Gasket | 1554WGASKET |
| Replacement Screws (50-pk) | SC576-50 |
| Related Versions (Same Size) | ABS gray lid 1554WAGY; polycarbonate gray lid 1554WA2GY; clear lid 1554WA2GYCL; smoked lid 1554WA2GYSL |
| Stainless Steel Cover Screws | SC576-50 — M4-0.7 x 20 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554WGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 — #6 x 1/4" (6.4 mm), plated (Pkg 100) |
Identifiers
| UPC | 623980762043 |
| UNSPSC | 39121301 |
| Part Number | 1554WAGY |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts; standoffs accept #6 self-tapping screws |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 4 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
| Purchased Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Impact Rating | IK07 per IEC 62262:2021 |
| Indoor / Outdoor | For indoor use |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (General Purpose ABS version is not UL approved) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (As Listed On Part Page) | E65324 — series listing applies to polycarbonate versions |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554WAGY UL listed?▾
No. ABS versions are not UL listed, but they have been tested to and meet IP66.
Can I use it outdoors?▾
ABS versions are specified for indoor use. The polycarbonate 1554WA2GY versions are UV stabilized for outdoor use.
What temperature range is recommended?▾
-20°C to +60°C (-4°F to +140°F) for ABS versions.
What is in the box?▾
The box, lid, 4 cover screws and a preformed silicone gasket, which ships loose inside the enclosure.
How do I wall mount it?▾
Use the four 4.30 mm wall mounting holes located outside the gasket channel, or install the 1554FT foot kit in the same holes.
Related Products

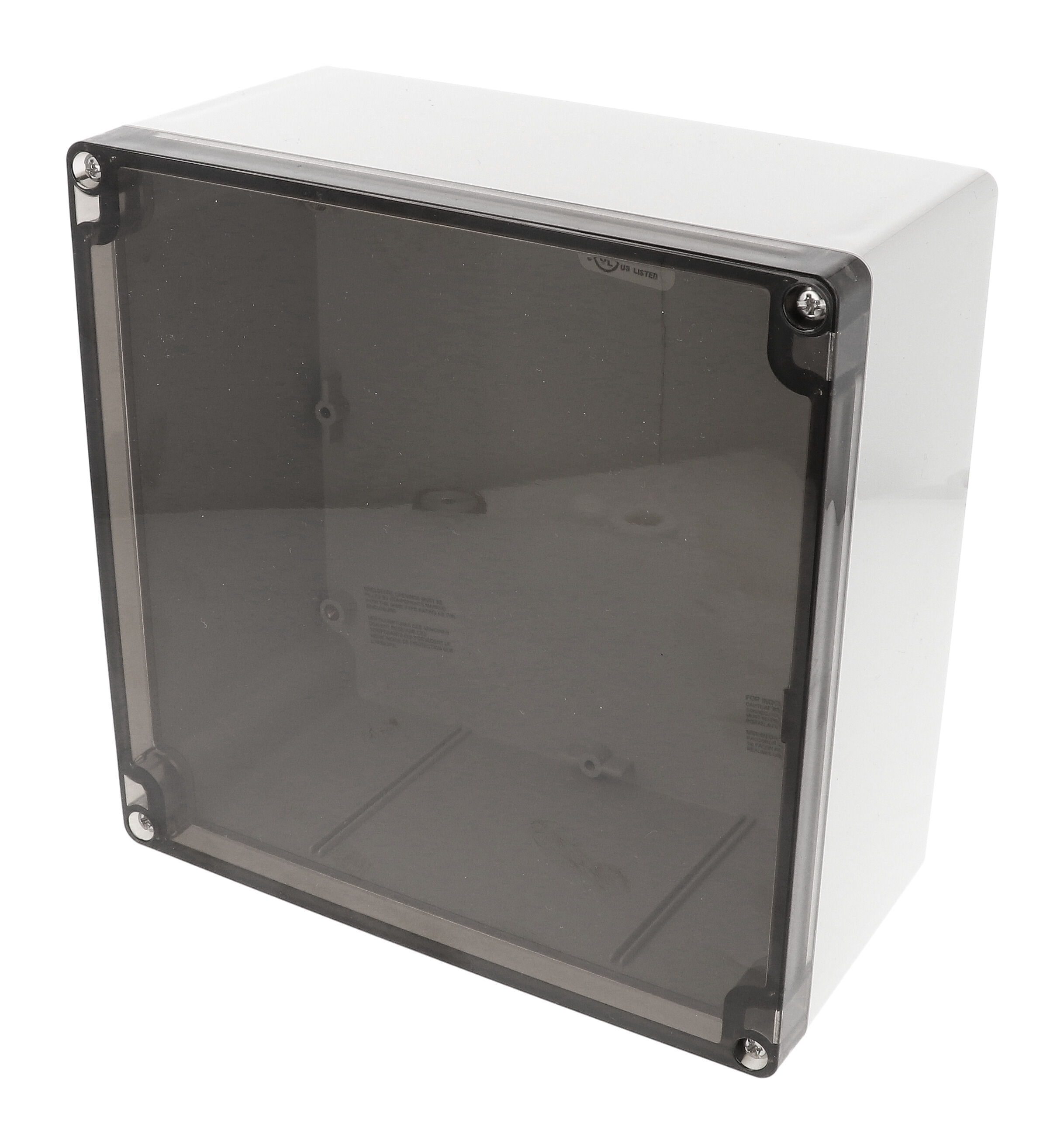

Save 52%1554WA2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554WA2GYSL
Save 52%1554WCL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554WCL

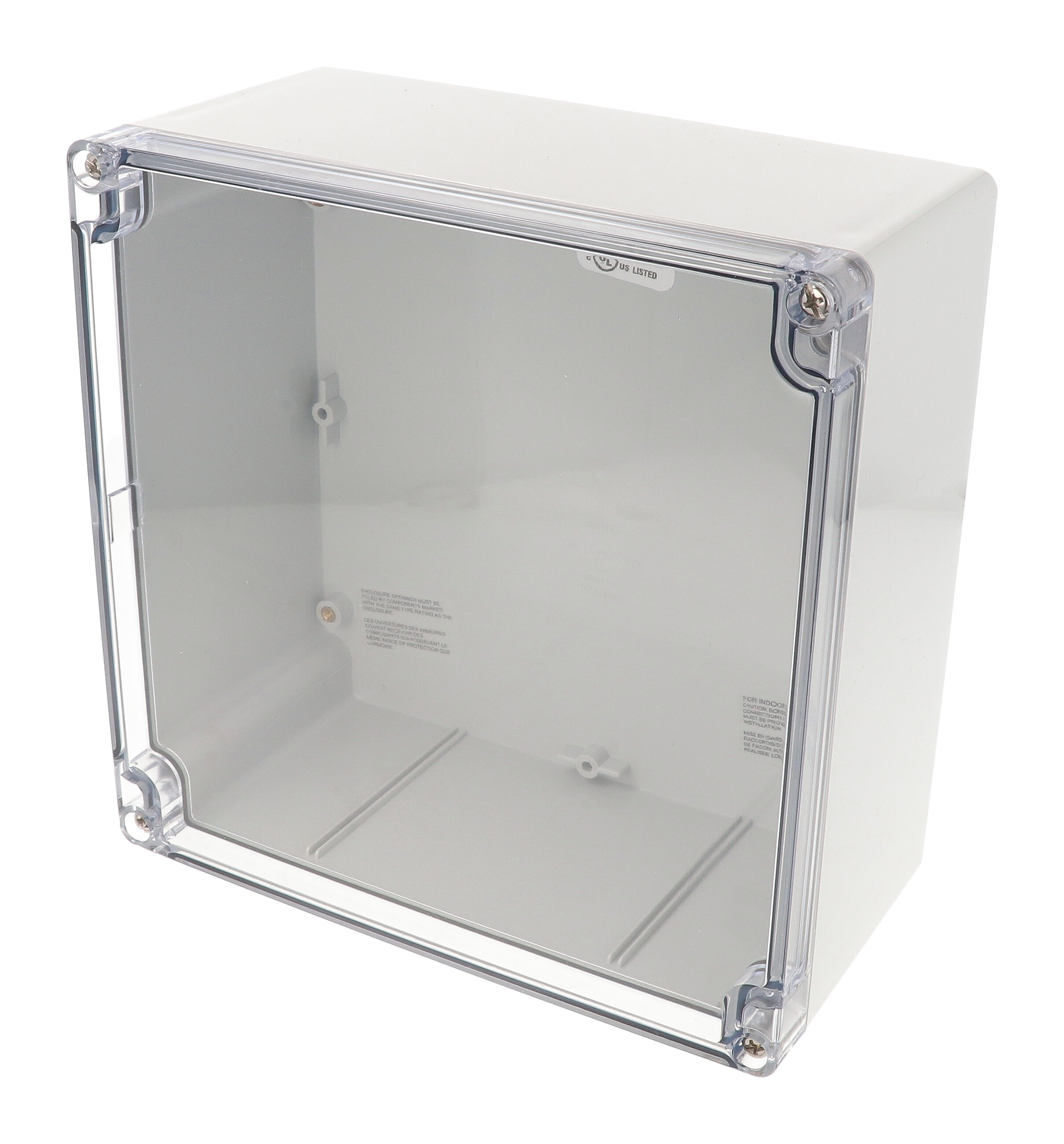

Save 52%1554WA2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554WA2GYCL
Save 52%1554WGASKET — replacement gaskets for 1554 series, 2-pack
Hammond Manufacturing · 1554WGASKET

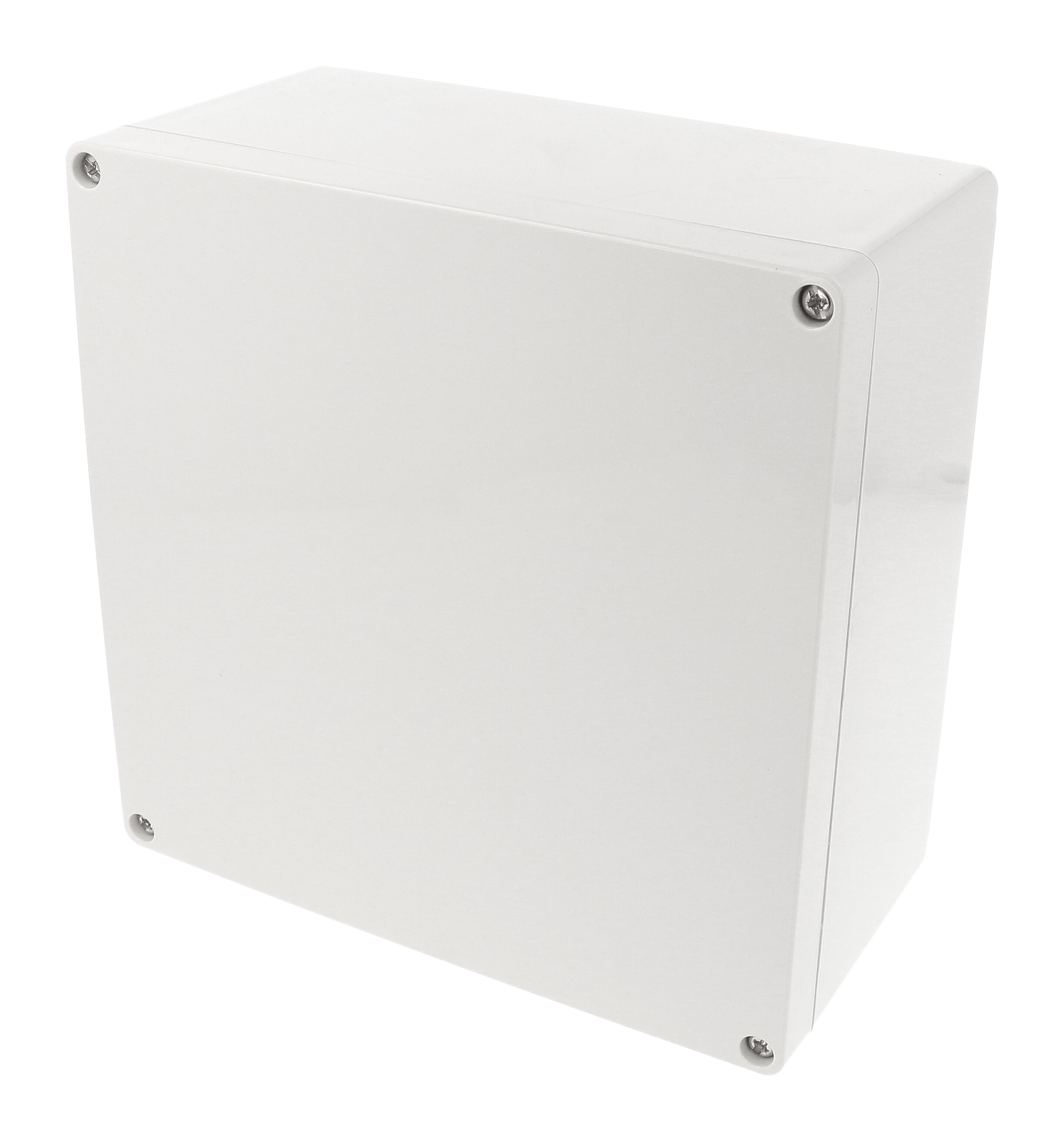

Save 52%1554WA2GY — RAL7035 grey polycarb plastic watertight enclosure
