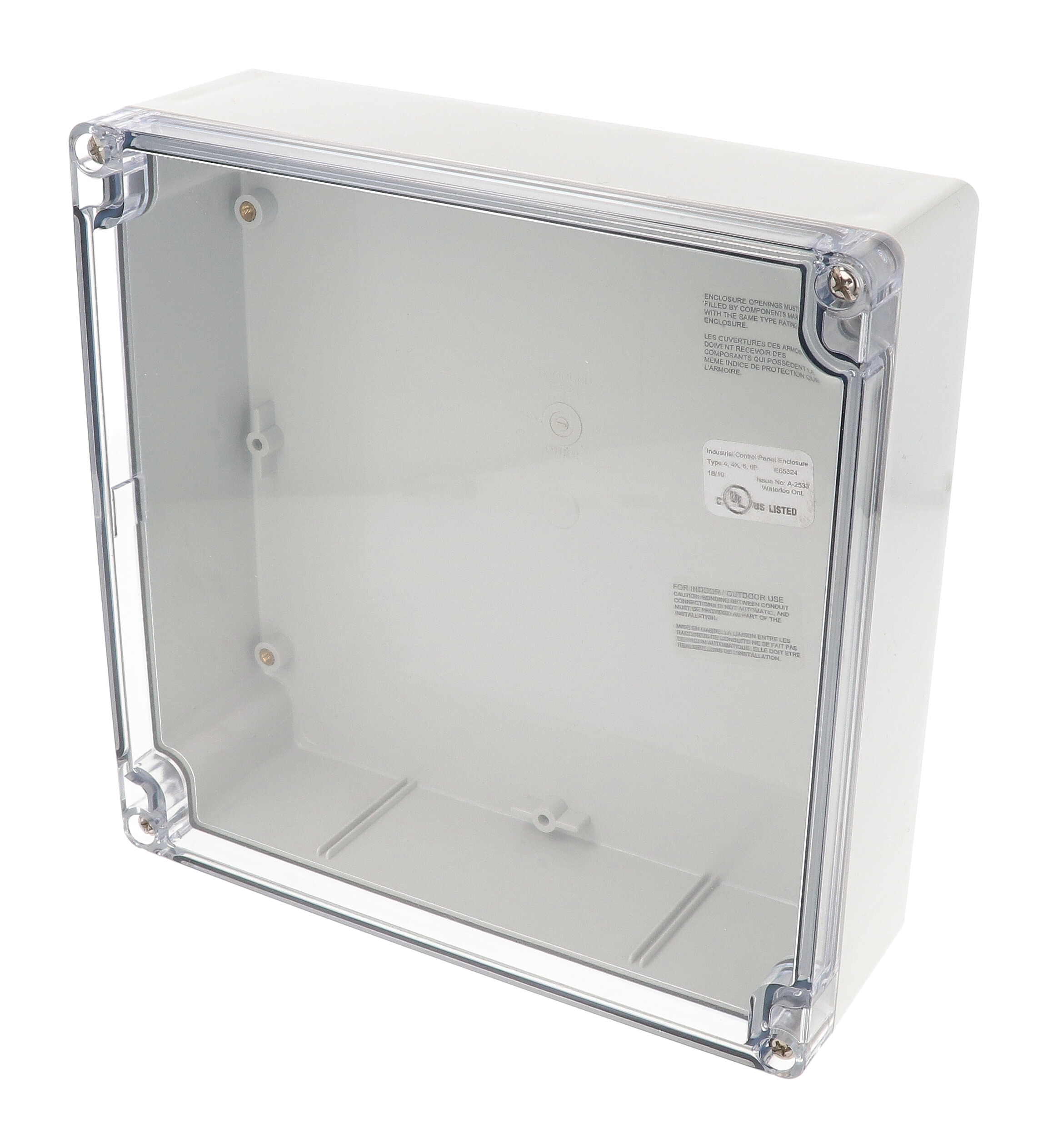

Hammond 1554WA2GYCL 180x180x90 mm Clear-Lid Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a light gray RAL 7035 polycarbonate box
- 180 x 180 x 90 mm (7.09 x 7.09 x 3.54 in) nominal size
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13; cUL and UL 508A listed, file E65324
- Inside 171.32 x 168.38 x 83.70 mm; accepts PC boards up to 167 x 167.5 mm
- DIN rail tabs, M3 brass inserts and 1.5 mm PC card guides molded in
- Four self-captivating M4 stainless lid screws in corrosion resistant bushings
- UV stabilized, IK08 impact, -40°C to +110°C recommended operating range
The 1554WA2GYCL is a square, screw-cover watertight enclosure from the 1554 Series, pairing a light gray (RAL 7035) polycarbonate box with a clear polycarbonate lid so indicators, displays or status LEDs stay visible without opening the unit. It suits OEM engineers, integrators and electricians housing printed circuit boards or DIN rail mounted components in wet or dusty locations.
Nominal size is 180 x 180 x 90 mm (7.09 x 7.09 x 3.54 in). The drawing gives an inside length of 171.32 mm, inside width of 168.38 mm and inside height of 83.70 mm, with room for a PC board up to 167 x 167.5 mm. Molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards give several internal mounting options; a 1554WPL steel inner panel is ordered separately.
The lid seals on a one-piece, replaceable high temperature silicone gasket in a two piece tongue and groove joint, and is held by four included M4 stainless steel screws that thread into corrosion resistant bushings. The screws are self-captivating; the gasket ships loose inside the enclosure. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).
Polycarbonate versions are UV stabilized for outdoor use, rated IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13, carry an IK08 impact rating and are cUL and UL 508A listed under file E65324. The part page lists a UL94 V-0 flame rating for 1554WA2GYCL and a recommended operating range of -40°C to +110°C. Four 4.30 mm wall mounting holes sit outside the gasket channel and also accept the 1554FT foot kit.
Ideal For
- Outdoor electronics housing needing a view window
- PC board and DIN rail component enclosures
- Status display or LED indicator enclosures
- Wash-down and wet locations (NEMA 4X, 6P)
Mounting
| Foot Kit | 1554FT (installs in the wall mounting holes) |
| Wall Mounting Holes | 4X Ø4.30 mm [0.17 in], located outside of the gasket channel |
Overview
| Type | Water-tight |
| Series | 1554 Series — Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Version | Polycarbonate box / clear polycarbonate lid |
| Lid Style | Screw cover, flat gasketed lid |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Short Description | 180X180X90MM P/C NEMA CLR LID |
| Enclosure Size Family | 1554WA |
Dimensions
| Width | 7.09 in (180 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 168.38 mm [6.63 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 83.70 mm [3.30 in] |
| Inside Length | 171.32 mm [6.74 in] |
| Size L X W X H | 7.1 in x 7.1 in x 3.54 in (180 mm x 180 mm x 90 mm) |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Overall Width (Drawing) | 180.00 mm [7.09 in] |
| Overall Height (Drawing) | 90.10 mm [3.55 in] |
| Overall Length (Drawing) | 180.00 mm [7.09 in] |
Accessories
| Steel Inner Panel | 1554WPL (order separately) |
| Replacement Gasket | 1554WGASKET |
| Replacement Screws (50-pk) | SC576-50 |
| Related Versions (Same Size) | ABS gray lid 1554WAGY; polycarbonate gray lid 1554WA2GY; clear lid 1554WA2GYCL; smoked lid 1554WA2GYSL |
| Stainless Steel Cover Screws | SC576-50 — M4-0.7 x 20 mm (Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 — M3-0.5 x 8 mm, plated (Pkg 100) |
| Silicone Pre-formed Gasket, Black | 1554WGASKET (Pkg 2) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 — #6 x 1/4" (6.4 mm), plated (Pkg 100) |
Identifiers
| UPC | 623980762067 |
| UNSPSC | 39121301 |
| Part Number | 1554WA2GYCL |
Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts; standoffs accept #6 self-tapping screws |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Screws | 4 x M4 stainless steel machine screws included, self-captivating, threaded into corrosion resistant bushings |
| Lid Inserts | M4 corrosion resistant inserts |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protection against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |

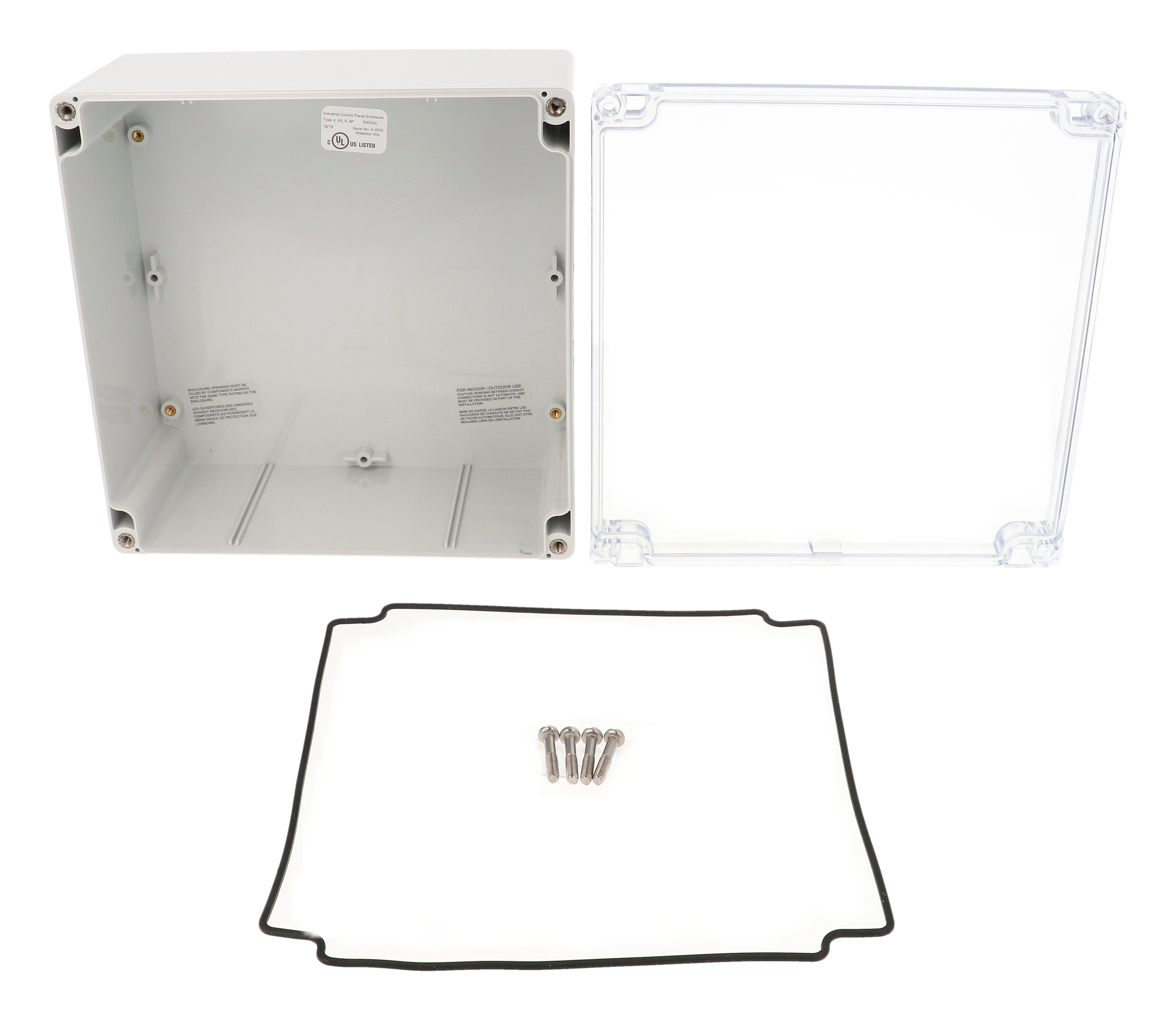

| Purchased Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| UV / Outdoor | UV stabilized for outdoor use |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed, cULus Listed Type 4, 4X, 6, 6P |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flame Ratings (Series Data) | Solid gray polycarbonate UL94-5VA (@ 3 mm); clear and smoked lids UL94V-0 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Can I see inside the 1554WA2GYCL without removing the lid?▾
Yes. This version has a clear polycarbonate lid on a light gray polycarbonate box.
What size PC board fits?▾
The maximum PC board size listed is 167 mm long by 167.5 mm wide. Vertical card guides are molded in for 1.5 mm thick boards.
Is it suitable for outdoor use?▾
Polycarbonate versions are UV stabilized for outdoor use and tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
Is the gasket already installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. Replacement gaskets are 1554WGASKET (pack of 2).
What is included?▾
The purchased assembly includes the box, lid, 4 cover screws and a preformed silicone gasket. The 1554WPL inner panel is ordered separately.
