Hammond 1554W2GYSL 180x180x60mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94 V-0) on a square light gray polycarbonate box
- 180 x 180 x 60 mm; 53.70 mm inside height
- cUL and UL 508A listed, E65324
- Tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13
- Four stainless M4 self-captivating lid screws, 43-57 ozf-in torque
- PC boards to 167 x 167.5 mm; molded DIN rail tabs
- UV stabilized; IK08 impact; -40°C to +110°C

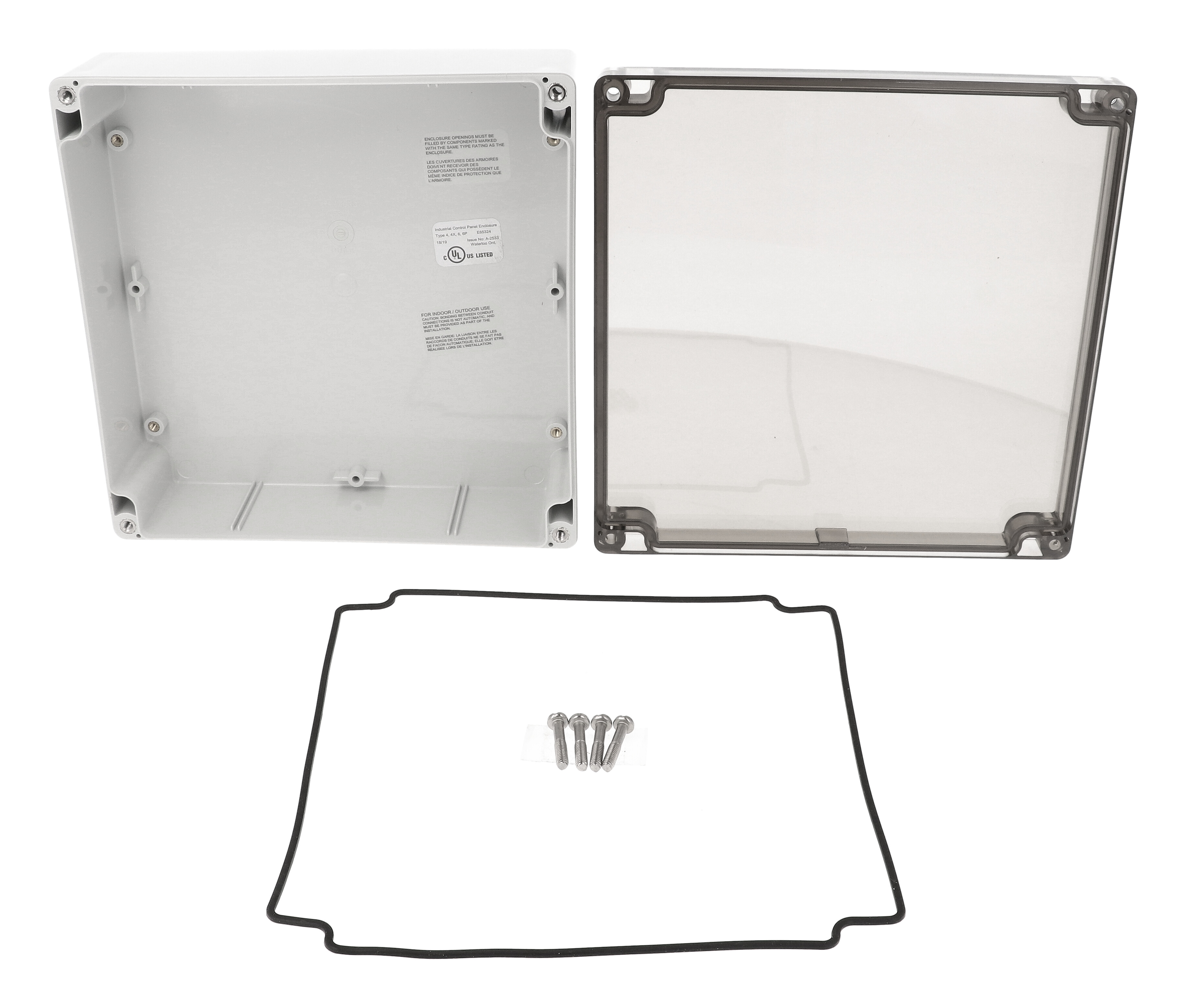

The 1554W2GYSL pairs a light gray (RAL 7035) polycarbonate base with a smoked polycarbonate lid in a square 180 x 180 x 60 mm format. The tinted cover shows internal indicators while giving a darker appearance than the clear-lid version, and suits integrators and OEM designers building sealed electronics for outdoor duty.
The ordering table gives 7.09 x 7.09 x 2.36 in (180 x 180 x 60 mm) and the part page lists a nominal 7.1 x 7.1 x 2.36 in. The drawing shows 60.10 mm overall height and inside dimensions of 172.36 x 168.69 x 53.70 mm. PC boards up to 167 x 167.5 mm mount on molded vertical card guides for 1.5 mm boards, M3 brass inserts or #6 self-tapping standoffs, and DIN rail tabs are molded in.
The smoked lid is rated UL94 V-0. Polycarbonate versions are UV stabilized, cUL and UL 508A listed under E65324 (drawing mark UL Listed Type 4, 4X, 6, 6P), and tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, with IK08 impact per IEC 62262:2021 and a -40°C to +110°C (-40°F to +230°F) recommended range.
Four included self-captivating stainless steel M4 screws thread into corrosion resistant inserts; torque them to 43-57 ozf-in (30-40 cN-m). The replaceable silicone gasket ships loose. Four 4.30 mm wall mounting holes outside the gasket channel accept the 1554FT foot kit, and the 1554WPL inner panel fits this size. The 1554W2GYSL weighs 0.95 lbs (0.43 kg) shipped, shrink wrapped, RoHS and REACH compliant.
Ideal For
- Outdoor controls with a tinted cover
- Square PC board housings
- Indicator enclosures in wet areas
- UL 508A control assemblies
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / smoke polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 180X180X60MM P/C NEMA SMK LID |
Dimensions
| Width | 7.09 in (180 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 168.69 mm [6.64 in] |
| Total Height | 2.36 in (60 mm) |
| Inside Height | 53.70 mm [2.11 in] |
| Inside Length | 172.36 mm [6.79 in] |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Nominal Size (L X W X H) | 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
Identifiers
| UPC | 623980762012 |
| UNSPSC | 39121301 |
| Part Number | 1554W2GYSL |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 4 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.95 lbs (0.43 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554WGY |
| Polycarbonate Gray Lid Version | 1554W2GY |
| Polycarbonate Clear Lid Version | 1554W2GYCL |
Construction & Finish
| Lid | Smoked polycarbonate |
| Color | Light Gray |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Flame Rating | UL94 V-0 |
| UV Stabilized | Yes, for outdoor use |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Material Flammability (Drawing) | Polycarbonate: UL94 - 5VA @ 3 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and incompatible greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listed Mark (Drawing) | c UL US Listed, Type 4, 4X, 6, 6P |
Mounting & Internal Features
| Standoffs | Accept #6 self-tapping screws for PC board or inner panel mounting |
| Inner Panel | 1554WPL steel inner panel (order separately) |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | Threaded M3 integral brass inserts (inside box) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in], located outside of the gasket channel |
| Foot Kit (Accessory) | 1554FT, installs using the wall mounting holes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1554W2GYSL?▾
Inside length 172.36 mm [6.79 in], inside width 168.69 mm [6.64 in], inside height 53.70 mm [2.11 in].
Is it certified for outdoor use?▾
Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under E65324, and tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13.
Which replacement screws fit?▾
SC576-50, a 50-pack of stainless steel M4-0.7 x 20 mm cover screws.
Can it be mounted on feet instead of a wall?▾
Yes, the wall mounting holes can be used to install the 1554FT accessory foot kit.
Are CAD models available?▾
The drawing states solid models are available in .stp or .x_t.
