Hammond 1554W2GYCL 180x180x60mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94 V-0) on a square light gray polycarbonate box
- 180 x 180 x 60 mm; inside 172.36 x 168.69 x 53.70 mm
- cUL and UL 508A listed under E65324
- IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13 tested
- Four self-captivating stainless steel M4 cover screws included
- PC boards to 167 x 167.5 mm; DIN rail tabs and card guides molded in
- UV stabilized for outdoor use; IK08 impact rating

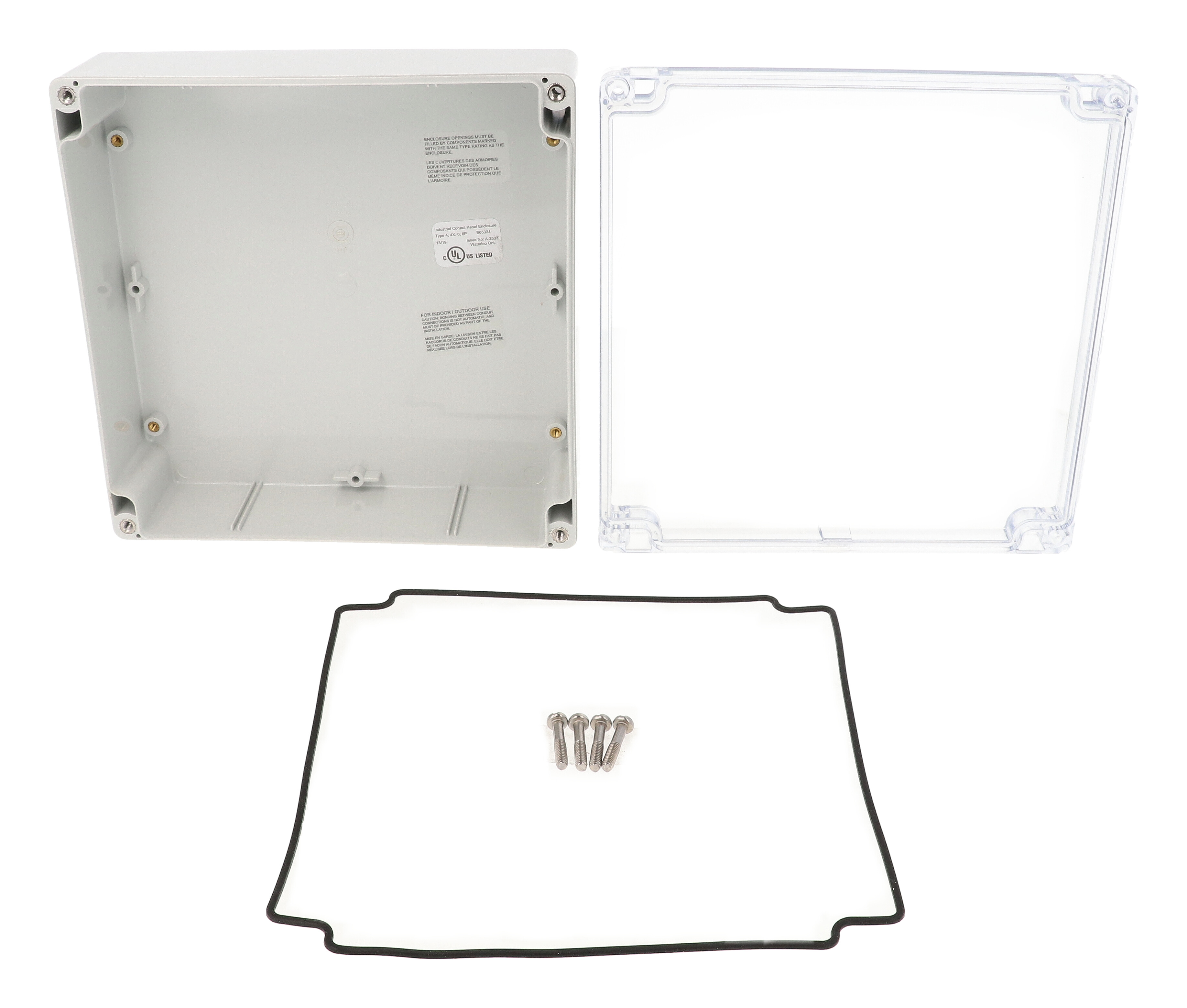

The 1554W2GYCL is a square 180 x 180 x 60 mm enclosure with a light gray (RAL 7035) polycarbonate box and a clear polycarbonate lid, so status lights, displays or labels inside stay visible. It serves designers and installers who need a sealed, UL listed housing for compact electronics outdoors.
Dimensions are 7.09 x 7.09 x 2.36 in per the ordering table (nominal 7.1 x 7.1 x 2.36 in on the part page), with a 60.10 mm overall height and 172.36 x 168.69 x 53.70 mm inside per the drawing. Boards up to 167 x 167.5 mm fit on molded card guides, M3 brass inserts or #6 self-tapping standoffs; DIN rail tabs are molded in and a 1554WPL steel inner panel is available separately.
- Clear polycarbonate lid rated UL94 V-0
- cUL and UL 508A listed, E65324; UL Listed Type 4, 4X, 6, 6P mark on the drawing
- Tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13
- UV stabilized, IK08 impact, -40°C to +110°C (-40°F to +230°F)
The lid seals on a replaceable, one piece high temperature silicone gasket that ships loose, and is fastened by four included self-captivating stainless steel M4 screws threaded into corrosion resistant inserts. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).
Four 4.30 mm wall mounting holes sit outside the gasket channel and also take the 1554FT foot kit. The 1554W2GYCL ships shrink wrapped at 0.95 lbs (0.43 kg), RoHS and REACH compliant.
Ideal For
- Outdoor displays and indicators behind a clear cover
- Square PC board housings
- Wet-location PC board electronics
- UL 508A listed control assemblies
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / clear polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 180X180X60MM P/C NEMA CLR LID |
Dimensions
| Width | 7.09 in (180 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 168.69 mm [6.64 in] |
| Total Height | 2.36 in (60 mm) |
| Inside Height | 53.70 mm [2.11 in] |
| Inside Length | 172.36 mm [6.79 in] |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Nominal Size (L X W X H) | 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
Identifiers
| UPC | 623980762005 |
| UNSPSC | 39121301 |
| Part Number | 1554W2GYCL |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 4 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.95 lbs (0.43 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554WGY |
| Polycarbonate Gray Lid Version | 1554W2GY |
| Polycarbonate Smoked Lid Version | 1554W2GYSL |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Light Gray |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Flame Rating | UL94 V-0 |
| UV Stabilized | Yes, for outdoor use |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Material Flammability (Drawing) | Polycarbonate: UL94 - 5VA @ 3 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and incompatible greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listed Mark (Drawing) | c UL US Listed, Type 4, 4X, 6, 6P |
Mounting & Internal Features
| Standoffs | Accept #6 self-tapping screws for PC board or inner panel mounting |
| Inner Panel | 1554WPL steel inner panel (order separately) |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | Threaded M3 integral brass inserts (inside box) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in], located outside of the gasket channel |
| Foot Kit (Accessory) | 1554FT, installs using the wall mounting holes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554W2GYCL used for?▾
It is a square watertight enclosure with a clear lid for mounting PC boards or DIN rail components where the contents need to stay visible.
What flame rating does the clear lid have?▾
UL94 V-0.
What is the recommended cover screw torque?▾
43-57 ozf-in (30-40 cN-m) for this size.
Is the gasket pre-installed?▾
No, the silicone gasket is supplied loose inside the enclosure. The replacement is 1554WGASKET (pkg 2).
What other lid options exist in this size?▾
1554W2GY (gray polycarbonate lid), 1554W2GYSL (smoked lid) and the ABS version 1554WGY.
Related Products

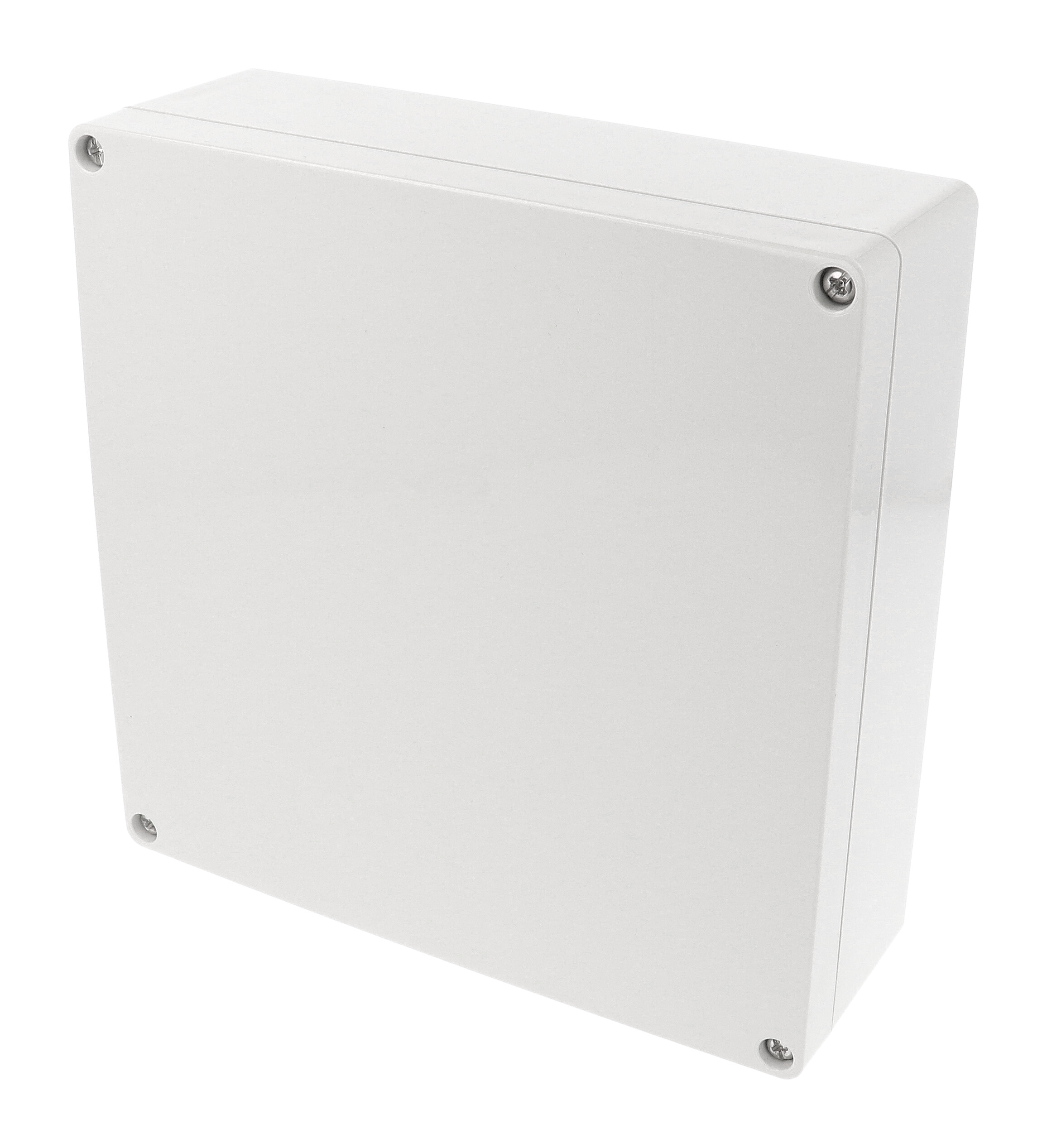

Save 52%1554W2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554W2GY
Save 52%1554W2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554W2GYSL
Save 52%1554VPL — Panel for 1554V - Galv
Hammond Manufacturing · 1554VPL
Save 52%1554WA2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554WA2GY

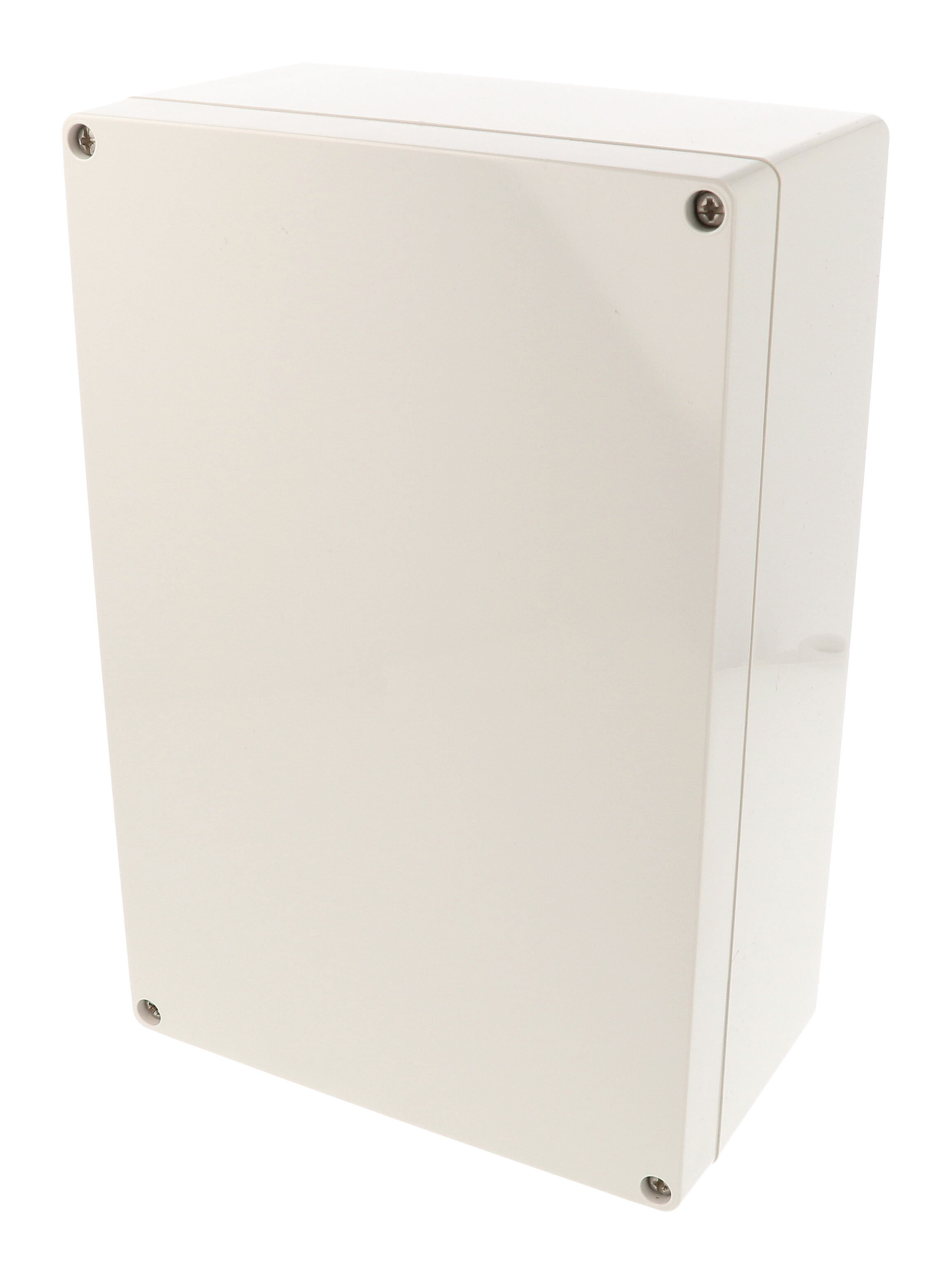

Save 52%1554VGY — RAL7035 grey ABS plastic watertight enclosure
